CDX1-1445/16

Kod EAN: 0739894582353

PA horn driver, 20 W, 16 Ω High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet One-piece PETP cone and surround Integrated cone and rear cover for easy replacement Recommended crossover frequency: 2,200 Hz (12 d...

víc

Staň se partnerem
Kup teď


CDX1-1445/16

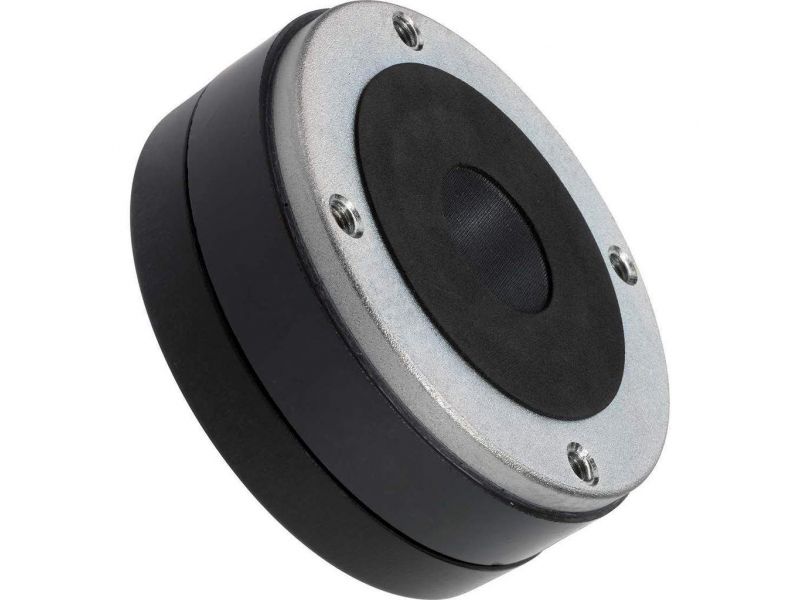

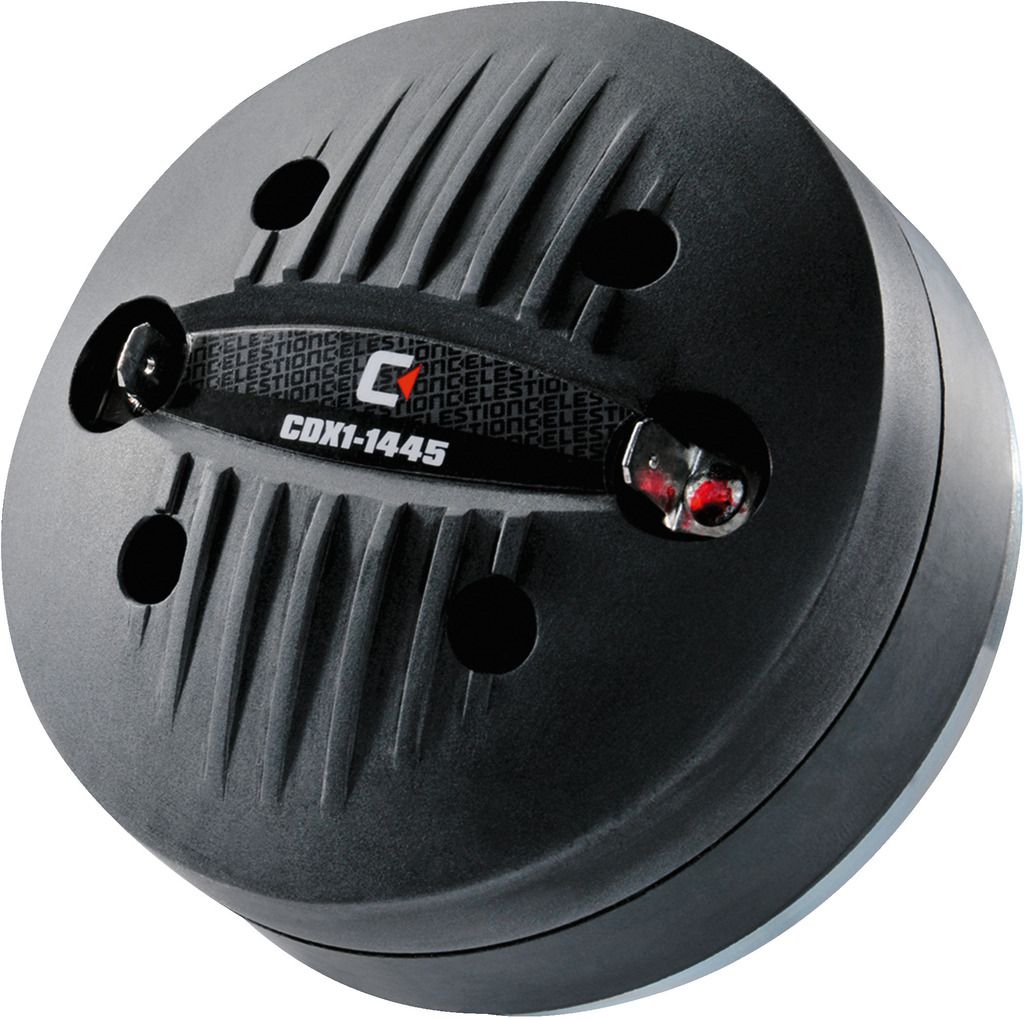

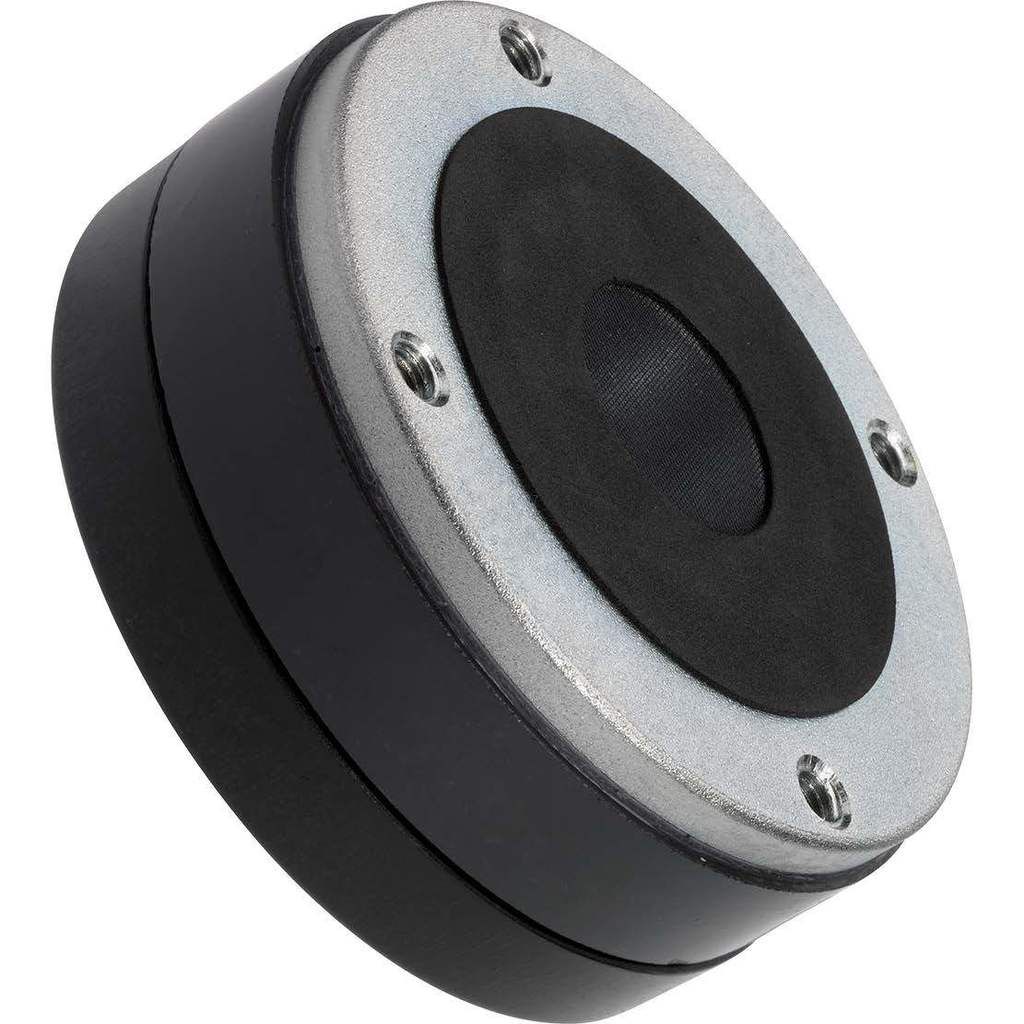

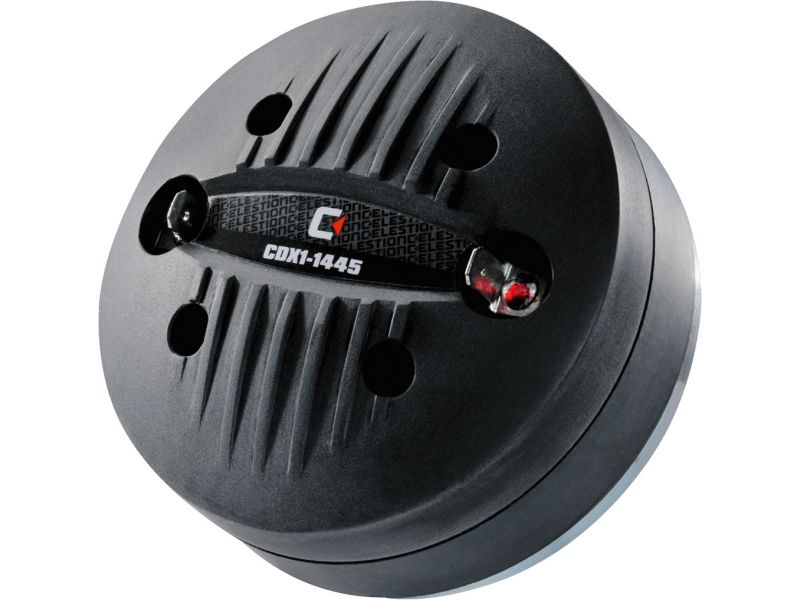

PA horn driver, 20 W, 16 Ω
  • High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
  • One-piece PETP cone and surround
  • Integrated cone and rear cover for easy replacement
  • Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
  • 4-hole screw mounting
  • Also available as 8 Ω version CDX1-1445/8
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 16 Ω
Transmission technology cable
Frequency range 1,500-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,200 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
SPL 106 dB/W/m
Voice coil diameter Ø 35 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (4x M6)
Dimensions Ø 90 mm x 52 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Height Ø 90 mm
Depth 52 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.98 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.13 x 0.08 x 0.11 m
Gross weight 1.09 kg
Net weight 0.98 kg

Na stáhnutí

Produktová karta CDX1-1445/16 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
