SP-25A/200NEO
Kod EAN: CENA NA VYŽIADANIE
Professional PA bass-midrange speaker
DT-140
Kod EAN: 4007754235050
Hi-fi dome tweeter, 80 WMAX, 40 WRMS, 4 Ω 25 mm (1") výškový reproduktor s hodvábnou kupolou Konzistentný radiačný obrazec spôsobený vlnovodom kombinovaný s 5 "až 6,5" stredobasovými reproduktormi Neodymový magnetický systém s magnetický systém s chlad...
33,39 € brutto
(inkl. 23% DPH)
27,15 € netto
DT-140

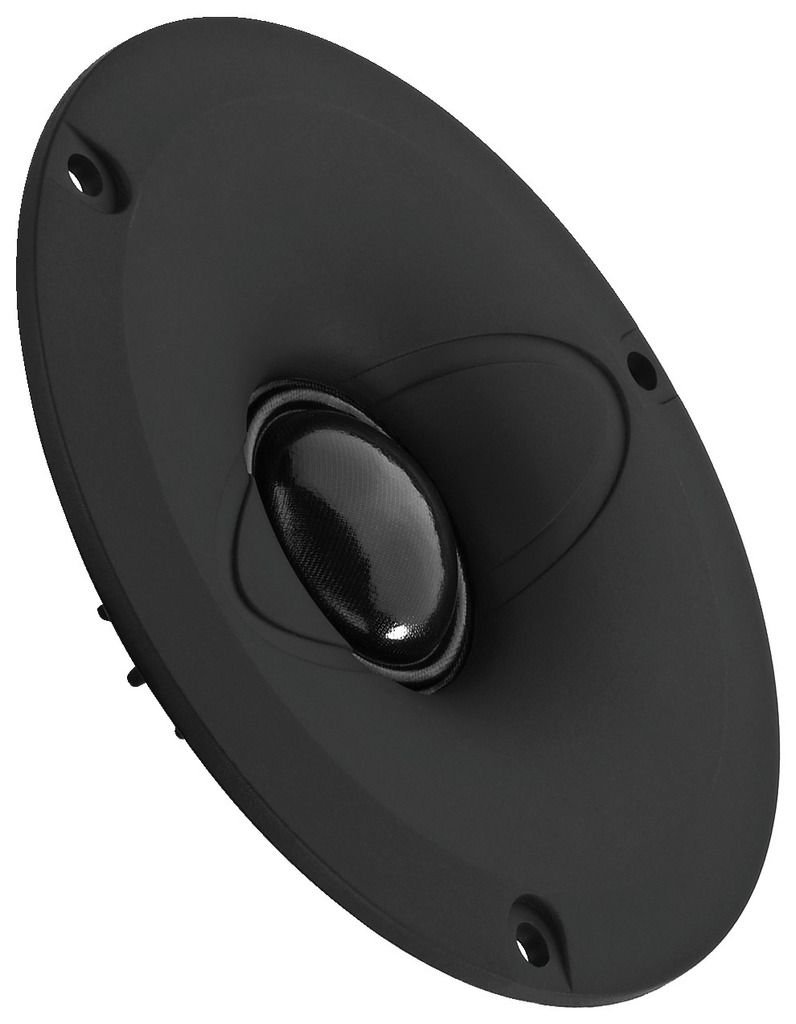

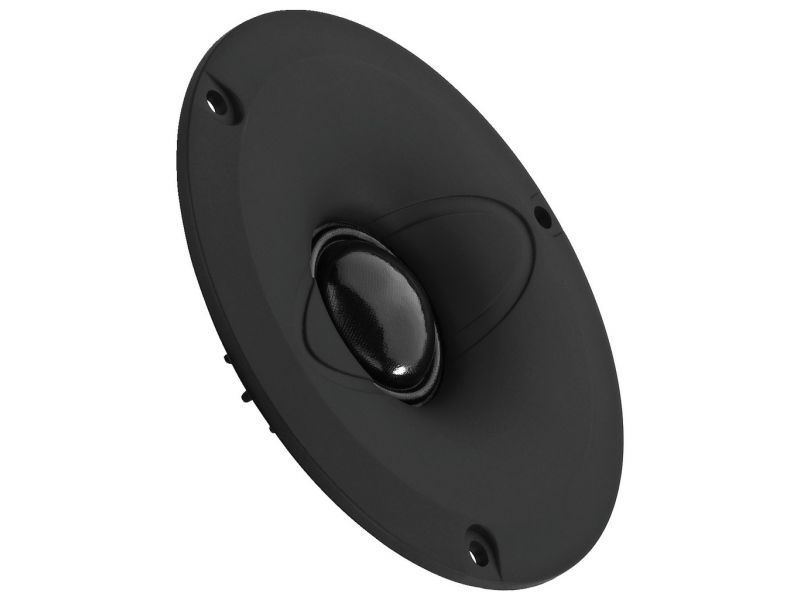

Hi-fi dome tweeter, 80 WMAX, 40 WRMS, 4 Ω
- 25 mm (1") výškový reproduktor s hodvábnou kupolou
- Konzistentný radiačný obrazec spôsobený vlnovodom kombinovaný s 5 "až 6,5" stredobasovými reproduktormi
- Neodymový magnetický systém s magnetický systém s chladičom
- Veľmi malé magnetické pole
HOBBY HIFI 01/2014
"The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price."
"The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price."
Parametry
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |

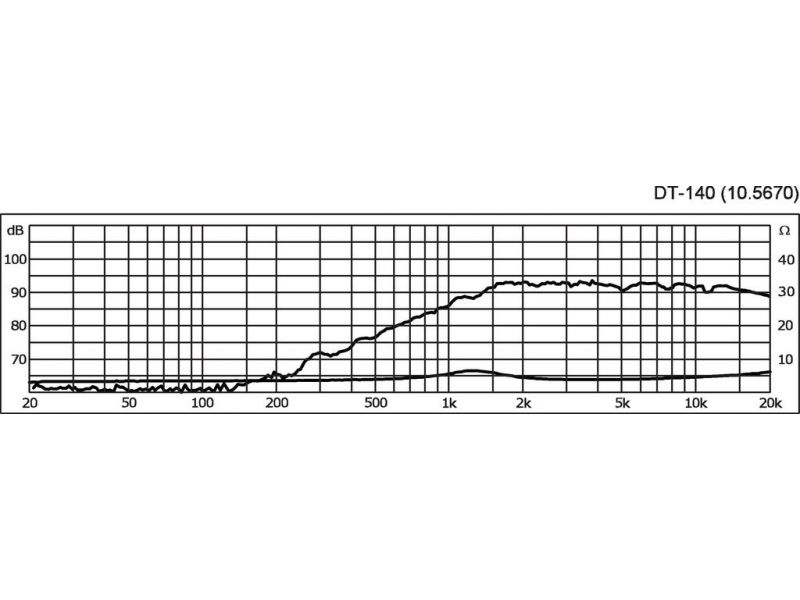

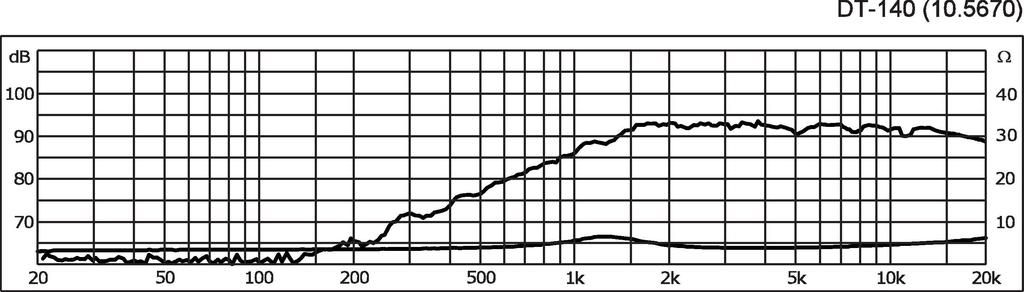

| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 1,200 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 40 W |
| Peak music power output (MAX) | 80 W |
| SPL | 90 dB/W/m |

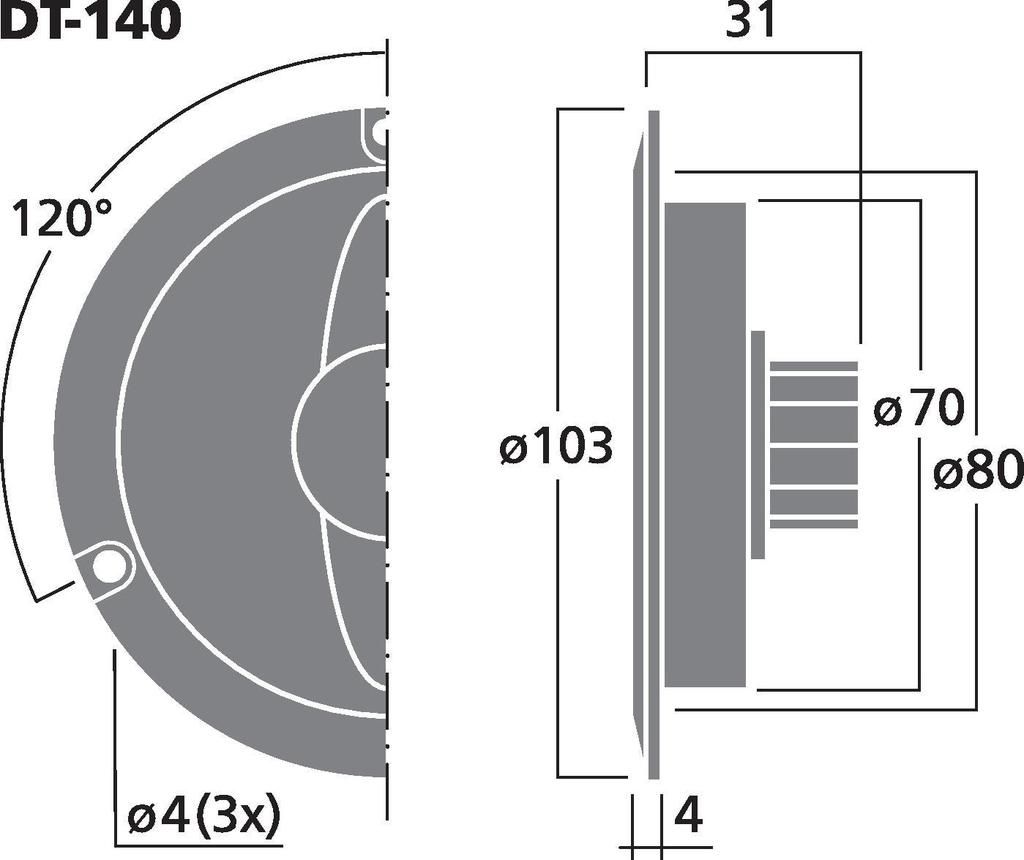

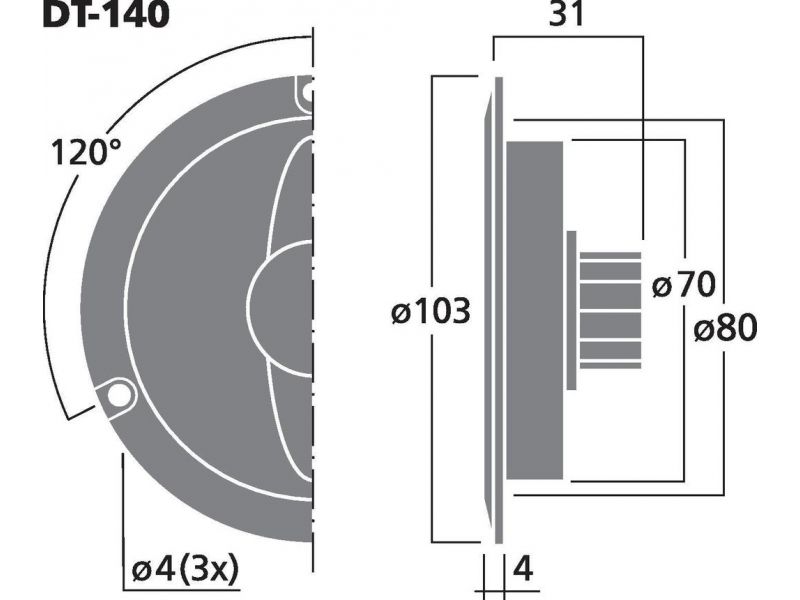

| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 80 mm |
| Mounting depth | 31 mm |
| Dimensions | Ø 103 x 31 mm |
| Outside diameter | Ø 103 mm |
| Width | Ø 103 mm |
| Height | Ø 103 mm |
| Depth | 31 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.093 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.11 x 0.043 x 0.11 m |
| Gross weight | 0.122 kg |
| Net weight | 0.093 kg |
