DRIVE-10P
Kod EAN: 4007754276312
With the passive speaker systems of the DRIVE series, you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrang...
396,00 € brutto
(inkl. 20% DPH)
330,00 € netto

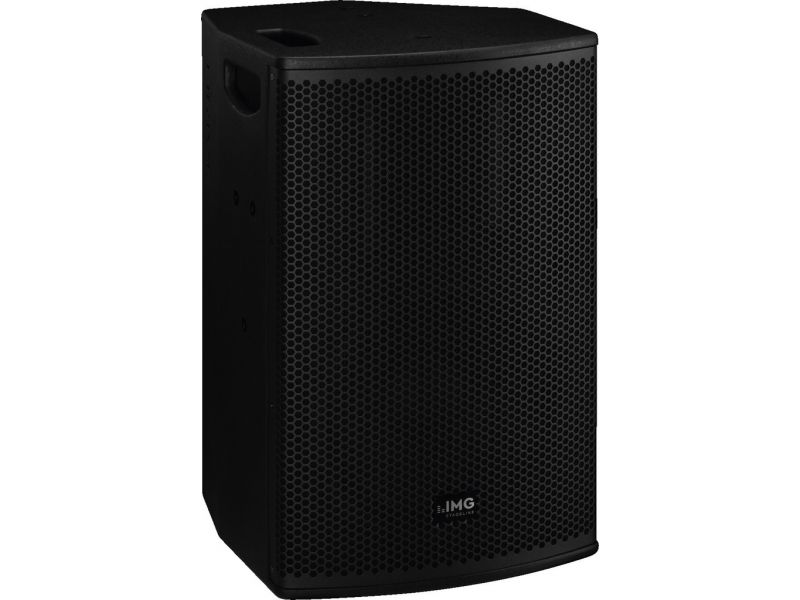

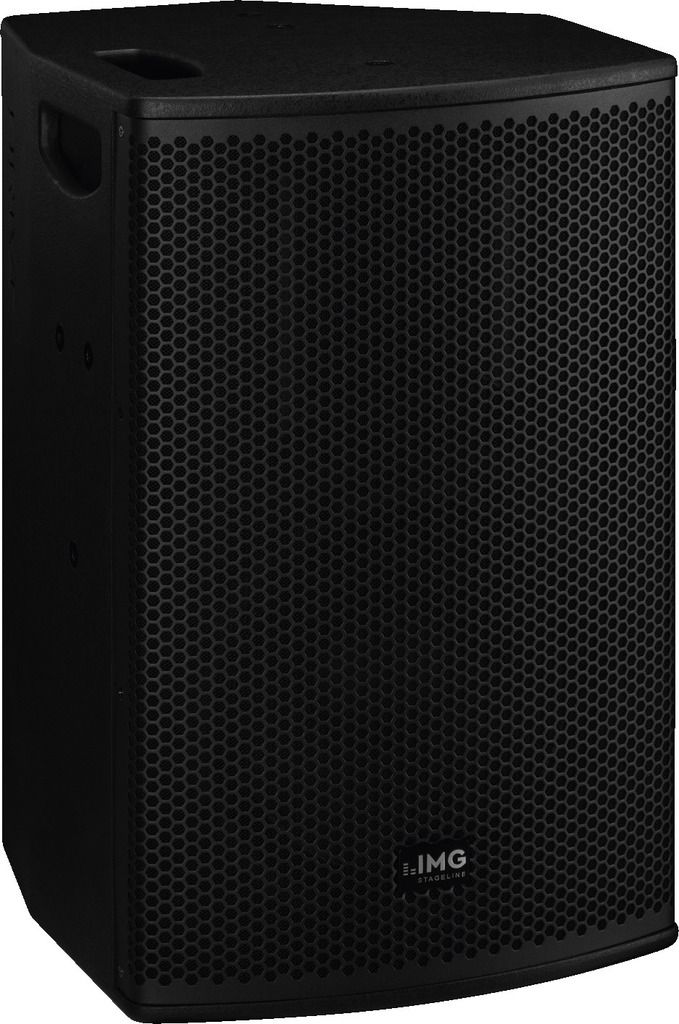

DRIVE-10P
With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 400 W
- Compact 10/2 fulll range system with cabinet made of birch plywood
- 25 cm (10") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
- Protective circuit for the tweeter
- Excellent sound characteristics
- High-quality coating and neat workmanship
- Multi-purpose positioning and installation options
- Horn tweeter with consistent radiation pattern

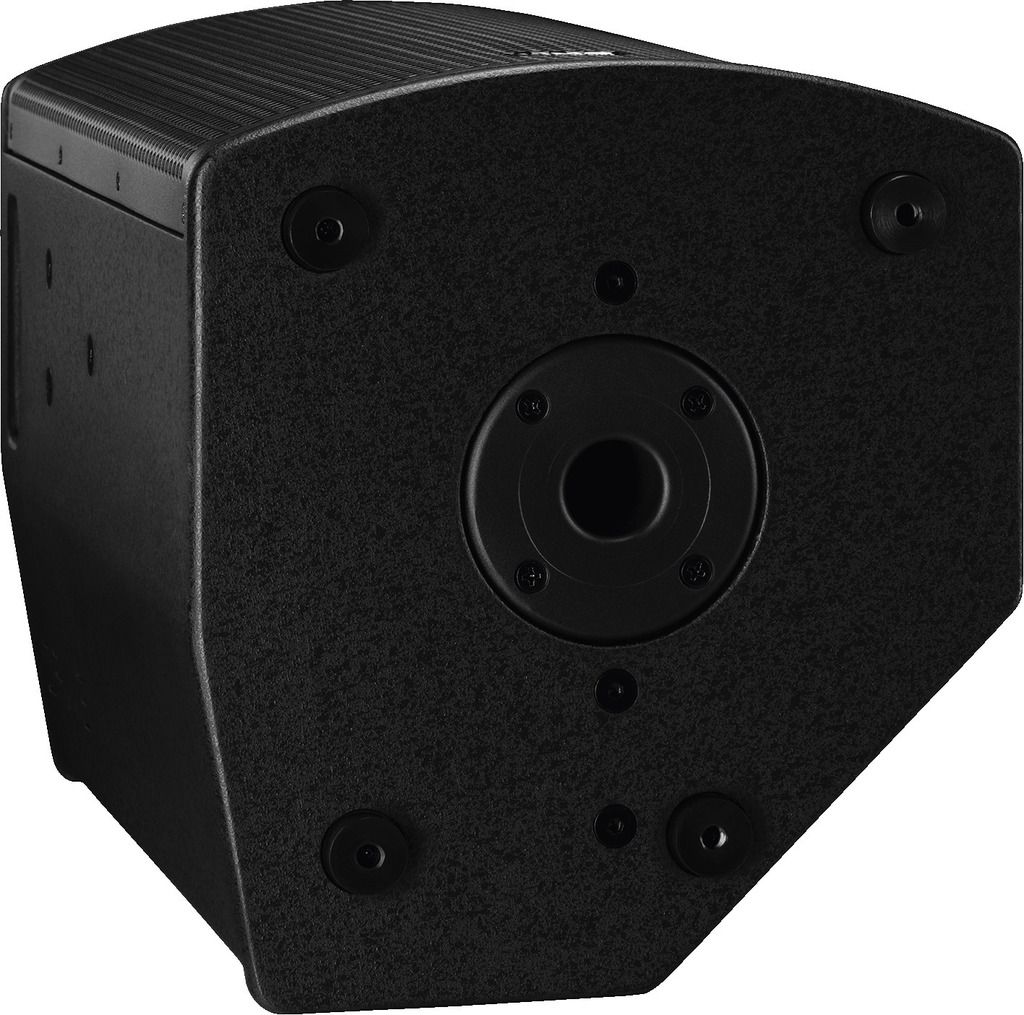

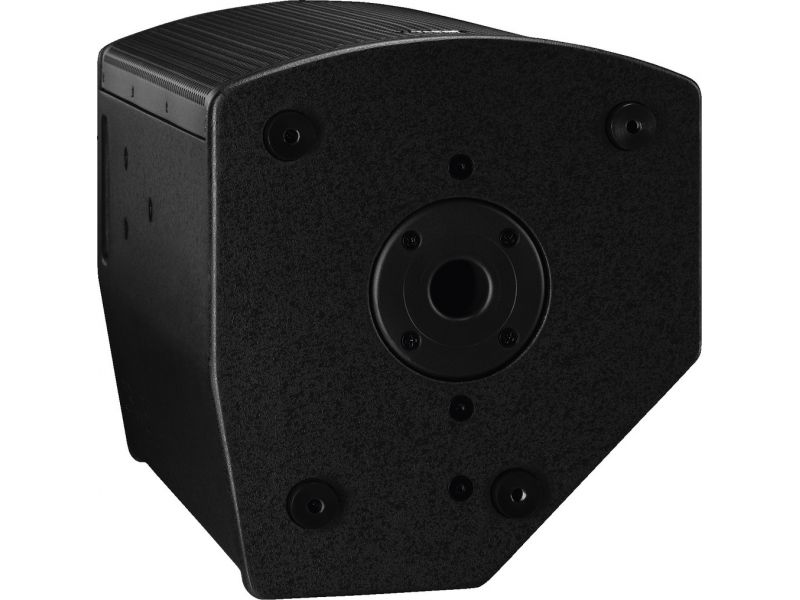

- M8 threaded inserts for suspended installation

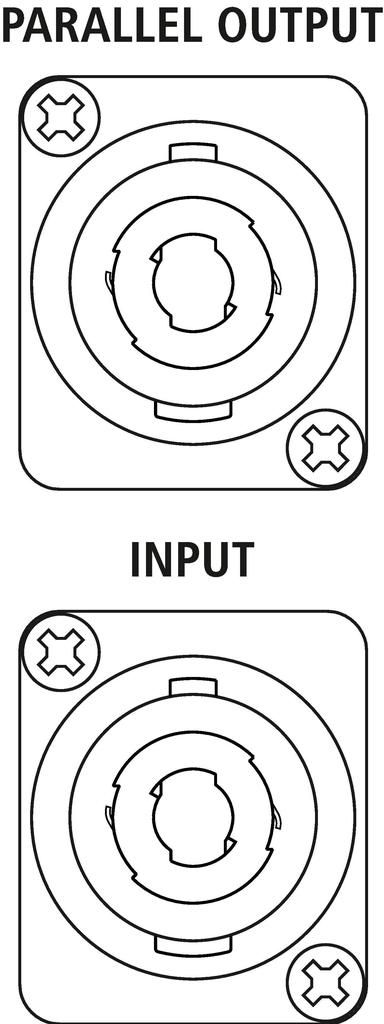

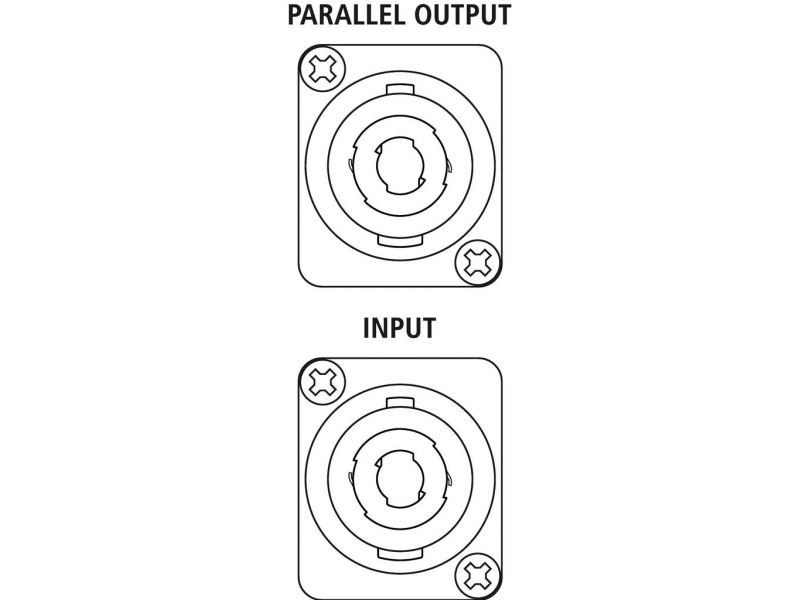

- 2 x SPEAKER terminal IN/OUT
- Stand sleeve
Parametry
| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 400 W |
| Power rating (RMS) | 200 W |
| Impedance | 8 Ω |
| Frequency range | 55-20,000 Hz |
| System | 10/2 full range |
| Bass speaker | 25 cm (10") bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Number of speakers | 2 |
| Speaker size | 25 cm (10") |
| SPL | 98 dB/W/m |
| Max. rated SPL | 123 dB |
| Radiation angle/beam angle | H: 90°/V: 60°, horn can be turned |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 60° |
| Housing material | birch plywood |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 320 x 530 x 350 mm |
| Width | 320 mm |
| Height | 530 mm |
| Depth | 350 mm |
| Weight | 11.25 kg |
| Inputs | 1 x SPEAKER jack |
| Outputs | 1 x SPEAKER jack par. out |
| Packaging dimensions (W x H x L) | 0.46 x 0.65 x 0.43 m |
| Gross weight | 15.1 kg |
| Net weight | 11.25 kg |
