TF0510/8
Kod EAN: 0739894530644
PA midrange speaker, 30 W, 8 Ω The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker sy...

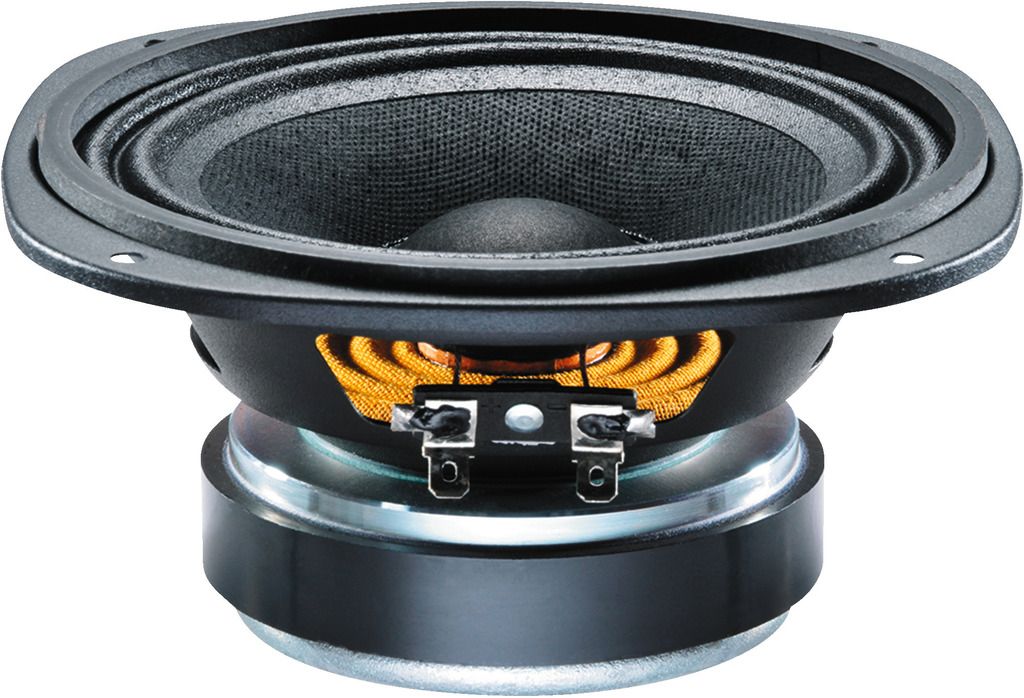

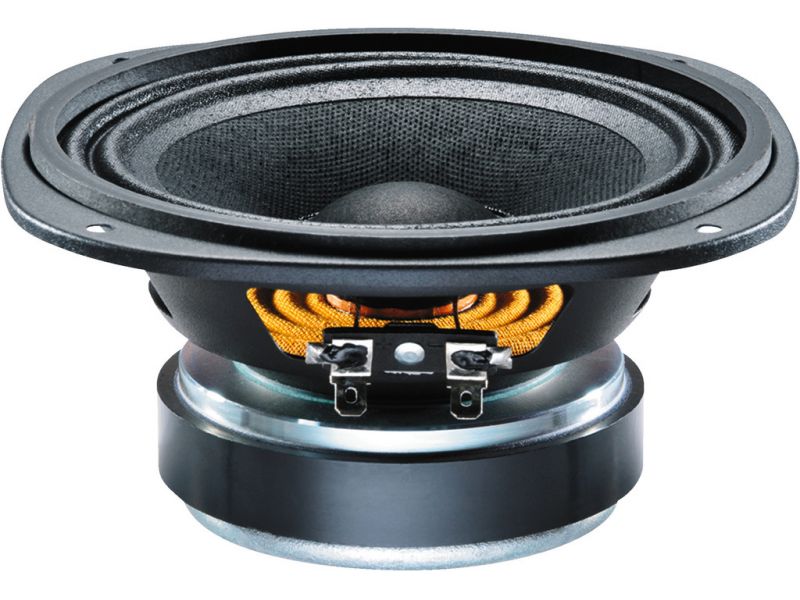

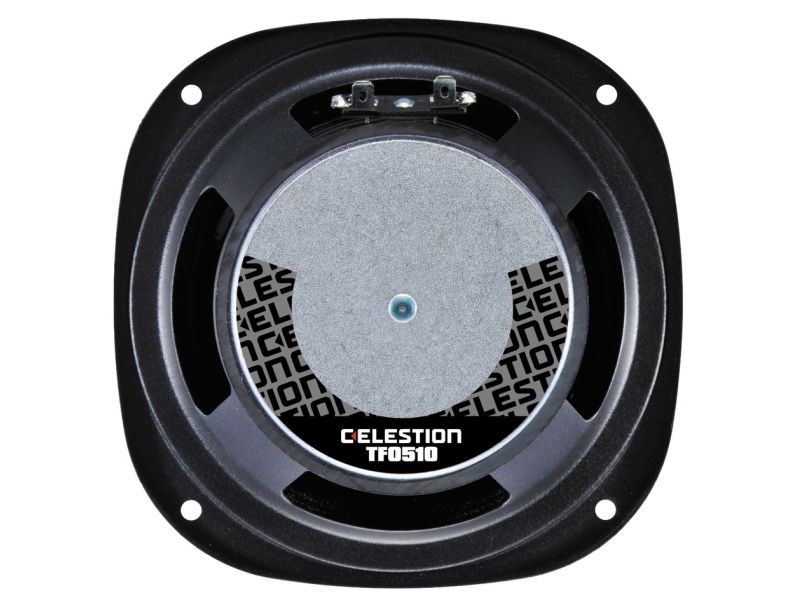

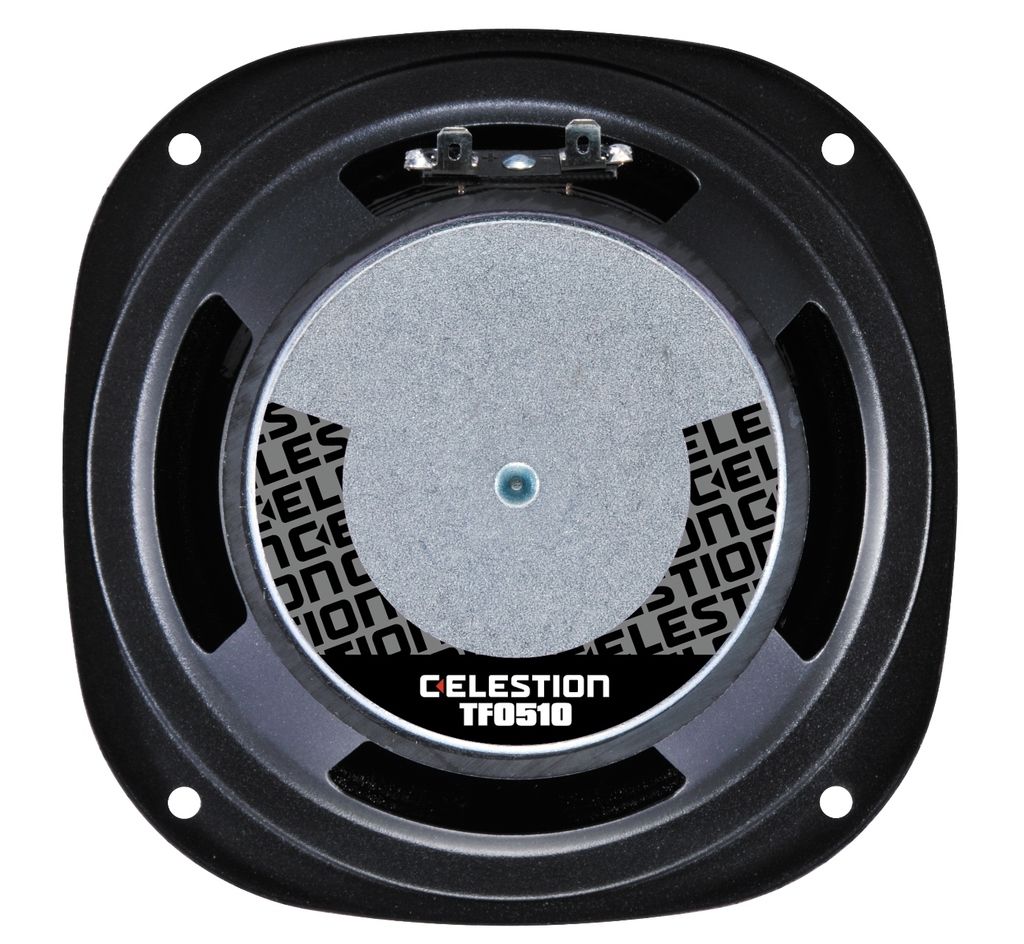

TF0510/8
PA midrange speaker, 30 W, 8 Ω
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
- 12.7 cm (5") PA midrange speaker with an excellent sound and sufficient reserves in the bass range down to approx. 130 Hz
- High-quality Kevlar fibre-reinforced cellulose cone
- Robust steel basket
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 130-13,000 Hz |
| Resonant frequency (fs) | 128.10 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 91 dB/W/m |
| Suspension compl. (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 7.02 g |
| Mech. Q factor (Qms) | 2.376 |
| Electr. Q factor (Qes) | 0.768 |
| Total Q factor (Qts) | 0.580 |
| Equivalent volume (Vas) | 7.4 l |
| DC resistance (Re) | 6.32 Ω |
| Force factor (BxL) | 6.82 Tm |
| Voice coil induct. (Le) | 0.33 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil winding height | 7.3 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 2.4 mm |
| Eff. cone area (Sd) | 78.54 cm2 |
| Magnet weight | 370 g |
| Mounting cutout | Ø 117 mm |
| Mounting depth | 68 mm |
| Mounting hole diameter | Ø 140 mm |
| Dimensions | 136 x 136 x 68 mm |
| Outside diameter | 151 mm |
| Width | 136 mm |
| Height | 136 mm |
| Depth | 68 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.9 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
| Packaging dimensions (W x H x L) | 0.14 x 0.11 x 0.15 m |
| Gross weight | 1.03 kg |
| Net weight | 0.9 kg |
