DT-25N
Kod EAN: 4007754154641
Neodymový Hi-Fi výškový reproduktor, 40 W, 8 Ω
SPH-175HQ
Kod EAN: 4007754228021
Vysokokvalitnáý hi-fi stredobasový reproduktor, 70 W, 8 Ω 175 mm (6 3/4") stredobasový reproduktor Ďalší vývoj klasického reproduktora SPH-176 Odliaty kôšZadne vetraný centrovací pavúk pre minimálnu mechanickú stratu Naberaný, na vzduchu sušený, nízko r...
89,00 € brutto
(inkl. 20% DPH)
74,17 € netto

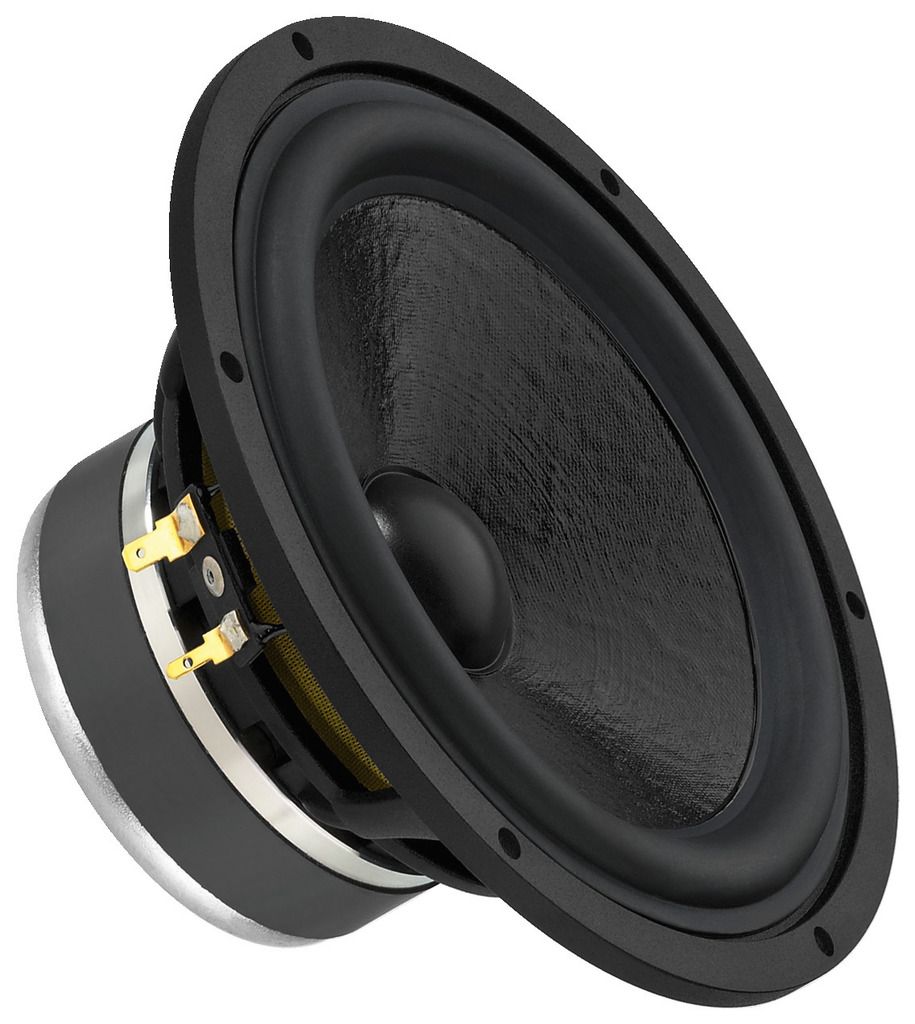

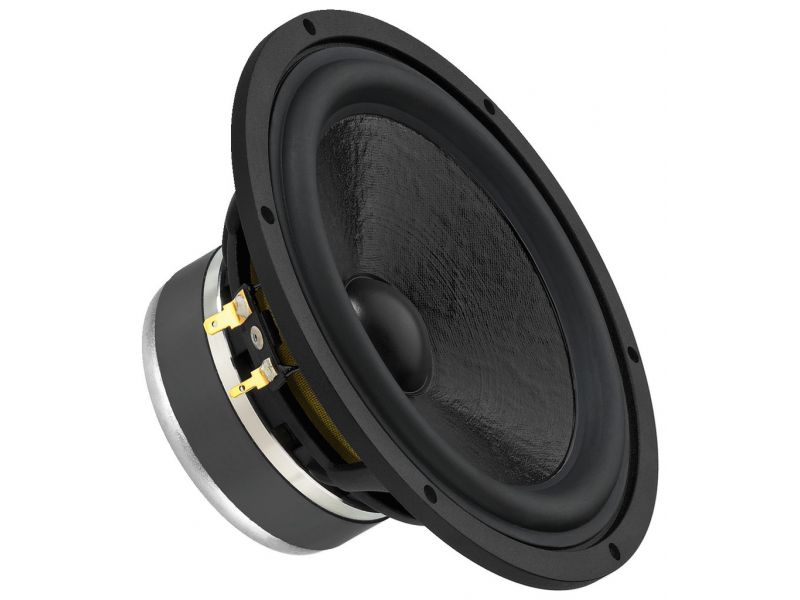

SPH-175HQ
Vysokokvalitnáý hi-fi stredobasový reproduktor, 70 W, 8 Ω
- 175 mm (6 3/4") stredobasový reproduktor
- Ďalší vývoj klasického reproduktora SPH-176
- Odliaty kôš
- Zadne vetraný centrovací pavúk pre minimálnu mechanickú stratu
- Naberaný, na vzduchu sušený, nízko rezonujúci papierový kužeľ
- Gumový rám s nízkou stratou
- Široký a lineárny rozsah vyžarovania
- Ideálne parametre pre basreflexové systémy
Klang+Ton 06/2014“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”
HOBBY HiFi 03/2014“An exceptionally high-quality radiation without any cone resonance.”
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 39 Hz |
| Power rating (RMS) | 70 W |
| Peak music power output (MAX) | 120 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 1.2 mm/N |
| Moving mass (Mms) | 13.9 g |
| Mech. Q factor (Qms) | 2.57 |
| Electr. Q factor (Qes) | 0.5 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 33.0 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 6.40 Tm |
| Voice coil induct. (Le) | 0.71 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5.5 mm |
| Eff. cone area (Sd) | 140 cm2 |
| Magnet weight | 450 g |
| Magnet diameter | Ø 90 mm |
| Mounting cutout | Ø 152 mm |
| Mounting depth | 73 mm |
| Mounting hole diameter | Ø 165 mm |

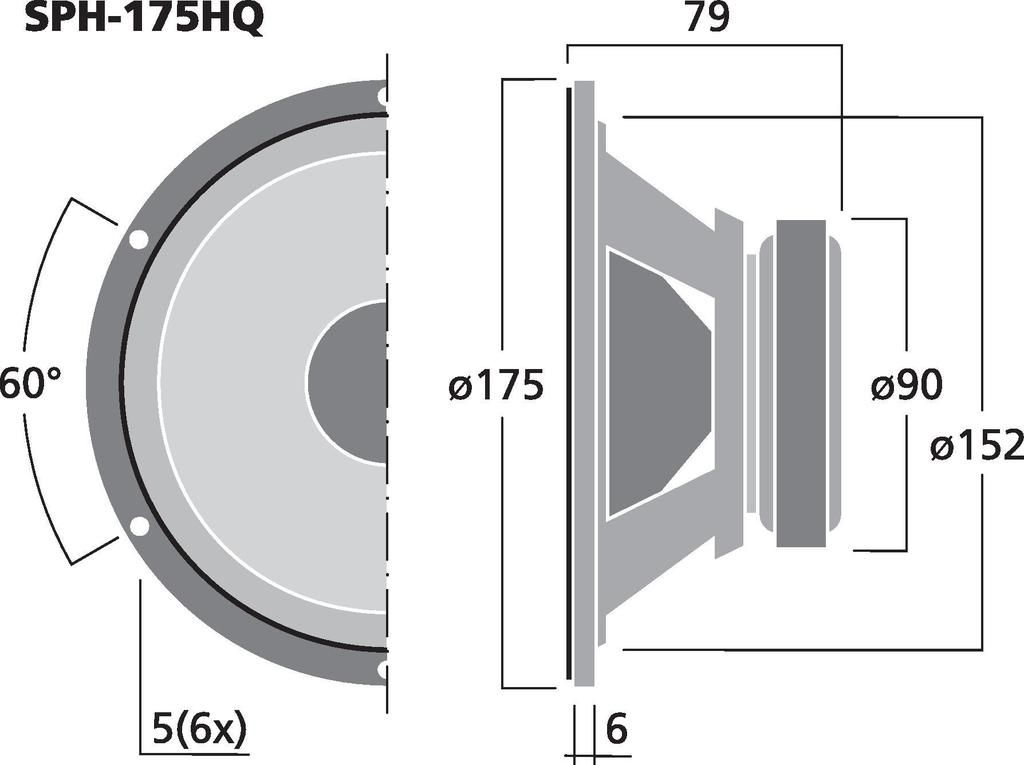

| Dimensions | Ø 175 mm x 79 mm |
| Outside diameter | Ø 175 mm |
| Width | Ø 175 mm |
| Height | Ø 175 mm |
| Depth | 79 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.31 kg |
| Packing unit | 1 |
| Type of speaker | 6.75" |
| Packaging dimensions (W x H x L) | 0.2 x 0.15 x 0.2 m |
| Gross weight | 1.57 kg |
| Net weight | 1.31 kg |
