Personalizovaný obraz s integrovaným 4 Ohm reproduktorem
CC-143
Kod EAN: 4050821808442
Connecting terminal from WAGO 3-conductor terminal with operating levers Individually combinable wires and cross sections from 0.14 to 4 mm2 Power rating: 450 V/32 A Continuous operating temperature: up to 85 °C Correct position of the conductor and...
0,90 € brutto
(inkl. 23% DPH)
0,73 € netto
CC-143

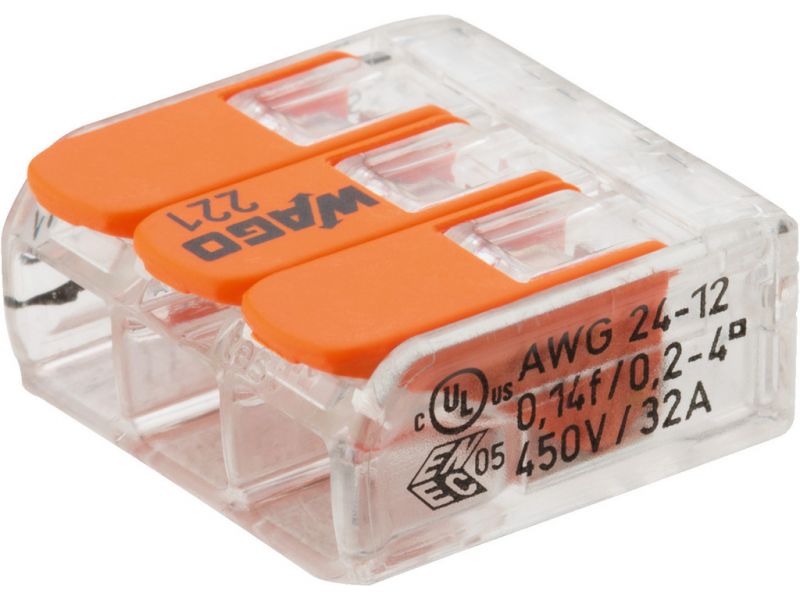

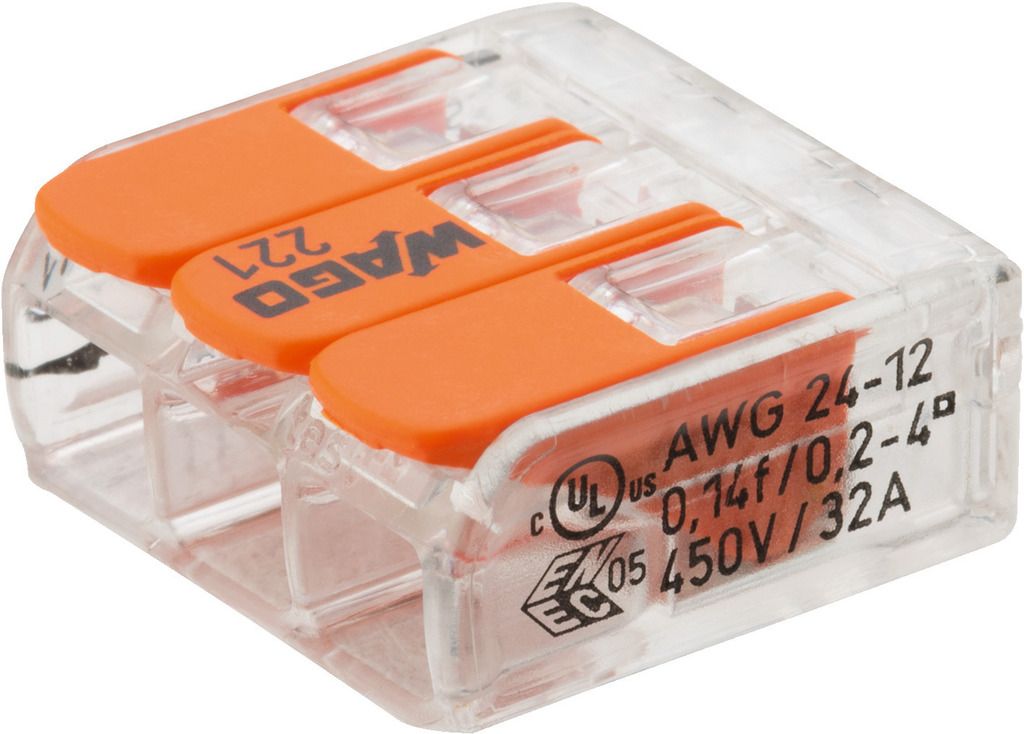

Connecting terminal from WAGO
- 3-conductor terminal with operating levers
- Individually combinable wires and cross sections from 0.14 to 4 mm2
- Power rating: 450 V/32 A
- Continuous operating temperature: up to 85 °C
- Correct position of the conductor and stripping length can be visually checked due to transparent housing
- Two test slots for any standard test prod
- Of very compact size, thus, ideally suited for the application in confined spaces
Manufacturer information:
WAGO GmbH & Co. KG
Hansastraße 27
32423 Minden
Germany
info.de@wago.com
Hansastraße 27
32423 Minden
Germany
info.de@wago.com
Parametry
| Description | connecting terminal |
| Type | WAGO |
| Quantity | 1 |
| Features | operating levers |
| Colour/colour coding | transparent |
| Power rating | 450 V/32 A |
| Dielectric strength | 4 kV |
| Certification | UL, ABS, LR |
| Pole number | 3 |
| Cable inlet | AWG 24-12 |
| Suitable cable cross section | flexible conductors: 0.14-4 mm2 rigid conductors: up to 0.2-4 mm2 |
| Connection | 3-conductor terminal with operating levers |
| Admiss. ambient temp. | 85 °C |
| Dimensions | 18.7 x 8.3 x 18.6 mm |
| Weight | 2.5 g |
