FGA-35
Kod EAN: 4007754209044
Ground isolator, compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier. Galvanically isolated inputs and outputs 2 x 3.5 mm stereo plug Input/output impedanc...
20,00 € brutto
(inkl. 23% DPH)
16,26 € netto

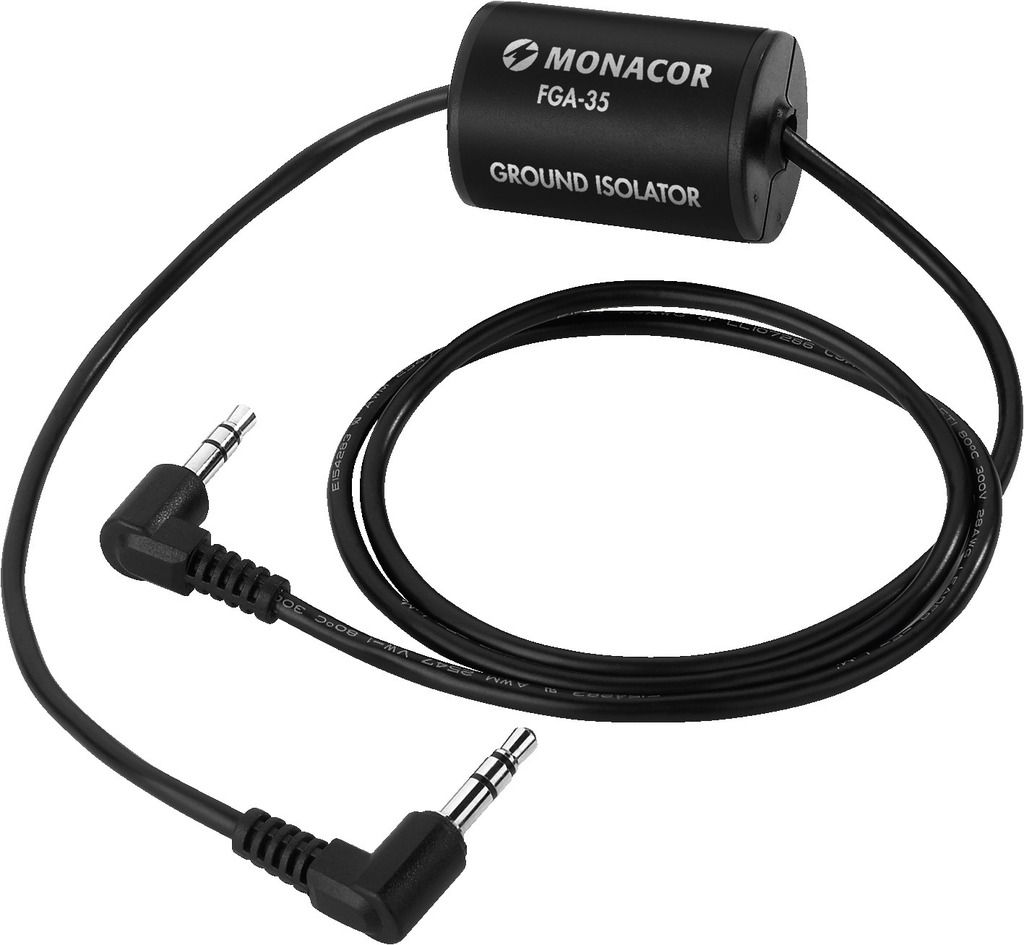

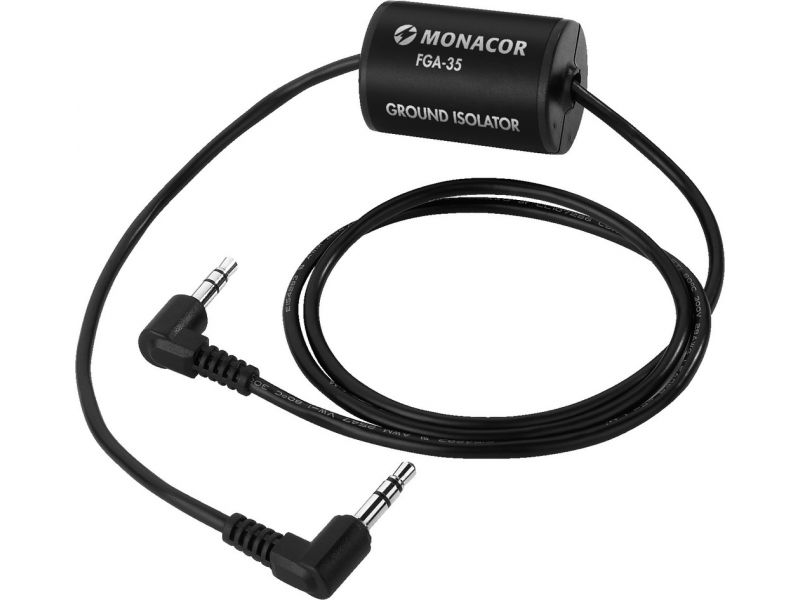

FGA-35
Ground isolator,
compact design, for preventing signal interference and hum loops which may occur, e.g. when connecting PC sound cards or laptops to an amplifier.
- Galvanically isolated inputs and outputs
- 2 x 3.5 mm stereo plug
- Input/output impedance: 20 kΩ
- Frequency range: 20-30,000 Hz
- THD: < 0.01%
- Transmission ratio 1:1
- Ø 24 mm x 38 mm, 32 g
- Length including connection cable: approx. 80 cm
TASTENWELT 04/2014
“The FGA-35 is a compact transmitter and ideally suited for connecting instruments (e.g. stage pianos) to an audio device without interference.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | ground isolator |
| Frequency range | 20-30,000 Hz |
| Input impedance | 20 kΩ |
| Output impedance | 20 kΩ |
| Transmission ratio | 1:1 |
| THD | < 0.01% |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 24 mm x 38 mm |
| Weight | 31 g |
| Inputs | 1 x 3.5 mm stereo plug |
| Outputs | 1 x 3.5 mm stereo plug |
