RDA20
Kod EAN: 4007754426700
Active speaker with integrated Dante® module Self-amplified speaker system, addressable via Dante® audio network Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection Output power: 10 W with PoE, 20 W with PoE+ Supplied wit...
RDA20

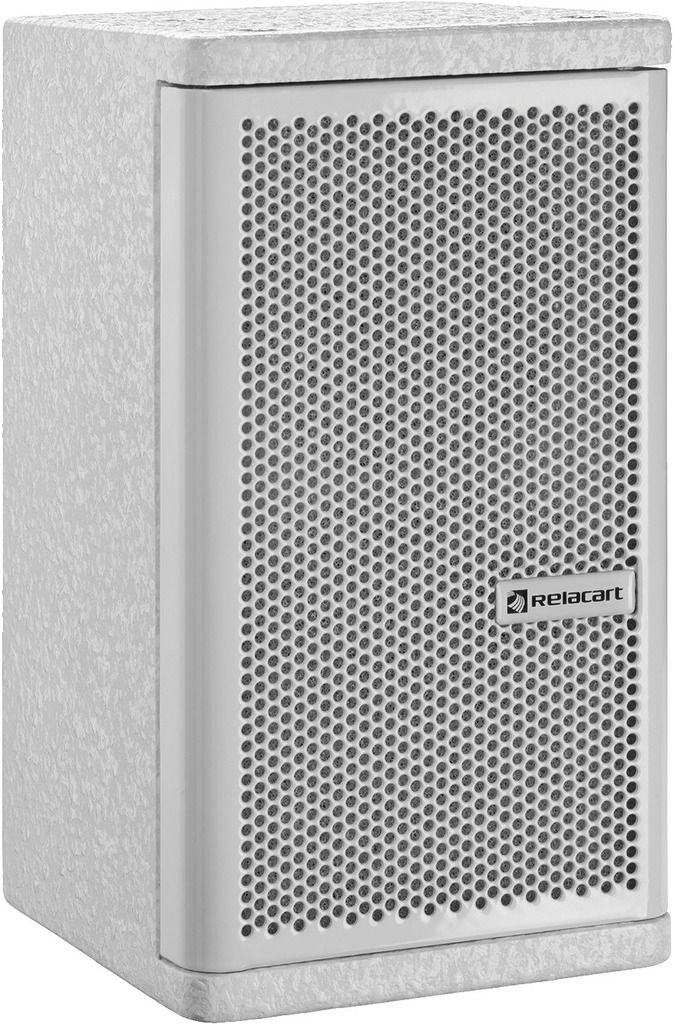

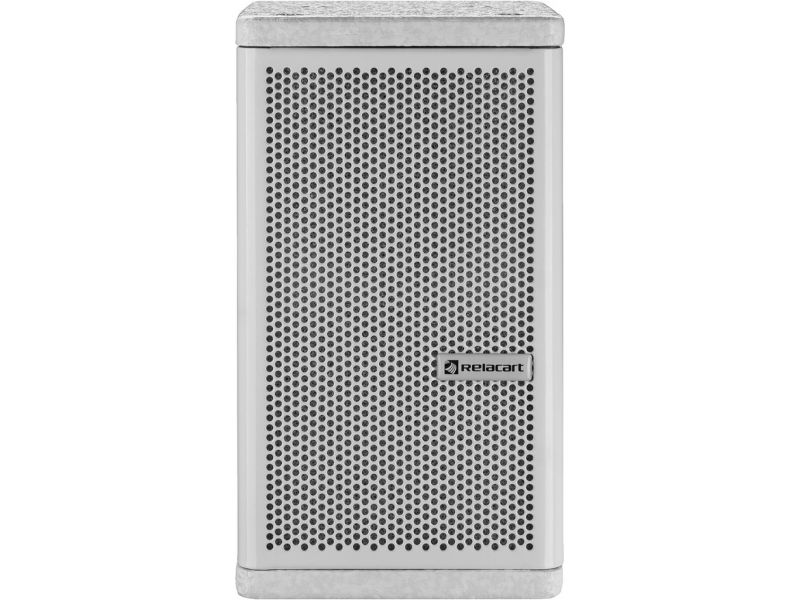

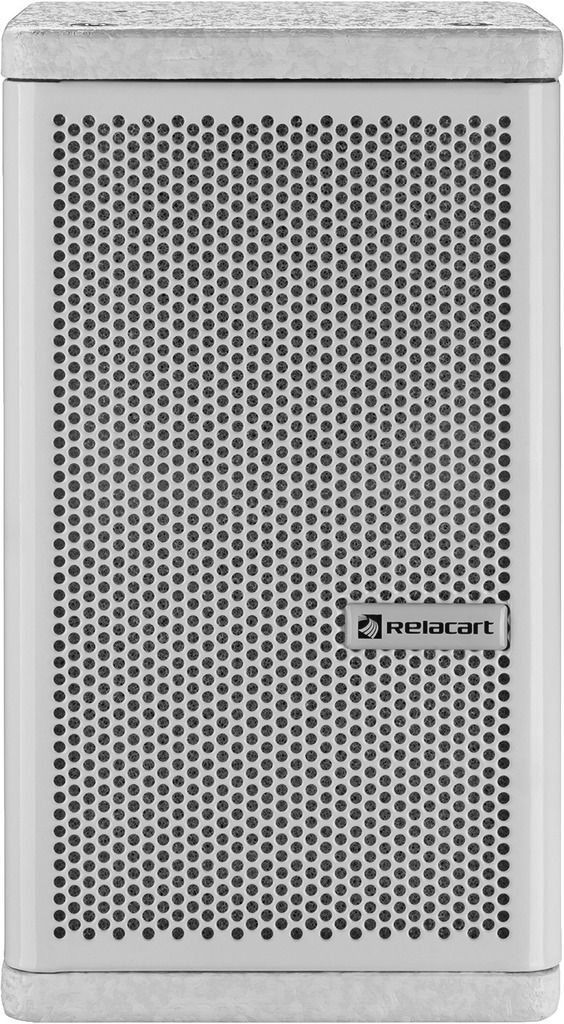

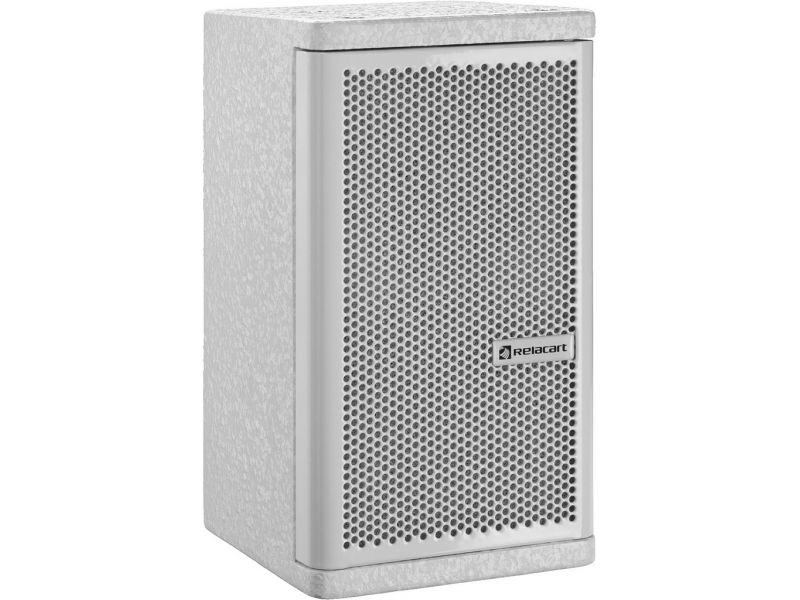

Active speaker with integrated Dante® module
- Self-amplified speaker system, addressable via Dante® audio network
- Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
- Output power: 10 W with PoE, 20 W with PoE+
- Supplied with 2 wall brackets
- Automatic assignment of an IP address via DHCP router
- Relacart speaker management software for easy setup and remote management
System requirements Dante®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Active/passive | active |
| Transmission technology | Dante ® |
| Total output power | 30 W |
| Power rating (RMS) | 10 W (PoE), 20 W (PoE+) |
| Frequency range | 85-17,000 Hz |
| System | 2-way |
| Bass speaker | 10 cm (4") cone speaker |
| Tweeter | 7.6 cm (3") cone tweeter |
| Number of speakers | 2 |
| Speaker size | 10 cm (4") |
| SPL | 96 dB/W/m |
| Max. rated SPL | 110 dB |
| Radiation angle/beam angle | 90° |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 90° |
| Housing material | wood, protective metal grille |
| Colour | white |
| Mounting device | wall bracket |
| Power supply | 37-57 V PoE/PoE+ via RJ45 |
| Dimensions | 132 x 235 x 142 mm |
| Width | 132 mm |
| Height | 235 mm |
| Depth | 142 mm |
| Weight | 2.36 kg |
| Inputs | 1 x RJ45 (Dante® IN) |
| Other features | integr. DSP for tone control via software |
| Packaging dimensions (W x H x L) | 0.205 x 0.33 x 0.215 m |
| Gross weight | 2.95 kg |
| Net weight | 2.36 kg |
