ATT-400
Kod EAN: 4007754179927
Krabice pod omítku
EDL-80DT
Kod EAN: 4007754258585
Active 2-way flush-mount ceiling speaker, with integrated Dante® module. 30 W amplifier 20 cm (8") bass speaker with glass fibre cone, 2.5 cm (1") dome tweeter Decoding: 16/24/32 bits Sampling rates: 44.1/48/88.2/96 kHz Power supply via PoE (Power...
512,00 € brutto
(inkl. 20% DPH)
426,67 € netto

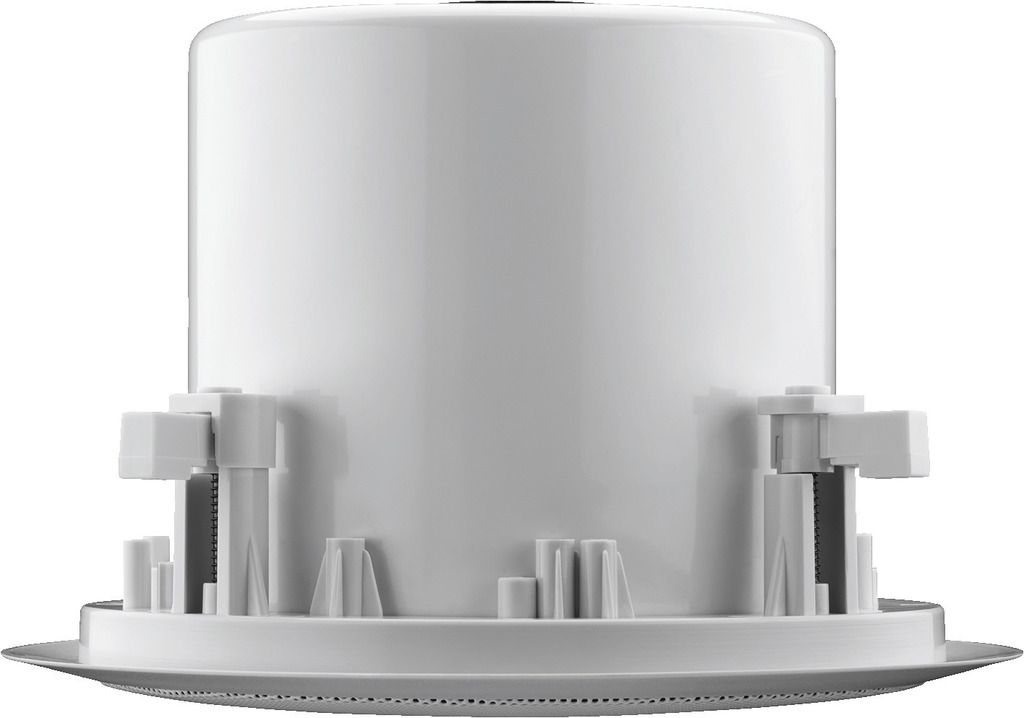

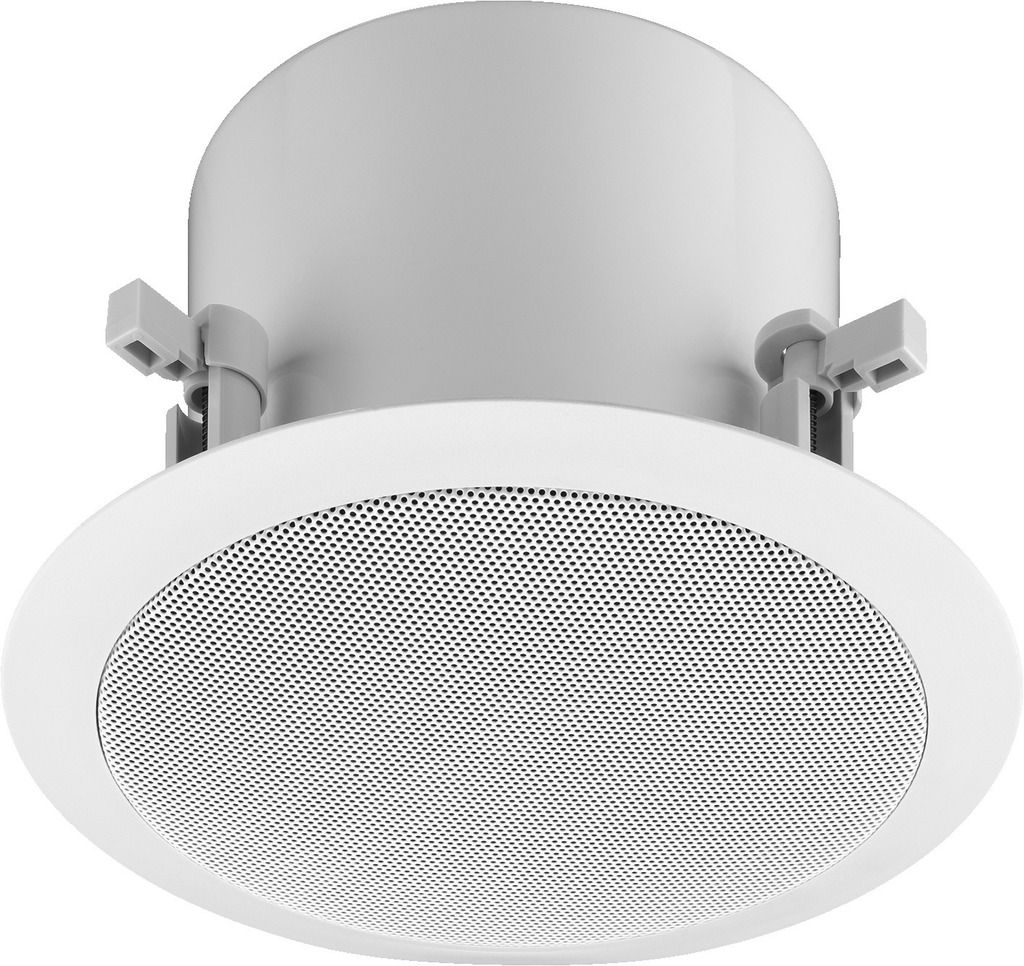

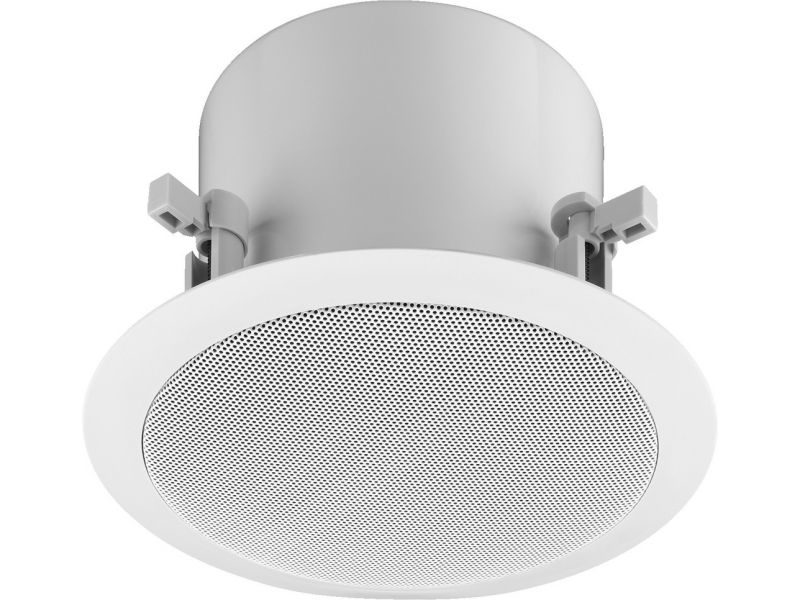

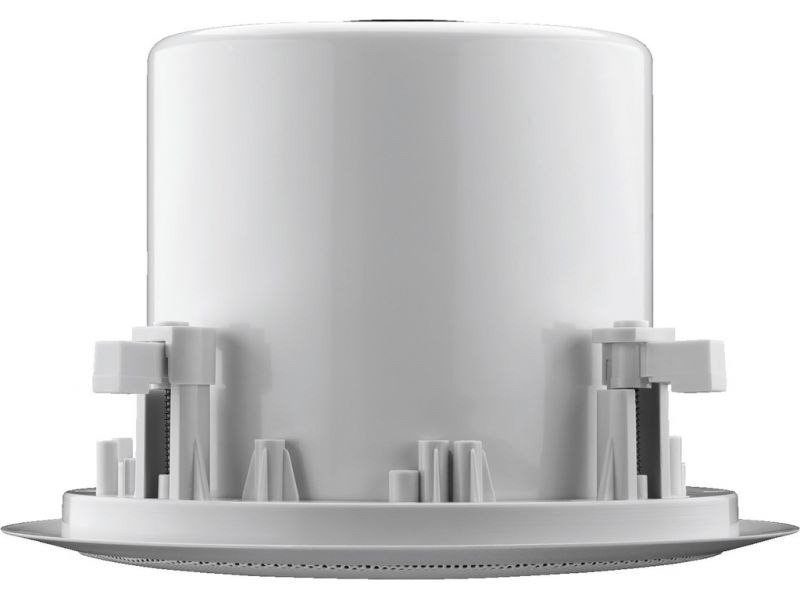

EDL-80DT
Active 2-way flush-mount ceiling speaker,
with integrated Dante® module.
- 30 W amplifier
- 20 cm (8") bass speaker with glass fibre cone, 2.5 cm (1") dome tweeter
- Decoding: 16/24/32 bits
- Sampling rates: 44.1/48/88.2/96 kHz
- Power supply via PoE (Power over Ethernet)
- Plastic frame and protective metal grille
- For a ceiling thickness up to 4 cm

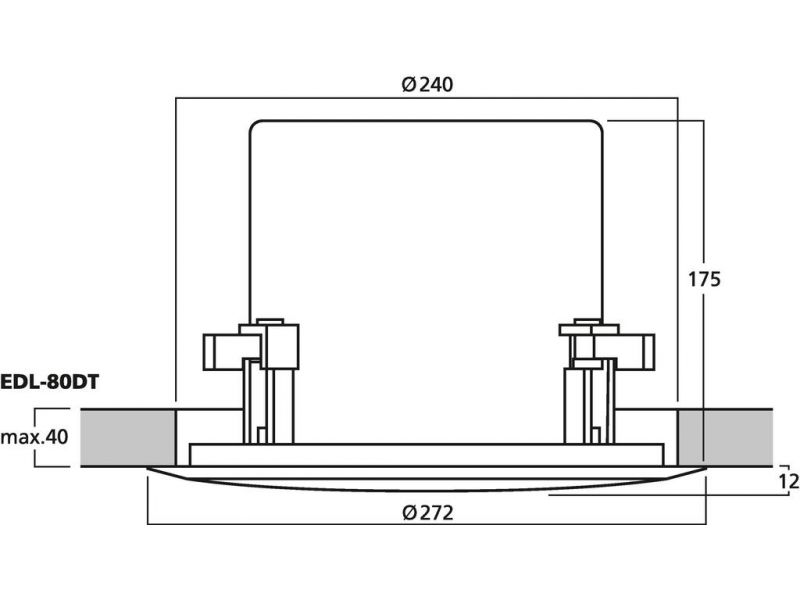

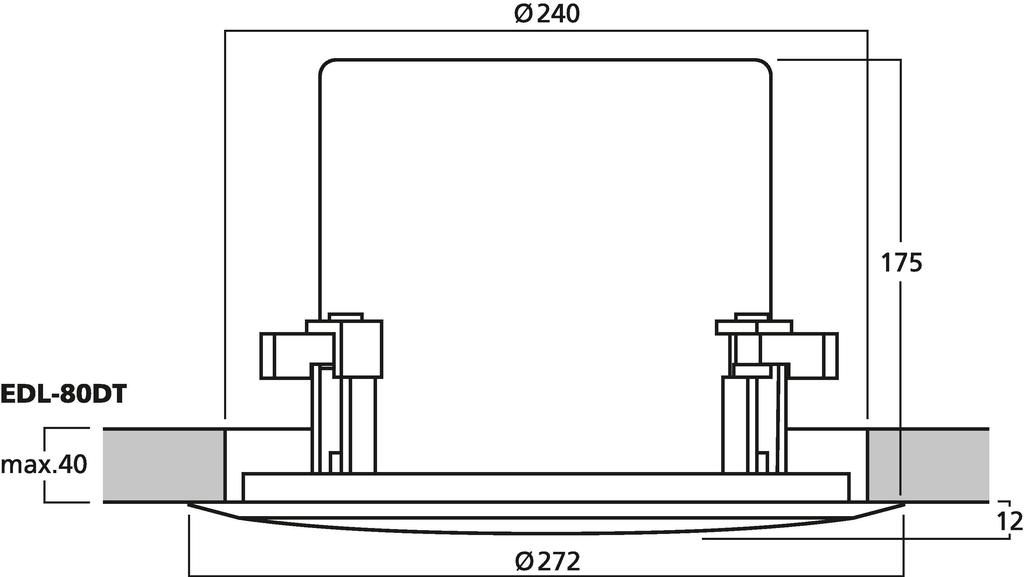

- Mounting cutout: Ø 240 mm
- Mounting depth: 225 mm incl. space requirement for network connection
System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Parametry
| Active/passive | active |
| Transmission technology | Dante® |
| Power rating (RMS) | 30 W |

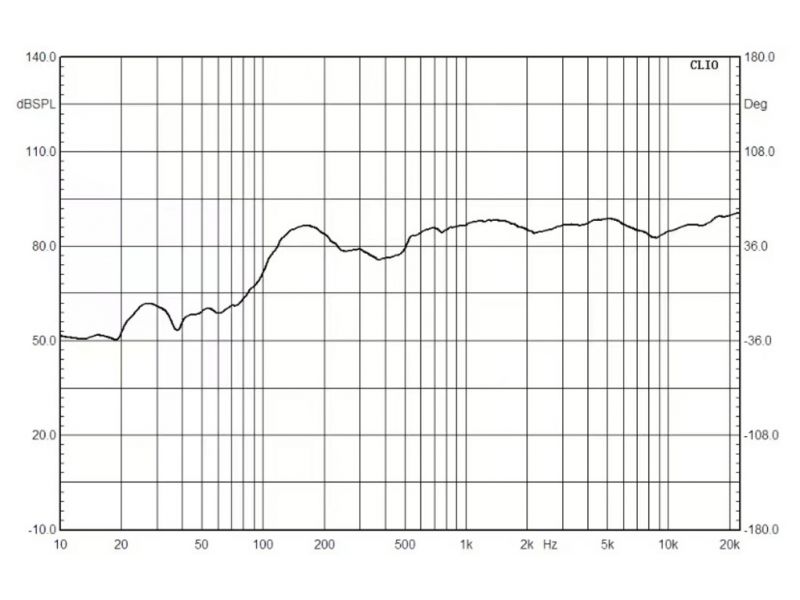

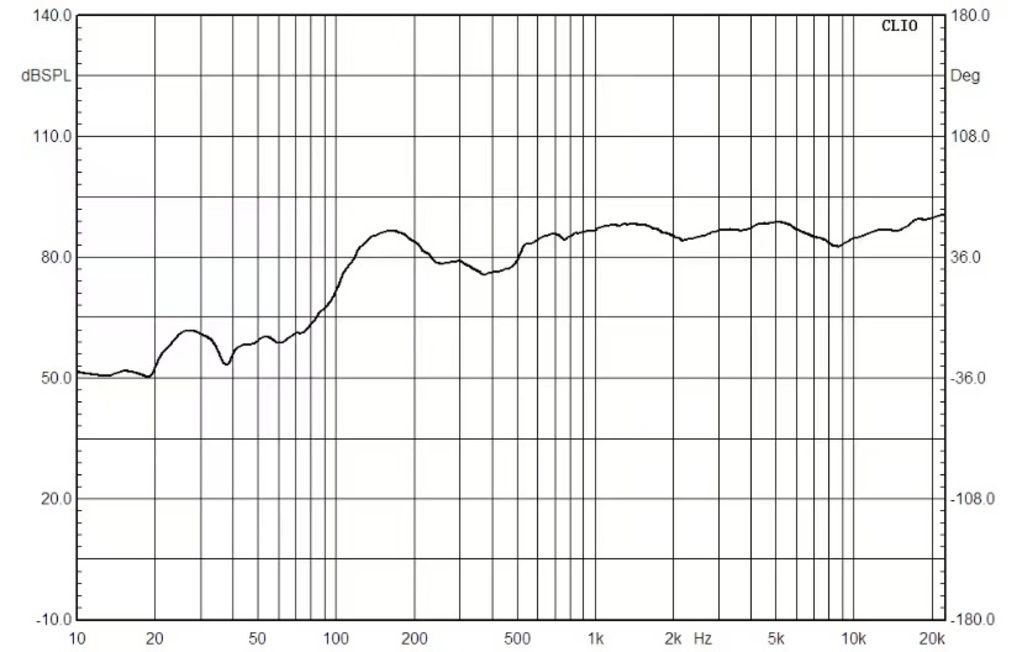

| Frequency range | 100-20,000 Hz |
| Input signal | DANTE® |
| System | 2-way |
| Bass speaker | 1 x 20 cm |
| Tweeter | 1 x 2.5 cm |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 93 dB/W/m |
| Max. rated SPL | 105 dB |
| Radiation angle/beam angle | 100° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Housing material | plastic frame, protective metal grille |
| Colour | white |
| Mounting device | ceiling suspension |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | PoE via RJ45 |
| Dimensions | Ø 272 mm x 187 mm |
| Width | Ø 272 mm |
| Depth | 187 mm |
| Weight | 2.7 kg |
| Inputs | RJ45 |
| Packing dimensions (W x H x L) | 0.31 x 0.22 x 0.31 m |
| Gross weight | 3.64 kg |
| Net weight | 2.73 kg |
