PSIP-60/24

Kod EAN: 4007754230499

LED switch-mode power supply, DC 24 V, for indoors and outdoors (IP67). Especially for LED installations 60 W Due to automatic digital switching, ideally suited for small loads, e.g. individual LED strips Low-noise according to EMC standard EN 610...

víc

54,50 € brutto

(inkl. 23% DPH)
44,31 € netto

Staň se partnerem
Kup teď

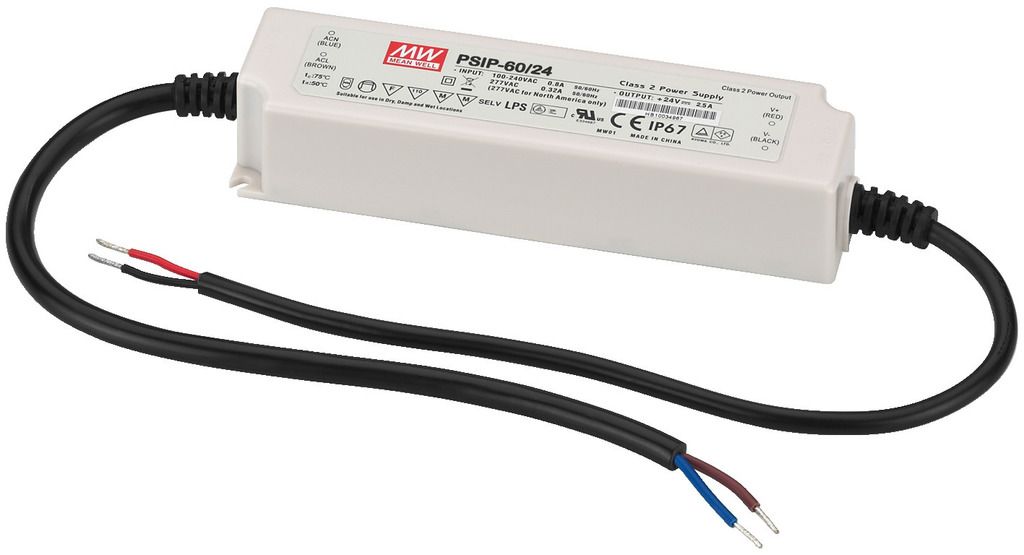

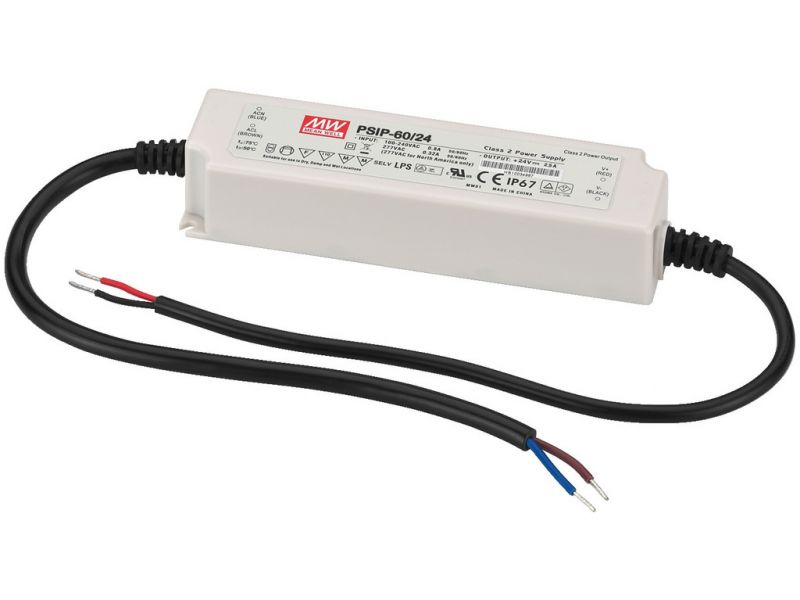

PSIP-60/24

LED switch-mode power supply, DC 24 V,
for indoors and outdoors (IP67).
  • Especially for LED installations
  • 60 W
  • Due to automatic digital switching, ideally suited for small loads, e.g. individual LED strips
  • Low-noise according to EMC standard EN 61000-3-2 class C
  • Active PFC filter
  • Protected against short circuit, overload and overvoltage
  • Connection via bare cable ends
  • Robust plastic housing with mounting flange

Parametry

Category LED switch-mode power supply
Input voltage ˜ 100-240 V/50 Hz/60 Hz
Output voltage DC 24 V
Output current 2.5 A
Connections open cable ends
Short-circuit protection yes
Overload protection yes
Overheat protection yes
Protective class IP67
Admiss. ambient temp. -20-+50 °C
Dimensions 200 x 41 x 32 mm
Weight 413 g
Position B

Na stáhnutí

Produktová karta PSIP-60/24 konformitaetserklaerung-oem Technický produktový list
