DA-P20-130/T

Kod EAN: 4260590180056

Weatherproof PA sound projector, for wall mounting and with EN 54-24 certification. 100 V line technique 13 cm waterproof full range speaker 100 V transformer with power taps 20/10/5/2.5 W Connection via ceramic terminal and thermal fuse in the jun...

víc

101,00 € brutto

(inkl. 20% DPH)
84,17 € netto

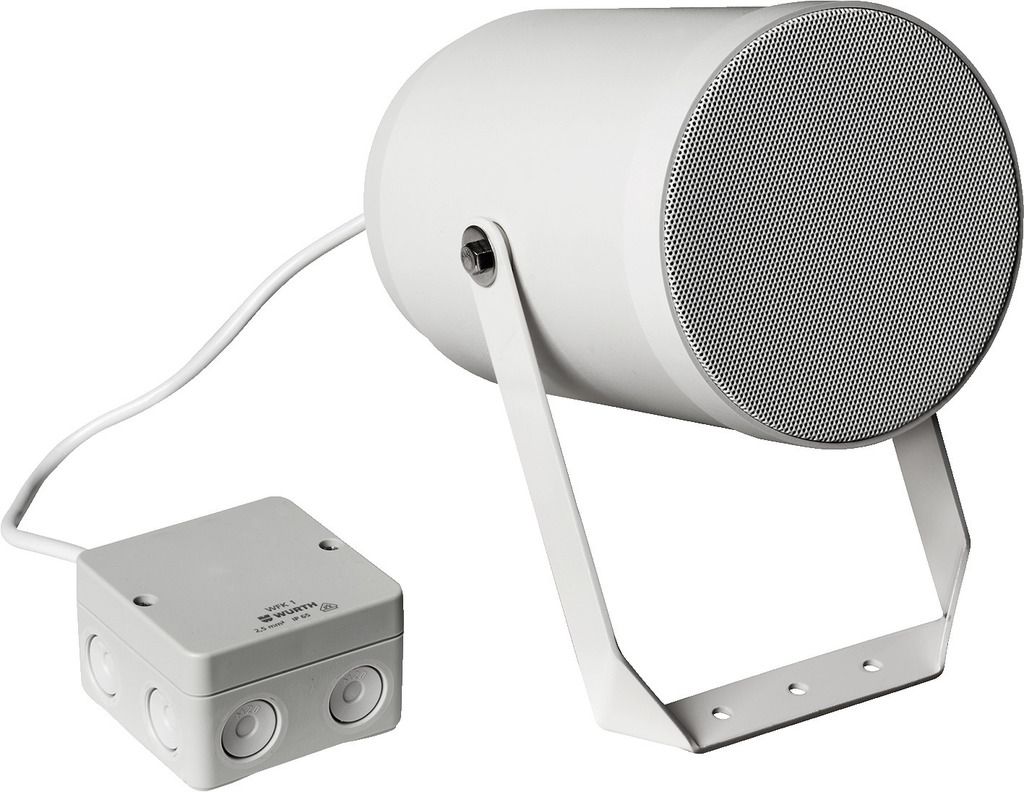

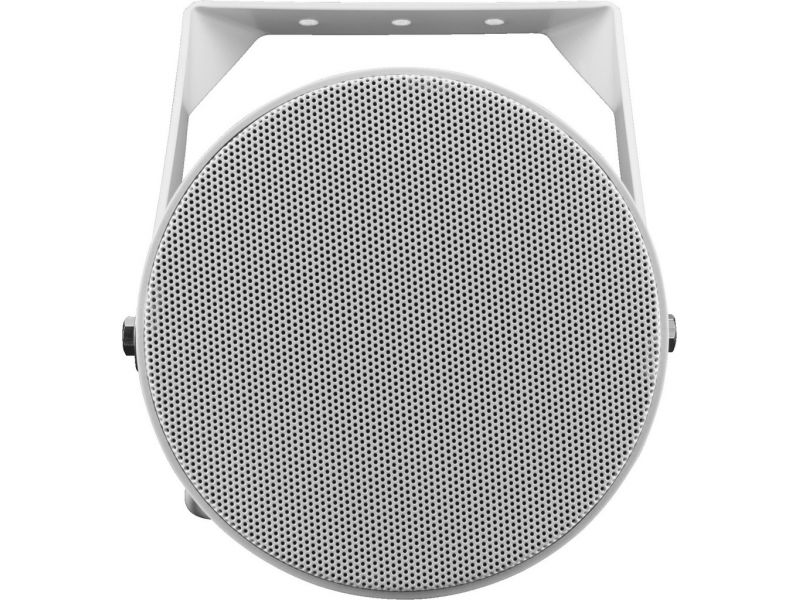

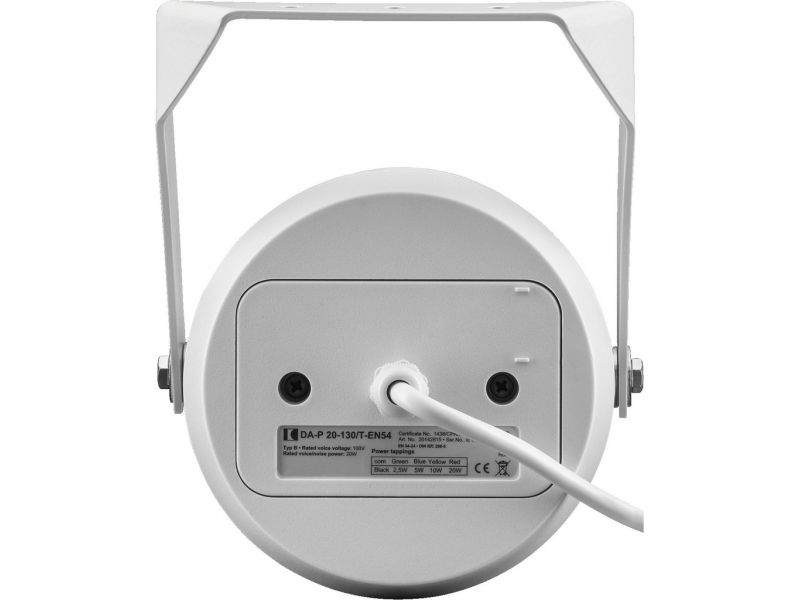

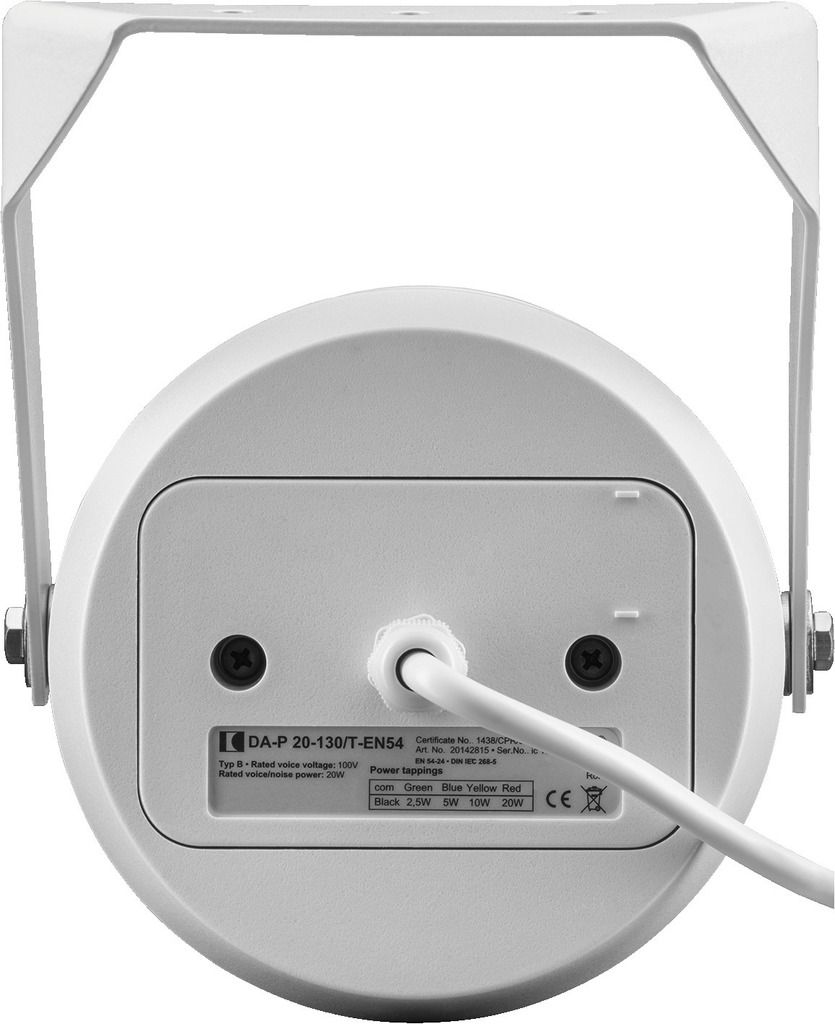

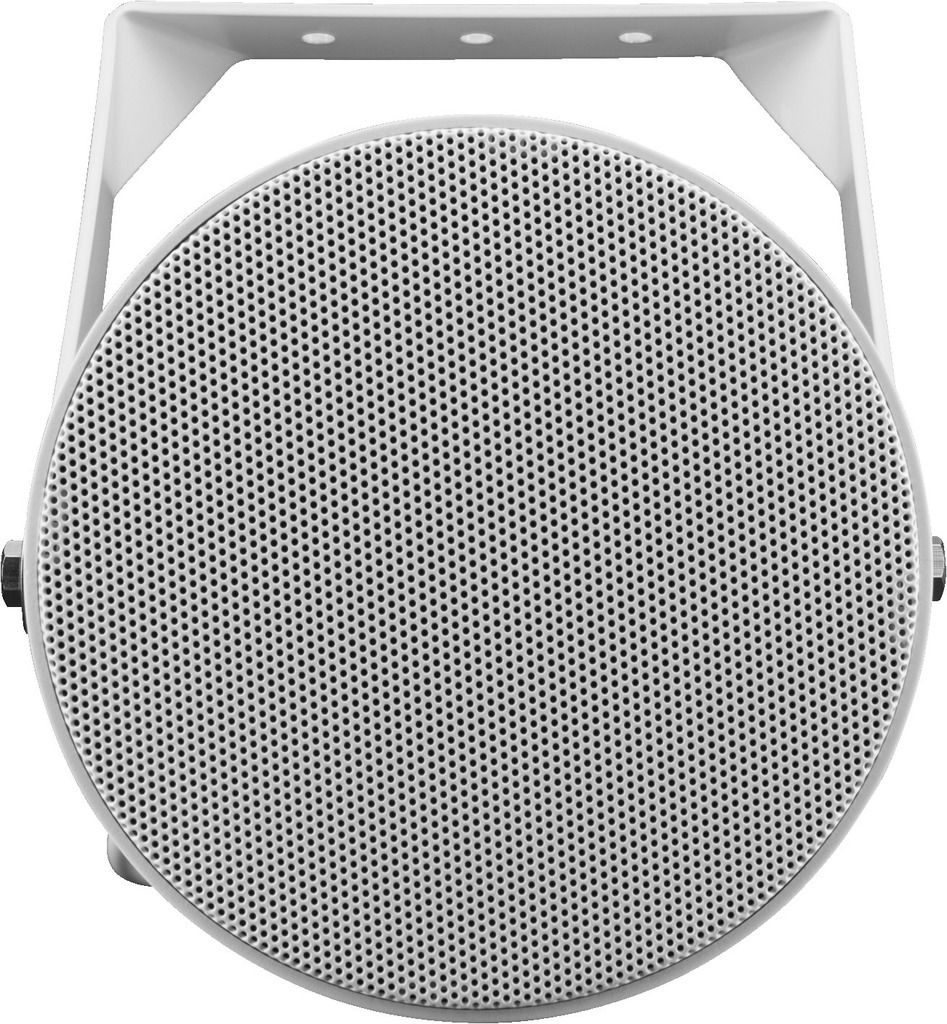

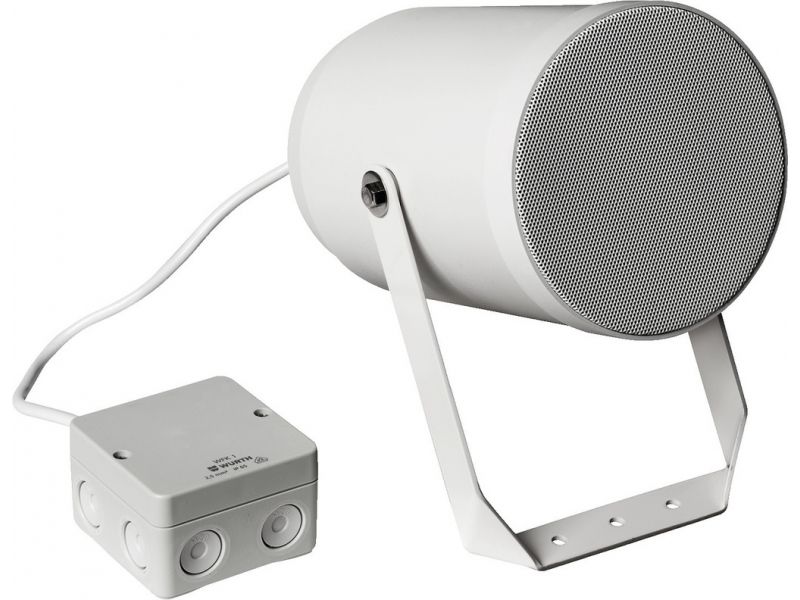

DA-P20-130/T

Weatherproof PA sound projector,
for wall mounting and with EN 54-24 certification.
  • 100 V line technique
  • 13 cm waterproof full range speaker
  • 100 V transformer with power taps 20/10/5/2.5 W
  • Connection via ceramic terminal and thermal fuse in the junction box (cable length: 1 m)
  • ABS plastic housing with front protective grille
  • Robust aluminium mounting bracket

Parametry

Active/passive passive
Transmission technology 100 V
Power rating (RMS) 20/10/5/2.5 W
Frequency range 150-20,000 Hz
Full range speaker 13 cm
Number of speakers 2
Speaker size 13 cm
SPL 90 dB/W/m
Max. rated SPL 104 dB
Radiation angle/beam angle 110°
Radiation angle, horizontal 110°
Radiation angle, vertical 110°
Housing material ABS plastic
Colour white
Mounting device bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions Ø 145 mm x 222 mm
Width Ø 145 mm
Depth 222 mm
Weight 1.367 kg
Packing dimensions (W x H x L) 0.175 x 0.295 x 0.18 m
Gross weight 1.625 kg
Net weight 1.367 kg
