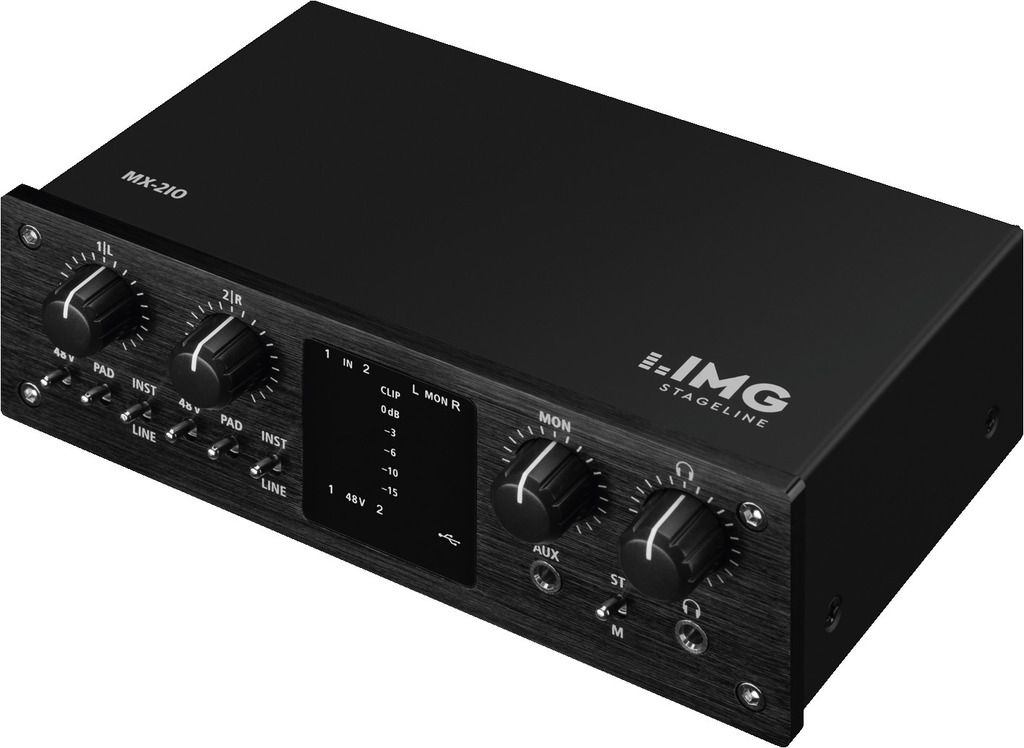

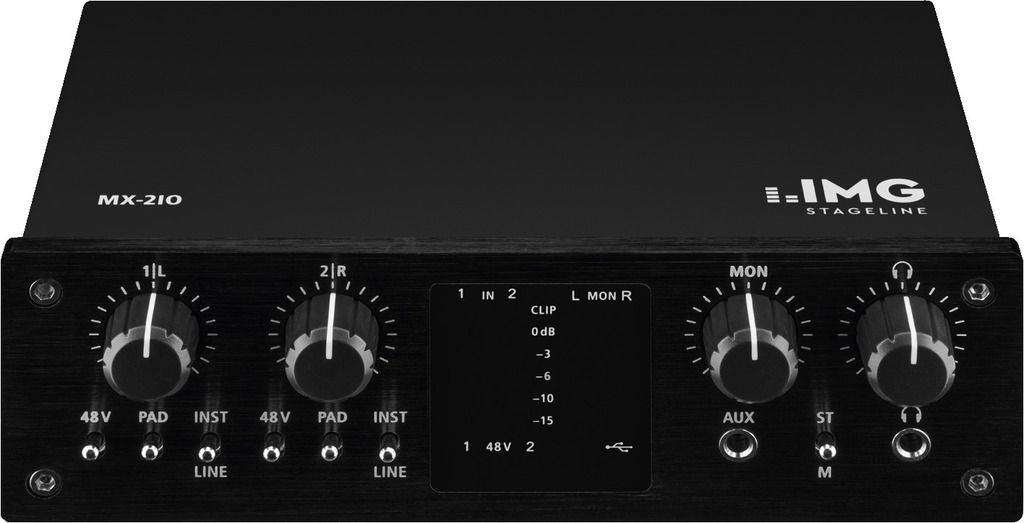

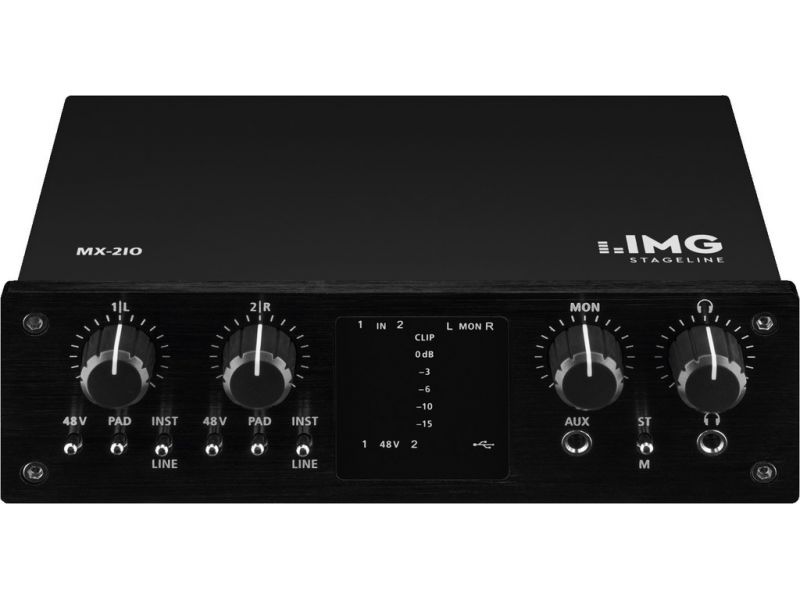

MX-2IO

Kod EAN: 4007754268584

2-kanálový USB nahrávací interface Integrovaný USB audio interface (bude identifikovaný a adresovaný ako externá zvuková karta) Full-duplex USB port (umožňuje simultánne nahrávanie a reprodukciu) pre reprodukovanie digitálnych audio údajov z PC a pre n...

víc

150,00 € brutto

(inkl. 20% DPH)
125,00 € netto



MX-2IO

2-kanálový USB nahrávací interface
  • Integrovaný USB audio interface (bude identifikovaný a adresovaný ako externá zvuková karta)
  • Full-duplex USB port (umožňuje simultánne nahrávanie a reprodukciu) pre reprodukovanie digitálnych audio údajov z PC a pre nahrávanie mixovania do PC

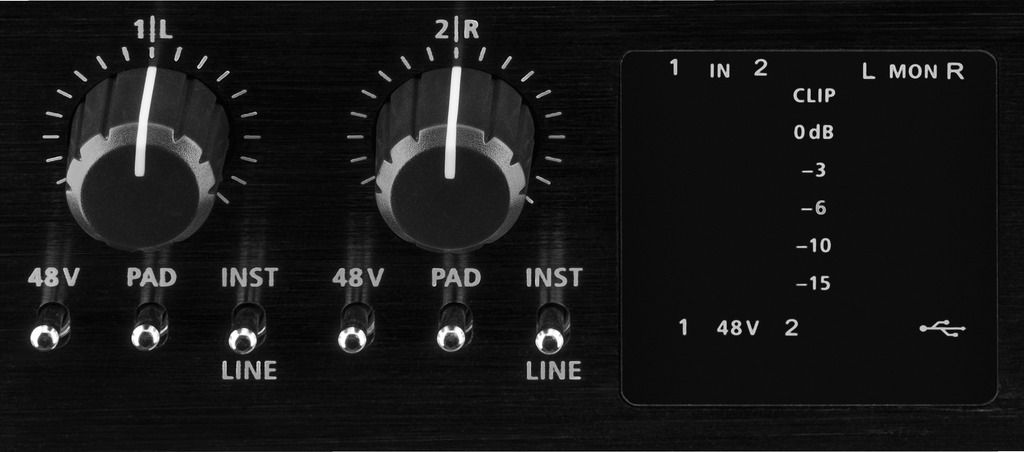

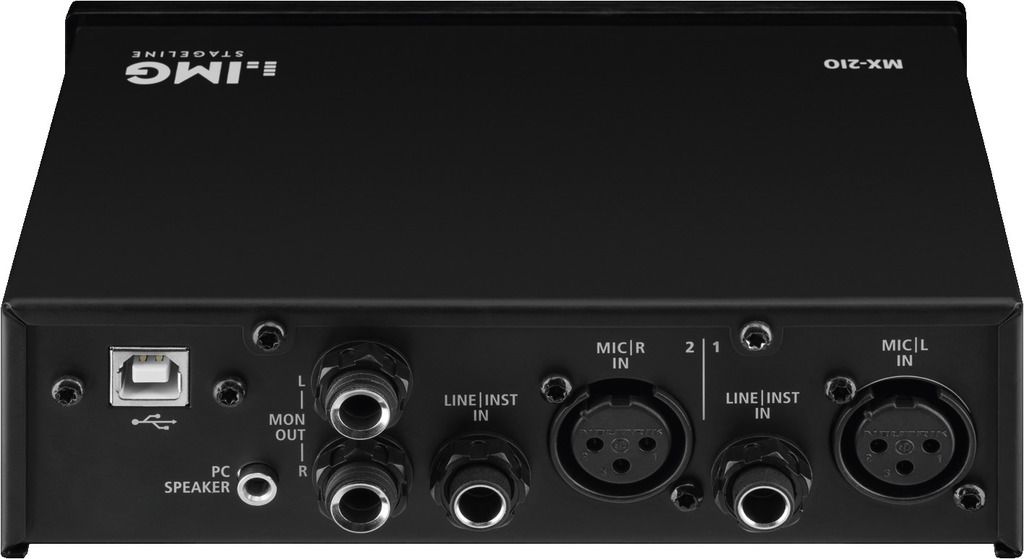

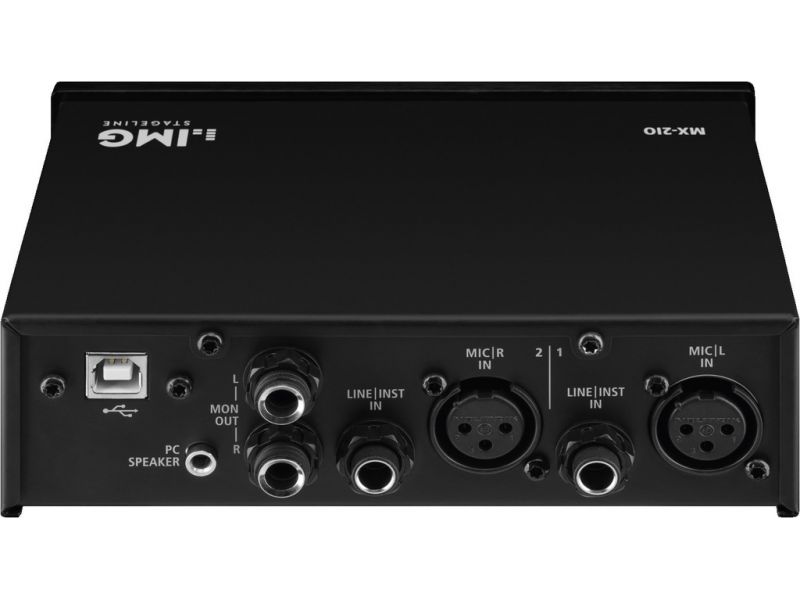

  • 2 mono vstupné kanály s XLR vstupom (mic) a 6.3 mm vstup (prepínateľný mic/line)

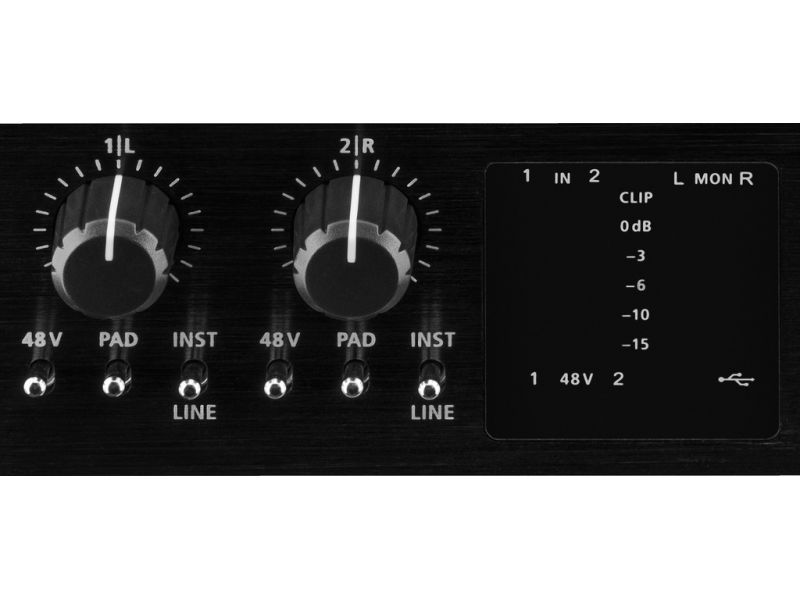

  • Voliteľné 20 dB stlmenie a LED zobrazenie úrovne
  • 1 ďalší stereo vstup
  • 1 x 6.3 mm jack výstup L/R
  • 1 x 3.5 mm stereo jack výstup

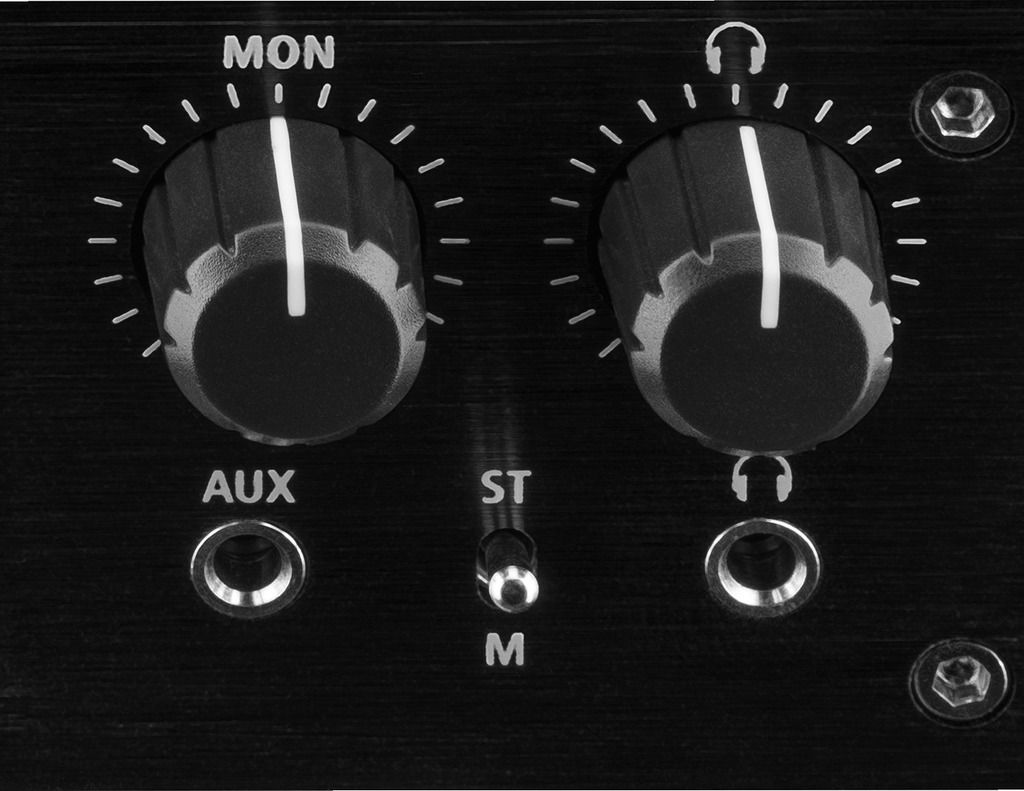

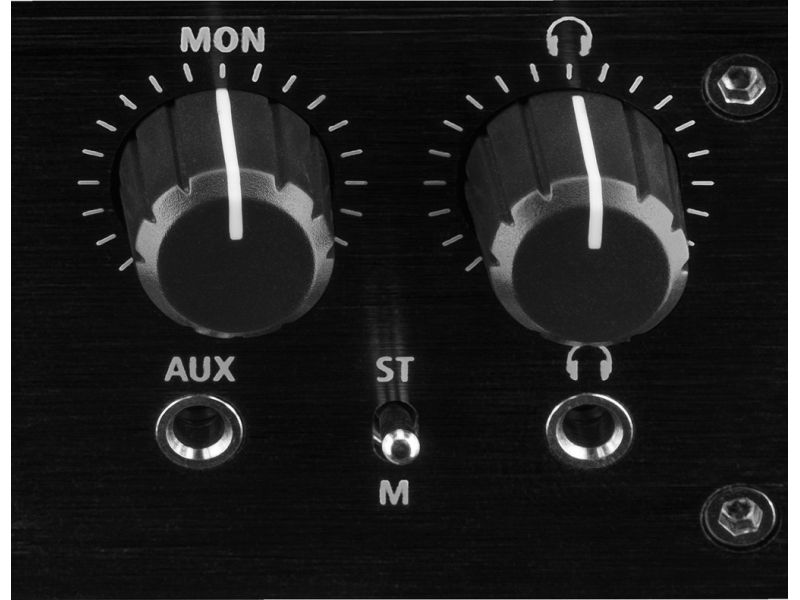

  • Nastaviteľný mikrofónny výstup
  • Možnosť aktivovania +48 V fantomového napájania
  • LED zobrazenie úrovne stereo
  • Robustné kovové púzdro kompaktnej veľkosti
delamar.de
"An easy-to-connect USB audio interface with two inputs and outputs each. Despite its compact size, the MX-2IO from IMG STAGELINE impresses with versatile input and output options. Any kind of microphone, instrument or audio player can be fed in and [...] be recorded. The LED chains for indicating the level of every path are quite unique in this class. Layout, haptics and neat workmanship are impressive. Last but not least, both the sound and output power of the headphone amplifier are absolutely perfect. Despite the missing monitor mixing option of the analogue input and DAW signals, it is a really neat little interface."

Parametry

No. of channels 2
No. of inputs 5
Mic input 2.5 mV, 2 x 3-pole XLR
Line input 45 mV, 1 x 6.3 mm jack 11 kΩ (line)/460 kΩ (inst.)
Aux input 1.25 V, 1 x 3.5 mm jack
Master output 500 mV, 2 x 6.3 mm jack L/R
Aux output 500 mV, 1 x 3.5 mm jack
Headphones ≥ 16 Ω, 1 x 3.5 mm jack
USB yes
Frequency range 20-20,000 Hz
THD ≤ 0.03%
Crosstalk 92 dB
Phantom power +48 V
Power supply via USB interface DC 5 V/500 mA
Operating voltage (possible alternative) DC 5 V
Power supply (possible alternative) 500 mA
Admiss. ambient temp. 0-40 °C
Width 160 mm
Height 50 mm
Depth 110 mm
Weight 634 g
Packing dimensions (W x H x L) 0.155 x 0.075 x 0.27 m
Gross weight 0.854 kg
Net weight 0.7 kg
