MPA-202
Kod EAN: 4007754185461
2-channel low-noise microphone preamplifier 2 microphone inputs, XLR, bal. Gain control, 11 steps, 20-70 dB 2 level controls ±5 dB LED green/red for indicating operation/peak Phantom power +12 V, can be activated as required Microphone phase, switcha...
222,00 € brutto
(inkl. 20% DPH)
185,00 € netto

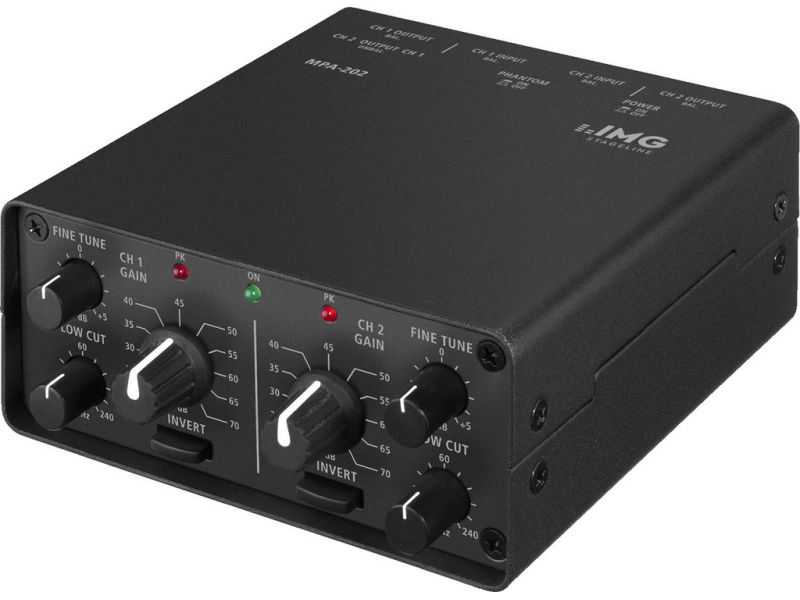

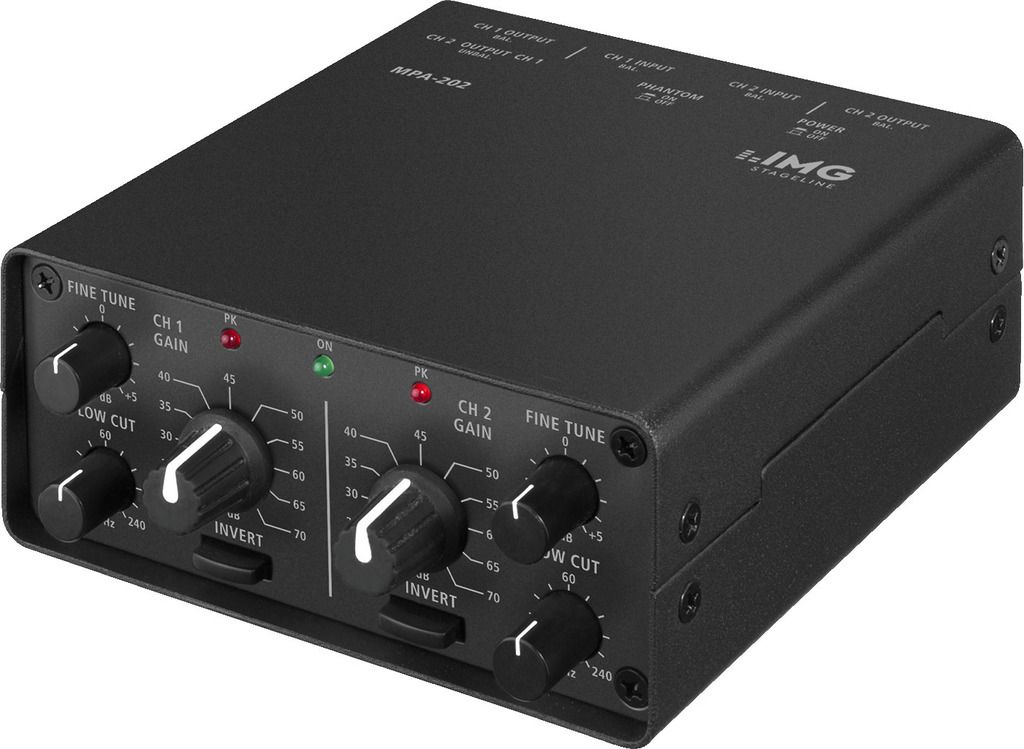

MPA-202
2-channel low-noise microphone preamplifier
- 2 microphone inputs, XLR, bal.
- Gain control, 11 steps, 20-70 dB
- 2 level controls ±5 dB
- LED green/red for indicating operation/peak
- Phantom power +12 V, can be activated as required
- Microphone phase, switchable for each channel
- Low cut: 15-240 Hz, continuously adjustable
- Subsonic filter 15 Hz, 18 dB/oct.
- 2 line outputs, XLR bal.
- 2 line outputs, RCA unbal.
Parametry
| Description | microphone preamplifier |
| Frequency range | 20-20,000 Hz |
| Input sensitivity | 0.16-150 mV switchable |
| Input impedance | 4.4 kΩ (bal.)2.2 kΩ (unbal.) |
| Output signal | 1-14 V (line, bal.) 1-7 V (line, stereo) |
| Output impedance | 100 Ω/600 Ω |
| Gain | 15-75 dB |
| Crossover frequency | 15-240 Hz, 6 dB/oct. (low cut), 15 Hz, 18 dB/oct. (subsonic) |
| Low cut | 100 Hz |
| S/N ratio | > 68 dB, unweighted > 87 dB, weighted |
| THD | < 0.01% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via encl. plug-in power supply |
| Dimensions | 116 x 55 x 135 mm |
| Weight | 980 g |

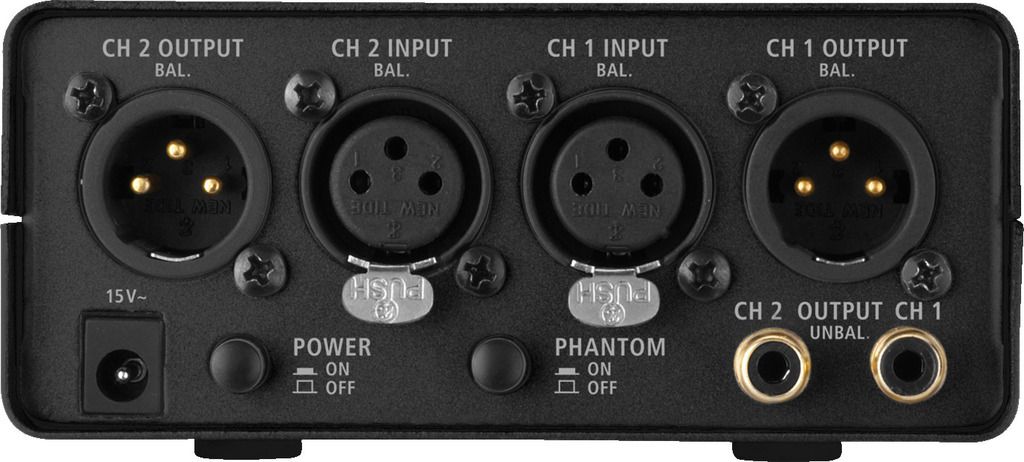

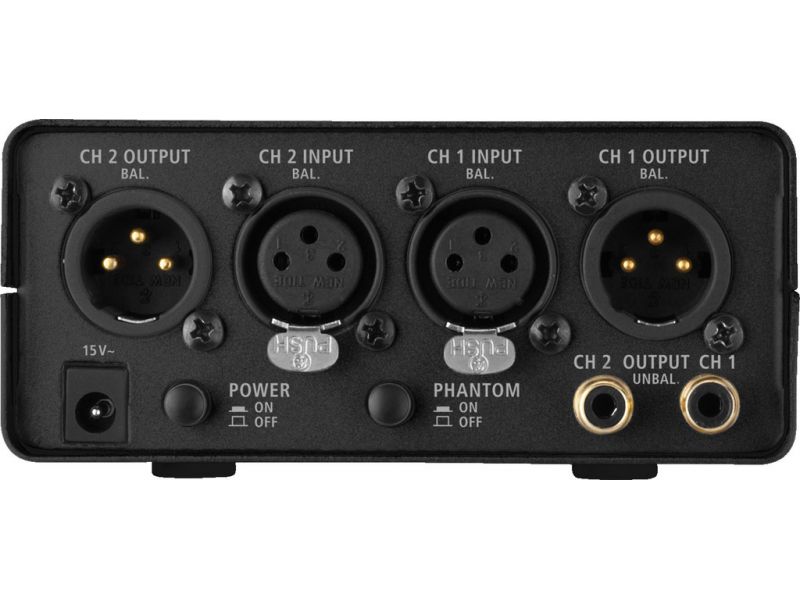

| Inputs | 2 x XLR |
| Outputs | 2 x XLR2 x RCA |
