ETS-515TW/WH

Kod EAN: 4007754428032

PA column speaker 100 V line technology or 8 Ω operation 2-way version (with additional integrated tweeter for a clearly improved sound) Integrated crossover network 6-step power selector switch with 8 Ω selection 2 x 6 mm threaded bushing Plastic c...

víc

Staň se partnerem
Kup teď

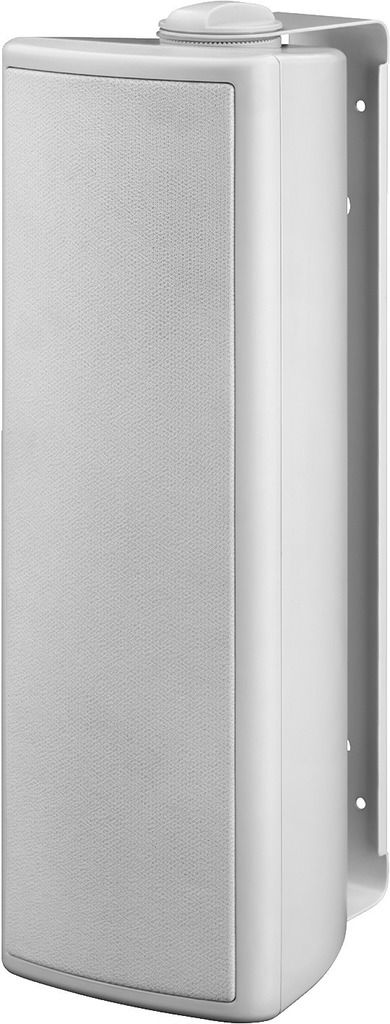

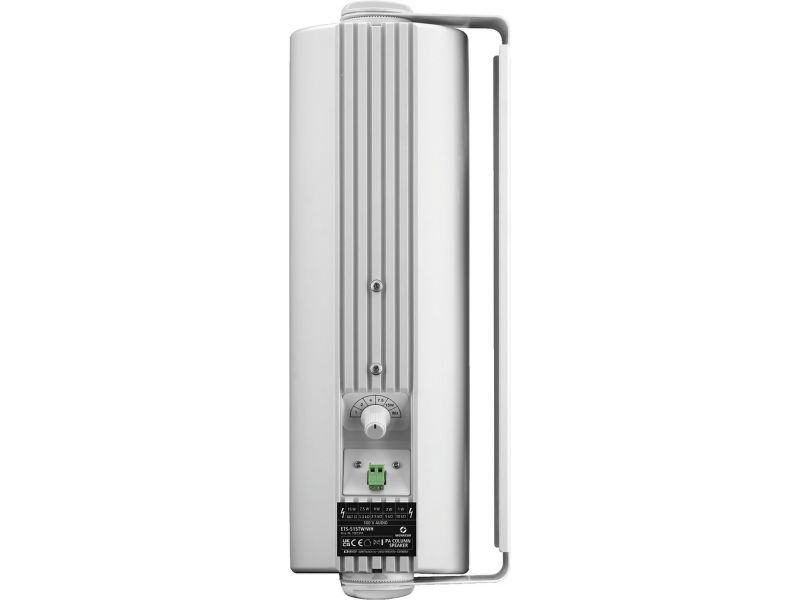

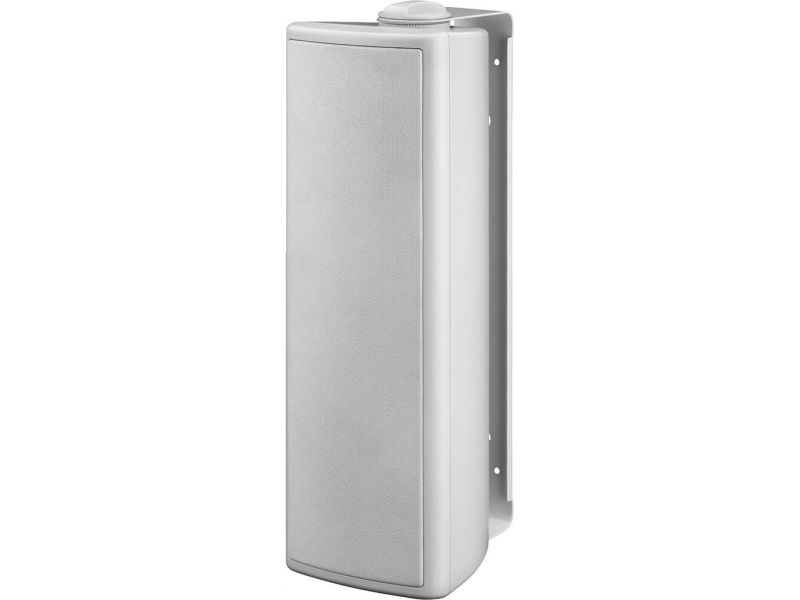

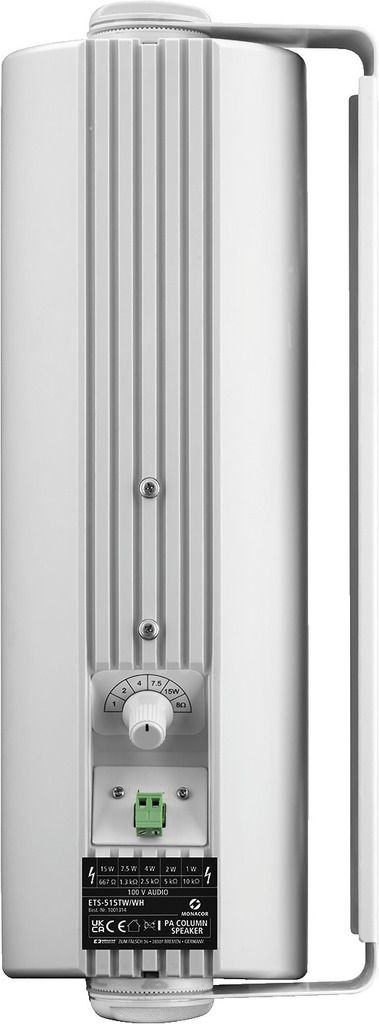

ETS-515TW/WH

PA column speaker
  • 100 V line technology or 8 Ω operation
  • 2-way version (with additional integrated tweeter for a clearly improved sound)
  • Integrated crossover network
  • 6-step power selector switch with 8 Ω selection
  • 2 x 6 mm threaded bushing
  • Plastic cabinet and speaker grille cloth
  • Supplied with end-to-end mounting bracket
  • Terminal strip connection

Parametry

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 30 W
Power rating (RMS) 15/7.5/4/2/1 W (100 V) 15 W (8 Ω)
Impedance 8 Ω
Frequency range 90-20,000 Hz
System 2-way
Number of speakers 2+1
Speaker size 10 cm (4")
SPL 87 dB/W/m
Radiation angle/beam angle H: 140°/V: 50°
Radiation angle, horizontal 140°
Radiation angle, vertical 50°
Housing material plastic
Colour white
Mounting device mounting bracket, end-to-end
Admiss. ambient temp. 0-40 °C
Dimensions 128 x 385 x 140 mm
Width 128 mm
Height 385 mm
Depth 140 mm
Weight 2.8 kg
Inputs plug-in screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.18 x 0.5 m
Gross weight 3.1 kg
Net weight 2.84 kg

Na stáhnutí

Produktová karta ETS-515TW/WH Návod na obsluhu
