K12H-200TC/8
Kod EAN: 0739894587051
PA bass-midrange speaker, 200 W, 8 Ω 30 cm (12") speaker made of extruded steel Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone Stabilised voice coil system for a detailed reproduction of the midrange

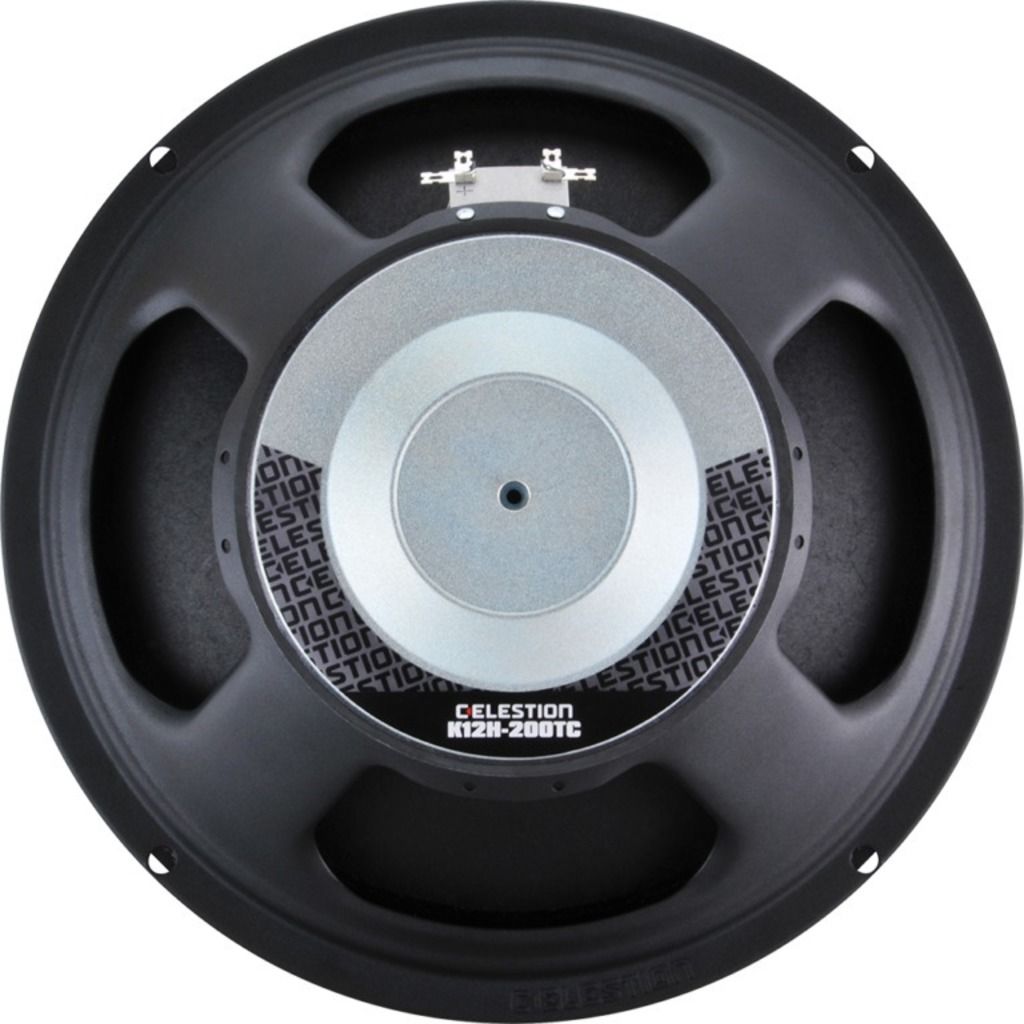

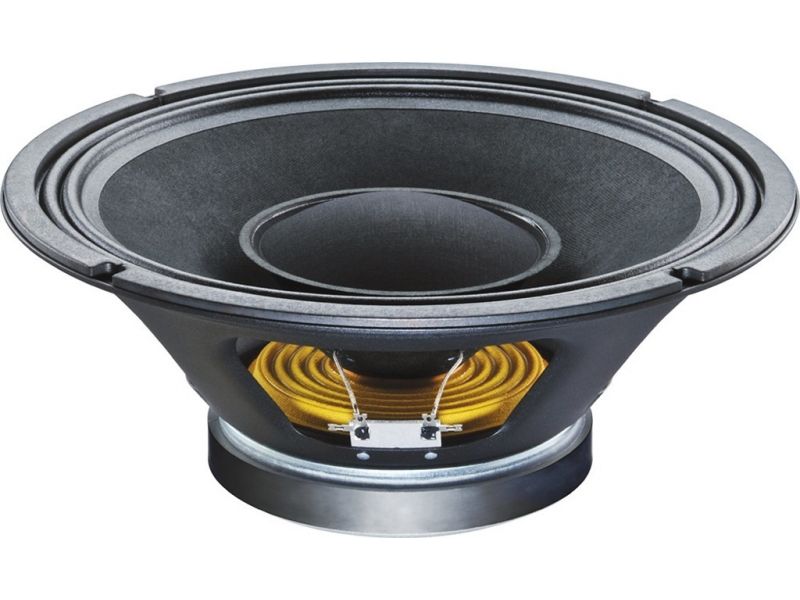

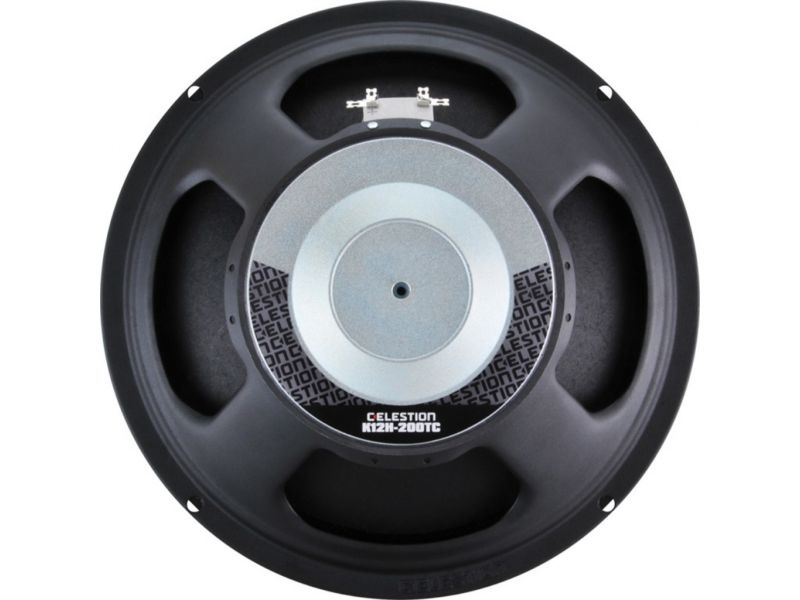

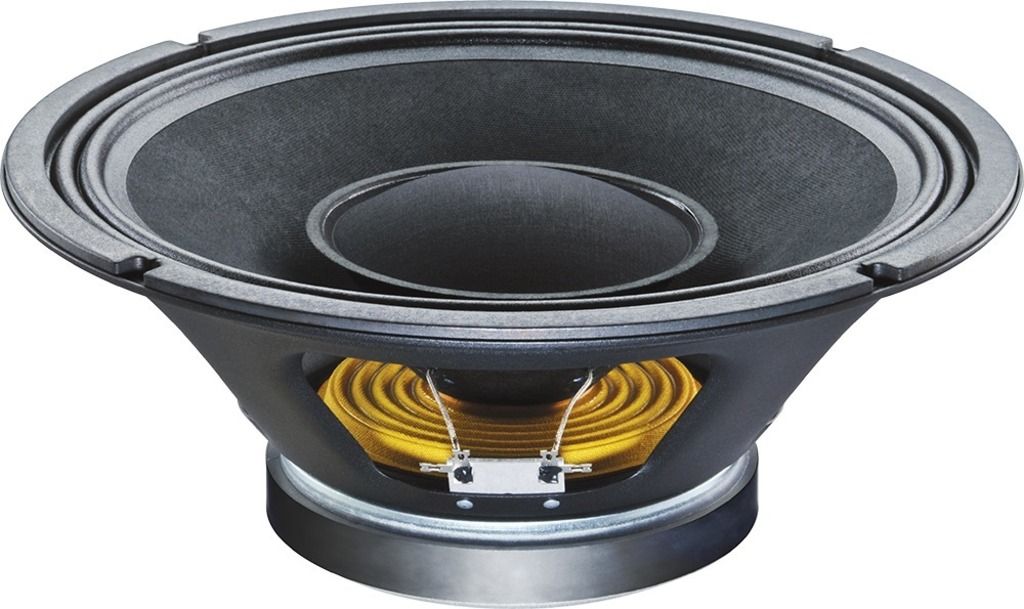

K12H-200TC/8
PA bass-midrange speaker, 200 W, 8 Ω
- 30 cm (12") speaker made of extruded steel
- Ferrite magnet driver with extended reproduction of the high frequencies due to dual cone
- Stabilised voice coil system for a detailed reproduction of the midrange
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

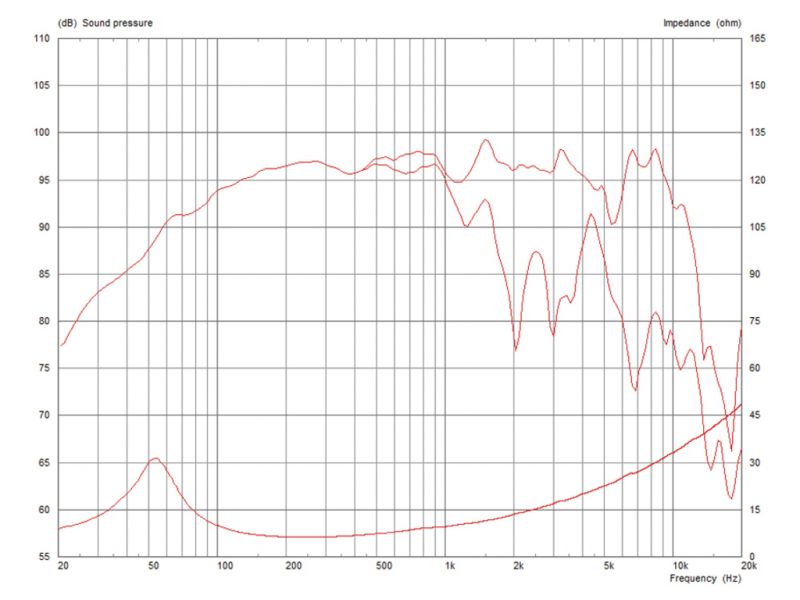

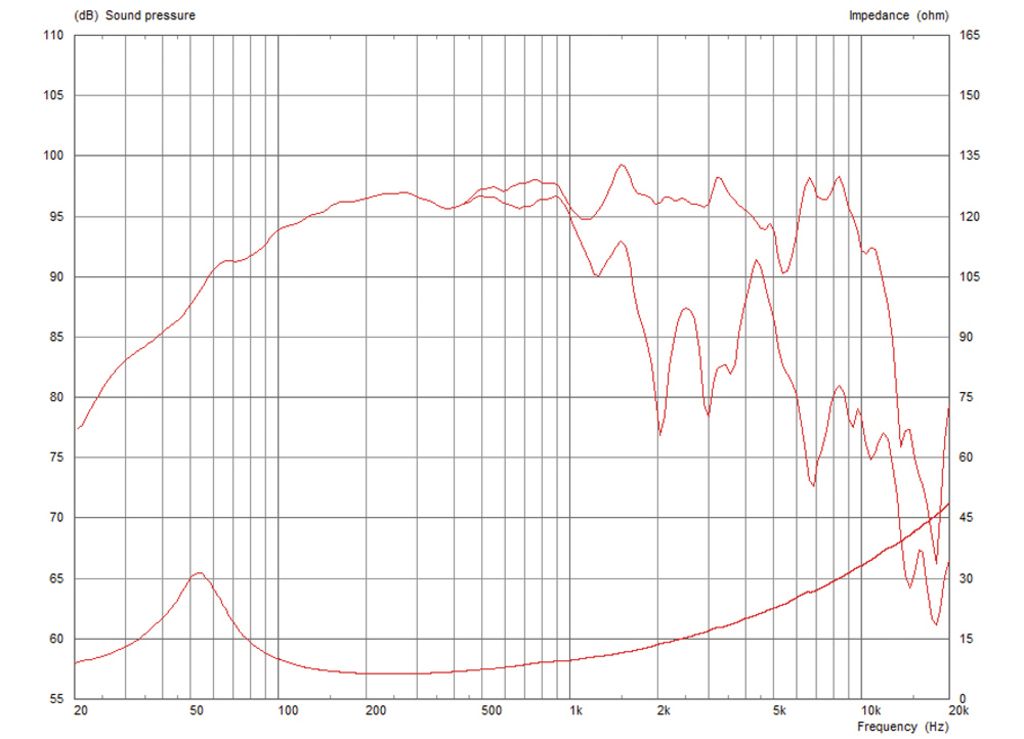

| Frequency range | 50-5,000 Hz |
| Resonant frequency (fs) | 62.30 Hz |
| Power rating (RMS) | 200 W |
| Peak music power output (MAX) | 400 W |
| SPL | 98 dB/W/m |
| Suspension compl. (Cms) | 14.63 mm/N |
| Moving mass (Mms) | 40.57 g |
| Mech. Q factor (Qms) | 2.804 |
| Electr. Q factor (Qes) | 0.432 |
| Total Q factor (Qts) | 0.374 |
| Equivalent volume (Vas) | 64.1 l |
| DC resistance (Re) | 5.81 Ω |
| Force factor (BxL) | 14.63 Tm |
| Voice coil induct. (Le) | 0.63 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil winding height | 12 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 530.93 cm2 |
| Magnet weight | 1.41 g |
| Mounting cutout | Ø 283 mm |
| Mounting depth | 130.3 mm |
| Mounting hole diameter | Ø 297 mm |
| Dimensions | Ø 309 mm x 130.3 mm |
| Outside diameter | Ø 309 mm |
| Width | Ø 309 mm |
| Height | Ø 309 mm |
| Depth | 130.3 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.9 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.33 x 0.15 x 0.33 m |
| Gross weight | 4.5 kg |
| Net weight | 3.9 kg |
