SP-167E
Kod EAN: 4007754153507
Hi-fi stredobasový reproduktor, 35 W, 4 Ω Skvelý všestranný reproduktor Penový priestor Náhradný reproduktor pre uzavreté reproduktorové systémy a basreflexové reproduktorové systémy
29,60 € brutto
(inkl. 20% DPH)
24,67 € netto

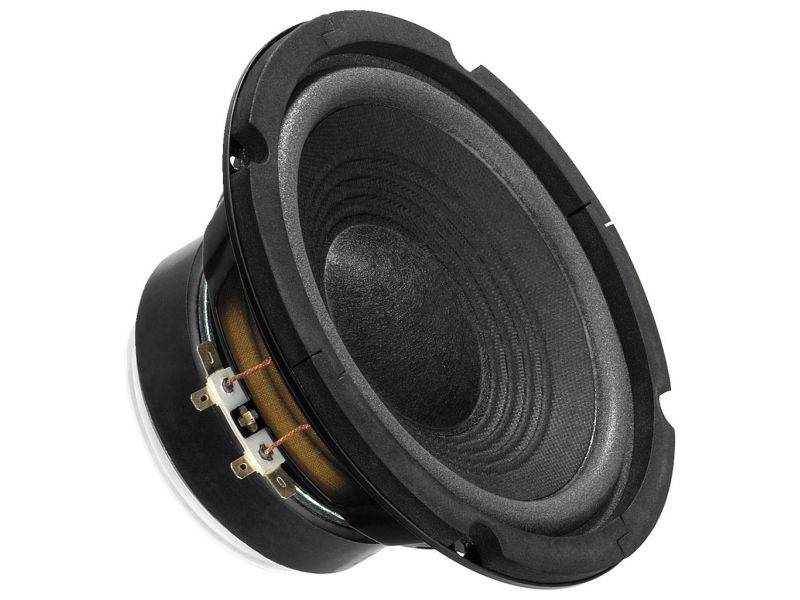

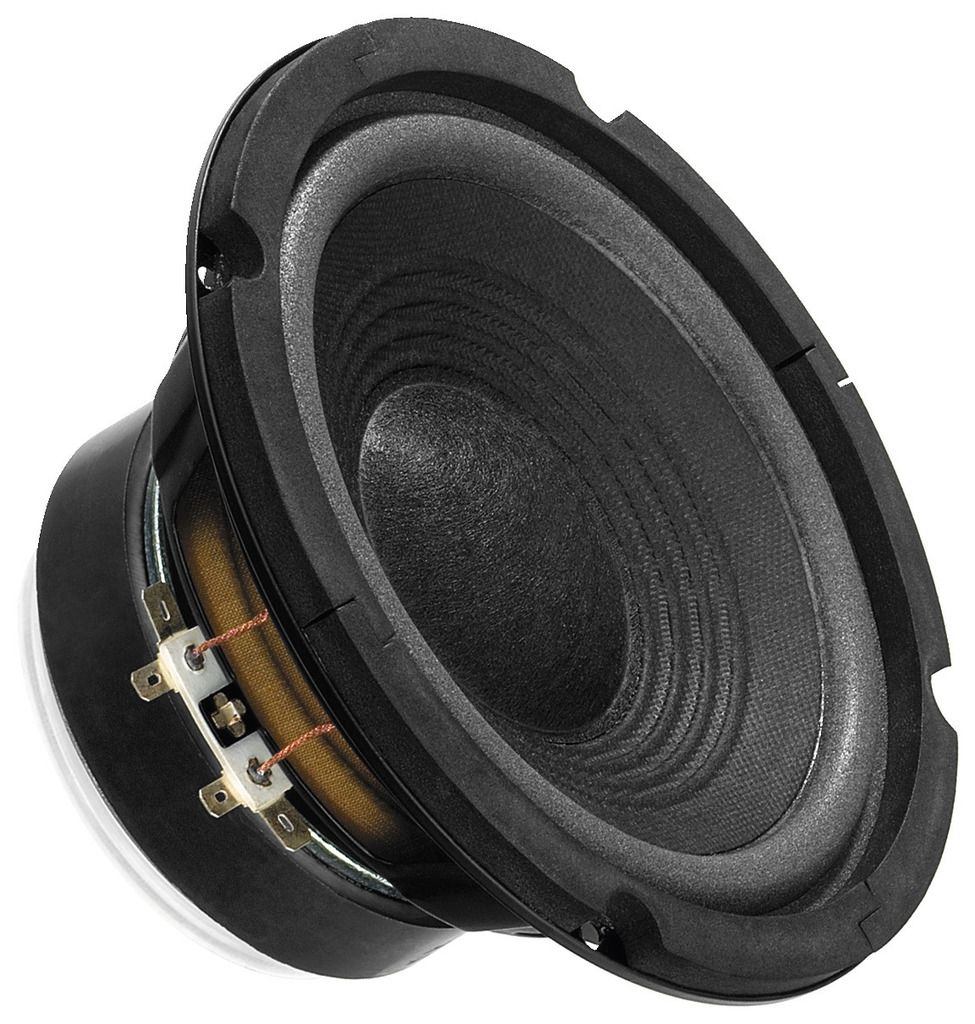

SP-167E
Hi-fi stredobasový reproduktor, 35 W, 4 Ω
- Skvelý všestranný reproduktor
- Penový priestor
- Náhradný reproduktor pre uzavreté reproduktorové systémy a basreflexové reproduktorové systémy
Parametry
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |
| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 62 Hz |
| Power rating (RMS) | 35 W |
| Peak music power output (MAX) | 70 W |
| SPL | 92 dB/W/m |
| Suspension compl. (Cms) | 0.7 mm/N |
| Moving mass (Mms) | 9.3 g |
| Mech. Q factor (Qms) | 2.78 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 17.9 l |
| DC resistance (Re) | 3.9 Ω |
| Force factor (BxL) | 5.43 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 135 cm2 |
| Magnet weight | 570 g |
| Magnet diameter | Ø 100 mm |

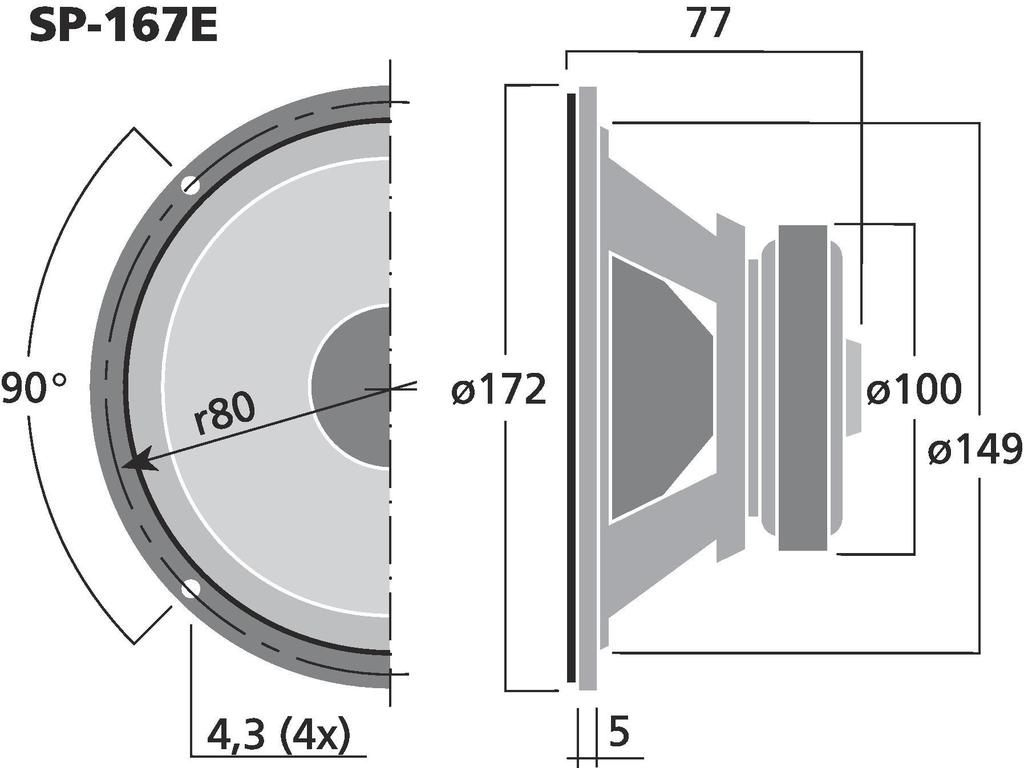

| Mounting cutout | Ø 149 mm |
| Mounting depth | 72 mm |
| Mounting hole diameter | Ø 160 mm |
| Dimensions | Ø 172 mm x 77 mm |
| Outside diameter | Ø 172 mm |
| Width | Ø 172 mm |
| Height | Ø 172 mm |
| Depth | 77 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.23 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.185 x 0.09 x 0.185 m |
| Gross weight | 1.33 kg |
| Net weight | 1.23 kg |
