FTR15-3070C/8

Kod EAN: 0739894538756

PA bass speaker, 400 W, 8 Ω Glass fibre reinforced waterproof impregnated paper cone Ventilated magnet arrangement for dynamic heat dissipation Manufacturer information: Celestion International LtdClaydon Business Park, Great Blakenham,IpswichS...

víc

Staň se partnerem
Kup teď

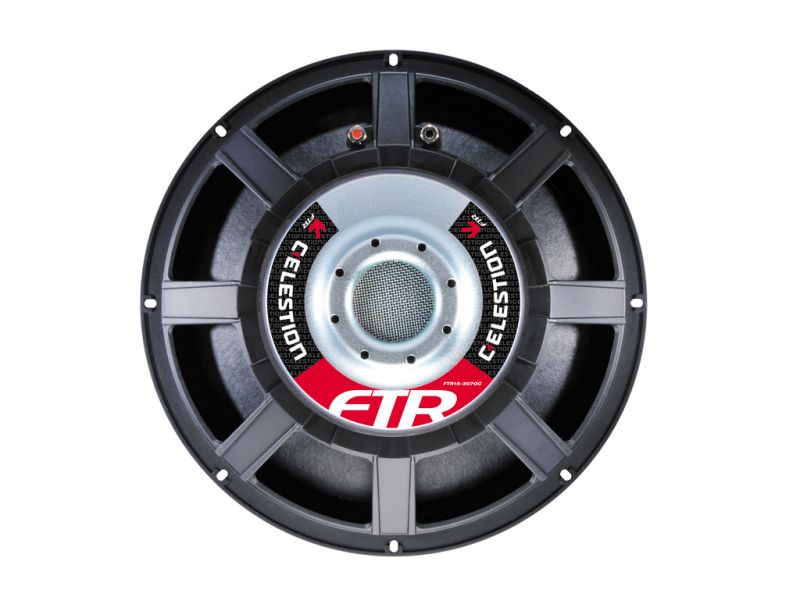

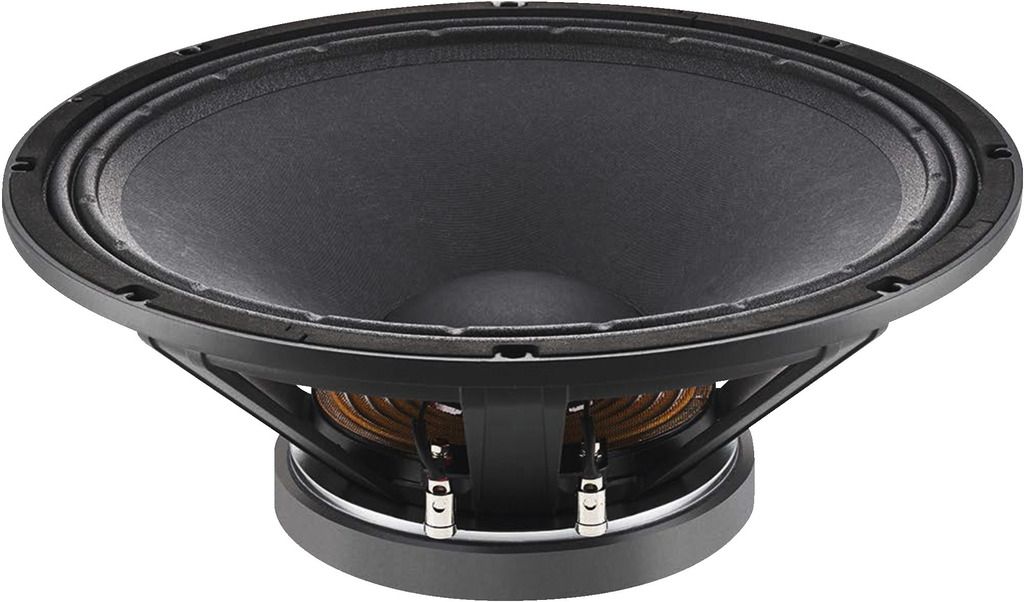

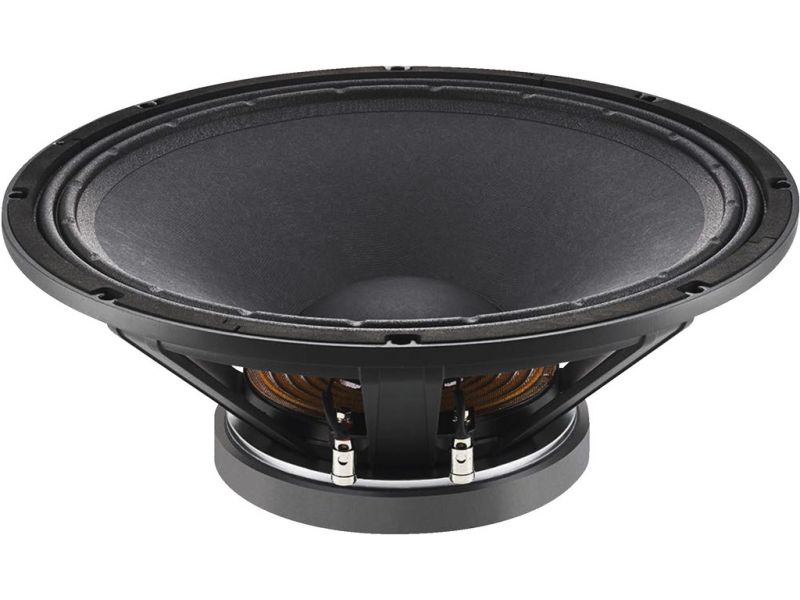

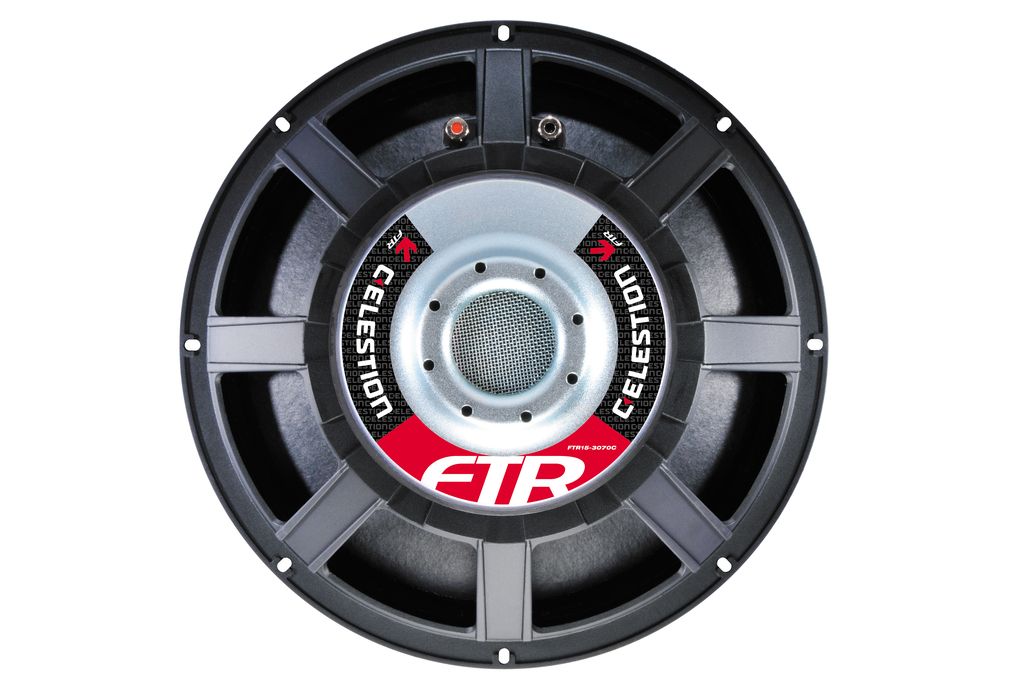

FTR15-3070C/8

PA bass speaker, 400 W, 8 Ω
  • Glass fibre reinforced waterproof impregnated paper cone
  • Ventilated magnet arrangement for dynamic heat dissipation
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 40-4,000 Hz
Resonant frequency (fs) 41.4 Hz
Power rating (RMS) 400 W
Peak music power output (MAX) 800 W
SPL 99 dB/W/m
Suspension compl. (Cms) 0.18 mm/N
Moving mass (Mms) 81.73 g
Mech. Q factor (Qms) 3.51
Electr. Q factor (Qes) 0.429
Total Q factor (Qts) 0.382
Equivalent volume (Vas) 187.6 l
DC resistance (Re) 6.07 Ω
Force factor (BxL) 17.33 Tm
Voice coil induct. (Le) 0.59 mH
Voice coil diameter Ø 75 mm
Voice coil winding height 16 mm
Voice coil material copper wire
Voice coil former glass fibre
Linear excursion (XMAX) ± 5.5 mm
Eff. cone area (Sd) 855.3 cm2
Magnet weight 2.3 kg
Mounting cutout Ø 351 mm
Mounting depth 158 mm
Mounting hole diameter Ø 365-375 mm
Dimensions Ø 385 mm x 158 mm
Outside diameter Ø 385 mm
Width Ø 385 mm
Height Ø 385 mm
Depth 158 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 5.82 kg
Packing unit 1
Type of speaker 15"
Packaging dimensions (W x H x L) 0.432 x 0.21 x 0.432 m
Gross weight 7.32 kg
Net weight 5.82 kg

Na stáhnutí

Produktová karta FTR15-3070C/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
