MRD-44PA
Kod EAN: 4007754214208
PA horn driver, 45 W, 8 Ω 35 mm (1⅜") štandardný závit Komponent reproduktorov PAB-115MK2 a PAK-115MK2 Vhodná náhradná hlasová cievka PAB-115/VC dostupná v ponuke Vhodná pre horny MRH-83, MRH-170 a MRH-80
50,50 € brutto
(inkl. 20% DPH)
42,08 € netto

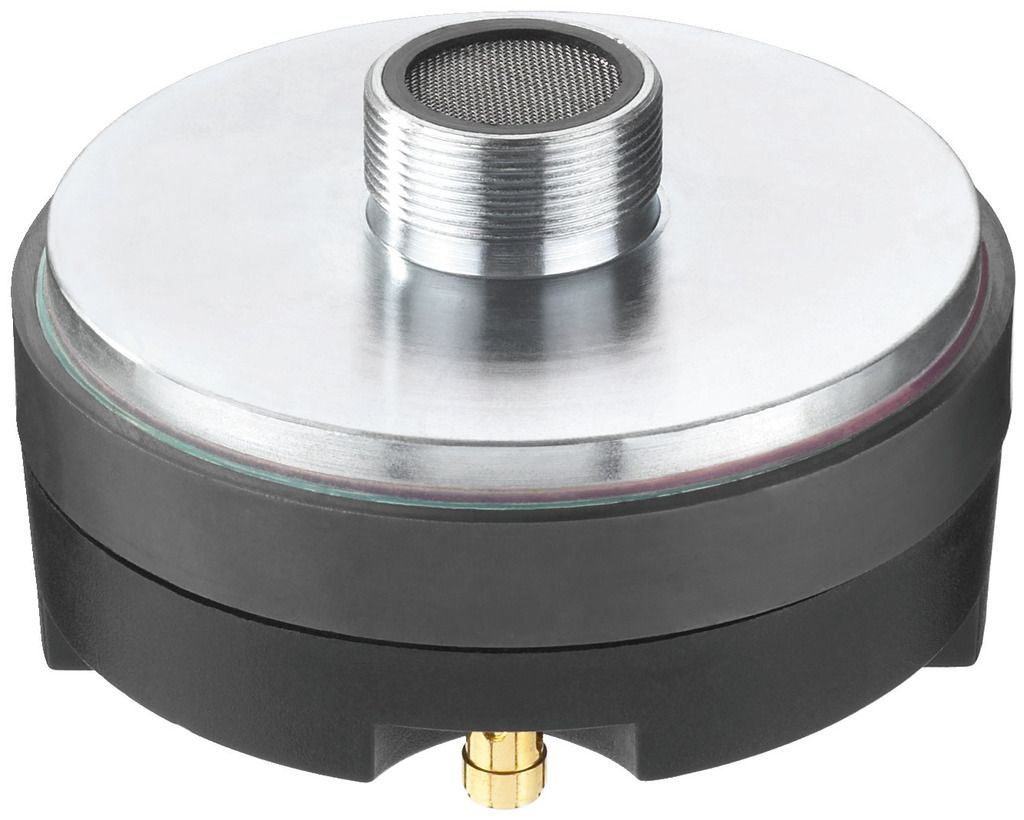

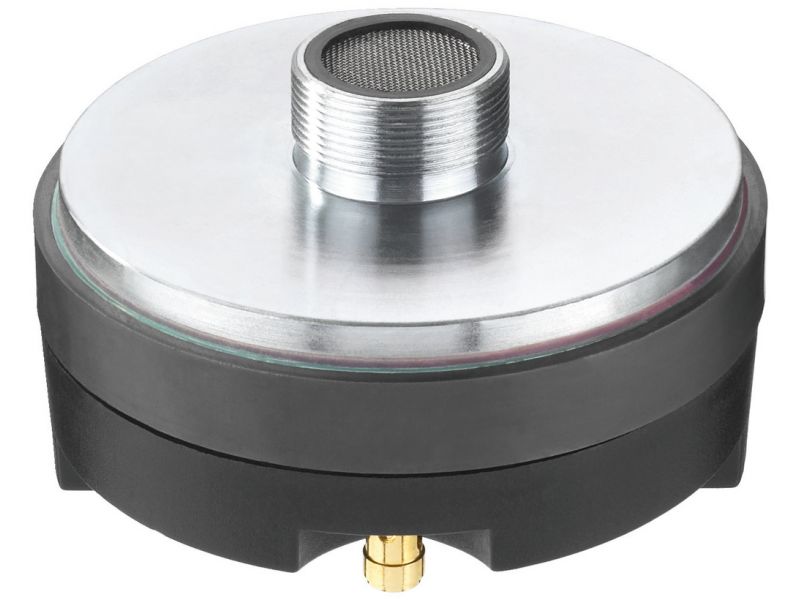

MRD-44PA
PA horn driver, 45 W, 8 Ω
- 35 mm (1⅜") štandardný závit
- Komponent reproduktorov PAB-115MK2 a PAK-115MK2
- Vhodná náhradná hlasová cievka PAB-115/VC dostupná v ponuke
- Vhodná pre horny MRH-83, MRH-170 a MRH-80
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

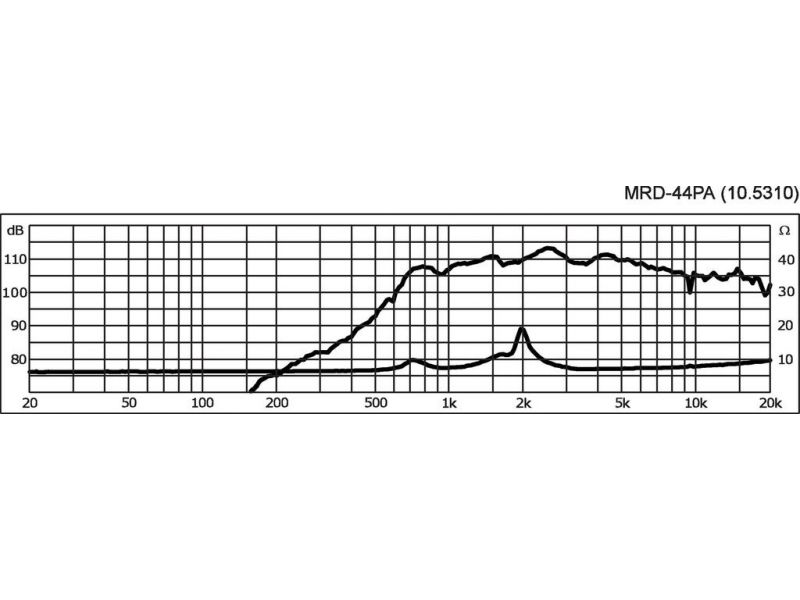

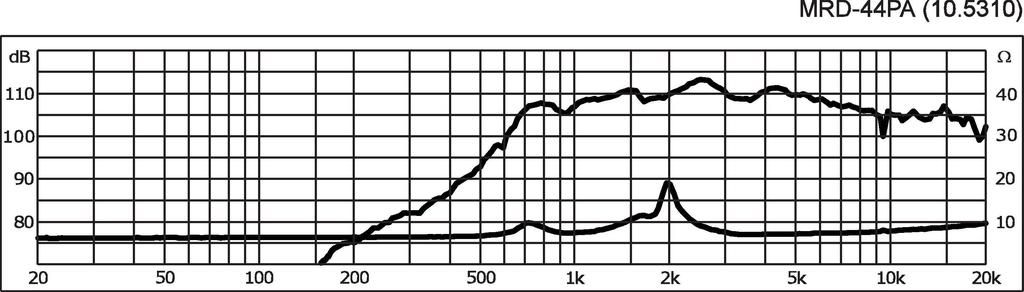

| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 3,500 Hz |
| Power rating (RMS) | 45 W |
| Peak music power output (MAX) | 90 W |
| SPL | 105 dB/W/m |
| Voice coil diameter | Ø 44.5 mm |
| Magnet diameter | Ø 110 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |

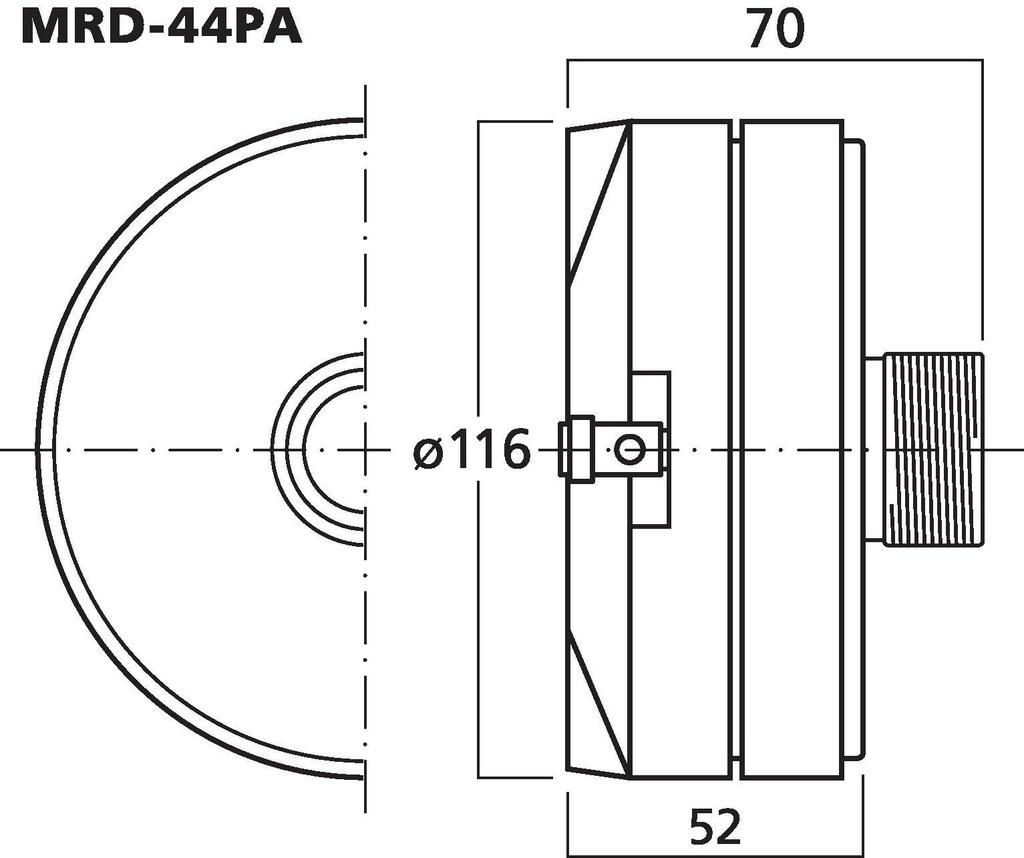

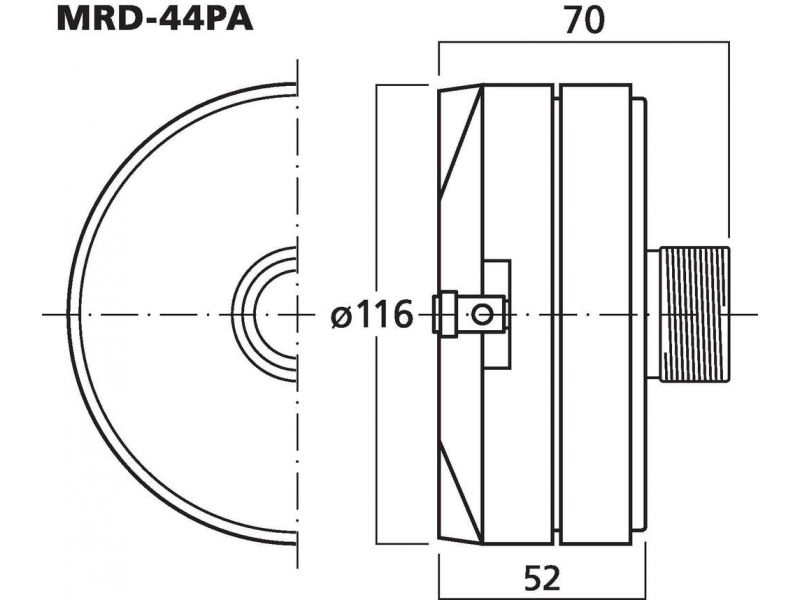

| Dimensions | Ø 116 mm x 70 mm |
| Outside diameter | Ø 116 mm |
| Width | Ø 116 mm |
| Height | Ø 116 mm |
| Depth | 70 mm |
| Colour | silver/black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.472 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.12 x 0.075 x 0.12 m |
| Gross weight | 1.514 kg |
| Net weight | 1.472 kg |
