FTR12-3070C/8

Kod EAN: 0739894564458

PA bass-midrange speaker, 350 W, 8 Ω Glass fibre reinforced waterproof impregnated paper cone Ventilated magnet arrangement for dynamic heat dissipation Manufacturer information: Celestion International LtdClaydon Business Park, Great Blakenham...

víc

Staň se partnerem
Kup teď

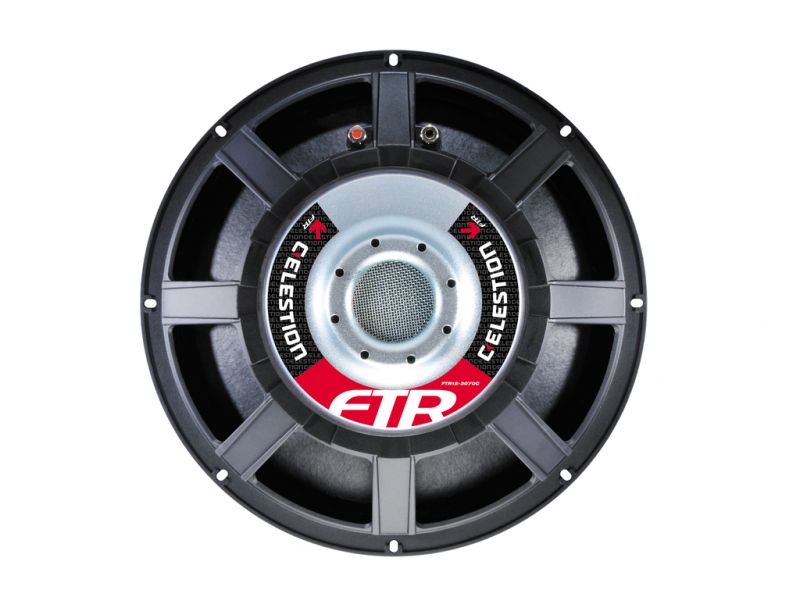

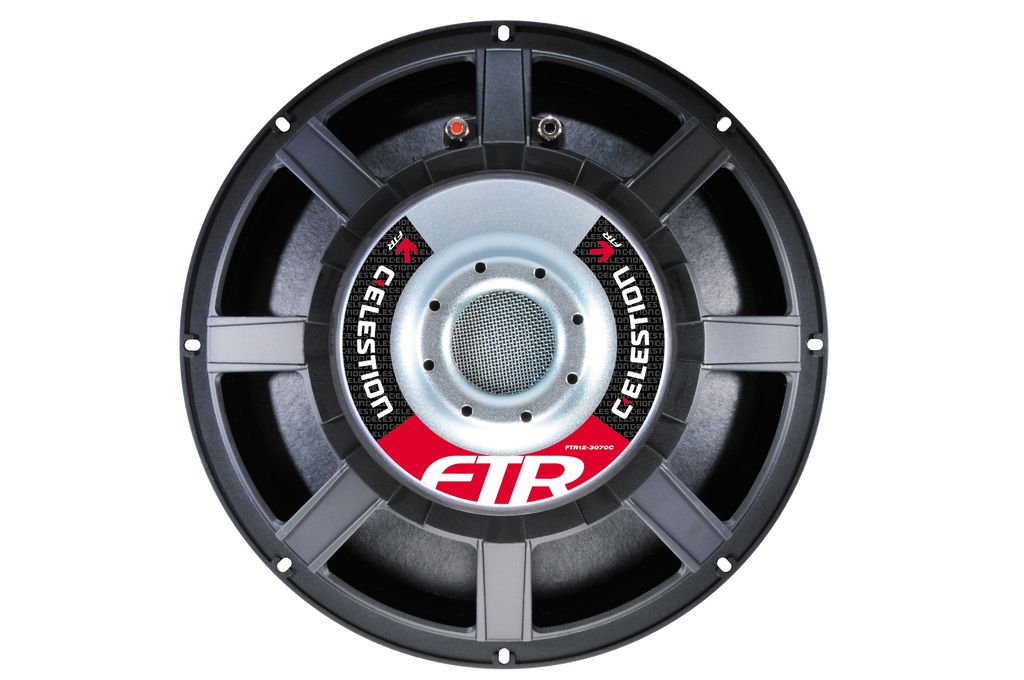

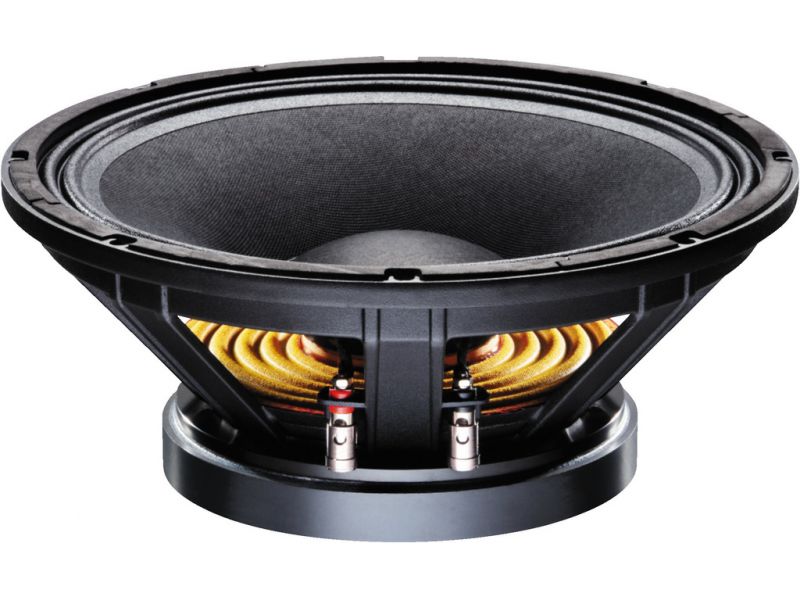

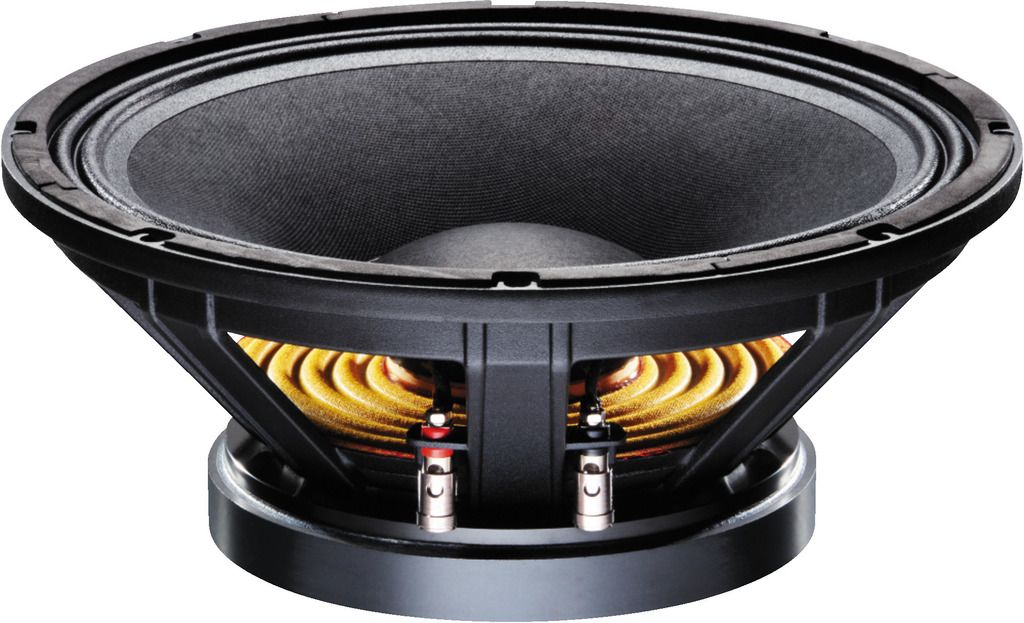

FTR12-3070C/8

PA bass-midrange speaker, 350 W, 8 Ω
  • Glass fibre reinforced waterproof impregnated paper cone
  • Ventilated magnet arrangement for dynamic heat dissipation
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 40-5,000 Hz
Resonant frequency (fs) 65.10 Hz
Power rating (RMS) 350 W
Peak music power output (MAX) 700 W
SPL 96 dB/W/m
Suspension compl. (Cms) 0.11 mm/N
Moving mass (Mms) 54.61 g
Mech. Q factor (Qms) 2.804
Electr. Q factor (Qes) 0.362
Total Q factor (Qts) 0.321
Equivalent volume (Vas) 43.7 l
DC resistance (Re) 5.59 Ω
Force factor (BxL) 18.58 Tm
Voice coil induct. (Le) 1.09 mH
Voice coil diameter Ø 75 mm
Voice coil winding height 16 mm
Voice coil material copper wire
Voice coil former glass fibre
Linear excursion (XMAX) ± 5.5 mm
Eff. cone area (Sd) 530.93 cm2
Magnet weight 2.3 kg
Mounting cutout Ø 286 mm
Mounting depth 102 mm
Mounting hole diameter Ø 298-304 mm
Dimensions Ø 318 mm x 102 mm
Outside diameter Ø 318 mm
Width Ø 318 mm
Height Ø 318 mm
Depth 102 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 6.2 kg
Packing unit 1
Type of speaker 12"
Packaging dimensions (W x H x L) 0.356 x 0.203 x 0.356 m
Gross weight 7.3 kg
Net weight 6.2 kg

Na stáhnutí

Produktová karta FTR12-3070C/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca Technický produktový list
