Professional PA bass-midrange speaker
NBB-75DFGX
Kod EAN: 4007754264586
NEUTRIK UHD BNC panel jacks provide low return loss values at high frequencies, which typically occur in high-definition video signal transmissions. The machined brass body ensures a rugged and non-abrasive connection. Due to being recessed in the D se...
17,20 € brutto
(inkl. 23% DPH)
13,98 € netto
NBB-75DFGX
NEUTRIK UHD BNC panel jacks provide low return loss values at high frequencies, which typically occur in high-definition video signal transmissions. The machined brass body ensures a rugged and non-abrasive connection. Due to being recessed in the D series body (audio industry standard) they are additionally protected.

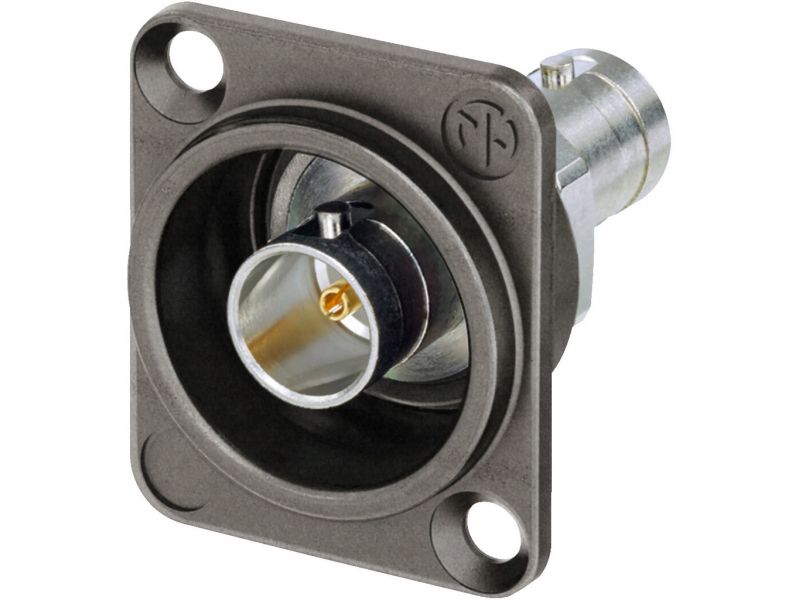

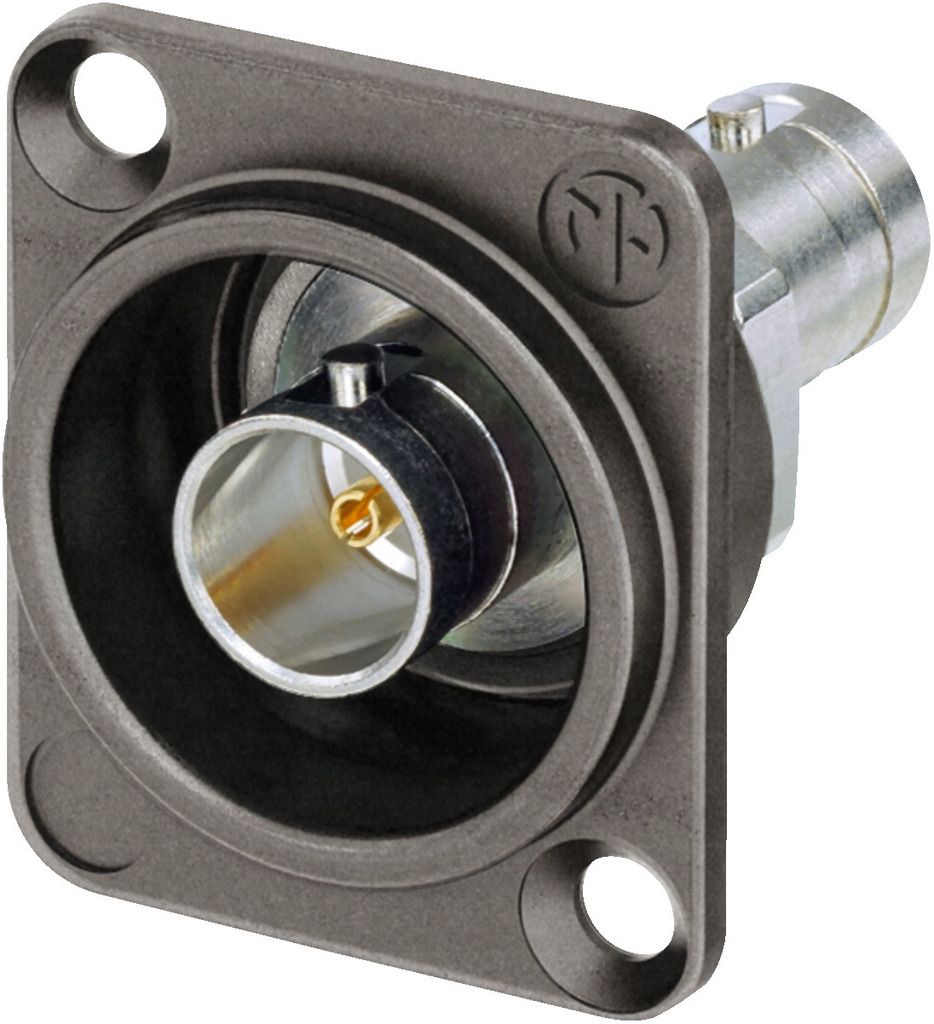

UHD BNC feed-through panel jack, 75 Ω, earthed
- Gold-plated cage type contact, optimised for UHD signals like 4 K or 8 K
- High-quality PTFE insulation
- Body with antraloy coating
- BNC insert is earthed via body
- Earthed panel mounting
- D series
- Colour coding possible
- Compatible with customary BNC cable connectors
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametry
| Description | panel jack |
| Type | NEUTRIK BNC feed-through |
| Quantity | 1 |
| Features | PTFE insulation, gold-plated contacts |
| Colour/colour coding | black |
| Insulating resistance | > 5 GΩ |
| Dielectric strength | 1.5 kV |
| Connection | 2 x BNC, 75 Ω |
| Material | metal |
| Admiss. ambient temp. | -30-+85 °C |
| Weight | 29 g |
| Other features | D series |
