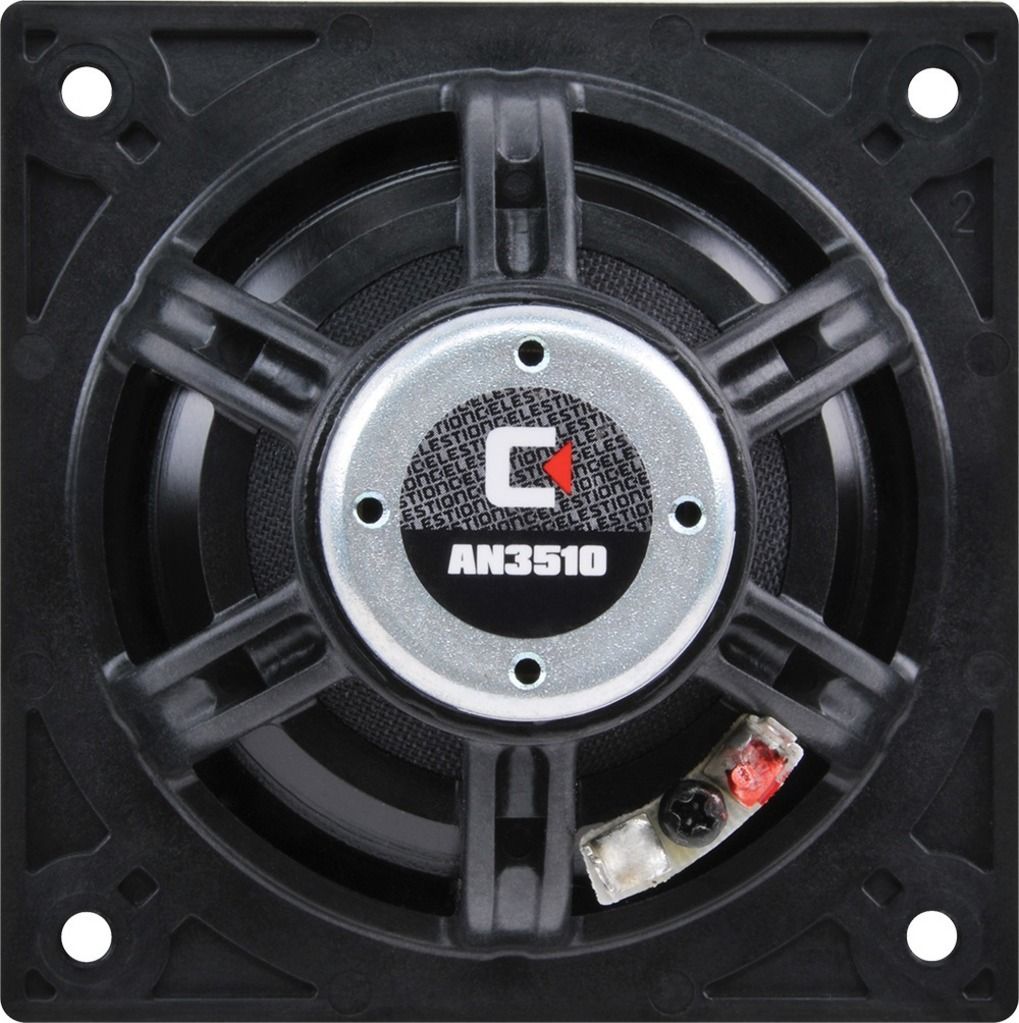

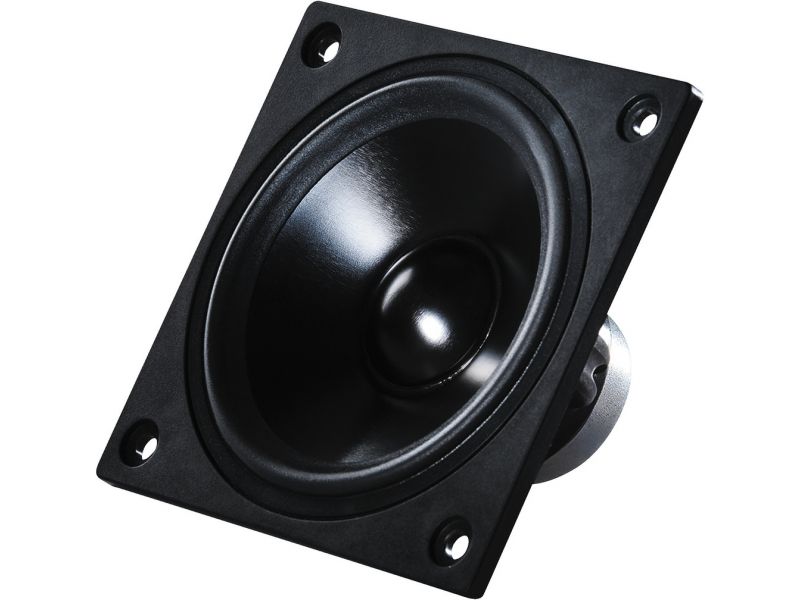

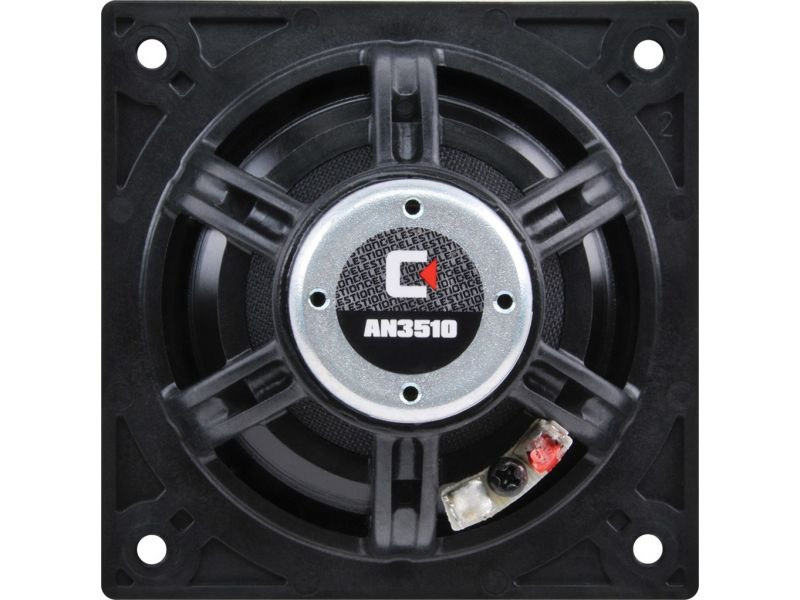

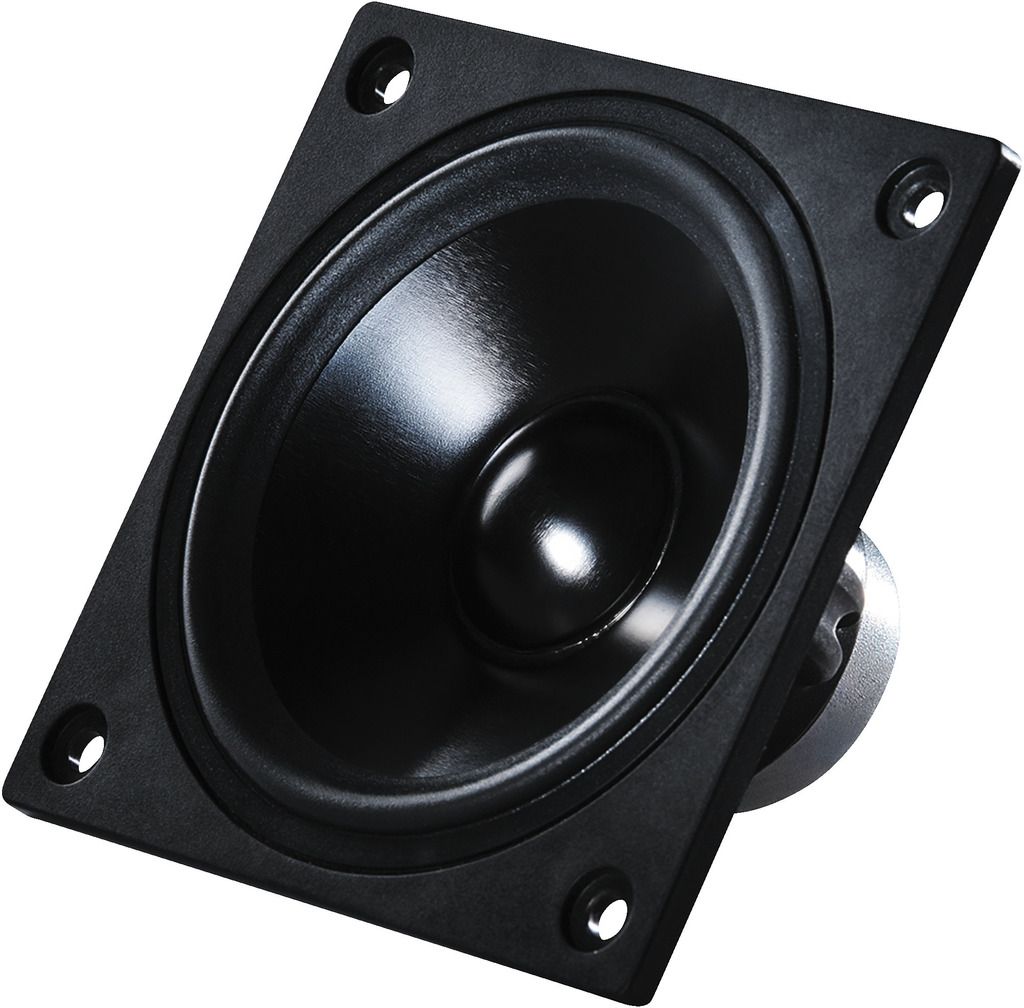

AN3510/8

Hi-fi full range speaker, 35 W, 8 Ω
  • Square basket for tight connection of the speakers used in array applications
  • Robust aluminium cone
  • Half-roll elastomer surround
  • Weatherproof
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

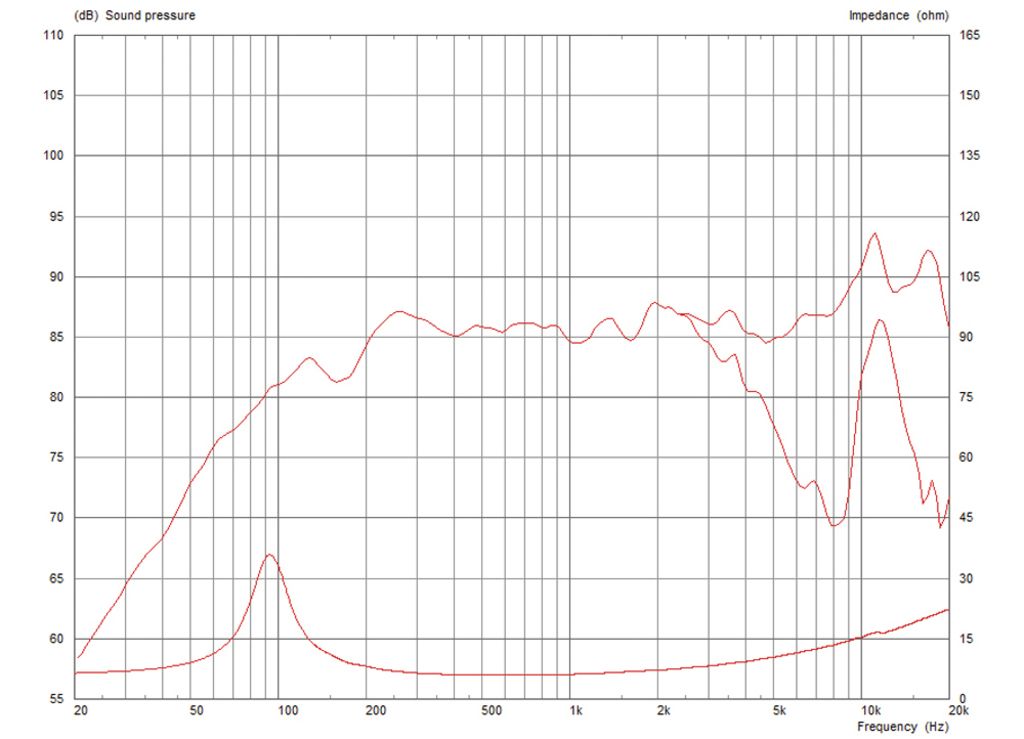

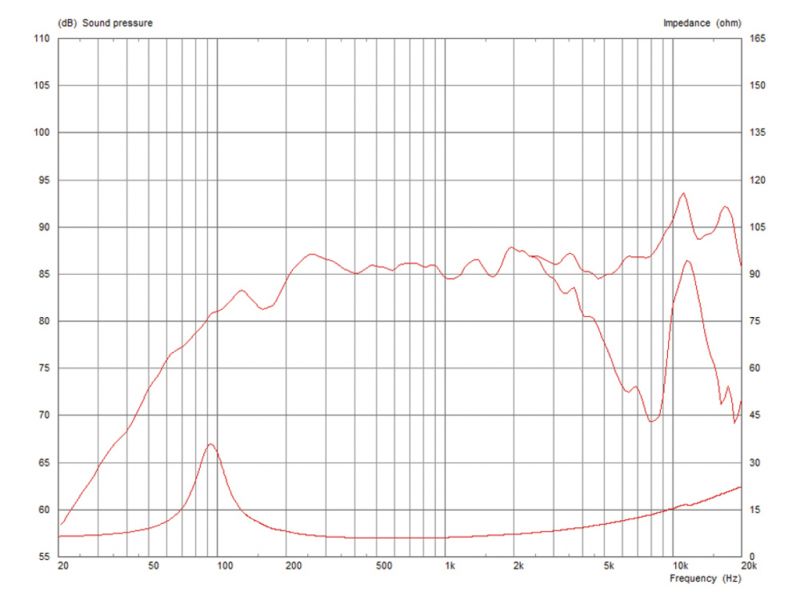

Frequency range 98-18,500 Hz
Resonant frequency (fs) 113.4 Hz
Power rating (RMS) 35 W
Peak music power output (MAX) 70 W
SPL 87 dB/W/m
Suspension compl. (Cms) 0.52 mm/N
Moving mass (Mms) 3.76 g
Mech. Q factor (Qms) 50.093
Electr. Q factor (Qes) 0.740
Total Q factor (Qts) 0.646
Equivalent volume (Vas) 1.9 l
DC resistance (Re) 5.73 Ω
Force factor (BxL) 4.56 Tm
Voice coil induct. (Le) 0.14 mH
Voice coil diameter Ø 25 mm
Voice coil winding height 6.5 mm
Voice coil former polyimide
Linear excursion (XMAX) ± 2.25 mm
Eff. cone area (Sd) 38.45 cm2
Mounting cutout Ø 78.8 mm
Mounting depth 50 mm
Mounting hole diameter Ø 104 mm
Dimensions 89.3 x 89.3 x 50 mm
Width 89.3 mm
Height 89.3 mm
Depth 50 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.15 kg
Packing unit 1
Type of speaker 3.5"
Packaging dimensions (W x H x L) 0.11 x 0.065 x 0.11 m
Gross weight 0.2 kg
Net weight 0.15 kg
