DT-75/8
Kod EAN: 4007754005356
Hi-fi dome tweeter, 25 W, 8 Ω Mäkká kupola Vysokokvalitná reprodukcia Ferrofluid
25,80 € brutto
(inkl. 20% DPH)
21,50 € netto
DT-75/8

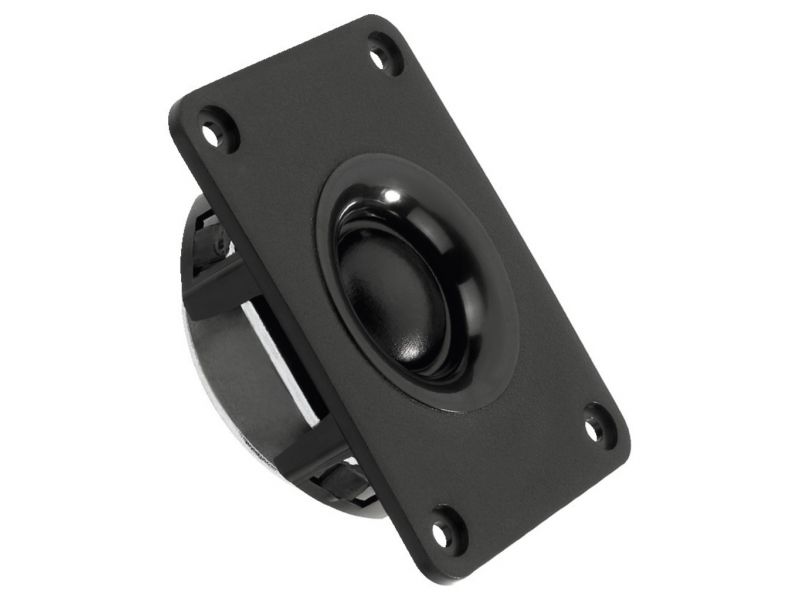

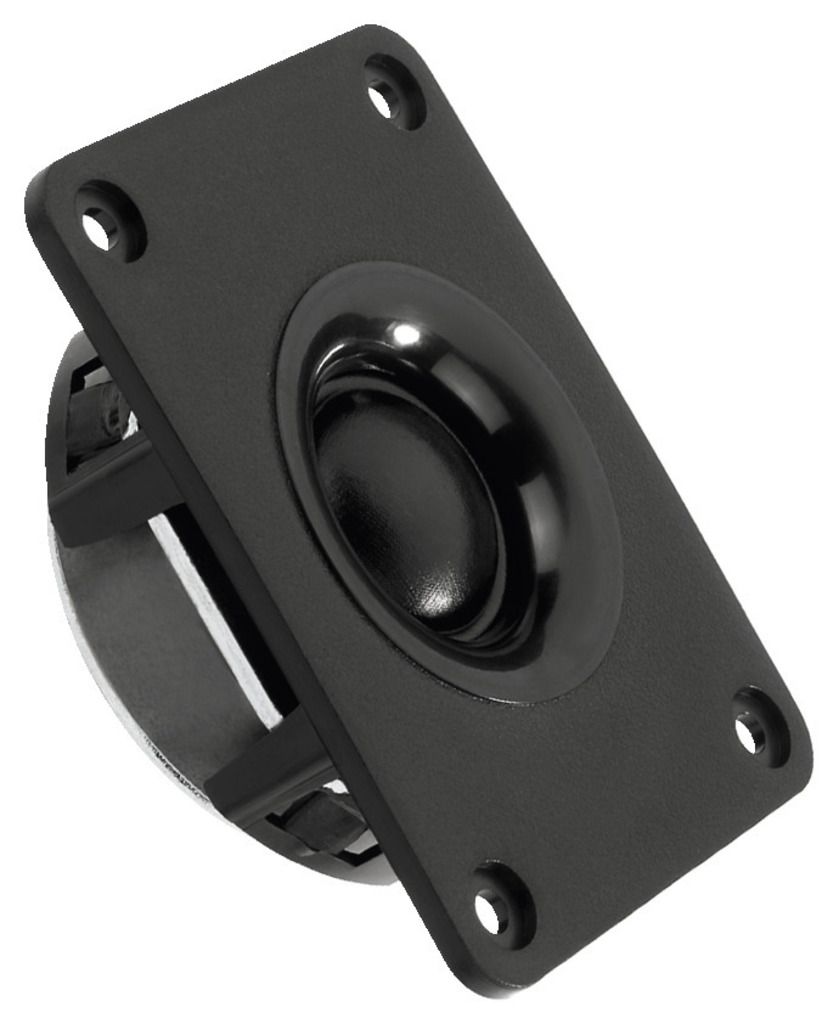

Hi-fi dome tweeter, 25 W, 8 Ω
- Mäkká kupola
- Vysokokvalitná reprodukcia
- Ferrofluid
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

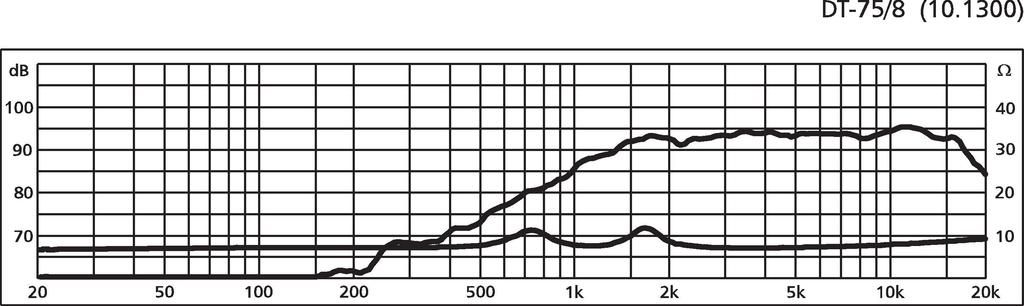

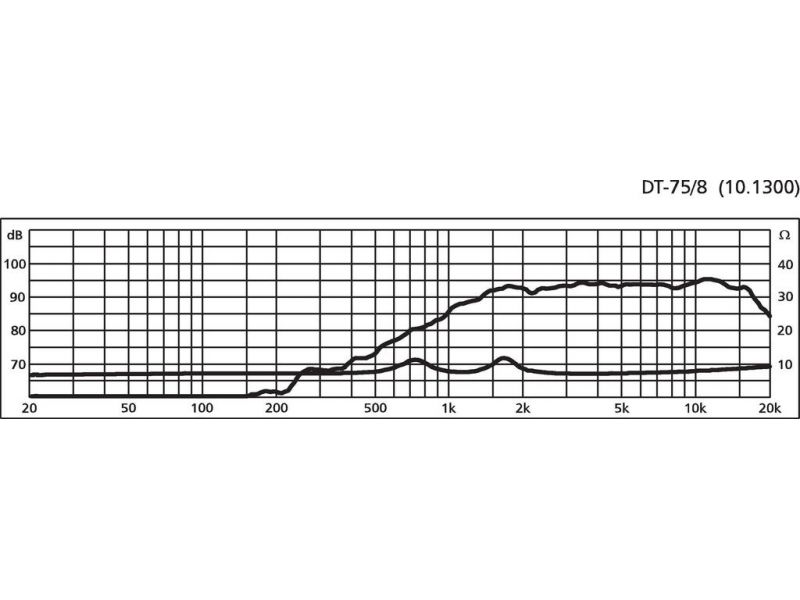

| Frequency range | fx-20,000 Hz |
| Resonant frequency (fs) | 2,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 3,000 Hz |
| Power rating (RMS) | 25 W |
| Peak music power output (MAX) | 50 W |
| SPL | 90 dB/W/m |
| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 60 mm |

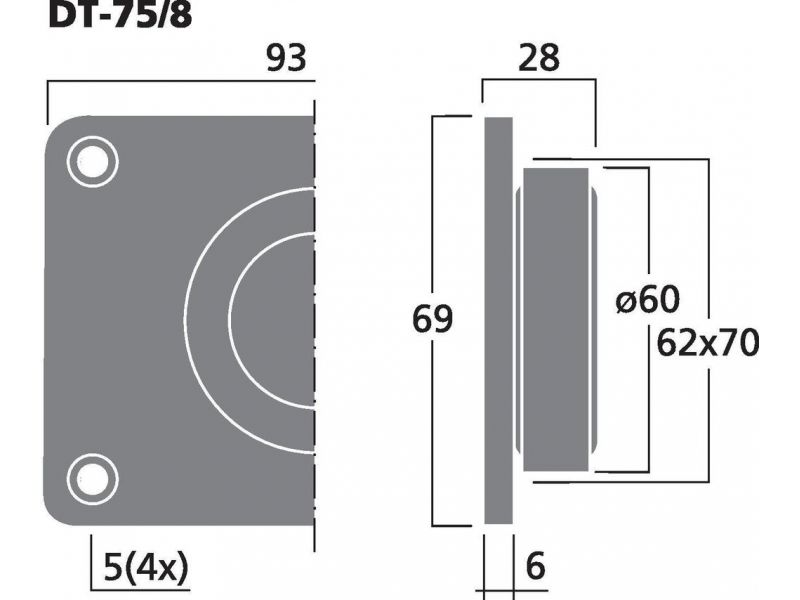

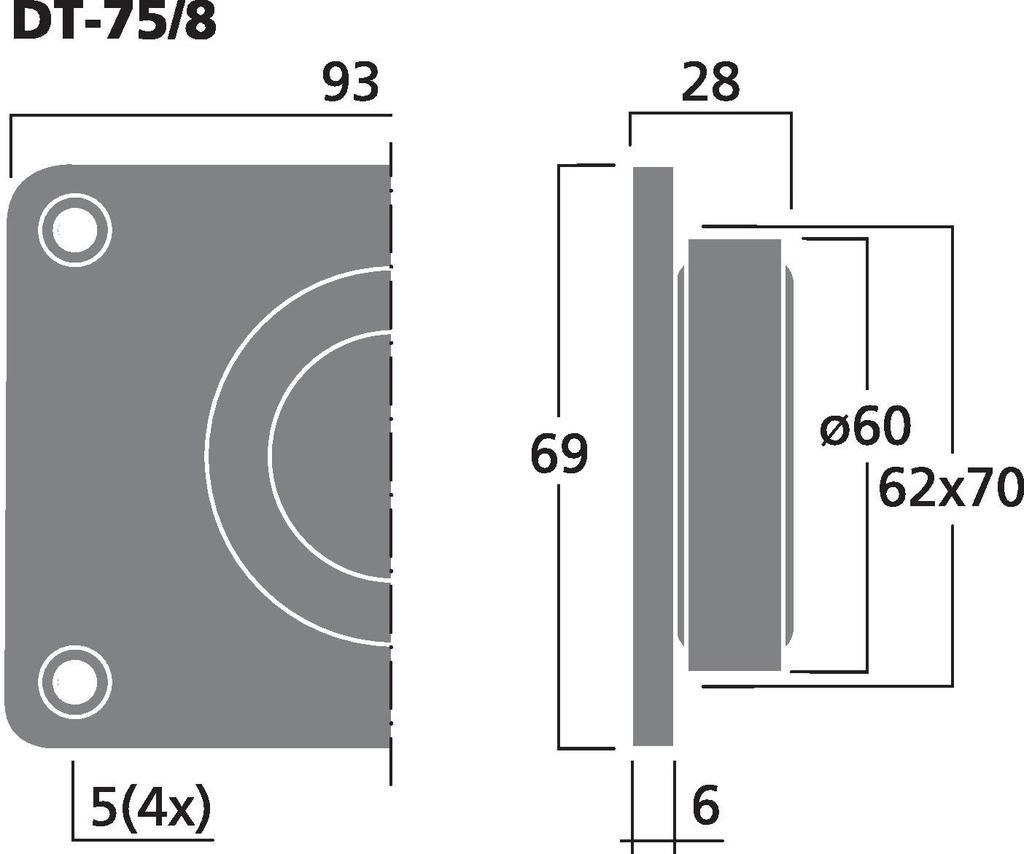

| Mounting cutout | 62 x 70 mm |
| Mounting depth | 28 mm |
| Dimensions | 93 x 69 x 28 mm |
| Width | 93 mm |
| Height | 69 mm |
| Depth | 28 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.335 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.08 x 0.045 x 0.105 m |
| Gross weight | 0.365 kg |
| Net weight | 0.335 kg |
