CDX1-1720/8

Kod EAN: 0739894571357

PA horn driver, 50 W, 8 Ω High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet Phase plug wih maximum modal suppressionDeep-drawn titanium cone with polyimide surround Recommended crossover frequency: 1,500 Hz (...

víc

Staň se partnerem
Kup teď

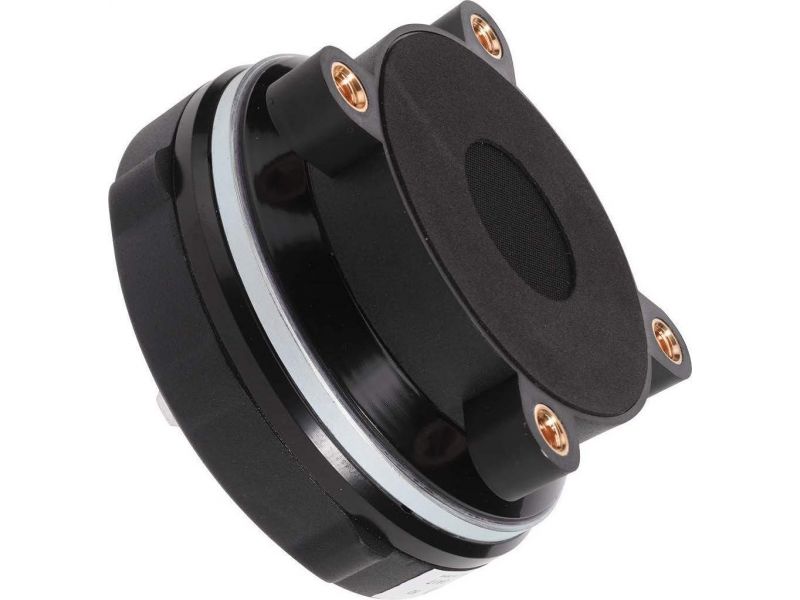

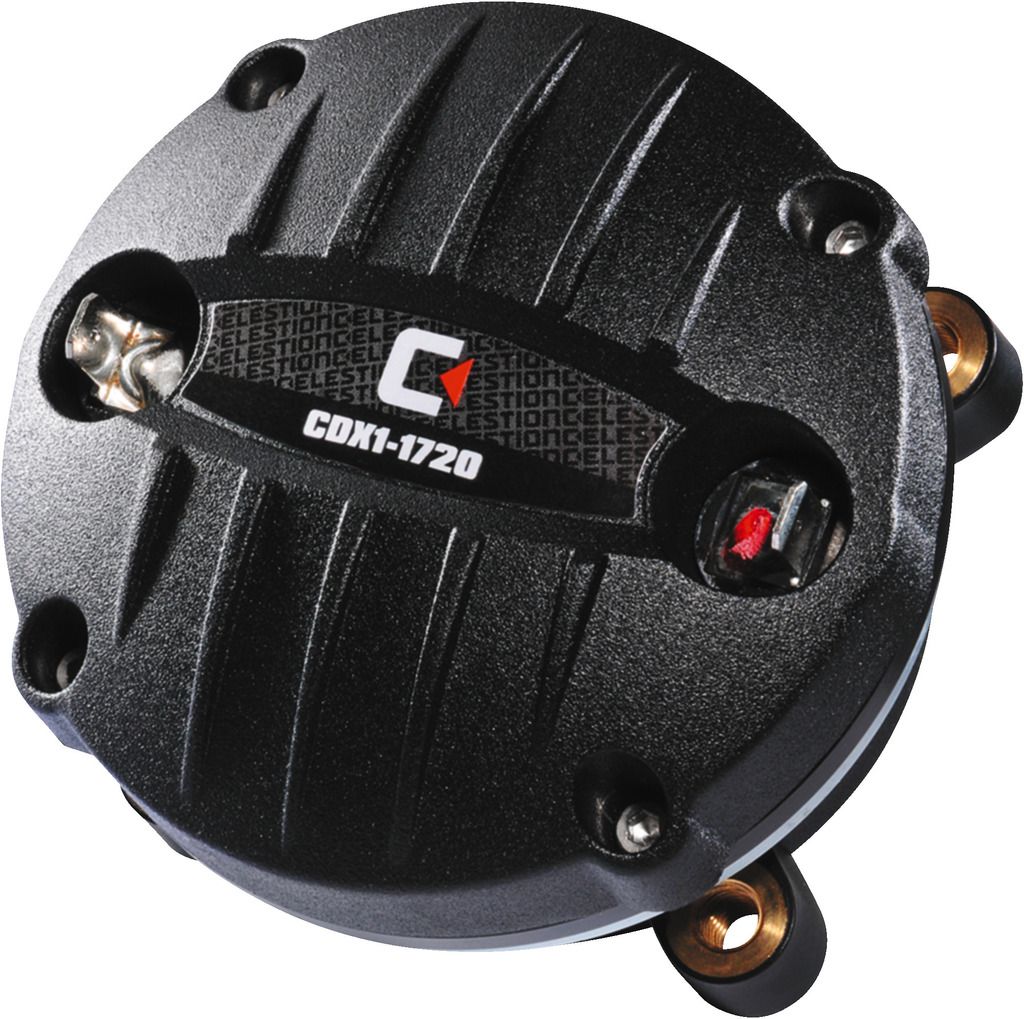

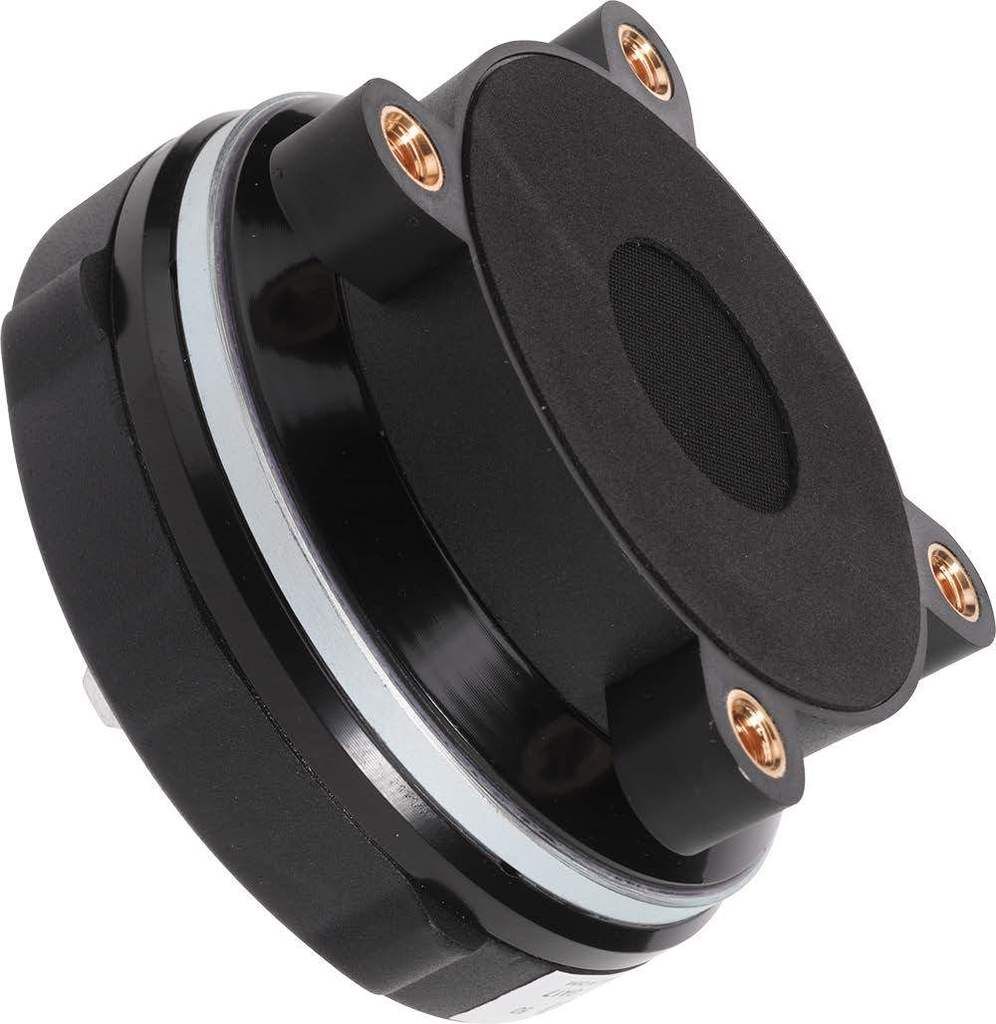

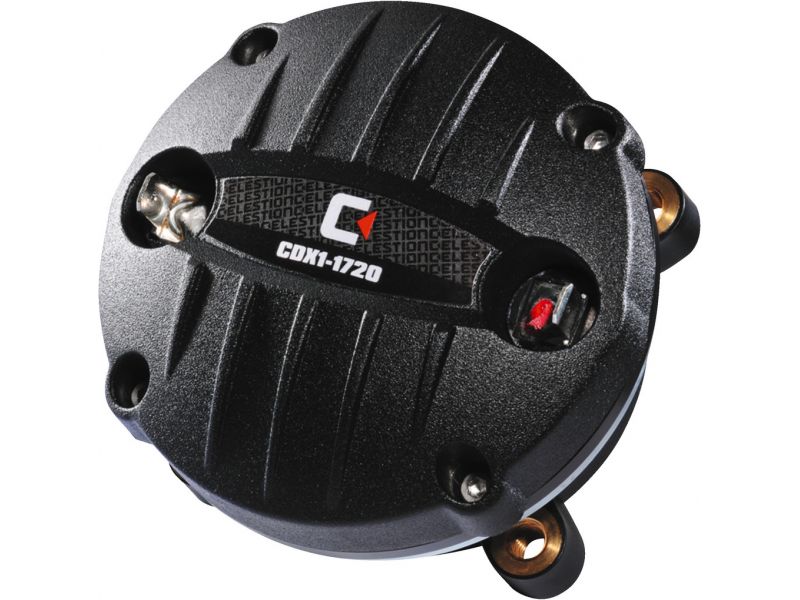

CDX1-1720/8

PA horn driver, 50 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet
  • Phase plug wih maximum modal suppression
  • Deep-drawn titanium cone with polyimide surround
  • Recommended crossover frequency: 1,500 Hz (12 dB/oct.)
  • 4-hole screw mounting
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 800-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 1,500 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 107 dB/W/m
Voice coil diameter Ø 44 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (4x M6)
Dimensions Ø 88.5 mm x 55 mm
Outside diameter Ø 88.5 mm
Width Ø 88.5 mm
Height Ø 88.5 mm
Depth 55 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.62 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.1 x 0.075 x 0.13 m
Gross weight 0.72 kg
Net weight 0.62 kg

Na stáhnutí

Produktová karta CDX1-1720/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
