RL-1ENABDS

Kod EAN: 4007754263886

PA A/B sound projector for wall mounting, with EN 54-24 certification for voice evacuation systems with A/B speaker distribution according to EN 60849. 100 V line technique 13 cm full range speaker with dual voice coil 2 x 100 V transformator with...

víc

153,00 € brutto

(inkl. 20% DPH)
127,50 € netto



RL-1ENABDS

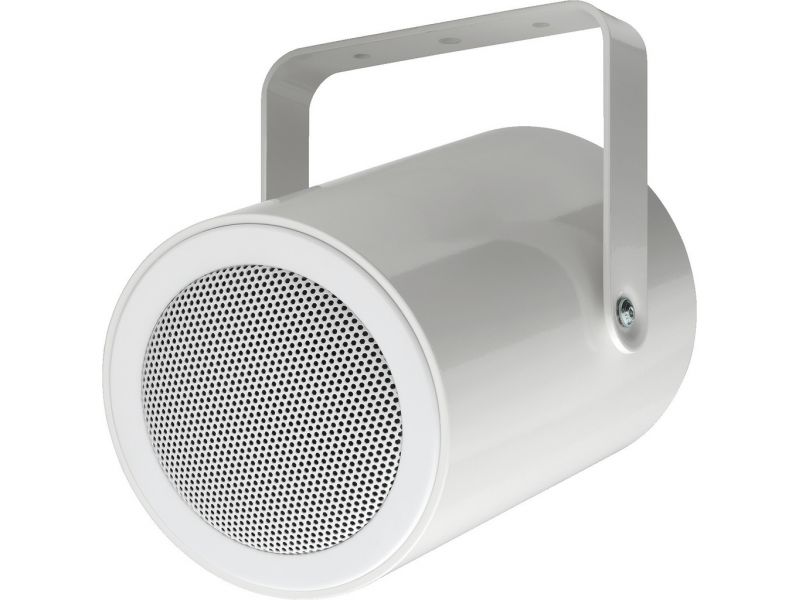

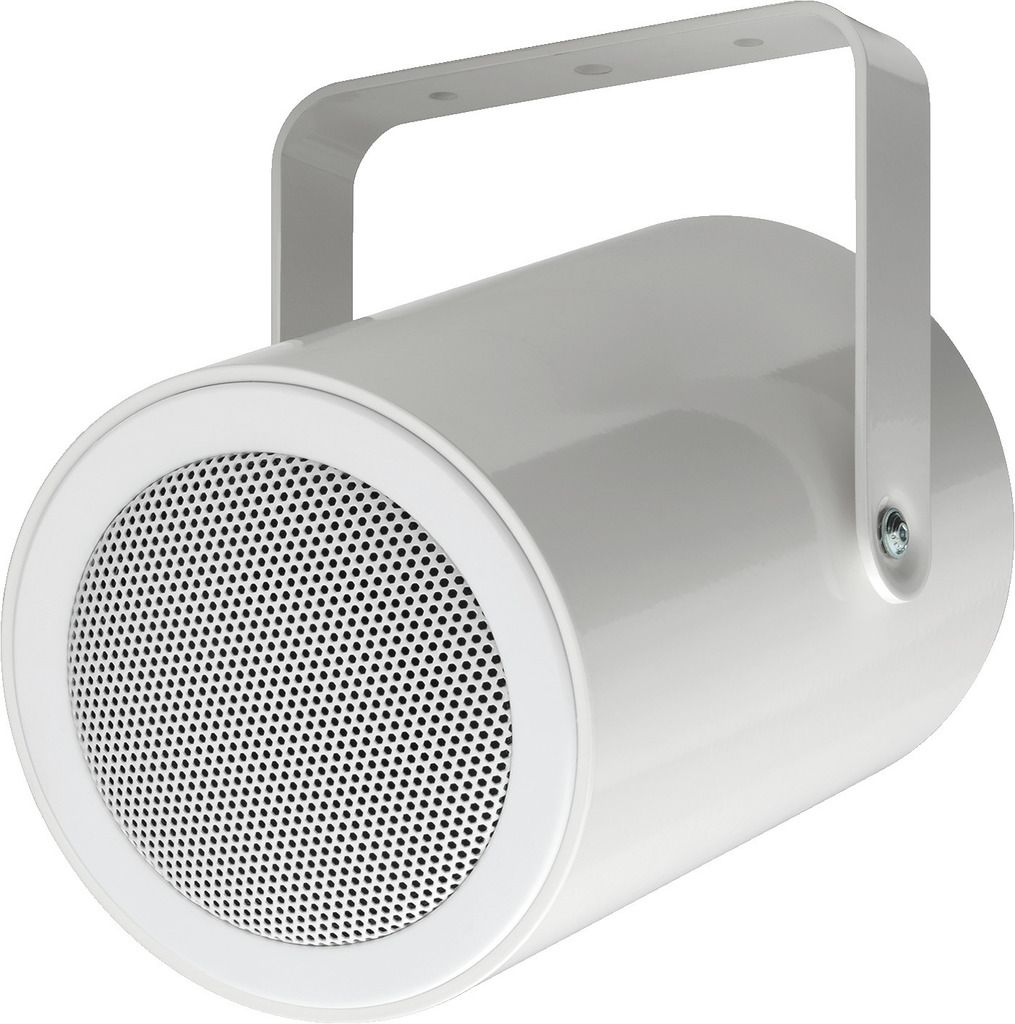

PA A/B sound projector for wall mounting,
with EN 54-24 certification for voice evacuation systems with A/B speaker distribution according to EN 60849.
  • 100 V line technique
  • 13 cm full range speaker with dual voice coil
  • 2 x 100 V transformator with power taps on the cable 6/3/1.5 W
  • Connection via 2 x 4-core cable (length: 1.5 m)
  • Metal housing with front protective grille
  • Supplied with pan/tilt bracket and mounting accessories

Parametry

Active/passive passive
Transmission technology 100 V
Power rating (RMS) 2 x 6/3/1.5 W
Frequency range 80-20,000 Hz
Full range speaker 13 cm, dual voice coil
Speaker size 13 cm
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour white
Mounting device bracket
Admiss. ambient temp. -10 °C to +55 °C
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Depth 210 mm
Weight 2.3 kg
Packing dimensions (W x H x L) 0.185 x 0.285 x 0.185 m
Gross weight 2.51 kg
Net weight 2.32 kg
