FLAT-M8
Kod EAN: 4007754415780
Active PA stage monitor speaker system, 300 W Flat and very compact full range system Fitted with a 20 cm (8") coaxial speaker with horn tweeter Class D amplifier system Sound pressure at nominal power: 121 dB Indication of protect, limiter, signal...
448,00 € brutto
(inkl. 20% DPH)
373,33 € netto

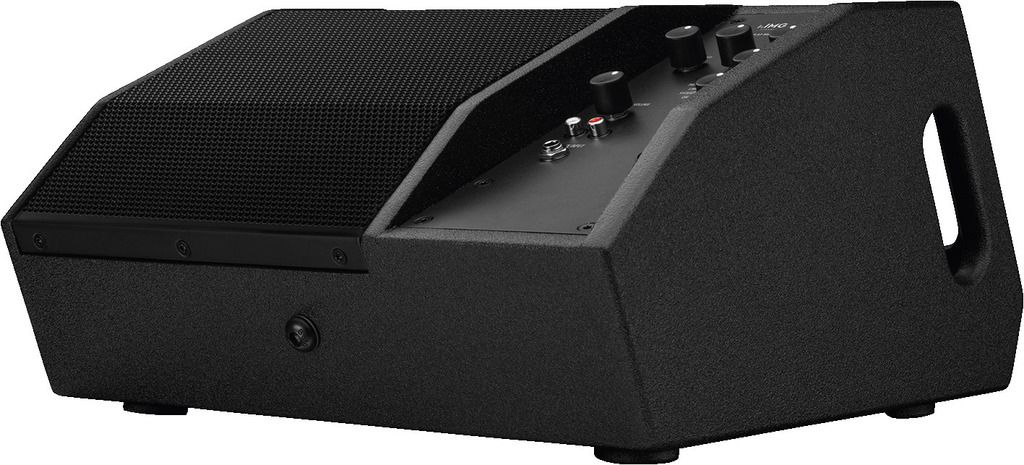

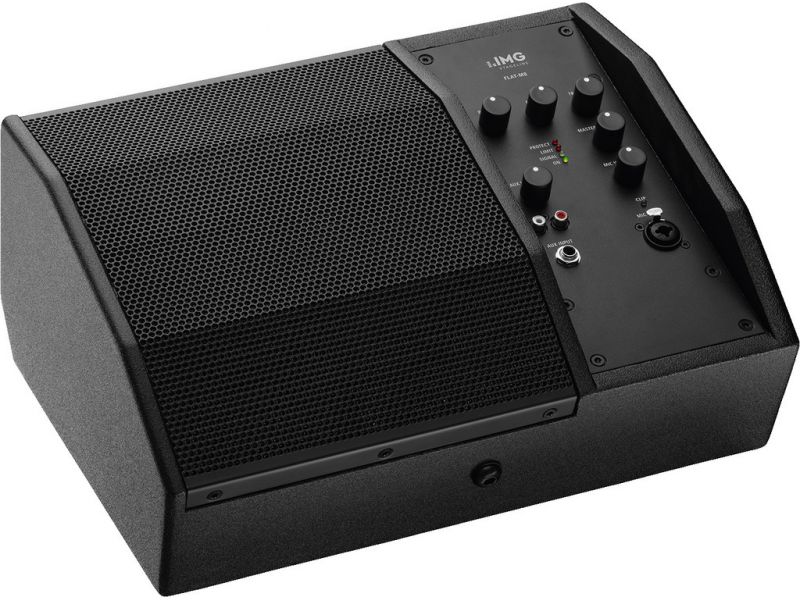

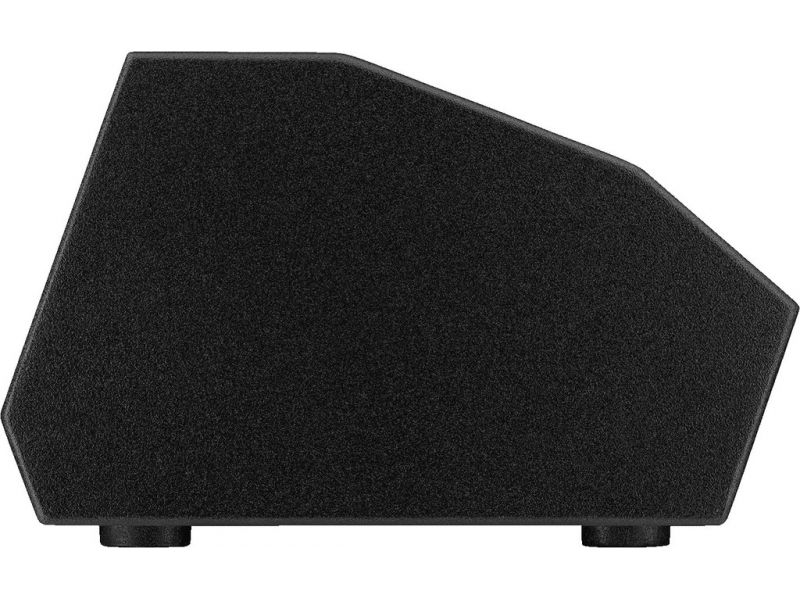

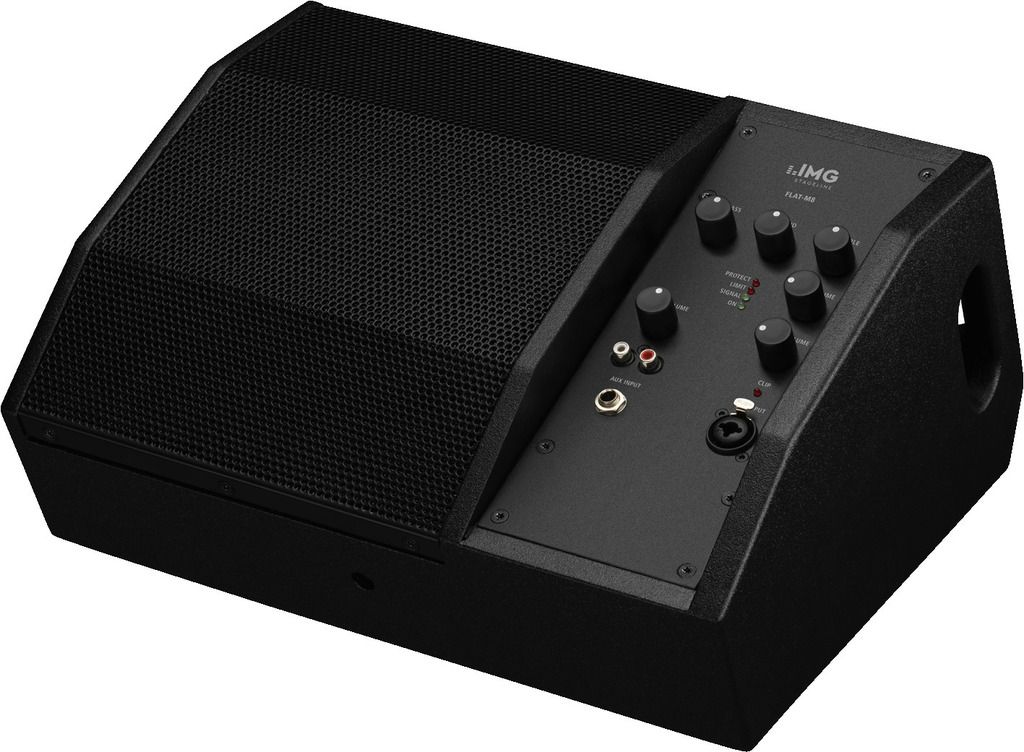

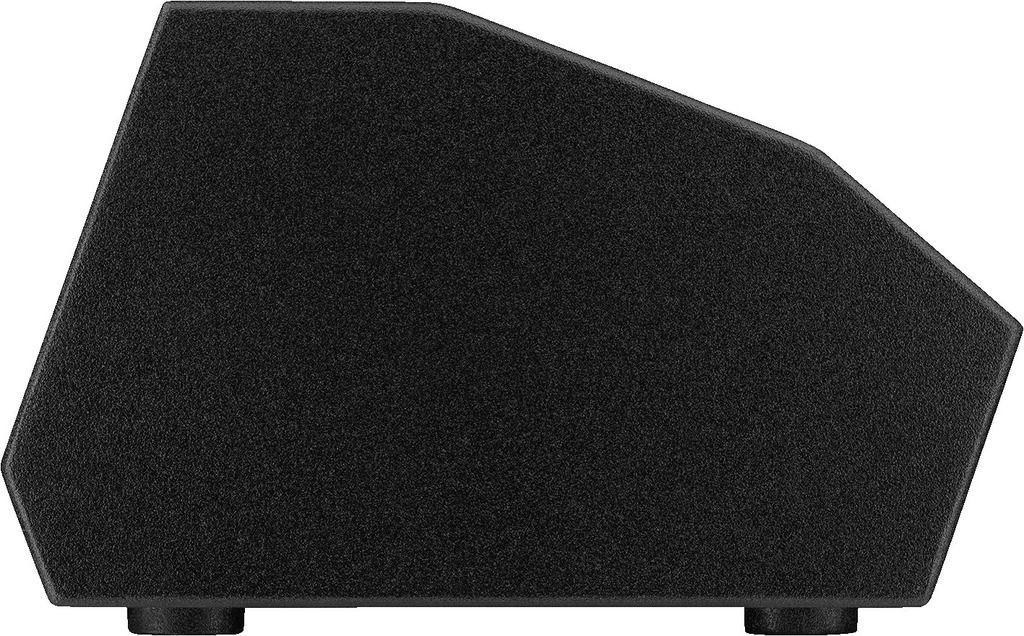

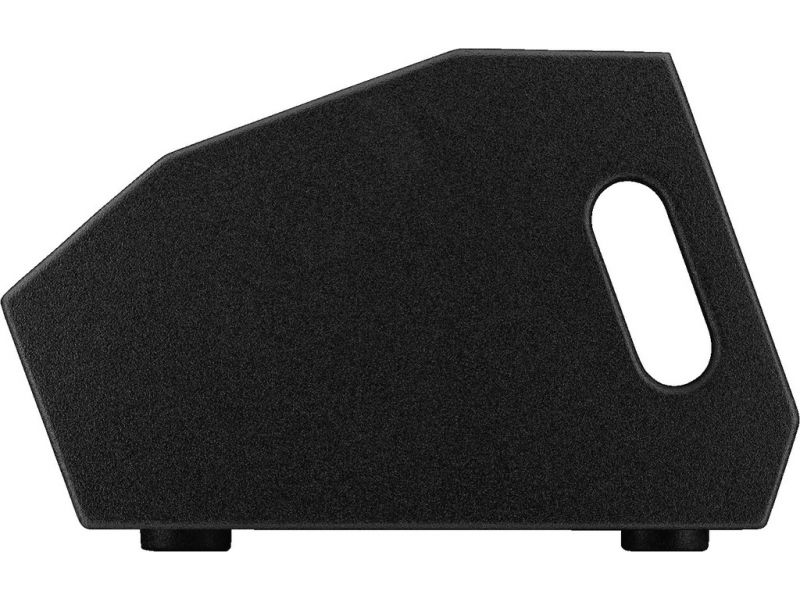

FLAT-M8

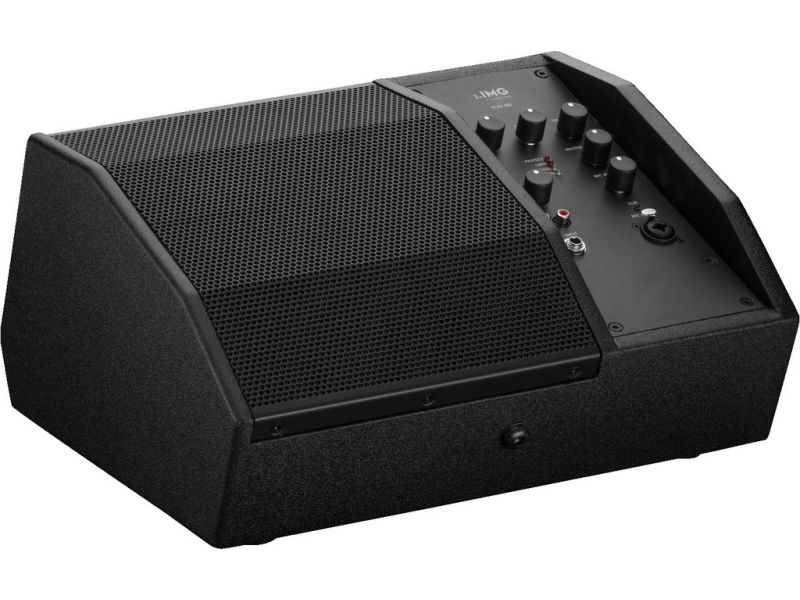

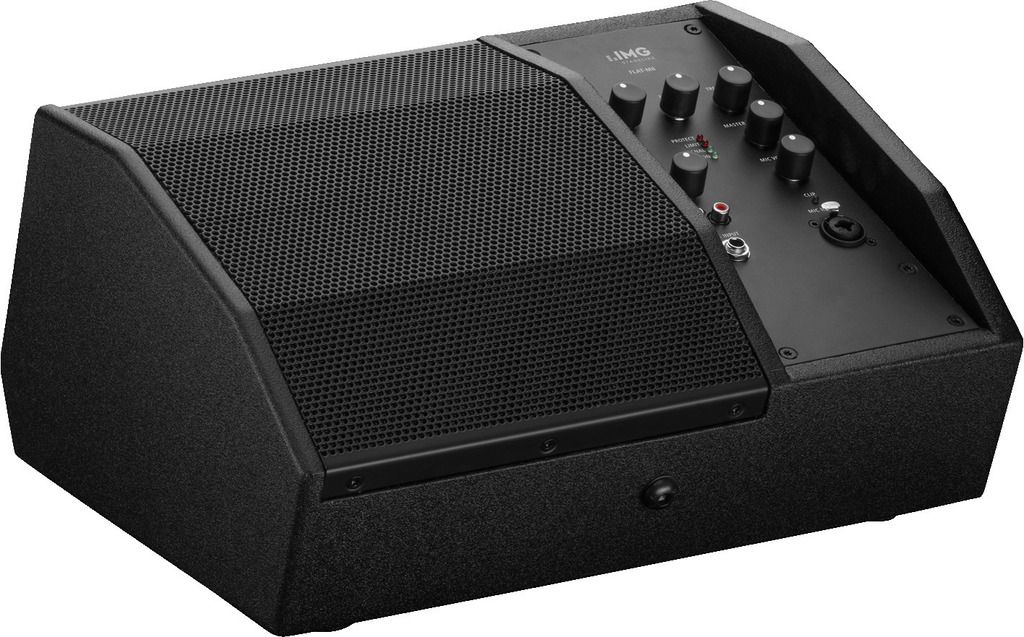

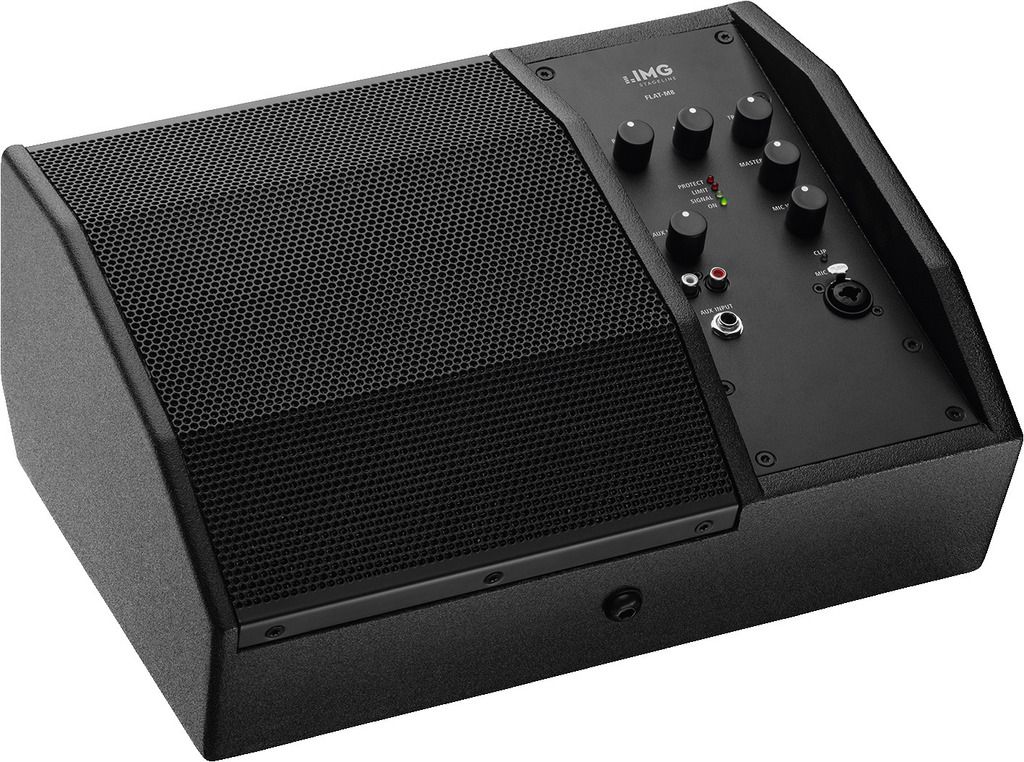

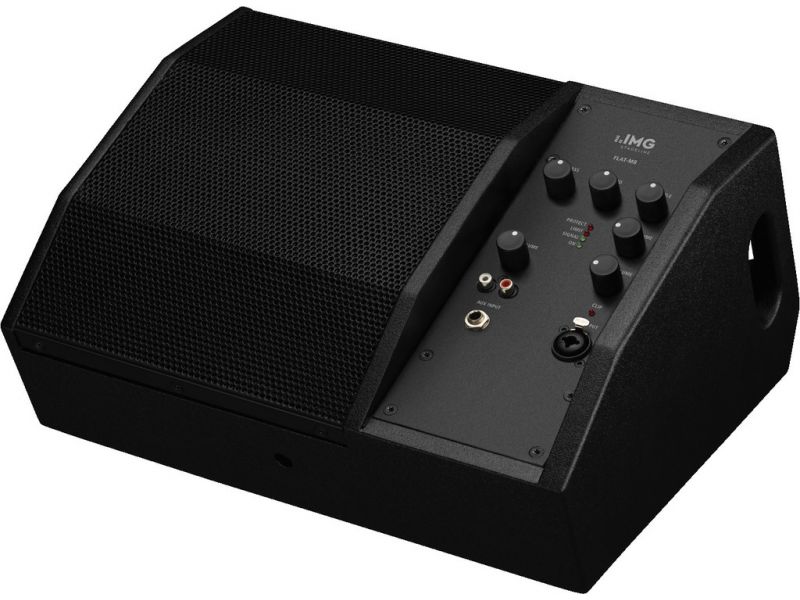

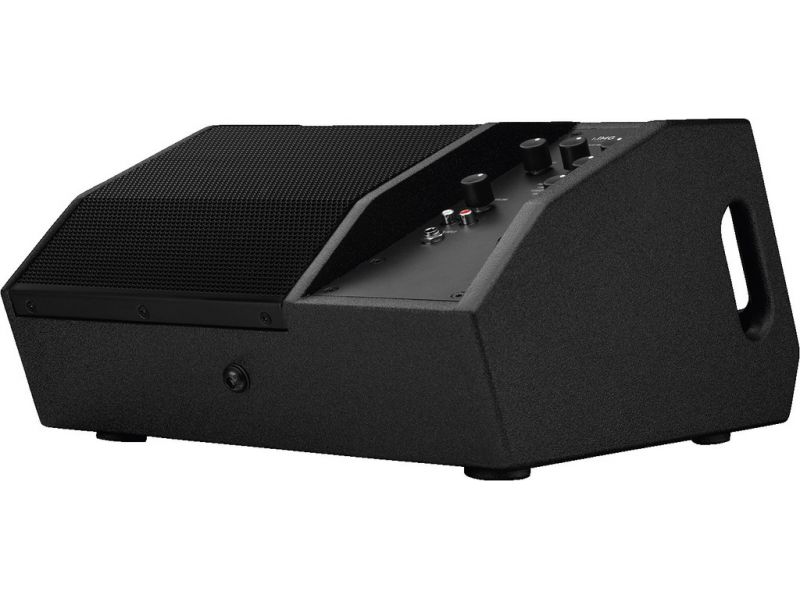

Active PA stage monitor speaker system, 300 W
- Flat and very compact full range system
- Fitted with a 20 cm (8") coaxial speaker with horn tweeter
- Class D amplifier system
- Sound pressure at nominal power: 121 dB

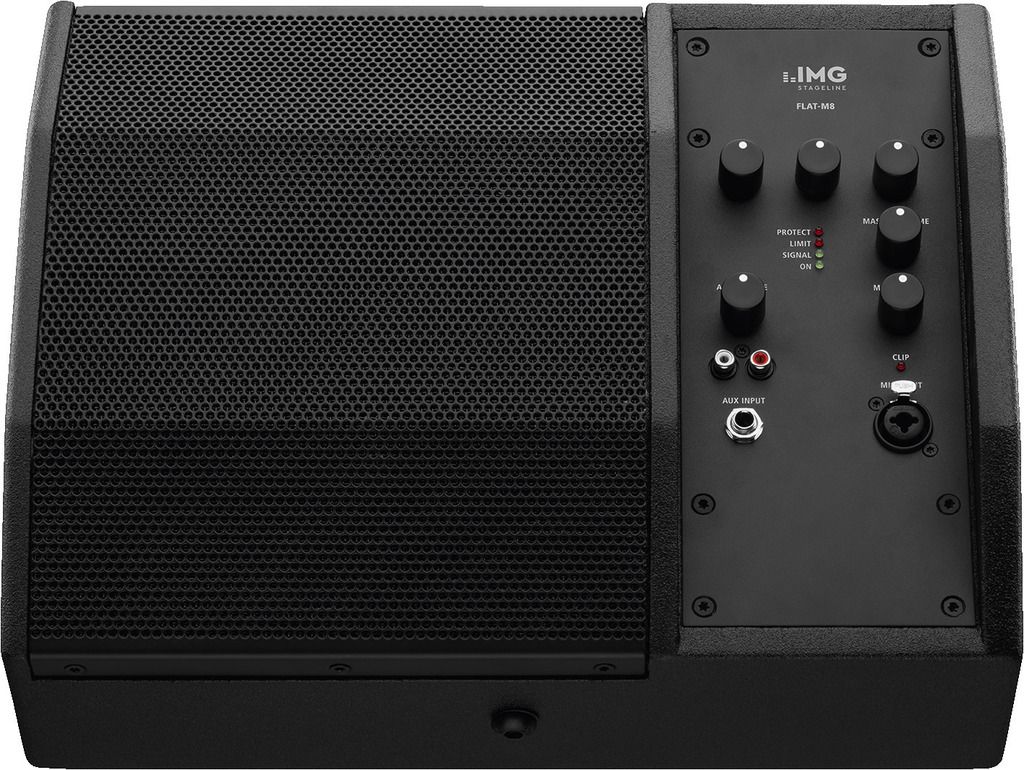

- Indication of protect, limiter, signal and power-on
- Volume control and 3-way tone control (bass, midrange and treble)
- Balanced line/mic input and feed-through output
- Unbalanced line input RCA L/R or 6.3 mm jack
- Switchable automatic power-off

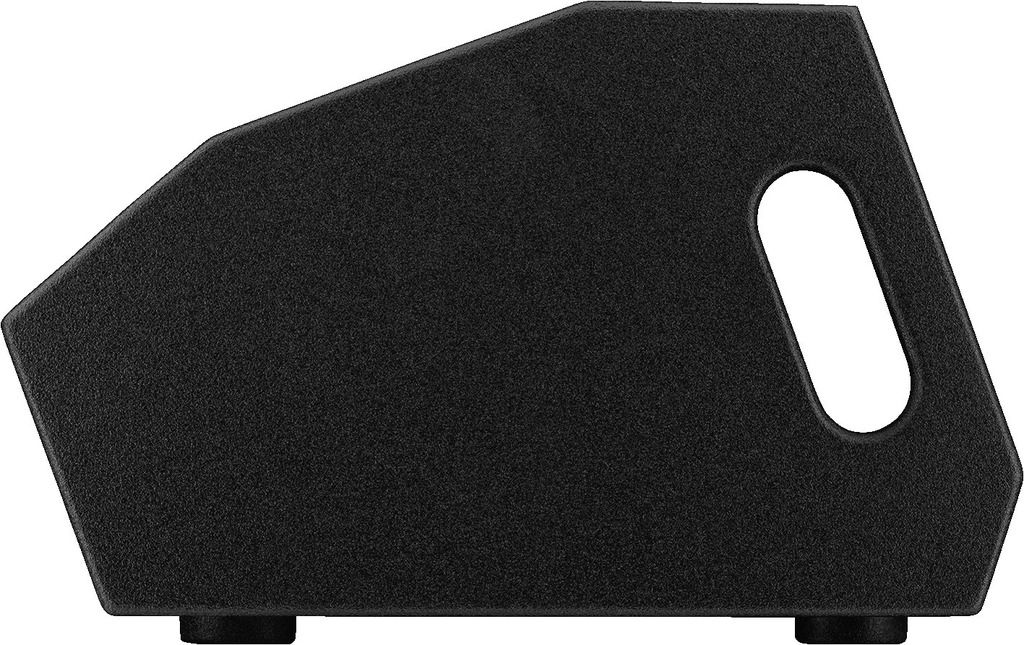

- High-quality plywood cabinet with protective metal grille
- M10 threaded insert for stand adapter or mounting device
Parametry
| Active/passive | active |
| Transmission technology | cable |
| Total output power | 300 W |
| Power rating (RMS) | 100 W |
| Frequency range | 70-21,000 Hz |
| Input signal | 180 mV/5,6 kΩ (line, bal.), 180 mV/5,6 kΩ (aux, RCA) 1.5 mV/1.2 kΩ (mic, bal.), 70 mV/4 kΩ (aux, 6.3 mm jack, asym.) |
| System | 1 x 2-way coaxial speaker |
| Bass speaker | 1 x 20 cm (8") |
| Tweeter | 1 x coaxial horn tweeter |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 99 dB/W/m |
| Max. rated SPL | 121 dB |
| Radiation angle/beam angle | H: 70°/V: 50° |
| Radiation angle, horizontal | 70° |
| Radiation angle, vertical | 50° |
| Housing material | MDF |
| Colour | black |
| Mounting device | 1 x M10 threaded insert |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230 V/50 Hz/100 VA |
| Dimensions | 375 x 185 x 330 mm |
| Width | 375 mm |
| Height | 185 mm |
| Depth | 330 mm |
| Weight | 7.48 kg |

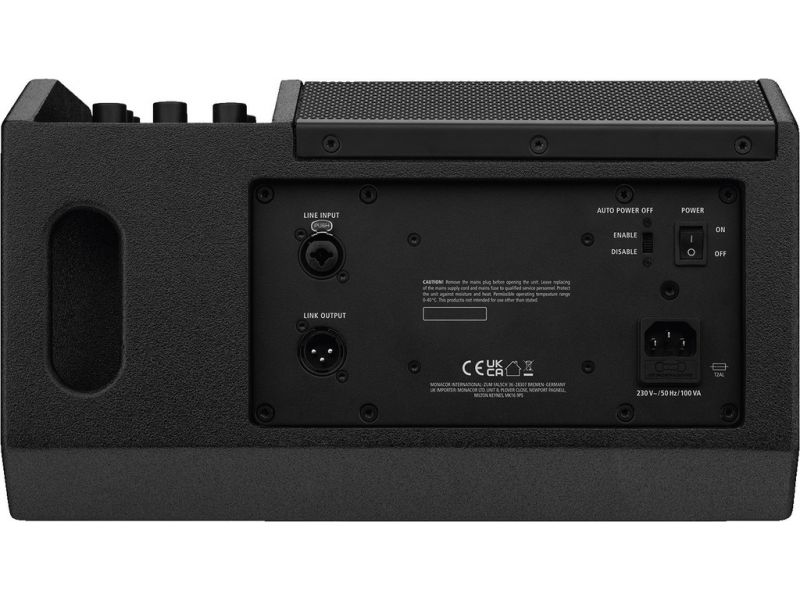

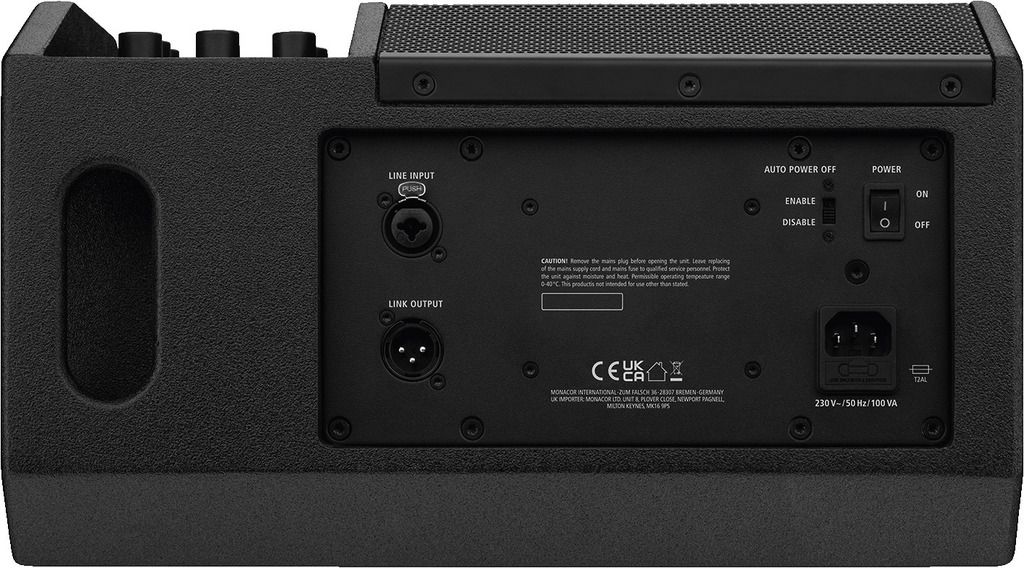

| Inputs | 1 x comb. XLR/6.3 mm (mic), 1 x comb. XLR/6.3 mm (line), 1 x RCA L/R, 1 x 6.3 mm stereo jack |
| Outputs | 1 x XLR direct out |
| Other features | limiter |
| Accessories | FLAT-M8BAG |
| Packaging dimensions (W x H x L) | 0.43 x 0.29 x 0.47 m |
| Gross weight | 8.82 kg |
| Net weight | 7.48 kg |
