DT-107

Kod EAN: 4007754087505

Hi-fi dome tweeter, 80 W, 8 Ω Textile soft dome with inside damping Highest linearity with good efficiency Extra silky and brilliant sound For any hi-fi application of high requirements

26,00 € brutto

(inkl. 20% DPH)
21,67 € netto




DT-107

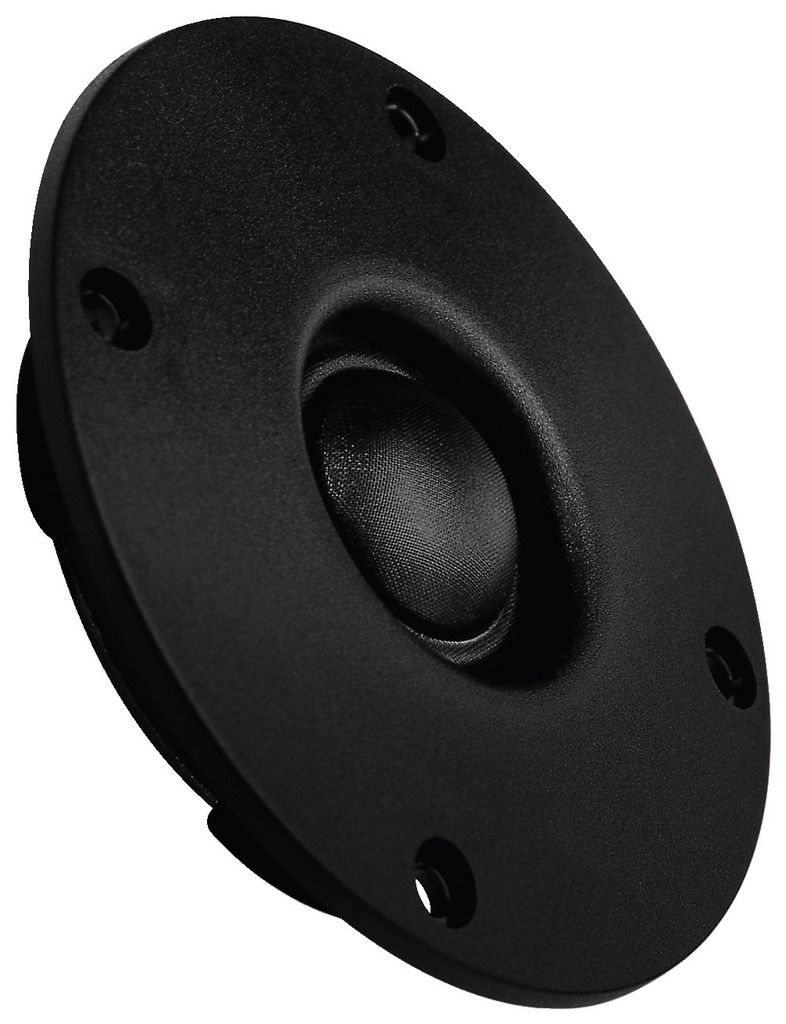

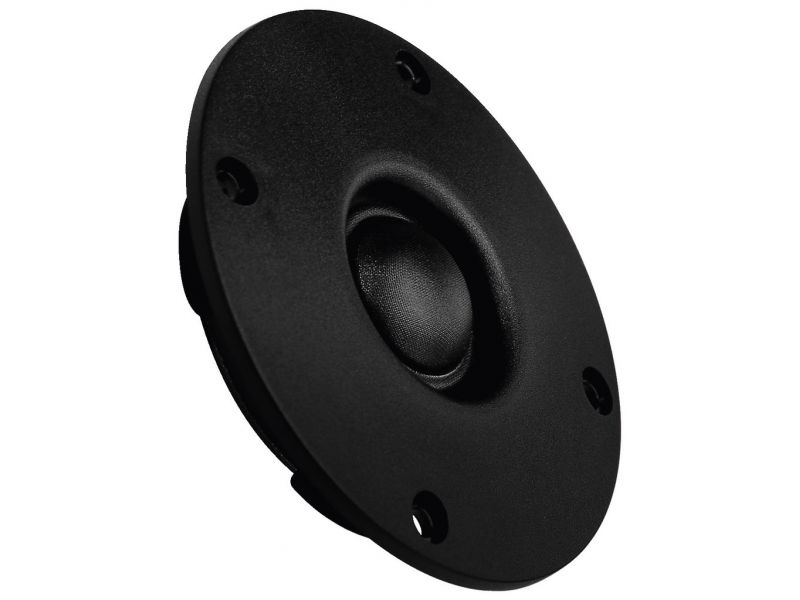

Hi-fi dome tweeter, 80 W, 8 Ω
  • Textile soft dome with inside damping
  • Highest linearity with good efficiency
  • Extra silky and brilliant sound
  • For any hi-fi application of high requirements

Parametry

Impedance (Z) 8 Ω

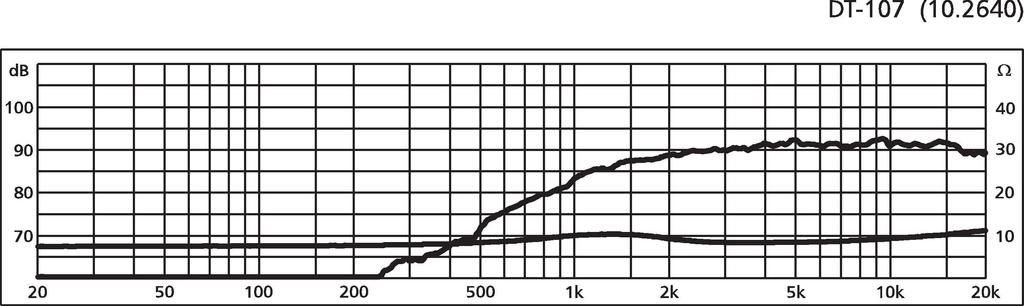

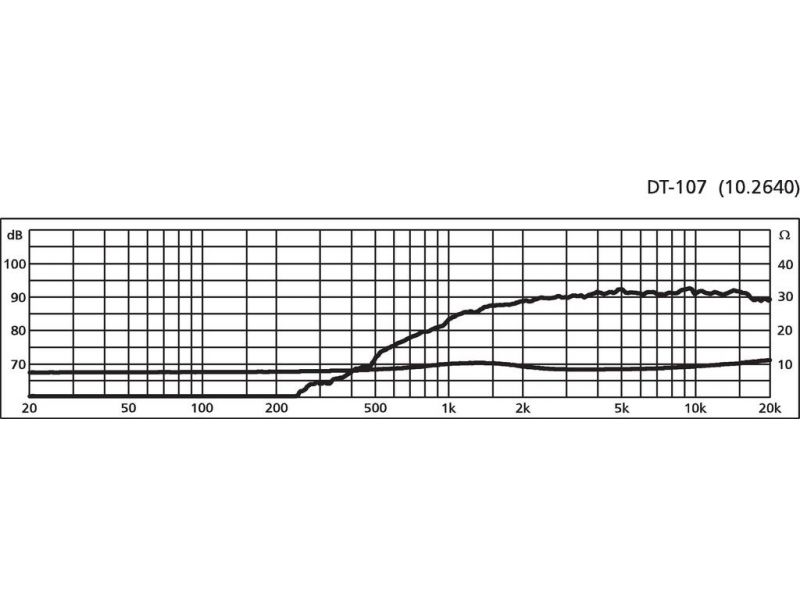

Frequency range fx-22,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating (RMS) 80 W
Peak music power output (MAX) 130 W
Sensitivity 89 dB/W/m

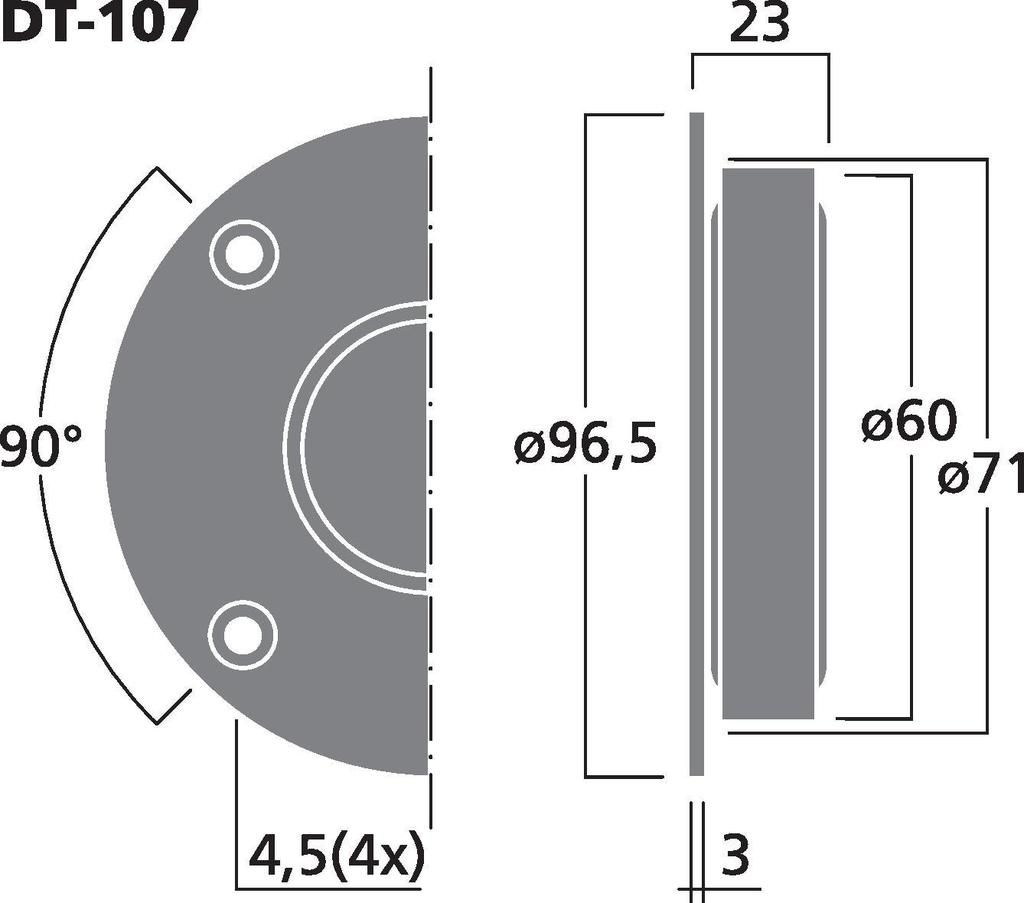

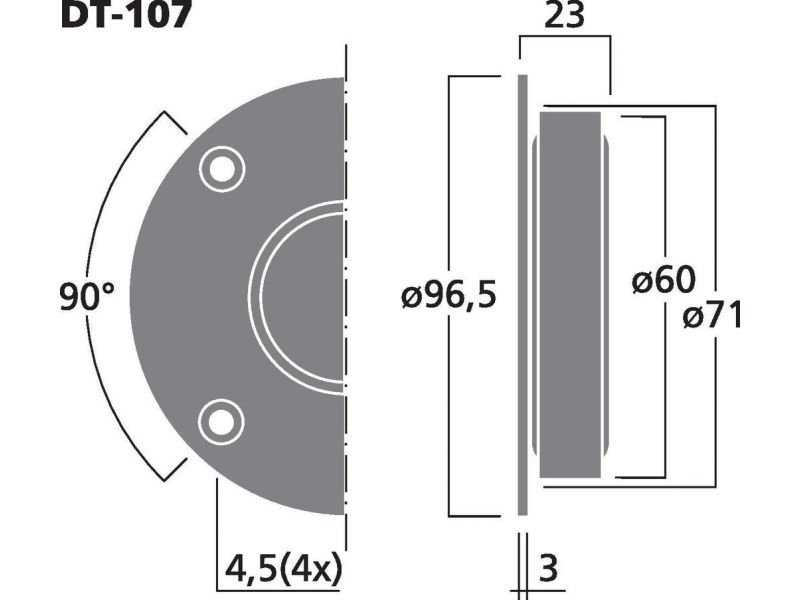

Voice coil diameter Ø 25 mm
Magnet diameter Ø 60 mm
Mounting cutout Ø 71 mm
Mounting depth 23 mm
Dimensions Ø 96.5 x 23 mm
Outside diameter Ø 96.5 mm
Width Ø 96.5 mm
Depth 23 mm
Admiss. ambient temp. 0-40 °C
Weight 0.27 kg
Packing unit 1
