CDX14-3030/8
Kod EAN: 0739894589642
PA horn driver, 100 W,8 Ω 35 mm (1.4") high-quality compression driver with 75 mm (3") voice coil and ferrite magnet One-piece titanium cone and surround Recommended crossover frequency: 1,000 Hz (12 dB/oct.) 4-hole screw mounting

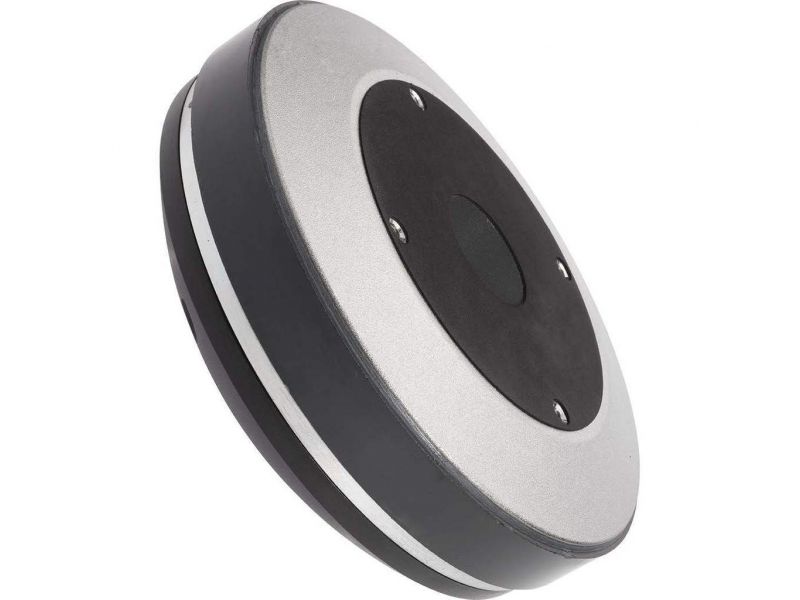

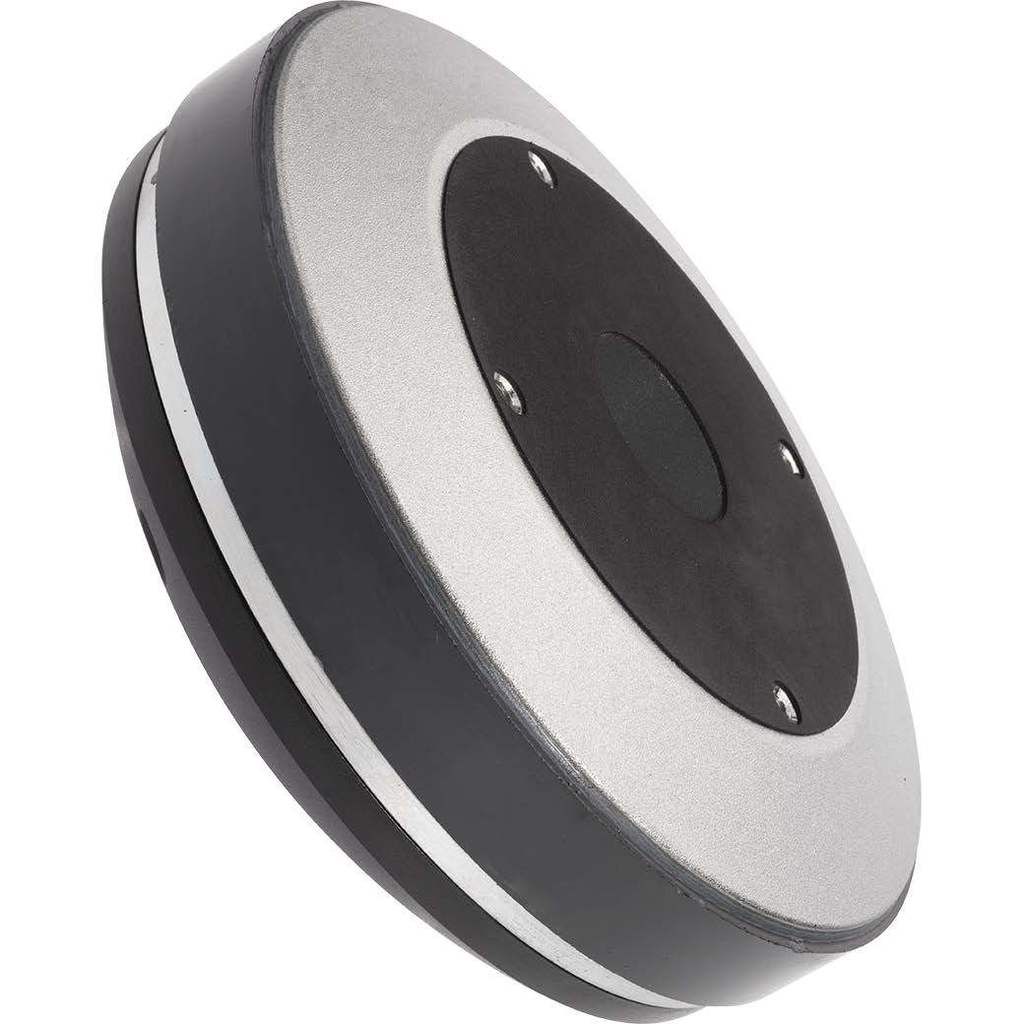

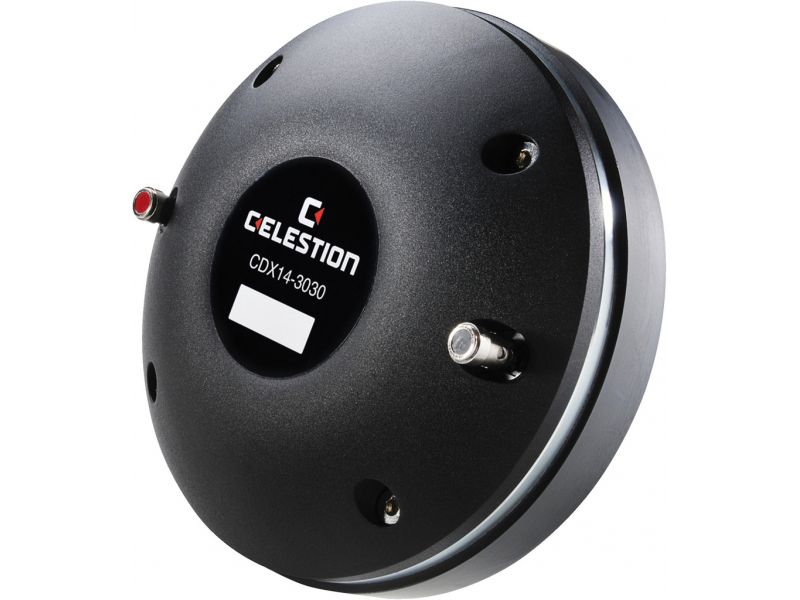

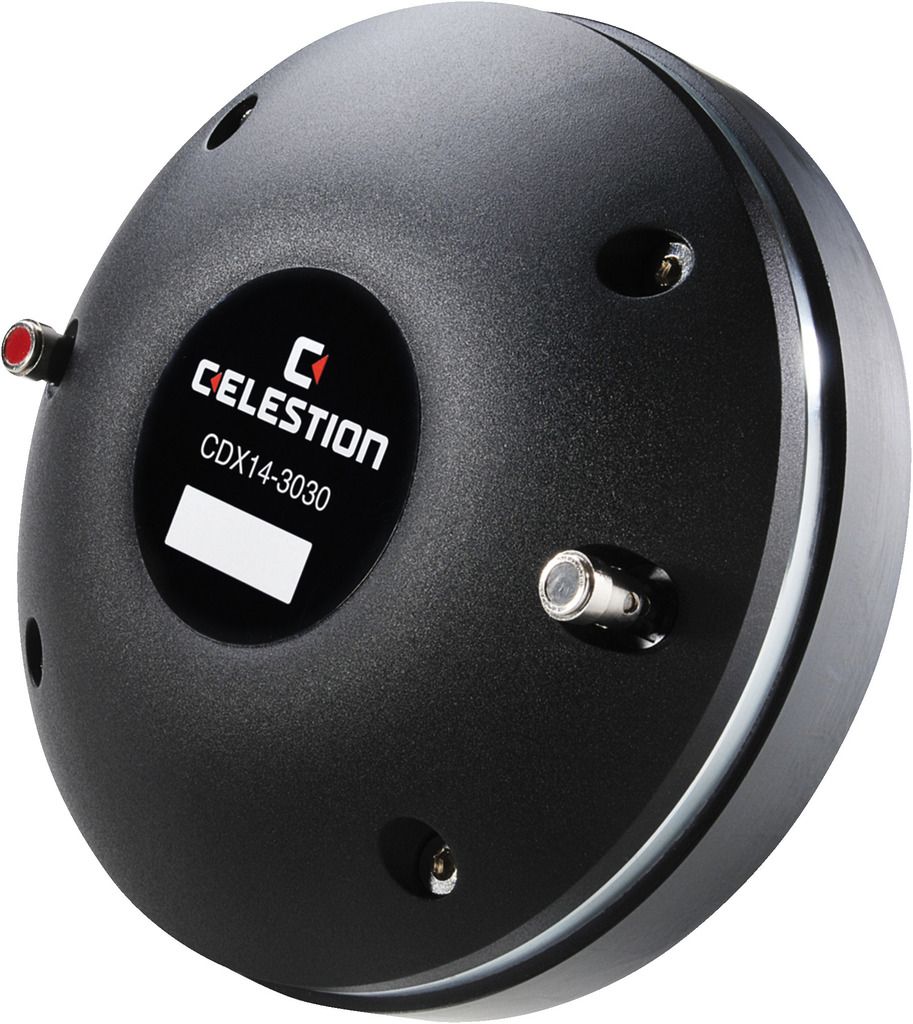

CDX14-3030/8
PA horn driver, 100 W,8 Ω
- 35 mm (1.4") high-quality compression driver with 75 mm (3") voice coil and ferrite magnet
- One-piece titanium cone and surround
- Recommended crossover frequency: 1,000 Hz (12 dB/oct.)
- 4-hole screw mounting
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

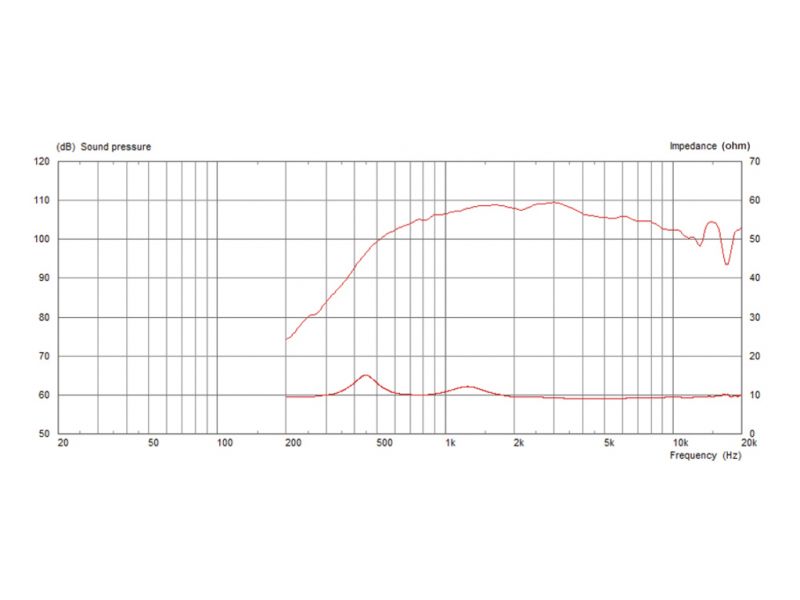

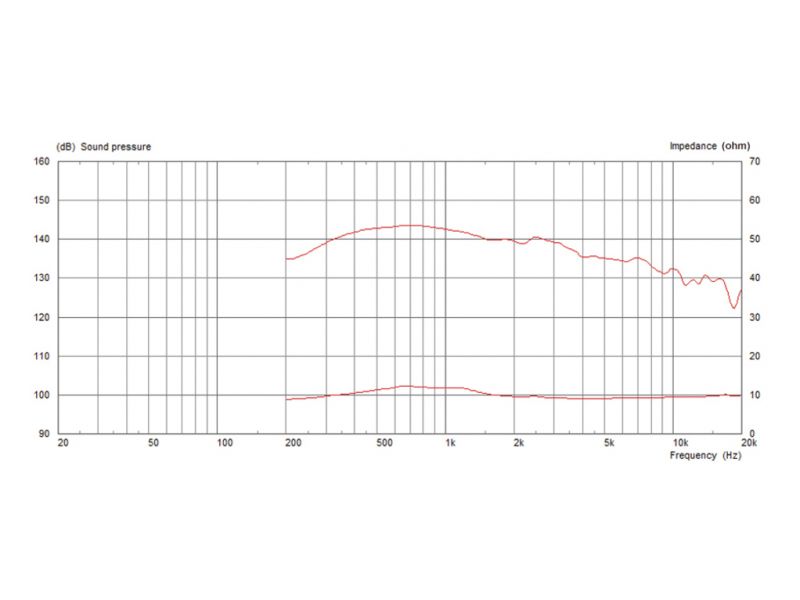

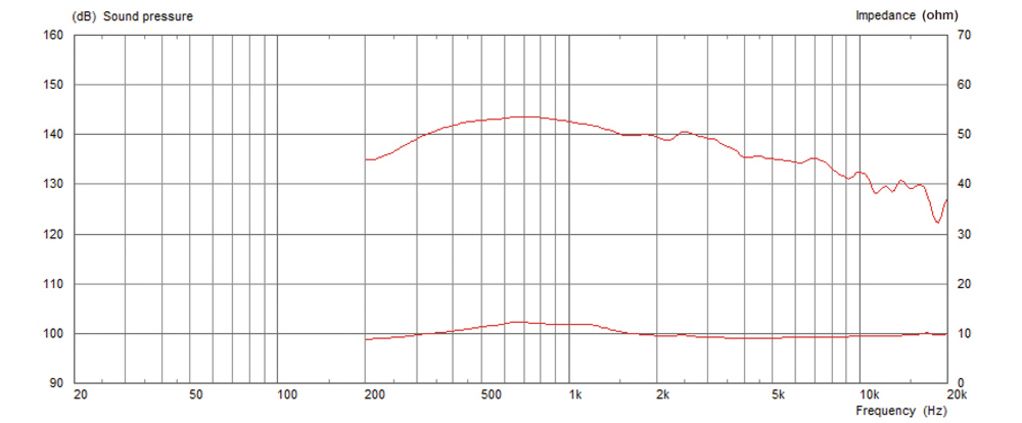

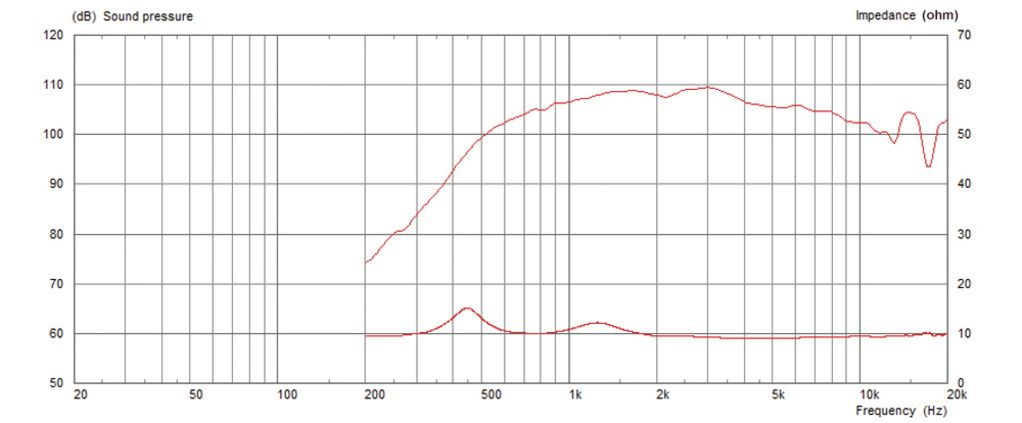

| Frequency range | 500-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 1,000 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 106.5 dB/W/m |
| Voice coil diameter | Ø 75 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Outlet | Ø 35 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Mounting hole diameter | Ø 102 mm (4 x M6) |
| Dimensions | Ø 180 mm x 68 mm |
| Outside diameter | Ø 180 mm |
| Width | Ø 180 mm |
| Height | Ø 180 mm |
| Depth | 68 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 5.5 kg |
| Packing unit | 1 |
| Type of speaker | 1.4" |
| Packaging dimensions (W x H x L) | 0.235 x 0.095 x 0.19 m |
| Gross weight | 5.7 kg |
| Net weight | 5.5 kg |
