CDX1-1445/8
Kod EAN: 0739894576253
PA horn driver, 20 W, 8 Ω High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet One-piece PETP cone and surround Integrated cone and rear cover for easy replacement Recommended crossover frequency: 2,200 Hz (12 d...

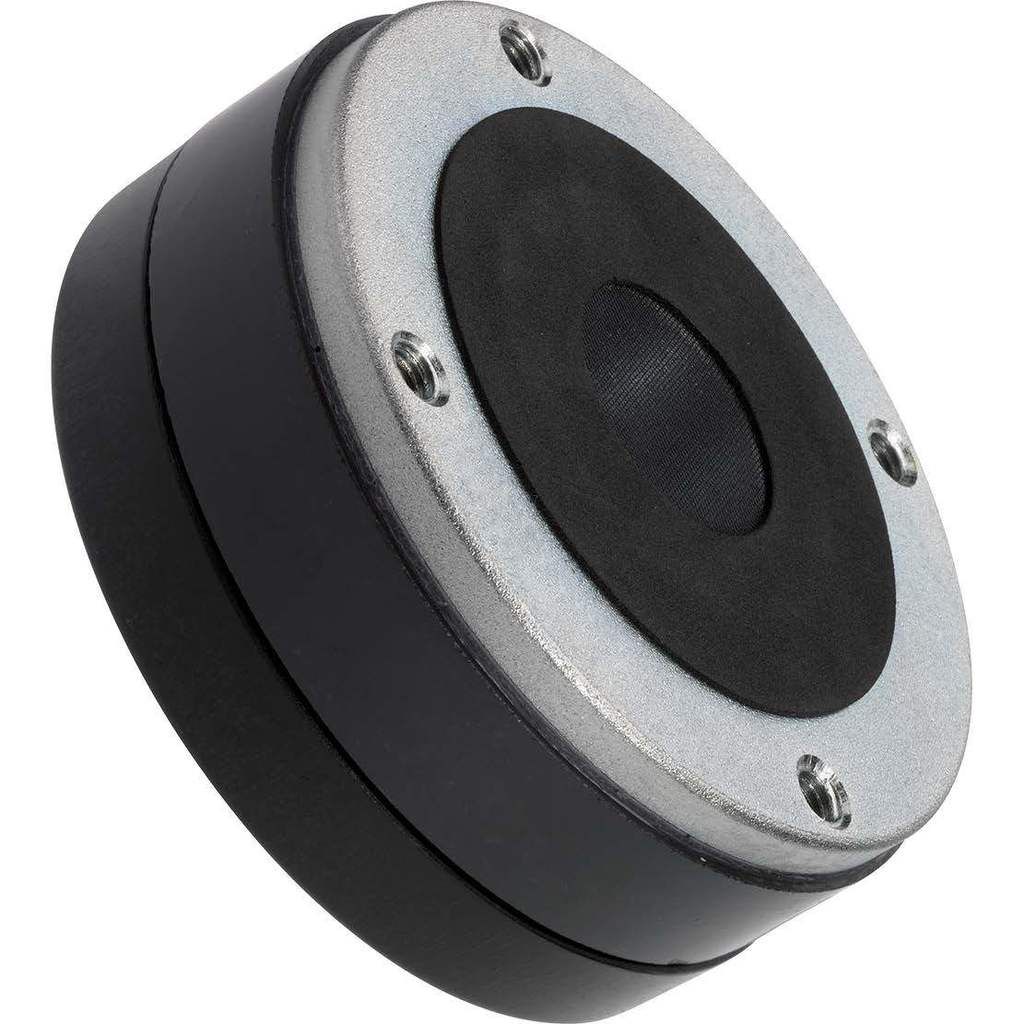

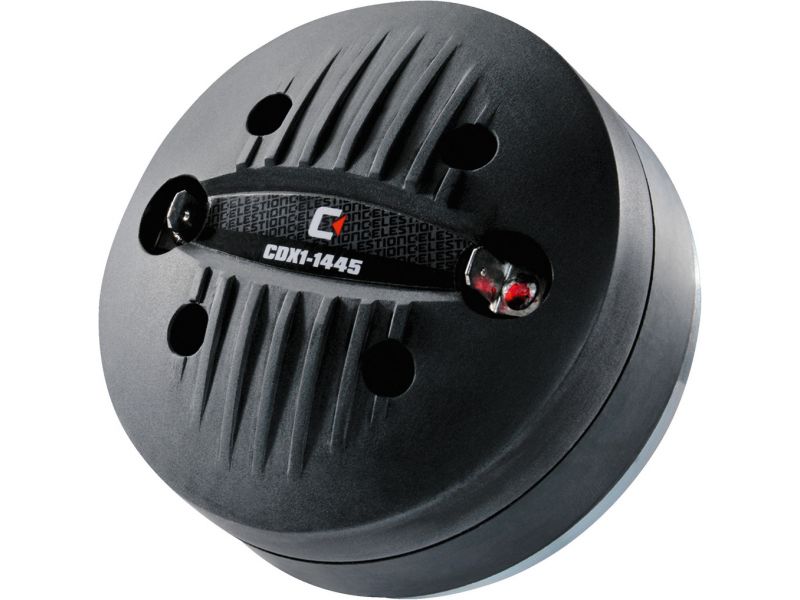

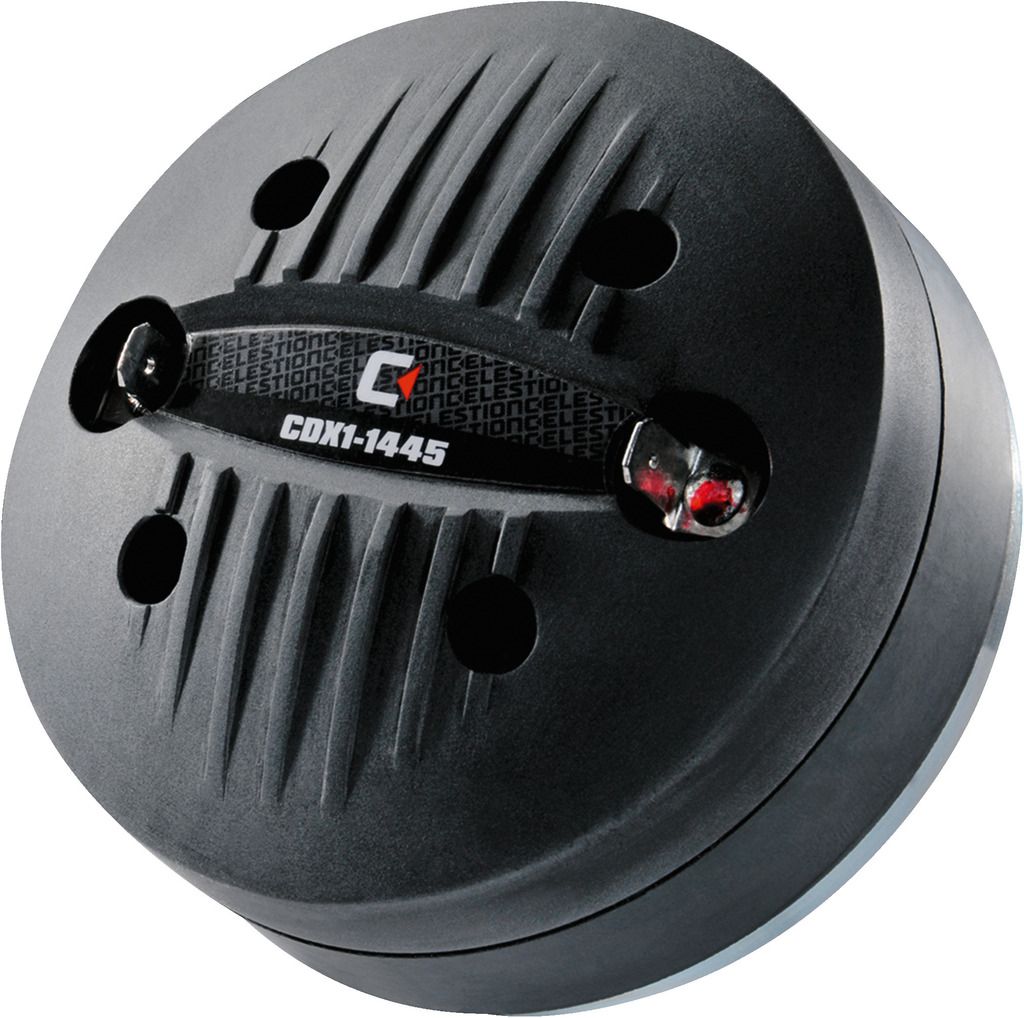

CDX1-1445/8
PA horn driver, 20 W, 8 Ω
- High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
- One-piece PETP cone and surround
- Integrated cone and rear cover for easy replacement
- Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
- 4-hole screw mounting
- Also available as 16 Ω version (CDX1-1445/16) or with 35 mm standard thread (CDX1-1446/8)
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 1,500-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 20 W |
| Peak music power output (MAX) | 40 W |
| SPL | 106 dB/W/m |
| Voice coil diameter | Ø 35 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Outlet | Ø 25 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Mounting hole diameter | Ø 76 mm (4x M6) |
| Dimensions | Ø 90 mm x 52 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Height | Ø 90 mm |
| Depth | 52 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.97 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.13 x 0.081 x 0.11 m |
| Gross weight | 1.07 kg |
| Net weight | 0.97 kg |
