CU-3BOOST
Kod EAN:
Zesilovač přizpůsobení úrovně (LED booster) pro RGB LED ovladač
ATT-312PEU
Kod EAN: 4007754179842
Wall-mounted PA volume control with 24 V emergency priority relay Power rating: 12 W Attenuation in 10 steps, position 0 is OFF For 100 V transmission technology Snow-white plastic front panel and knob Flush mounting into standard 65 mm wall sockets...
32,90 € brutto
(inkl. 23% DPH)
26,75 € netto
ATT-312PEU

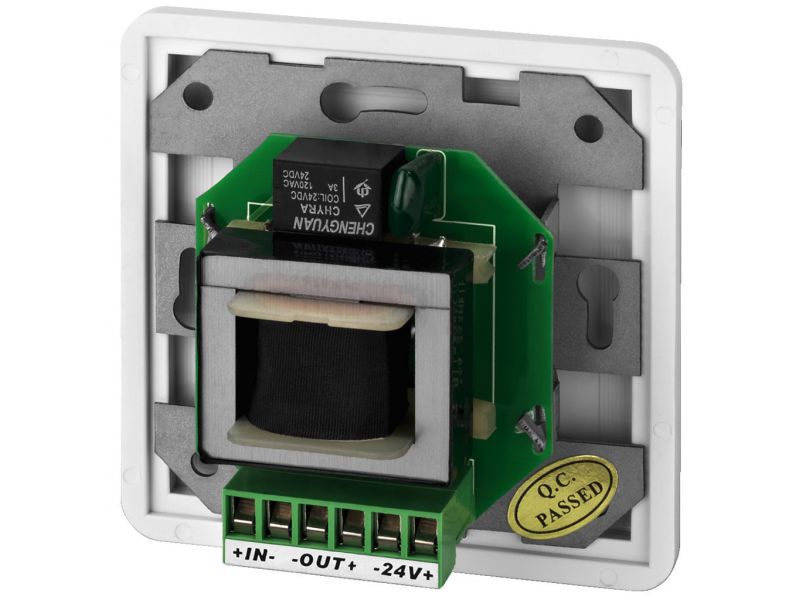

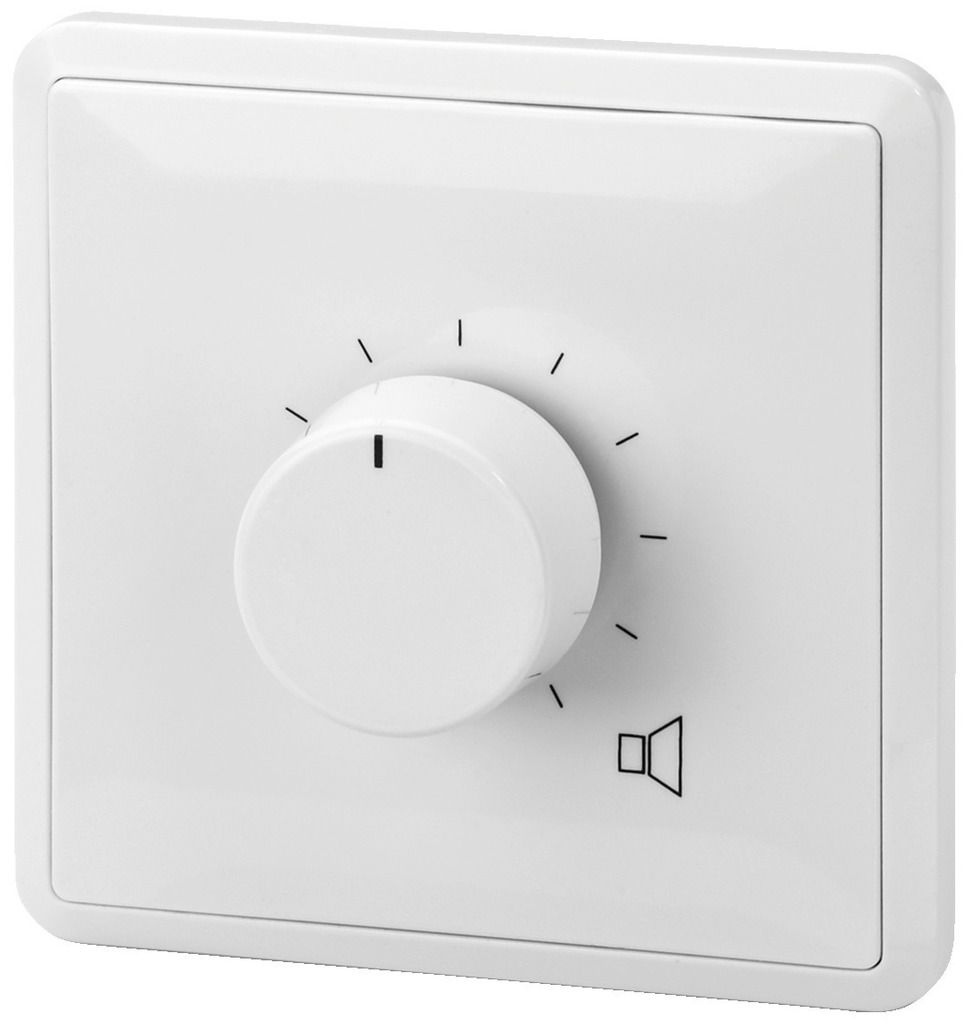

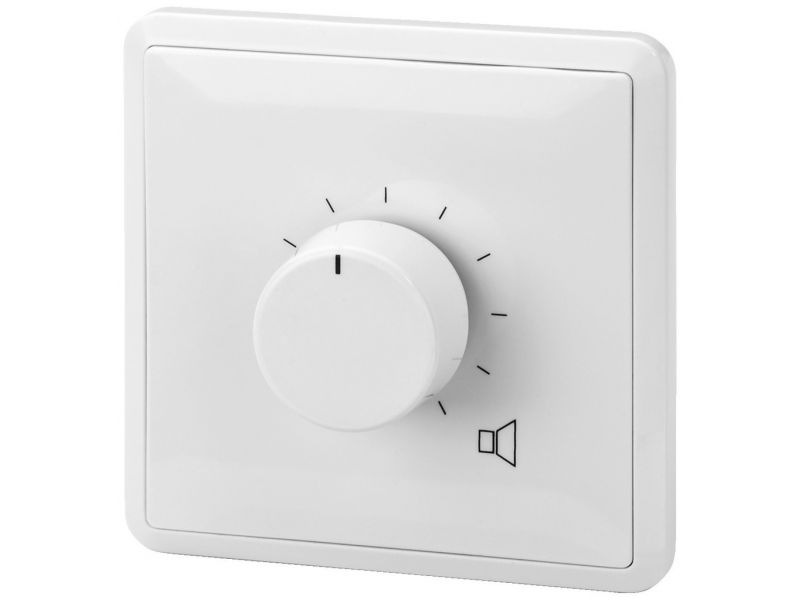

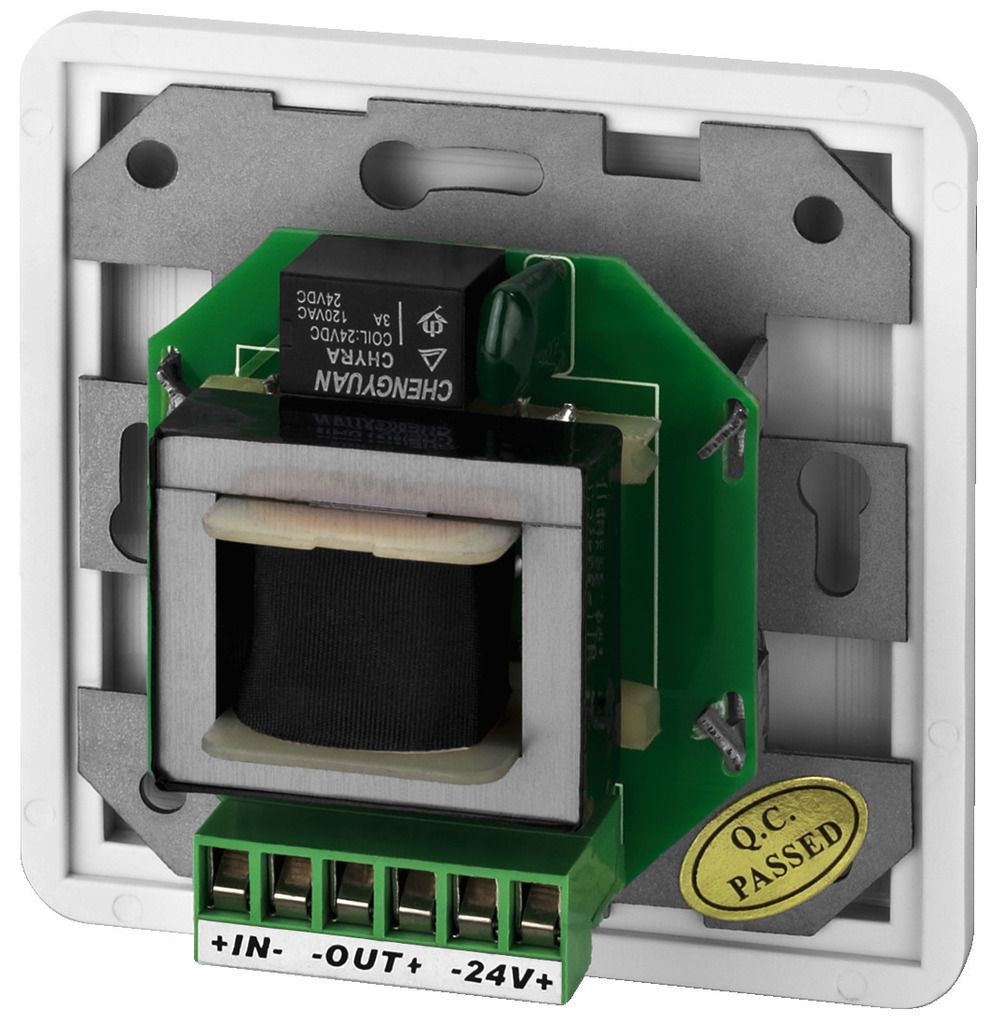

Wall-mounted PA volume control with 24 V emergency priority relay
- Power rating: 12 W
- Attenuation in 10 steps, position 0 is OFF
- For 100 V transmission technology
- Snow-white plastic front panel and knob
- Flush mounting into standard 65 mm wall sockets
- Surface mounting with matching housing ATT-300, available at option
- Plug-in screw terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | wall-mounted PA volume control |
| Frequency range | 50-18,000 Hz |
| Power rating | 12 W |
| Priority facility | yes |
| Dimensions | 80 x 80 x 67 mm |
| Mounting depth | 45 mm |
| Weight | 168 g |
| Surface-mounted housing | ATT-300 |
