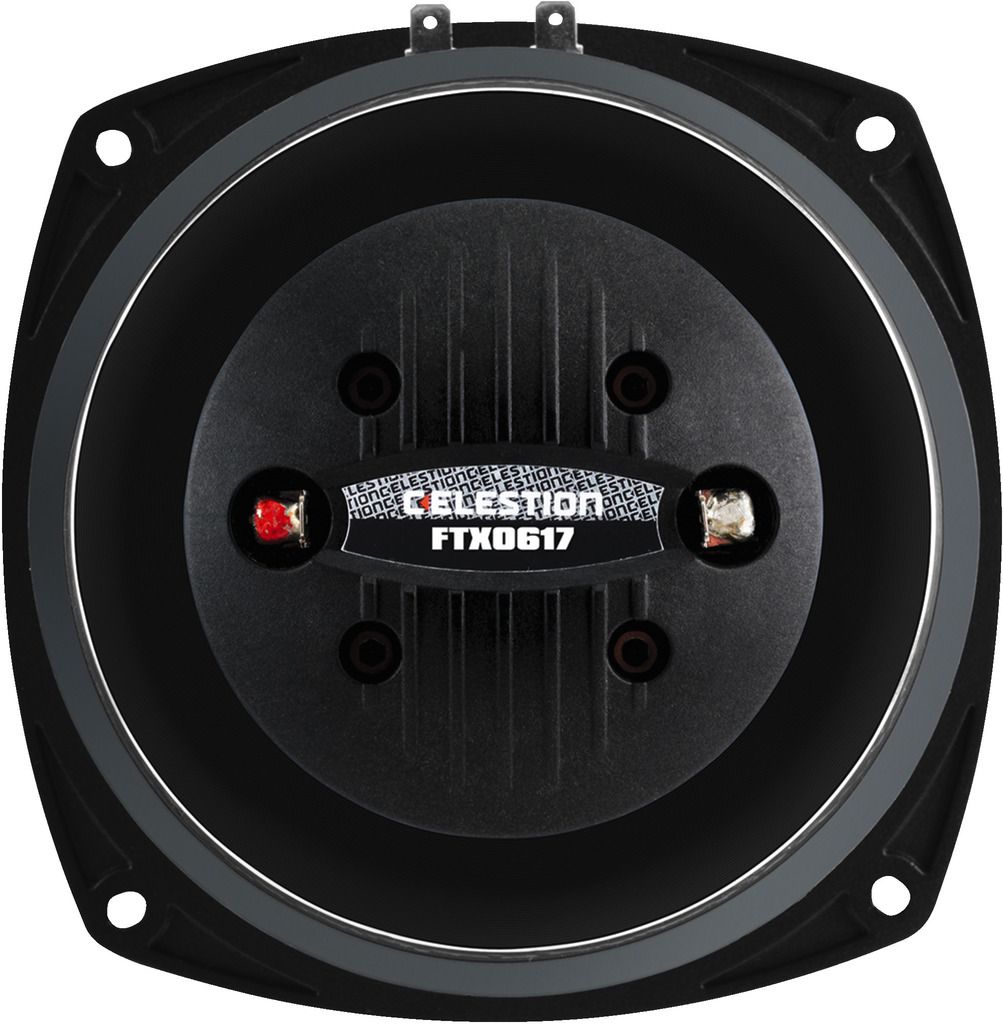

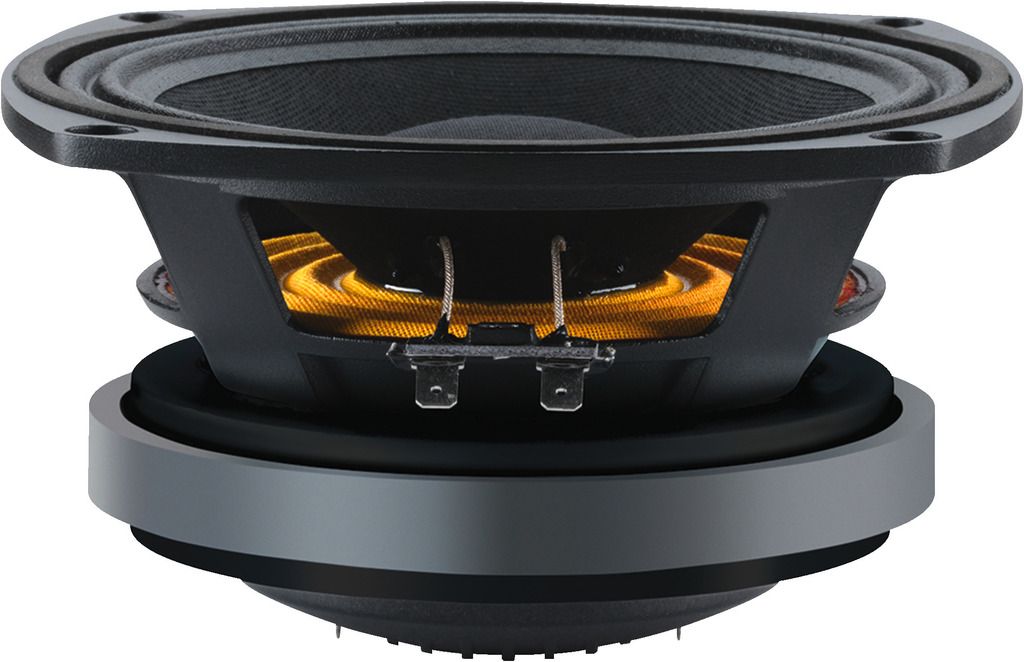

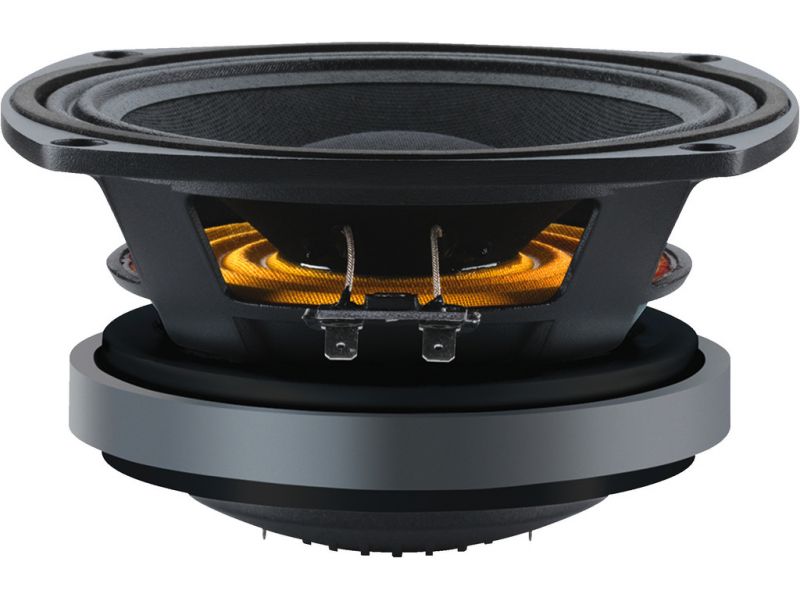

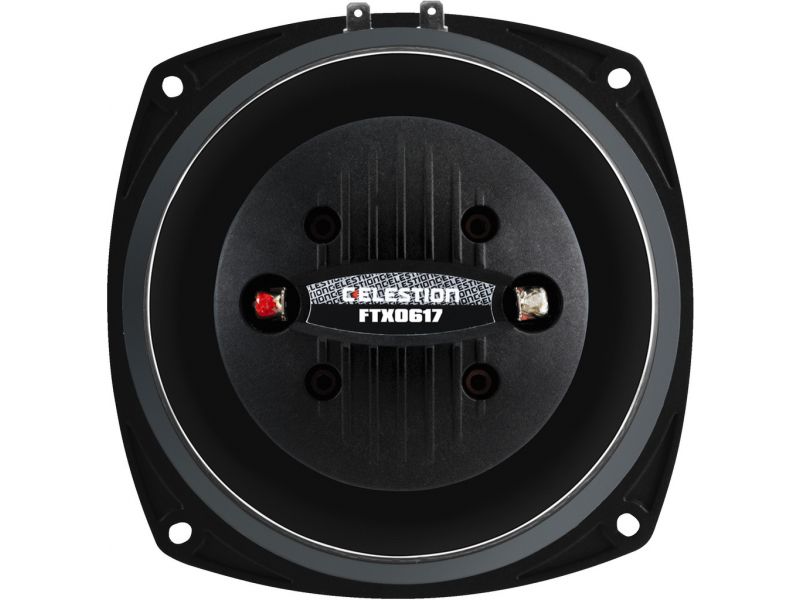

FTX0617/8
PA coaxial speaker, 150 W, 8 Ω
- 165 mm (6½") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter
- Optimised drive with one common magnet only for high-frequency driver and bass driver
- Integrated demodulation rings for reducing electromagnetic distortions
- Robust diecast aluminium basket with rear ventilation of the centering spider
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

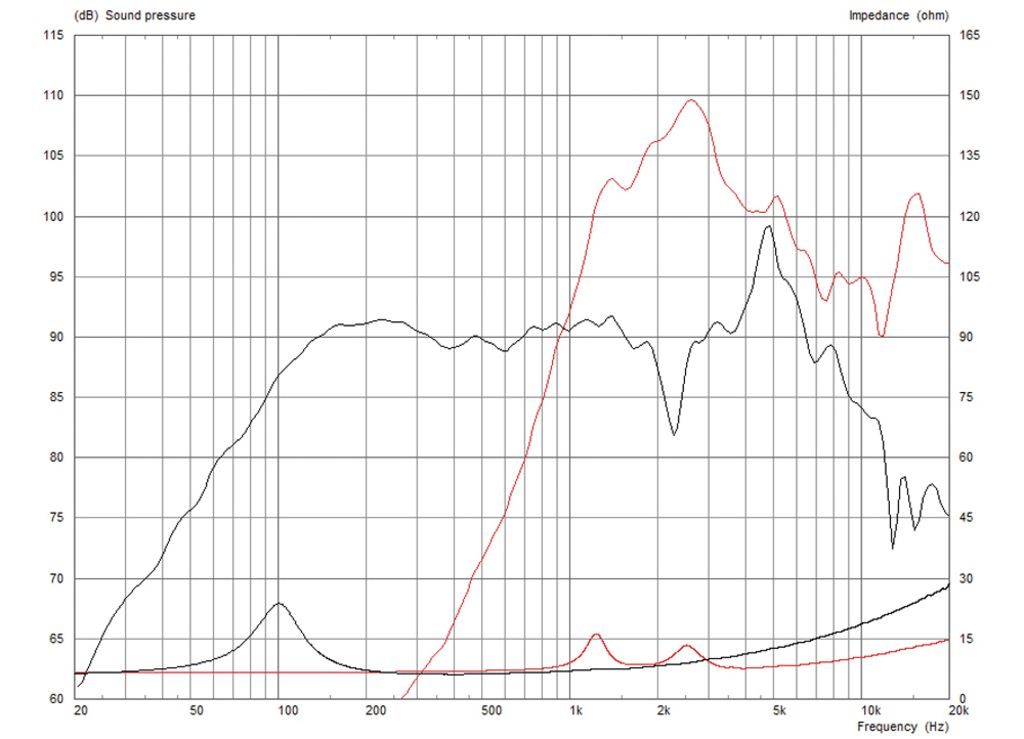

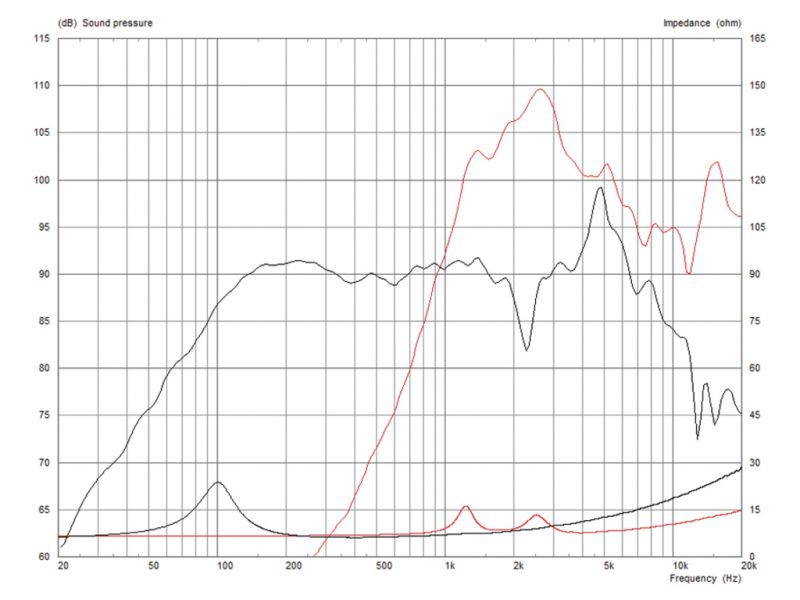

| Frequency range | 100-6,000 Hz (bass speaker) 1500-20,000 Hz (tweeter) |
| Resonant frequency (fs) | 100 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 150 W (bass) / 40 W (tweeter) |
| Peak music power output (MAX) | 300 W (bass) / 80 W (tweeter) |
| SPL | 92 dB (bass) / 103 dB (tweeter) |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Suspension compl. (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 11.58 g |
| Mech. Q factor (Qms) | 3.651 |
| Electr. Q factor (Qes) | 0.925 |
| Total Q factor (Qts) | 0.738 |
| Equivalent volume (Vas) | 7.3 l |
| DC resistance (Re) | 5.52 Ω |
| Force factor (BxL) | 6.59 Tm |
| Voice coil induct. (Le) | 0.27 mH |
| Voice coil diameter | Ø 44 mm (bass speaker) / Ø 34 mm (tweeter) |
| Voice coil winding height | 10 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 3.5 mm |
| Eff. cone area (Sd) | 153.94 cm2 |
| Magnet weight | 0.88 kg |
| Mounting cutout | Ø 150 mm |
| Mounting depth | 93 mm |
| Mounting hole diameter | Ø 173 mm |
| Dimensions | 189 x 189 x 93 mm |
| Outside diameter | Ø 189 mm |
| Width | 189 mm |
| Height | 189 mm |
| Depth | 93 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.28 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.203 x 0.127 x 0.203 m |
| Gross weight | 2.58 kg |
| Net weight | 2.28 kg |
