ZM-100
Kod EAN: 4007754183399
Impedance meter, for measuring the impedance (Z) of individual speakers or speaker lines. Measurement with pulsed 1 kHz signal Processor-controlled with independent selection of the most favourable measuring range Power received at the mains of the...
707,00 € brutto
(inkl. 20% DPH)
589,17 € netto

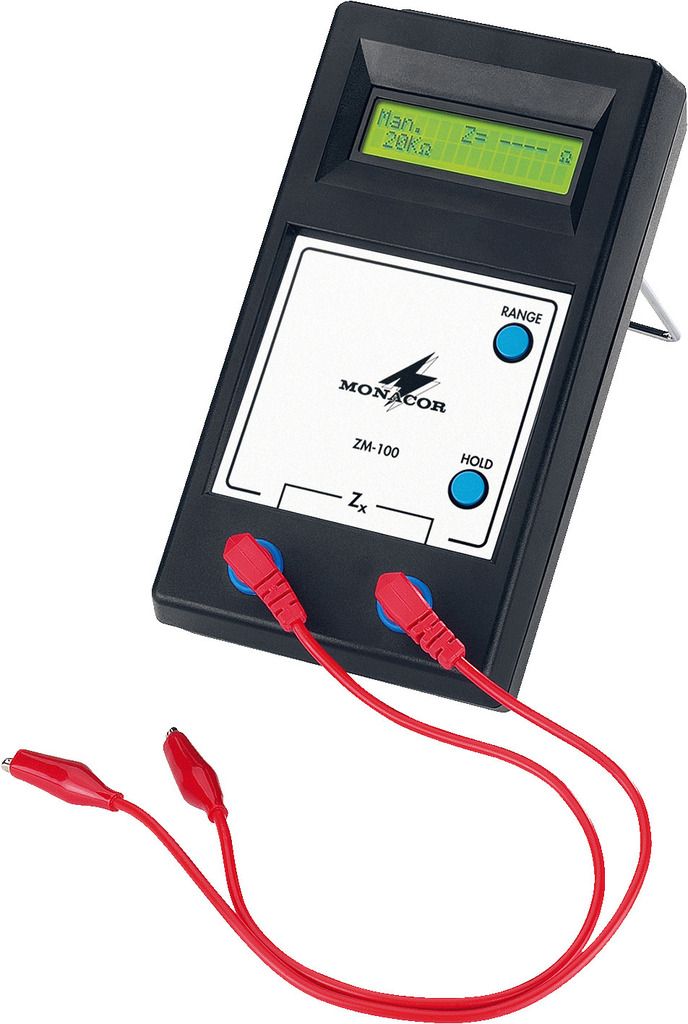

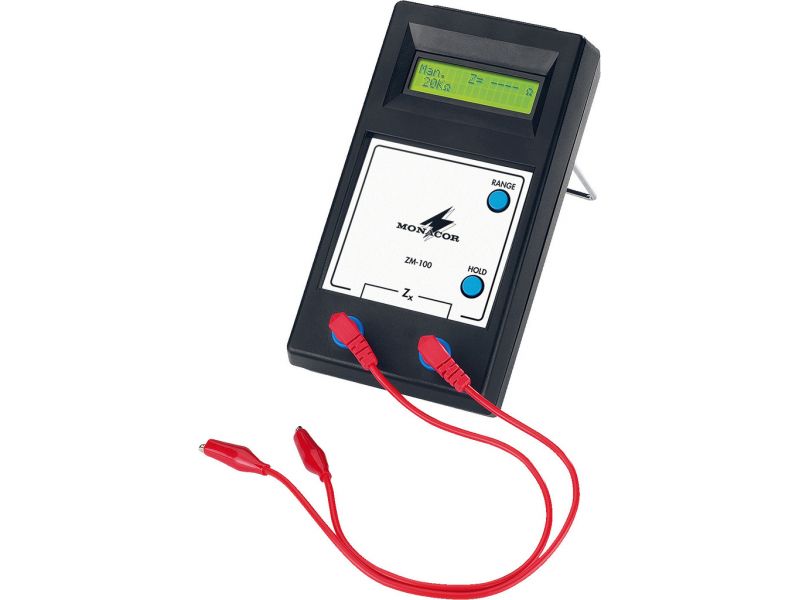

ZM-100
Impedance meter,
for measuring the impedance (Z) of individual speakers or speaker lines.
- Measurement with pulsed 1 kHz signal
- Processor-controlled with independent selection of the most favourable measuring range
- Power received at the mains of the 100 V speaker is calculated and displayed
- Range button and hold button
- Measuring ranges: 200 Ω/2 kΩ/20 kΩ/200 kΩ
- Power supply via 4 x 1.5 V battery AA size
- Dimensions: 100 x 177 x 50 mm
- Weight: 570 g
- Supplied with protective bag and pair of test leads
Parametry
| Description | impedance meter |
| Nominal value | impedance (Z) |
| Type | measuring ranges: 200 Ω/2k Ω/20 kΩ/200 kΩ |
| Colour | black |
| Suitable for | individual speakers, speaker lines |
| Power supply | 4 x 1.5 V batt. AA size |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 100 x 177 x 50 mm |
| Weight | 422 g |
| Other features | measurement with pulsed 1 kHz signal |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.15 x 0.085 x 0.225 m |
| Gross weight | 0.545 kg |
| Net weight | 0.422 kg |
