TF1020/8
Kod EAN: 0739894573658
PA bass-midrange speaker, 150 W, 8 Ω Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus...

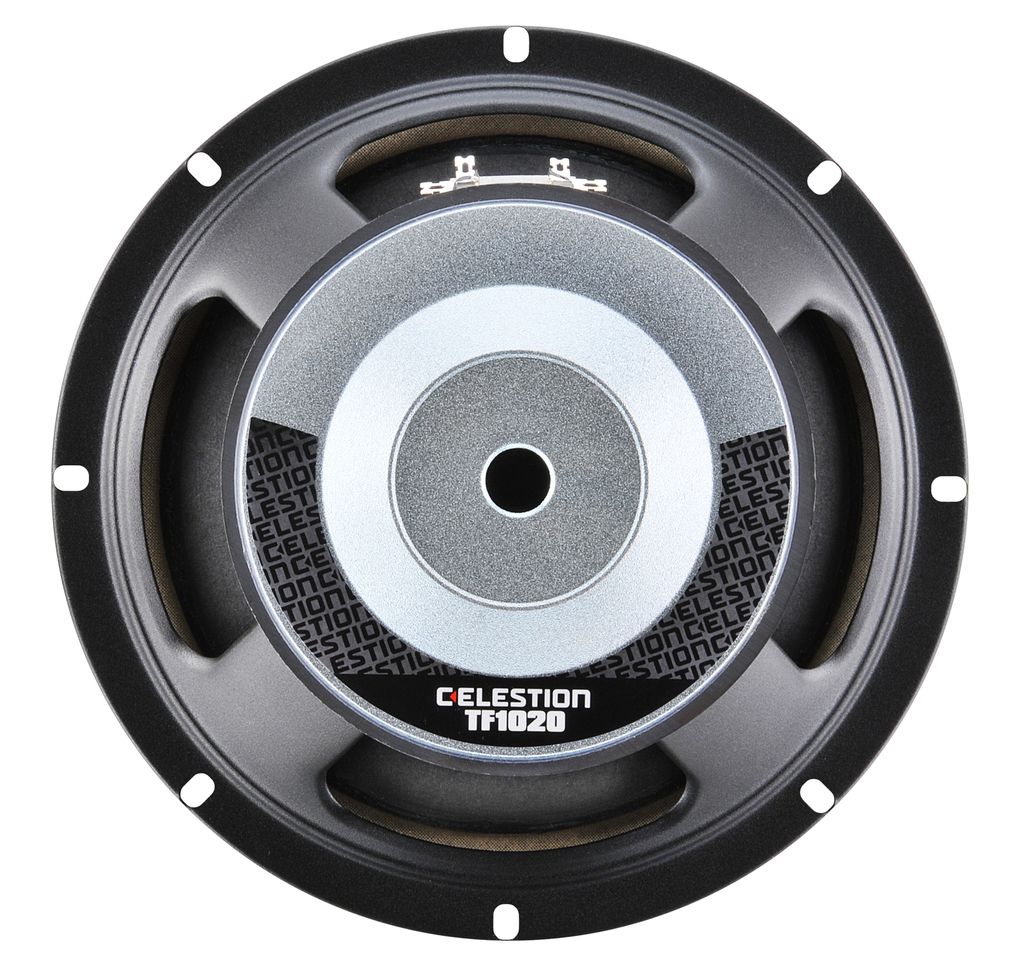

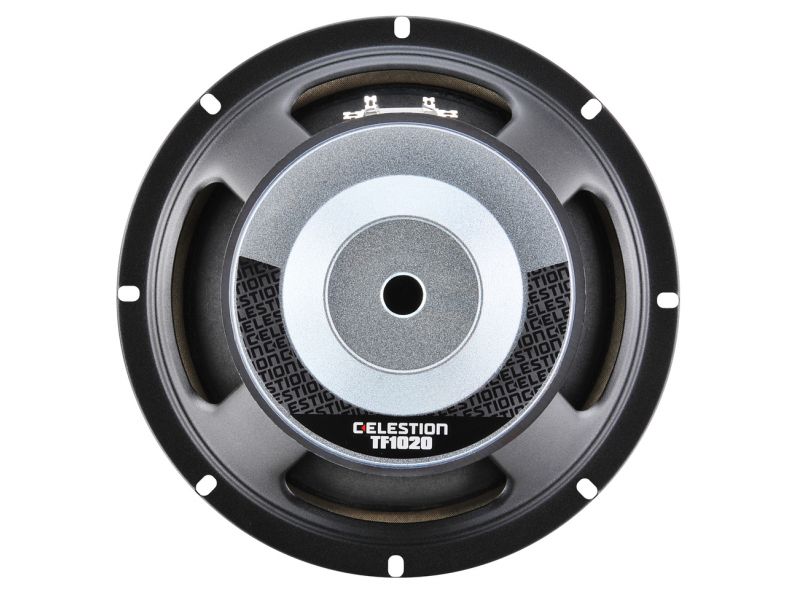

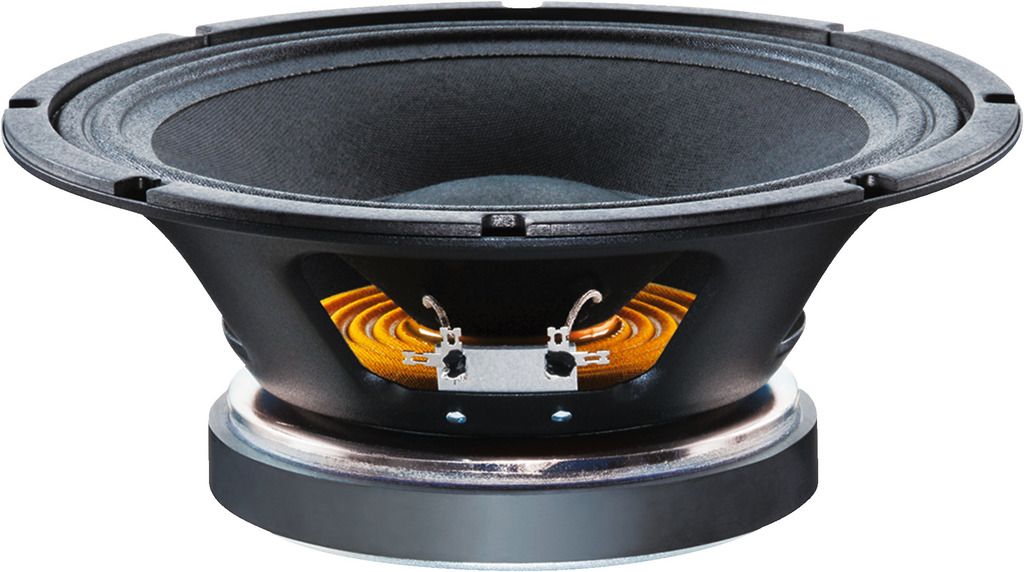

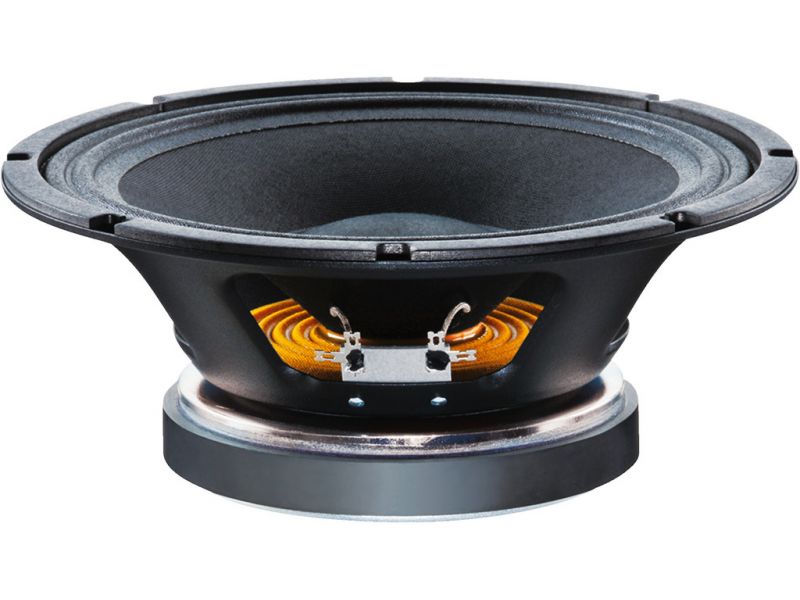

TF1020/8
PA bass-midrange speaker, 150 W, 8 Ω
Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
- 25 cm (10") PA midrange speaker with an excellent sound and sufficient reserves in the bass range down to approx. 90 Hz
- High-quality Kevlar fibre-reinforced cellulose cone
- Heat-resistant 50 mm (2") voice coil on a Kapton voice coil former
- Excellent frequency response linearity and wide bandwidth
- Excellent reproduction quality of speech and vocals
- Robust sheet steel basket
- Ideally suited for compact PA top speaker systems with subwoofer support
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

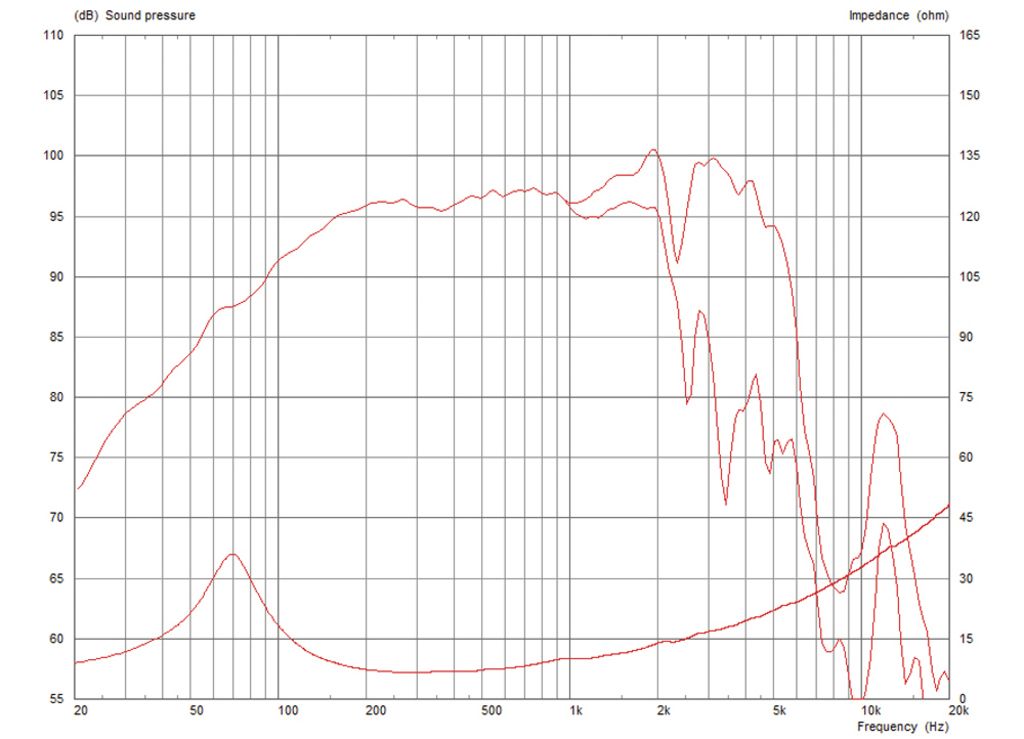

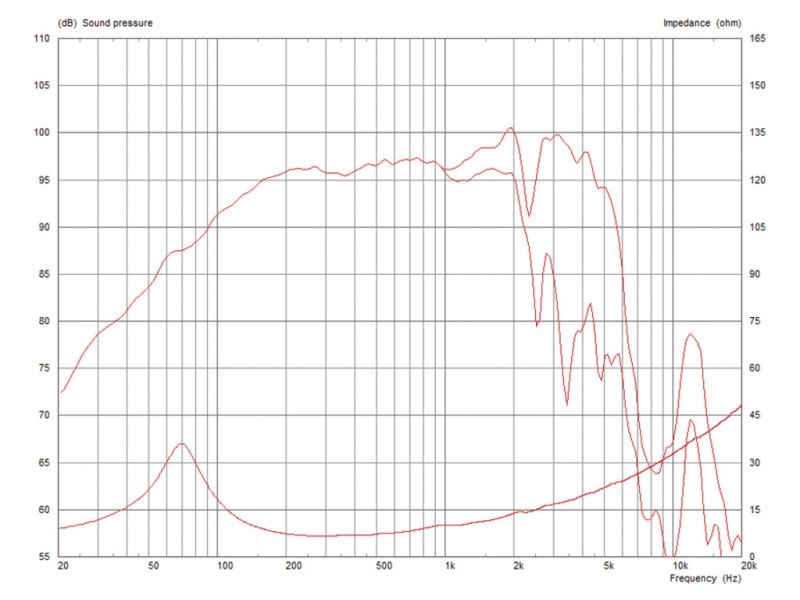

| Frequency range | 60-5,500 Hz |
| Resonant frequency (fs) | 69.4 Hz |
| Power rating (RMS) | 150 W |
| Peak music power output (MAX) | 300 W |
| SPL | 97 dB/W/m |
| Suspension compl. (Cms) | 0.17 mm/N |
| Moving mass (Mms) | 31.10 g |
| Mech. Q factor (Qms) | 2.454 |
| Electr. Q factor (Qes) | 0.372 |
| Total Q factor (Qts) | 0.323 |
| Equivalent volume (Vas) | 28.8 l |
| DC resistance (Re) | 5.45 Ω |
| Force factor (BxL) | 14.10 Tm |
| Voice coil induct. (Le) | 0.60 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil winding height | 12 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 346.36 cm2 |
| Magnet weight | 1.2 kg |
| Mounting cutout | Ø 229 mm |
| Mounting depth | 110 mm |
| Mounting hole diameter | Ø 245 mm |
| Dimensions | Ø 256 mm x 110 mm |
| Outside diameter | Ø 256 mm |
| Width | Ø 256 mm |
| Height | Ø 256 mm |
| Depth | 110 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.7 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.279 x 0.125 x 0.279 m |
| Gross weight | 4.2 kg |
| Net weight | 3.7 kg |
