WALL-06SET/WS
Kod EAN: 4007754271423
Active 2-way stereo speaker system, 2 x 30 W Set consists of one active and one passive speaker system. Connection of the passive system to the active system via screw terminal strip Active speaker system with integrated 2-channel amplifier Stereo RC...
328,00 € brutto
(inkl. 23% DPH)
266,67 € netto

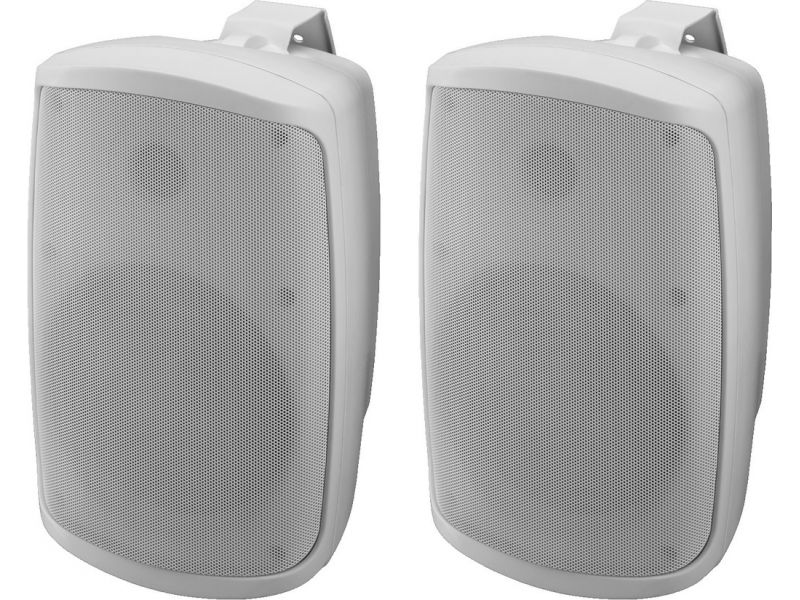

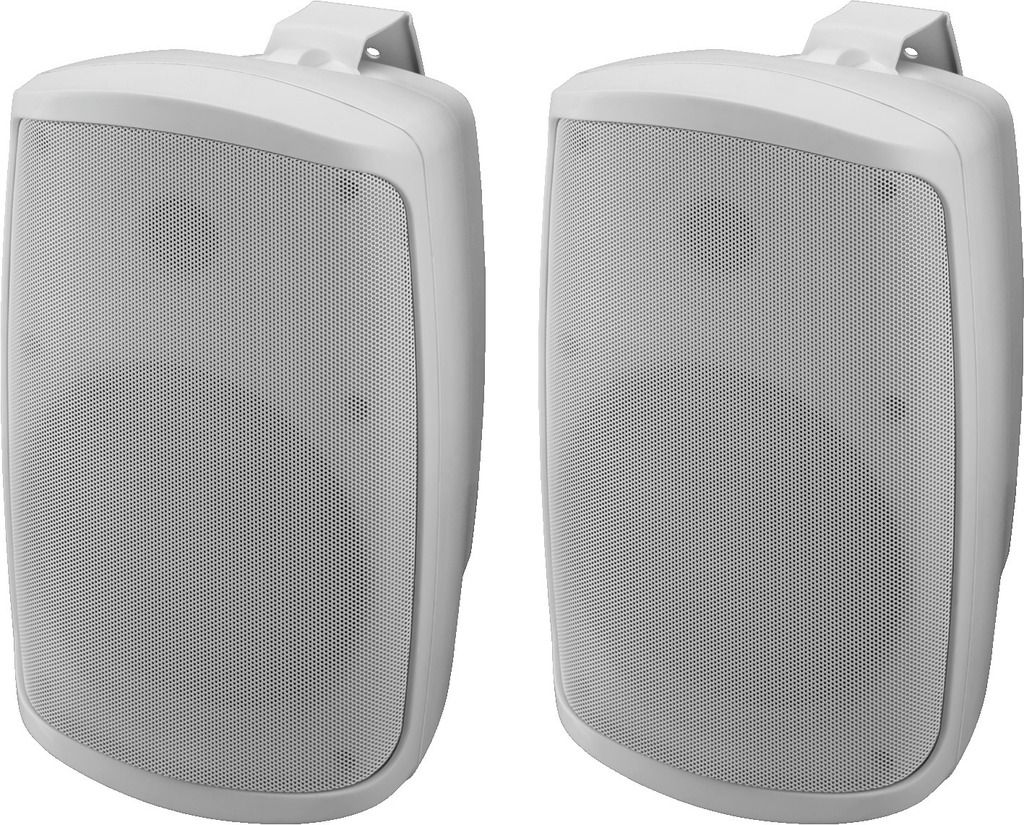

WALL-06SET/WS
Active 2-way stereo speaker system, 2 x 30 W
- Set consists of one active and one passive speaker system. Connection of the passive system to the active system via screw terminal strip

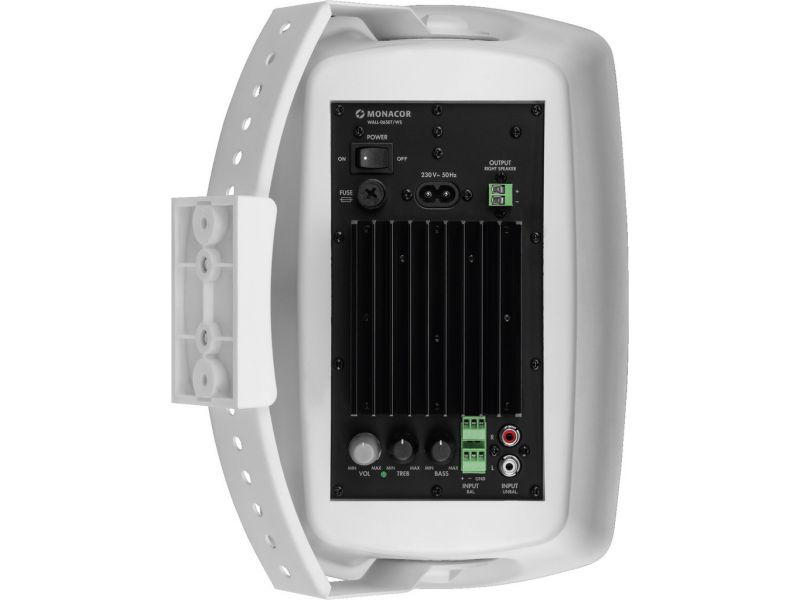

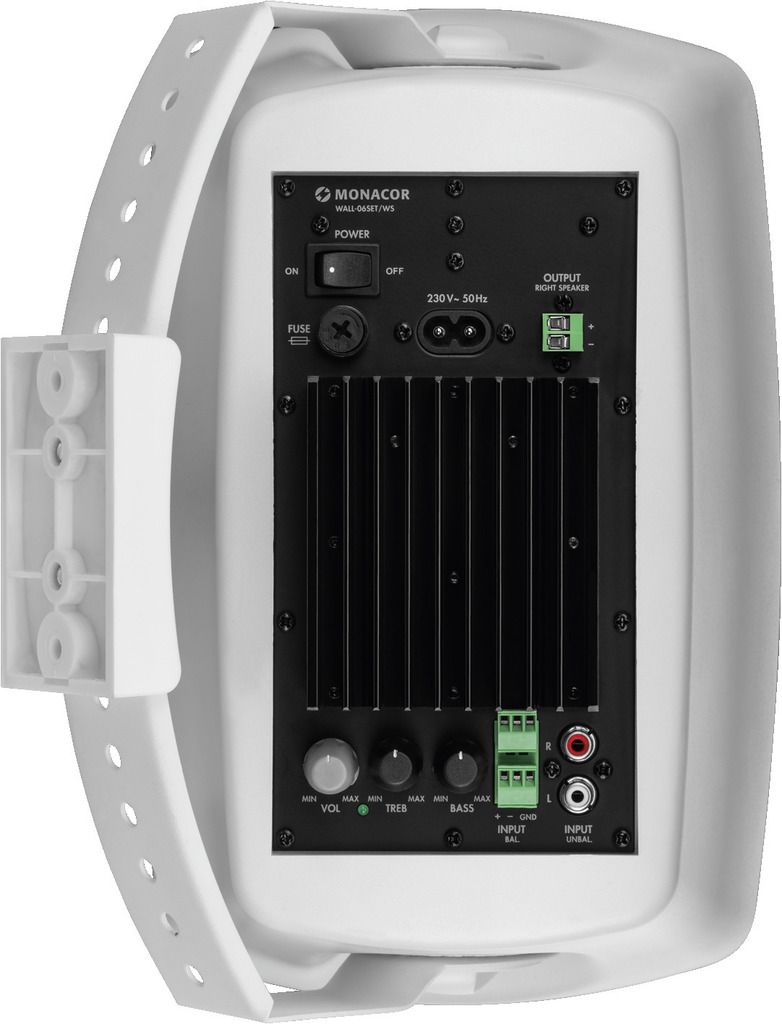

- Active speaker system with integrated 2-channel amplifier
- Stereo RCA input or balanced input L/R via screw terminal strip
- Volume control and 2-way tone control
- Auto standby
- Built-in power supply with 3-pole IEC jack
- 16 cm (6") bass speaker system and dome tweeter
- Stylish white plastic cabinet
- Mounting bracket for pivoting and tilting
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.
Parametry
| Active/passive | active/passive |
| Transmission technology | cable |
| Total output power | 2 x 50 W |
| Power rating (RMS) | 2 x 30 W |
| Frequency range | 70-20,000 Hz |
| Input signal | 890 mV/20 kΩ (unbal.) 1,600 mV/40 kΩ (bal.) |
| System | 2-way |
| Bass speaker | 16 cm (6") bass speaker |
| Tweeter | dome tweeter |
| Number of speakers | 2 |
| Speaker size | 16 cm (6") |
| SPL | 90 dB/W/m |
| Max. rated SPL | 105 dB |
| Radiation angle/beam angle | H: 110°/V: 90° |
| Radiation angle, horizontal | 110° |
| Radiation angle, vertical | 90° |
| Housing material | plastic |
| Colour | white |
| Mounting device | mounting bracket |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230V/50 Hz/140VA |
| Dimensions | 196 x 303 x 250 mm (with bracket) |
| Width | 196 mm |
| Height | 303 mm |
| Depth | 250 mm |
| Weight | 8 kg (pair) |
| Inputs | 1 x RCA L/R (unbal.)1 x terminal L/R (bal.)spring-load. speaker term. (passive speaker system)spring-load. speaker term. |
| Other features | pair |
| Packaging dimensions (W x H x L) | 0.23 x 0.33 x 0.505 m |
| Gross weight | 8.65 kg |
| Net weight | 8 kg |
