SPA-10PA
Kod EAN:

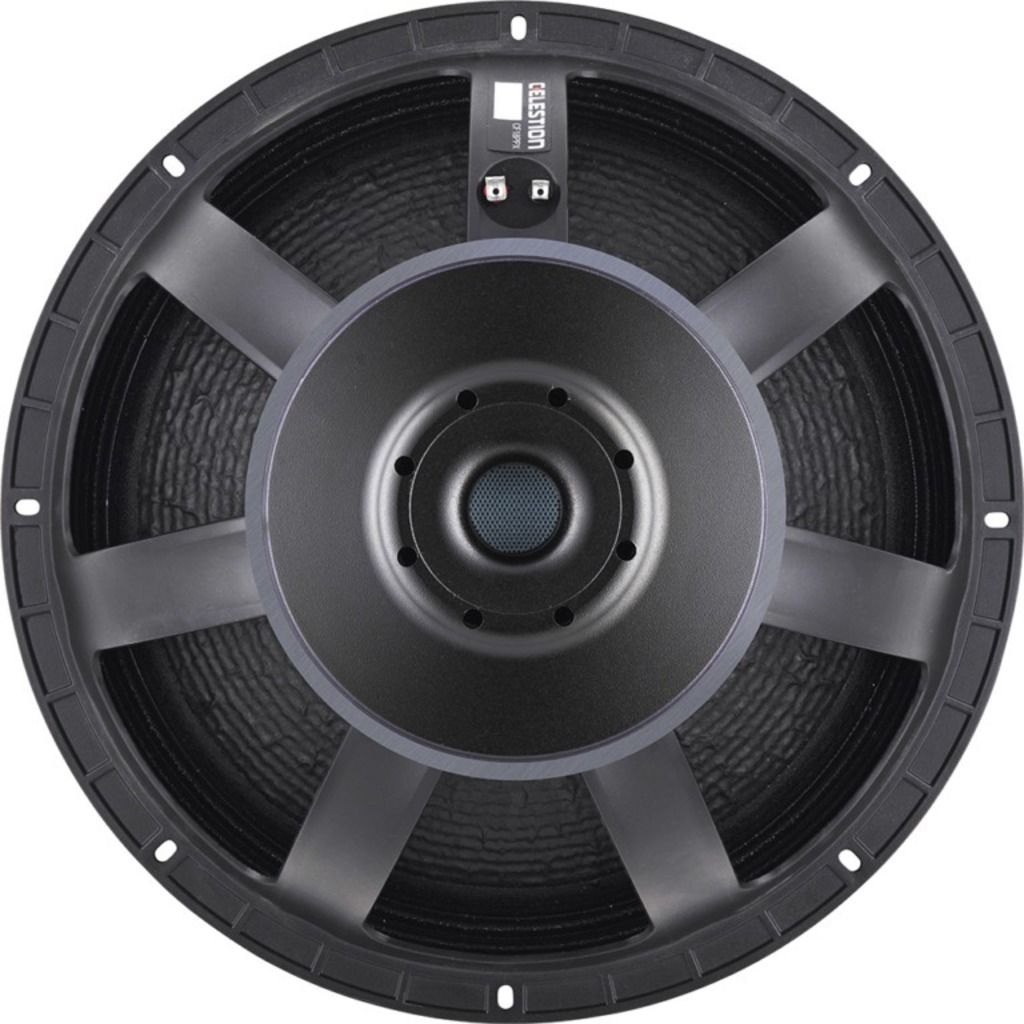

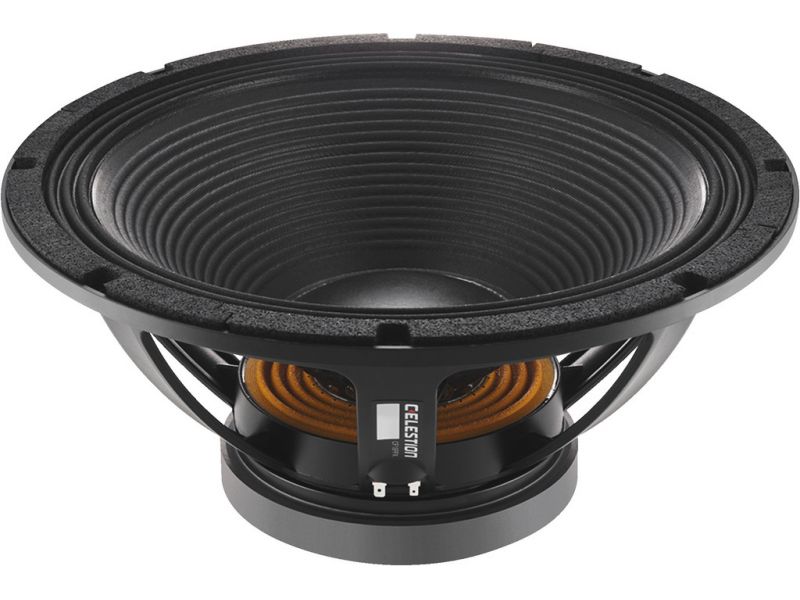

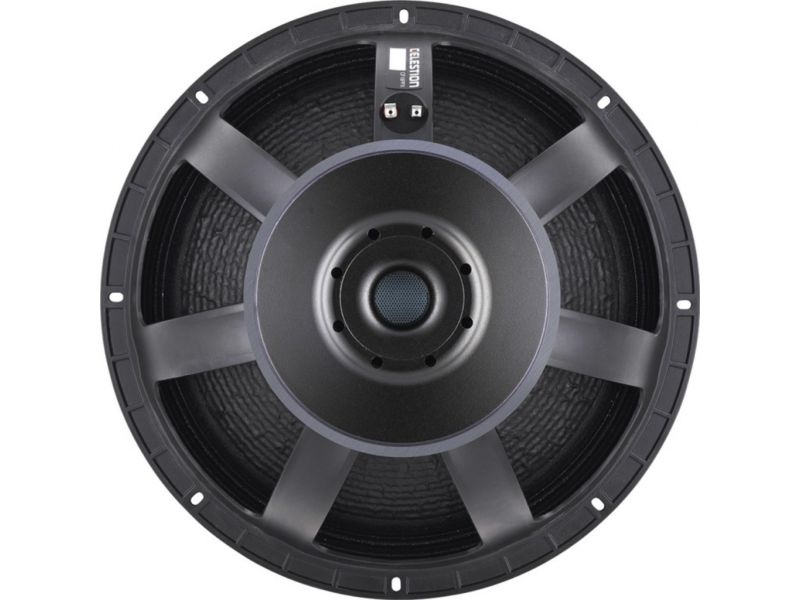

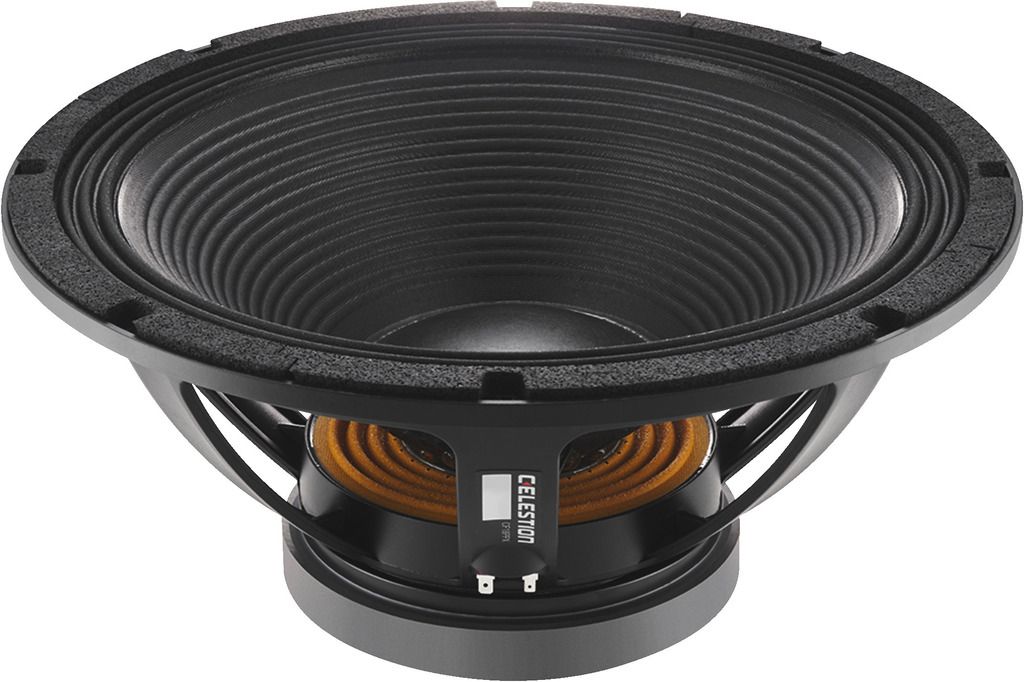

PA stredobasový reproduktor, 220W Max, 8ohm 10"
Manufacturer information: Celestion International LtdClaydon Business Park, Great Blakenham,IpswichSuffolk IP6 0NLUnited Kingdominfo@celestion.com Importer: MONACOR INTERNATIONAL GmbH & Co. KGZum Falsch 3628307 BremenDeutschlandinfo@monacor.com...
Impedance (Z) | 8 Ω |
Transmission technology | cable |

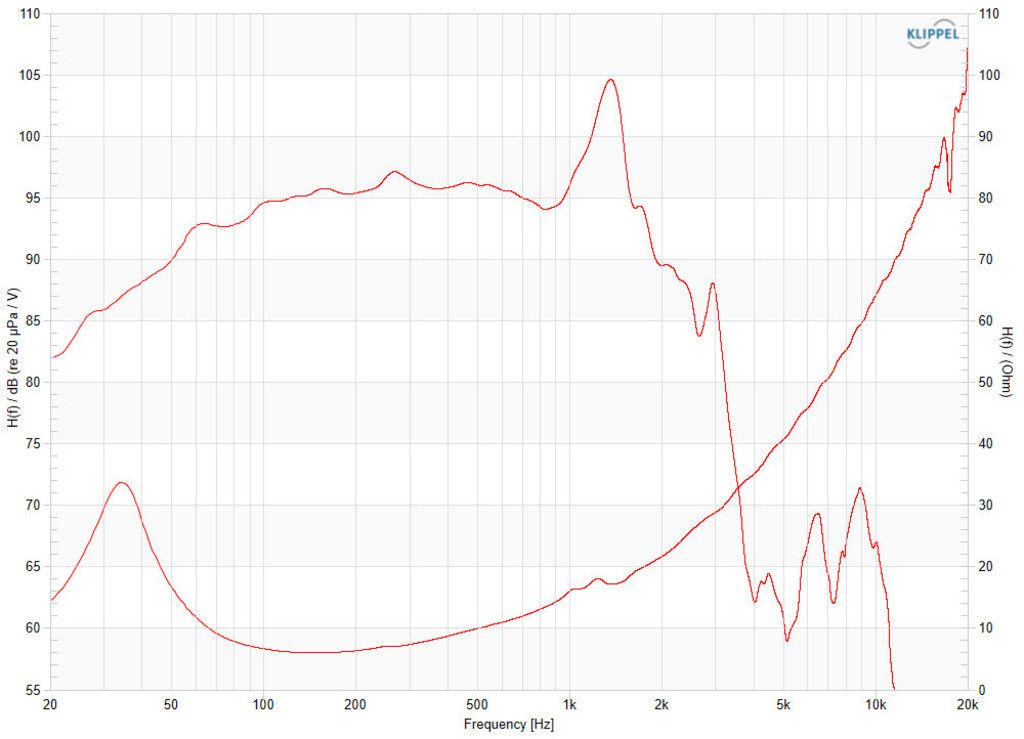

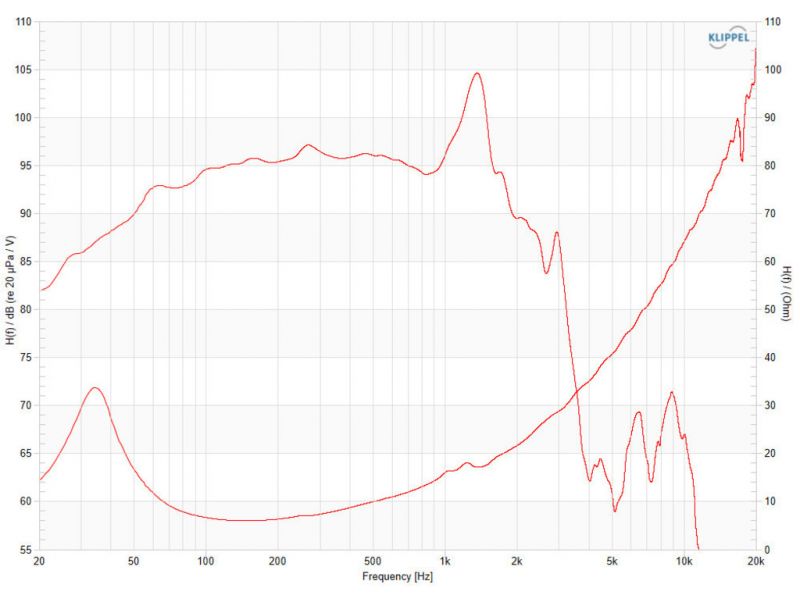

Frequency range | 35-1,000 Hz |
Resonant frequency (fs) | 34.8 Hz |
Power rating (RMS) | 1,200 W |
Peak music power output (MAX) | 2,400 W |
SPL | 97 dB/W/m |

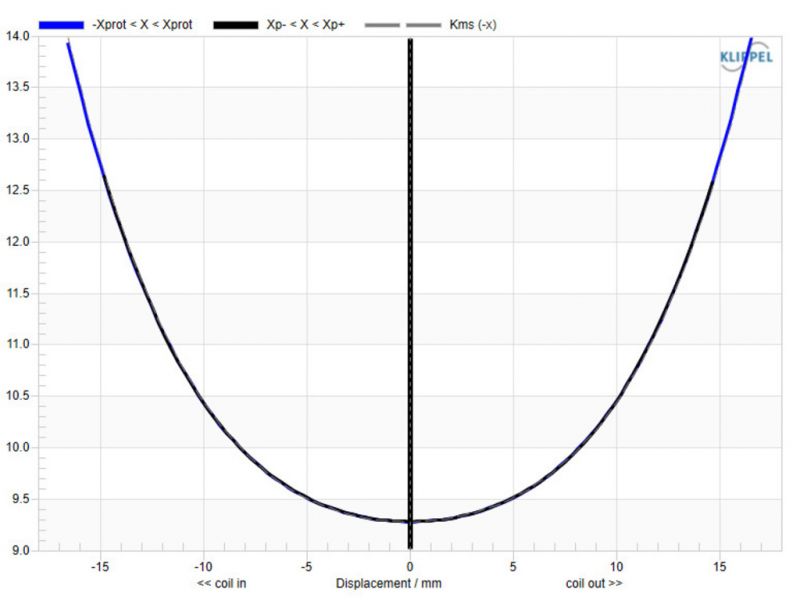

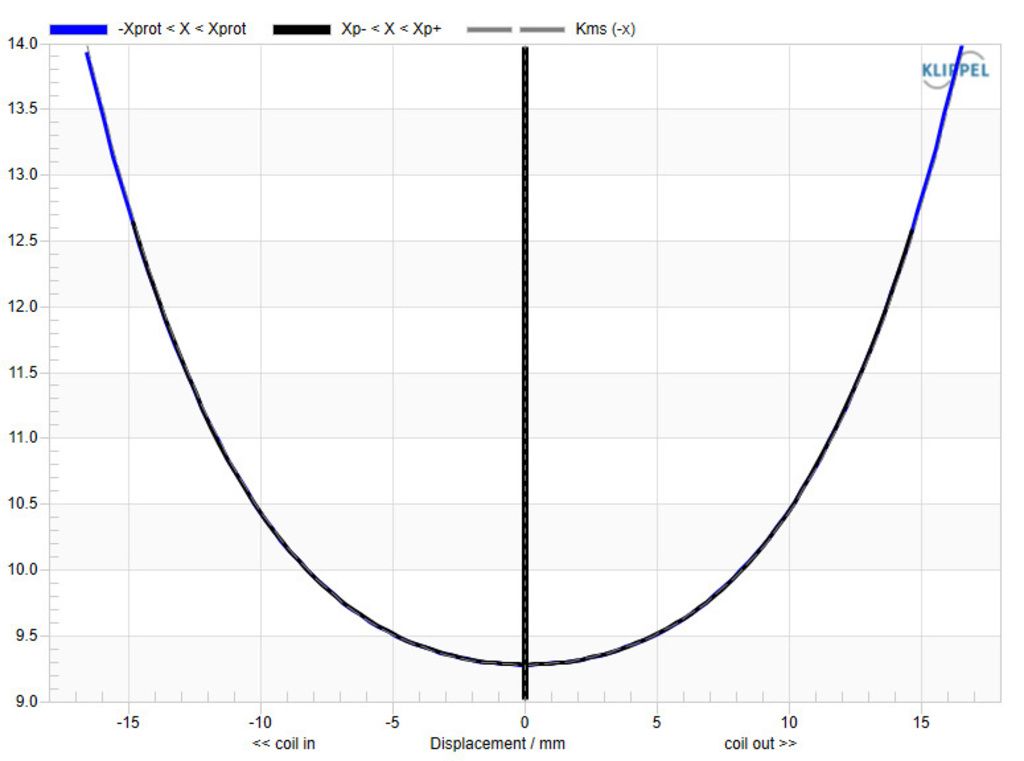

Suspension compl. (Cms) | 0.091 mm/N |
Moving mass (Mms) | 229.985 g |
Mech. Q factor (Qms) | 3.147 |
Electr. Q factor (Qes) | 0.431 |
Total Q factor (Qts) | 0.379 |
Equivalent volume (Vas) | 189.0 l |
DC resistance (Re) | 5.1 Ω |

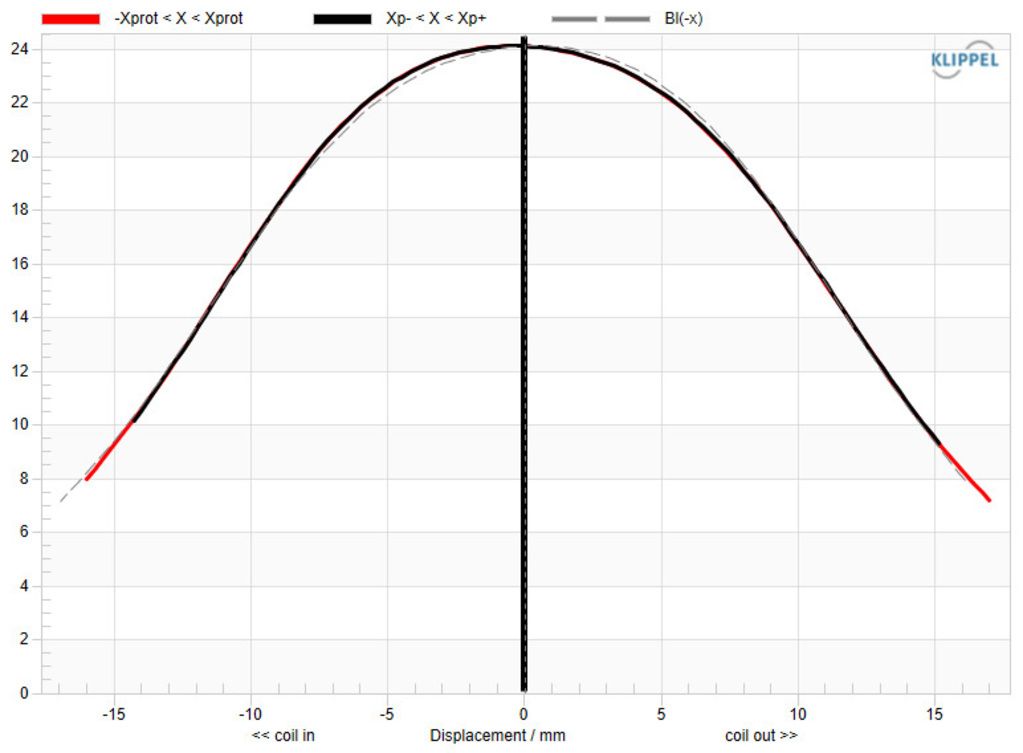

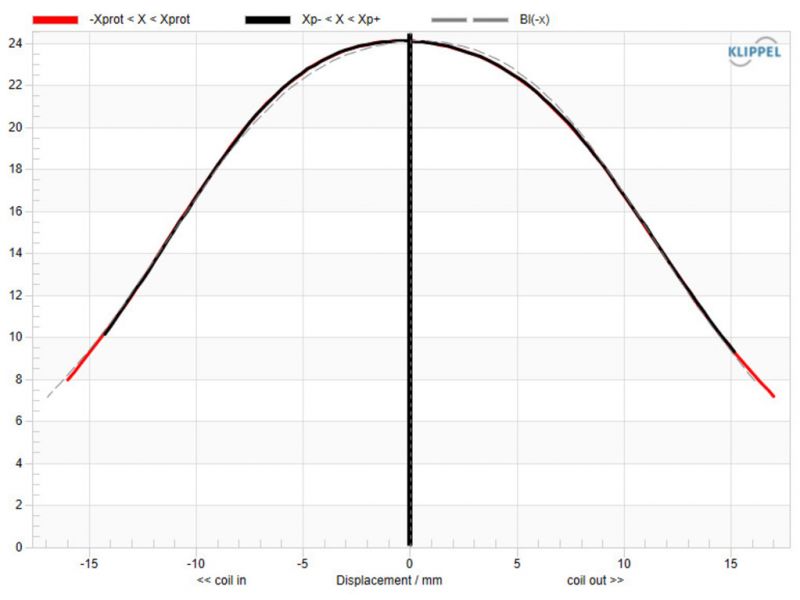

Force factor (BxL) | 24.38 Tm |
Voice coil induct. (Le) | 1.61 mH |
Voice coil diameter | Ø 100 mm |
Voice coil winding height | 25 mm |
Voice coil material | copper wire |
Voice coil former | glass fibre |
Linear excursion (XMAX) | ± 9.6 mm |
Eff. cone area (Sd) | 1,210 cm2 |
Magnet weight | 3.5 kg |
Mounting cutout | Ø 414 mm |
Mounting depth | 225 mm |
Mounting hole diameter | Ø 441-432 mm |
Dimensions | Ø 460 mm x 225 mm |
Outside diameter | Ø 460 mm |
Width | Ø 460 mm |
Height | Ø 460 mm |
Depth | 225 mm |
Colour | black |
Admiss. ambient temp. | 0-40 °C |
Weight | 13 kg |
Packing unit | 1 |
Type of speaker | 18" |
Packaging dimensions (W x H x L) | 0.49 x 0.27 x 0.49 m |
Gross weight | 15 kg |
Net weight | 13 kg |
