TXS-616SET/2

Kod EAN: 4007754276206

Multifrequency microphone system, with UHF PLL technology. 1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply True diversity system 80 selectable UHF channels (672.000-691.750 MHz) ACT function for transmitting selected frequenc...

víc

145,00 € brutto

(inkl. 20% DPH)
120,83 € netto

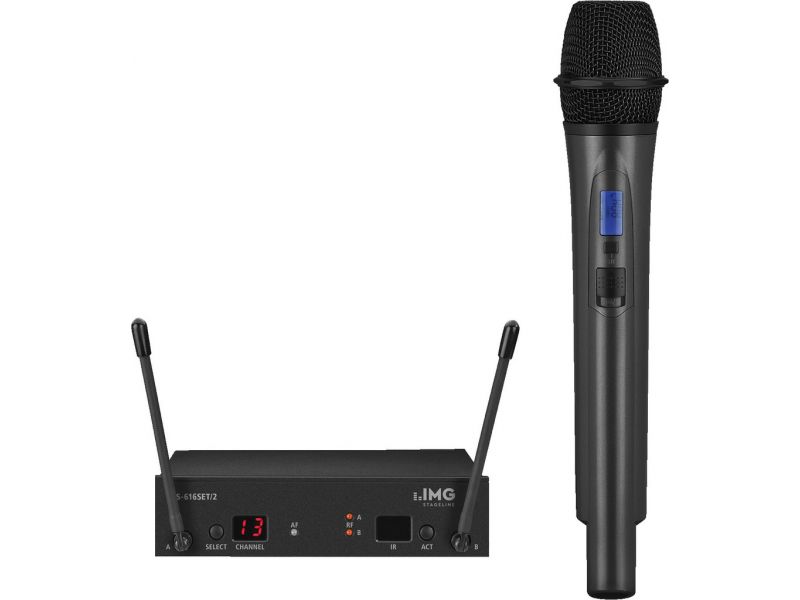

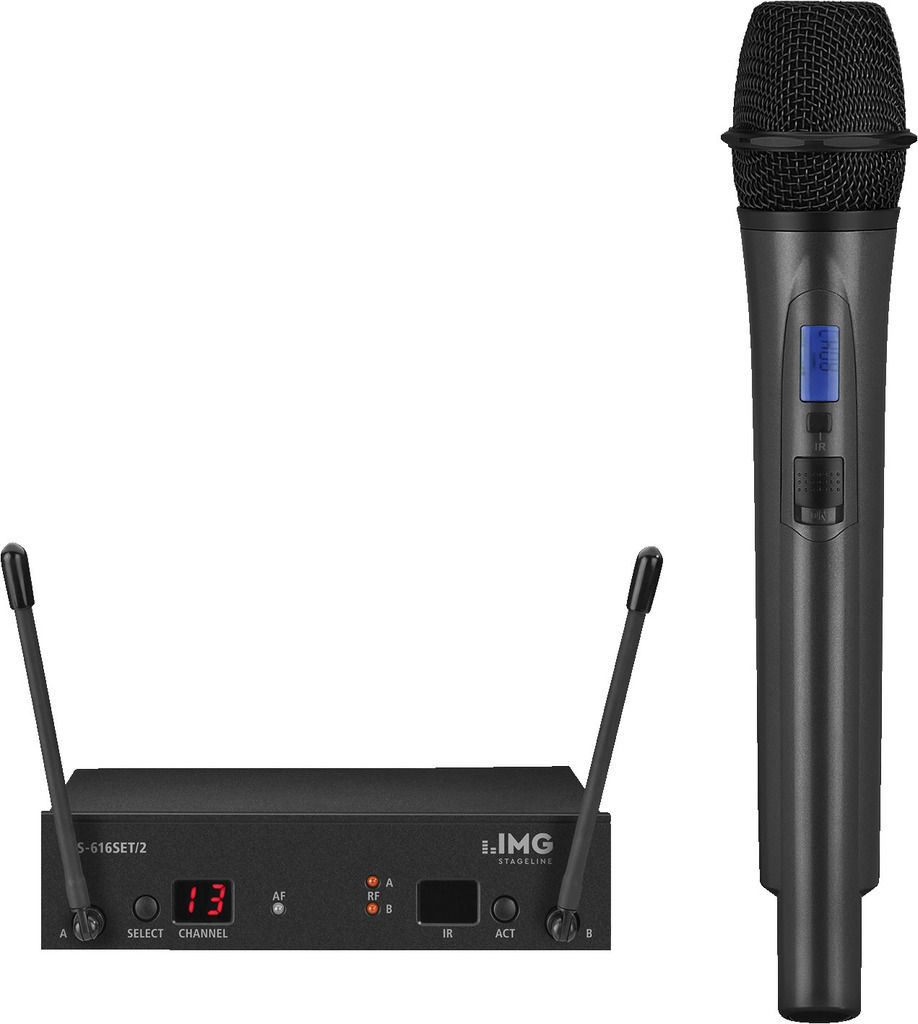

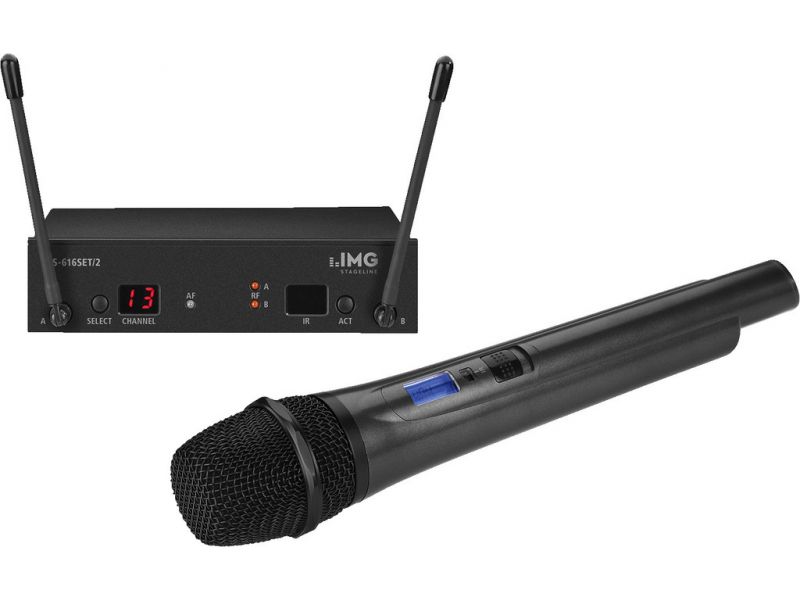

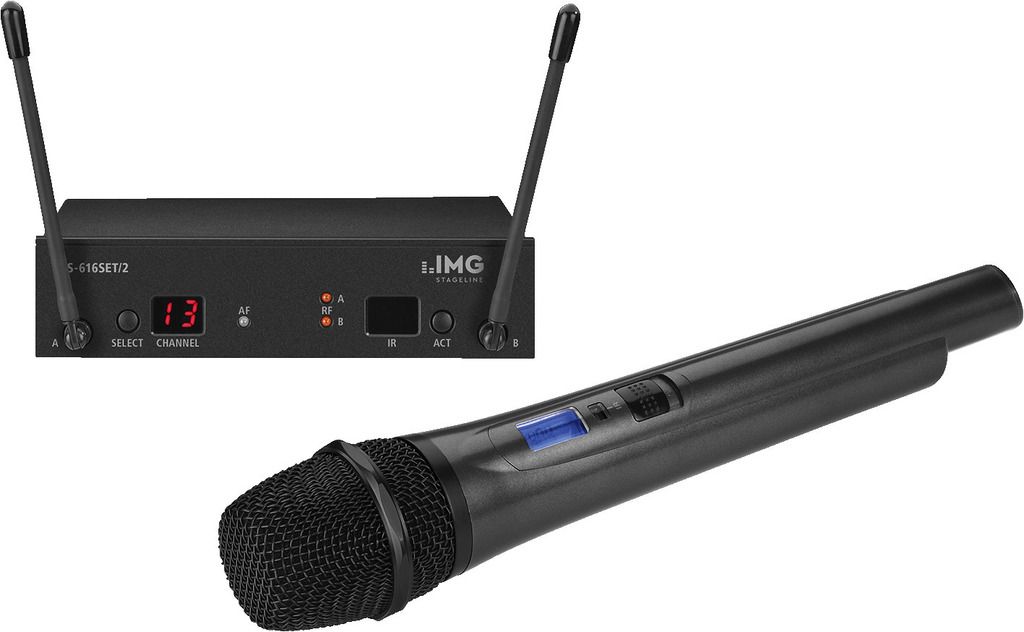

TXS-616SET/2

Multifrequency microphone system,
with UHF PLL technology.
  • 1 hand-held microphone transmitter, 1 receiver, 1 plug-in power supply
  • True diversity system
  • 80 selectable UHF channels (672.000-691.750 MHz)
  • ACT function for transmitting selected frequency to the hand-held microphone via infrared signal
  • Auto-scan
  • Volume and squelch controls
  • Transmitting power can be switched at the hand-held microphone (high/low)
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
  • Robust metal housing (receiver)


There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Parametry

Description wireless microphone system
Carrier frequency range 672-692 MHz
Audio frequency range 50-18,000 Hz
Channels 1
THD < 0.5%
Dynamic range 120 dB
RF S/N ratio 105 dB
Admiss. ambient temp. 0-40 °C
Transmitting power < 25 mW/2.5 mW (EIRP)
Operating range ≈ 50 m
Power supply transmitter 2 x 1.5 V batt. AA size
Width transmitter 52 mm
Height transmitter 52 mm
Depth transmitter 275 mm
Weight transmitter 235 g
Audio signal receiver 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 152 mm
Height receiver 38 mm
Depth receiver 120 mm
Weight receiver 482 g
Connections receiver 1 x 6.3 mm jack, unbal. 1 x XLR, bal.
