TR-10-EN

Kod EAN: 4007754429602

Weatherproof horn speaker with EN 54-24 certification 100 V transmission technology 100 V transformer with power taps 10/5/2.5 W Integrated high-pass filter for sound and stability optimisation For music and speech applications IP66 certified Light...

víc

100,87 € brutto

(inkl. 23% DPH)
82,01 € netto

Staň se partnerem
Kup teď

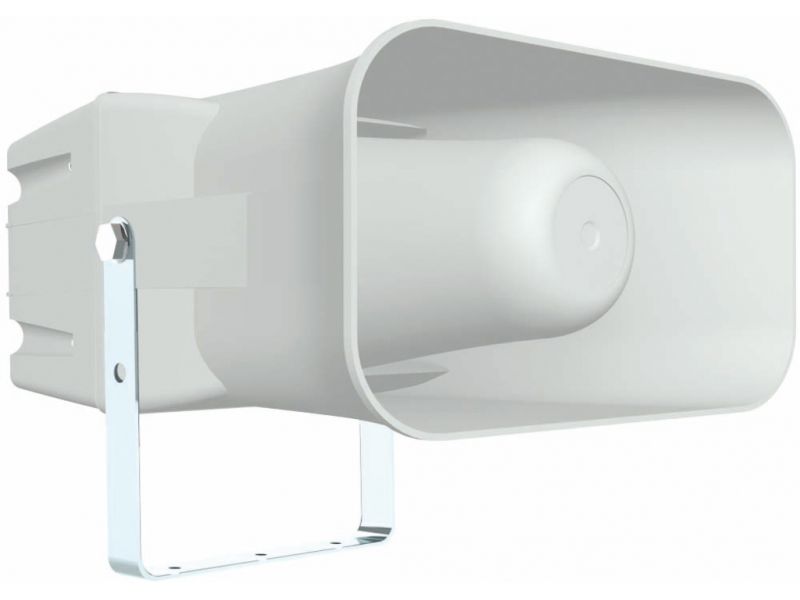

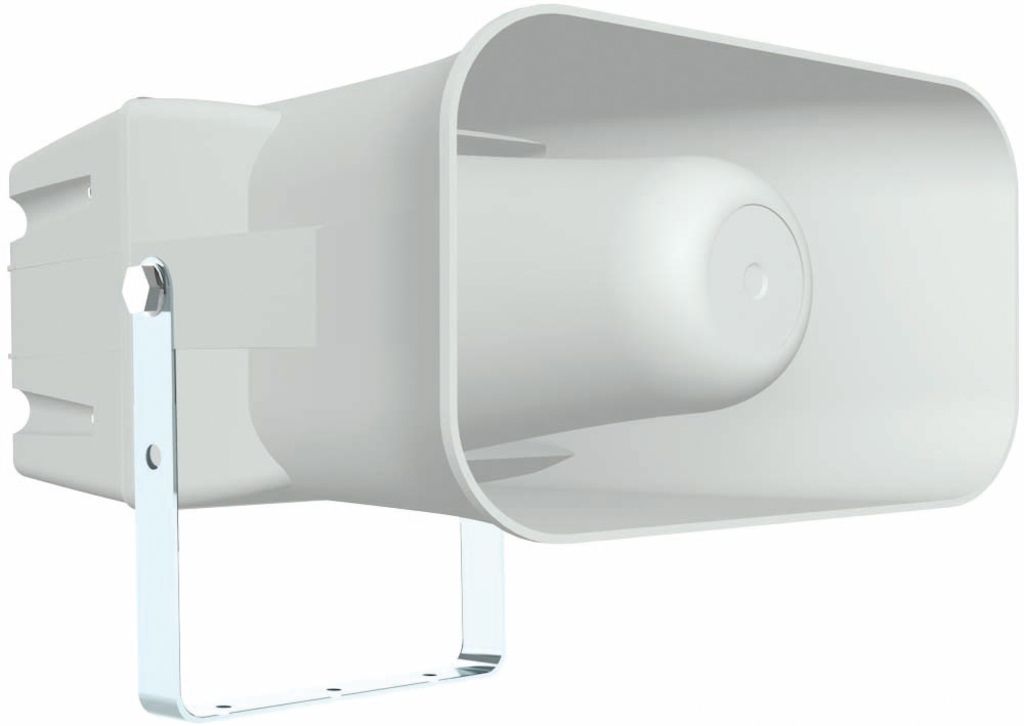

TR-10-EN

Weatherproof horn speaker
with EN 54-24 certification
  • 100 V transmission technology
  • 100 V transformer with power taps 10/5/2.5 W
  • Integrated high-pass filter for sound and stability optimisation
  • For music and speech applications
  • IP66 certified
  • Light-grey ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Cable feed via PG cable gland
  • Supplied with mounting bracket
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametry

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W
Frequency range 350-10,000 Hz
Number of speakers 1
SPL 110 dB (1 W/1 m) 84 dB (EN, 1 W/4 m)
Max. rated SPL 118 dB (1 m) 97.3 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H180°/V180° (1 kHz) H79°/V119° (2 kHz) H30°/V44° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 79° (2 kHz) 30° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 119° (2 kHz) 44° (4 kHz)
Features EN 54-24 certification
Housing material ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -40 °C to +80 °C
Dimensions 180 x 120 x 230 mm
Width 180 mm
Height 120 mm
Depth 230 mm
Weight 1.8 kg
Inputs M20 cable gland
Other features weatherproof
Packaging dimensions (W x H x L) 0.175 x 0.175 x 0.267 m
Gross weight 1.9 kg
Net weight 1.8 kg

Na stáhnutí

Produktová karta TR-10-EN
