ESP-62AB/WS

Kod EAN: 4007754263855

PA A/B wall speaker, with EN 54-24 certification for voice evacuation systems with A/B speaker distribution according to EN 60849. 100 V line technique 13 cm full range speaker with dual voice coil 2 separate transformers with power taps with 6/3/...

víc

88,60 € brutto

(inkl. 20% DPH)
73,83 € netto

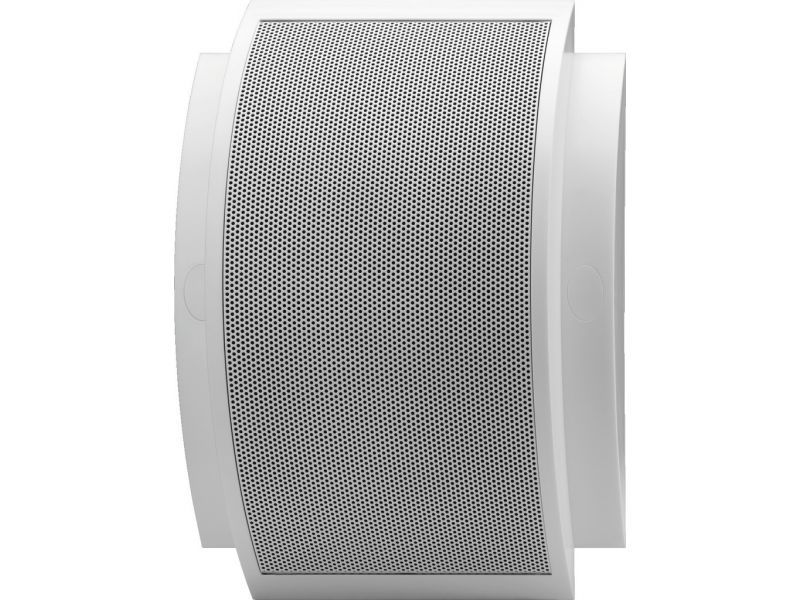

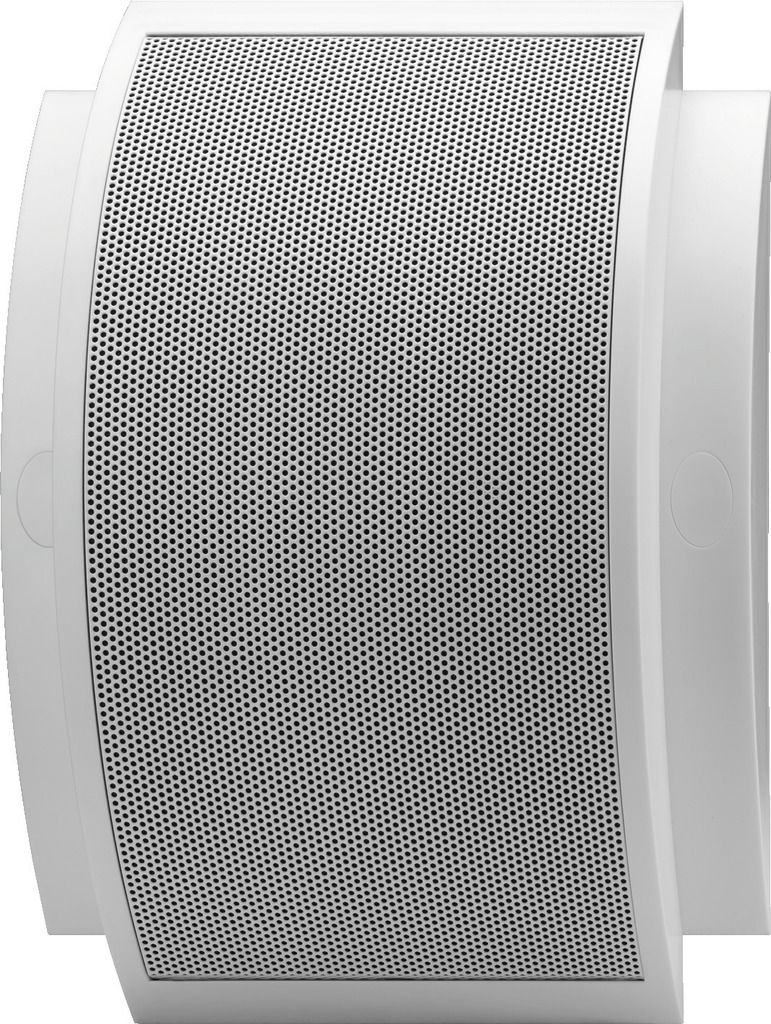

ESP-62AB/WS

PA A/B wall speaker,
with EN 54-24 certification for voice evacuation systems with A/B speaker distribution according to EN 60849.
  • 100 V line technique
  • 13 cm full range speaker with dual voice coil
  • 2 separate transformers with power taps with 6/3/1.5 W each
  • Connection via 2 ceramic screw terminals inside the cabinet
  • Symmetrical design allows for horizontal and vertical mounting
  • Plastic cabinet with open rear panel and protective metal front grille
  • Supplied with screws and wall plugs

Parametry

Active/passive passive
Transmission technology 100 V
Power rating (RMS) 2 x 6/3/1.5 W
Frequency range 80-19,000 Hz
Full range speaker 13 cm, dual voice coil
Number of speakers 1
Speaker size 13 cm
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 160°
Radiation angle, horizontal 160°
Radiation angle, vertical 160°
Housing material ABS
Colour white, RAL 9010
Mounting device screws
Admiss. ambient temp. -10 °C to +50 °C
Dimensions 240 x 330 x 83 mm
Width 240 mm
Height 330 mm
Depth 83 mm
Weight 1.5 kg
Packing dimensions (W x H x L) 0.245 x 0.1 x 0.345 m
Gross weight 1.806 kg
Net weight 1.545 kg
