TF0615MR/8

Kod EAN: 0739894530842

PA midrange speaker, 50 W, 8 Ω The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker sy...

víc

Staň se partnerem
Kup teď

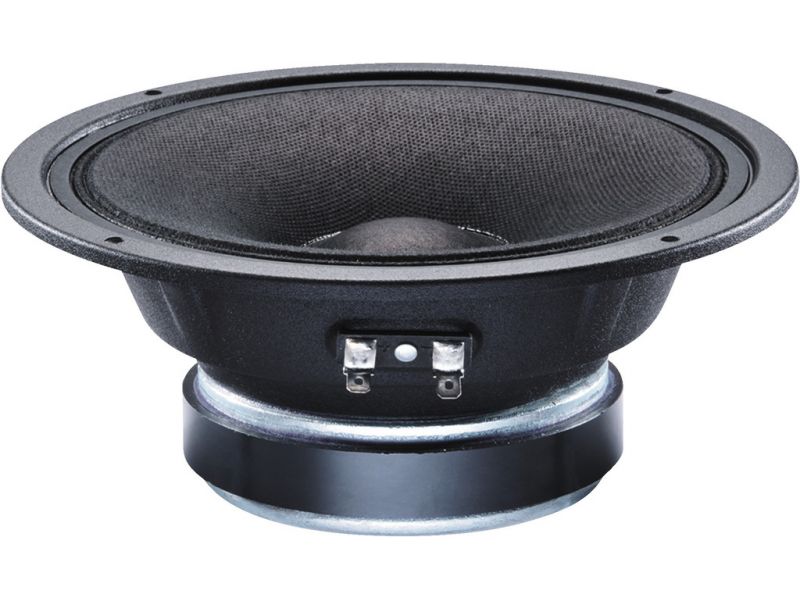

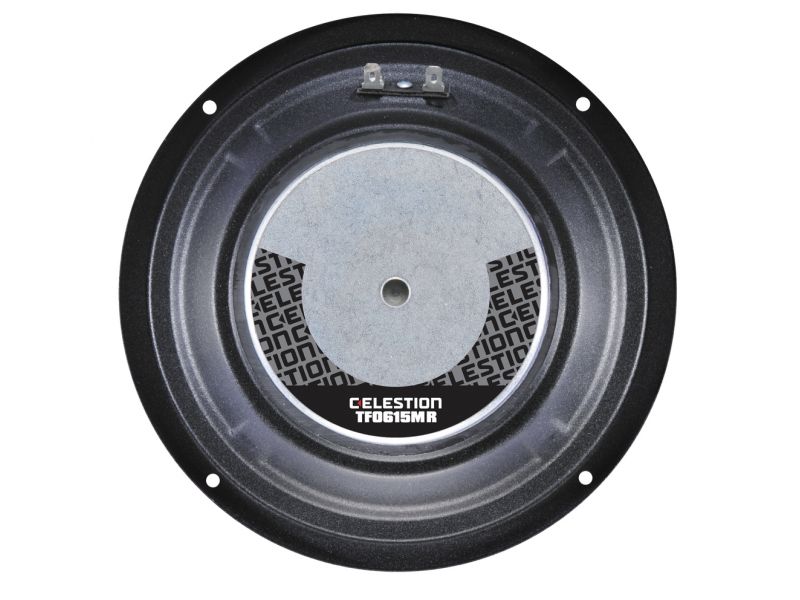

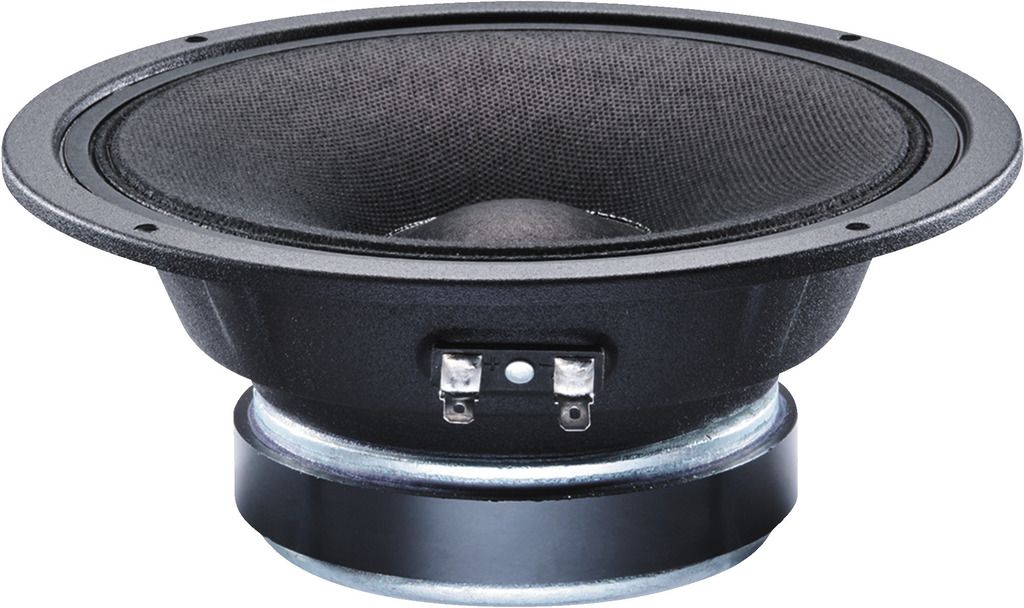

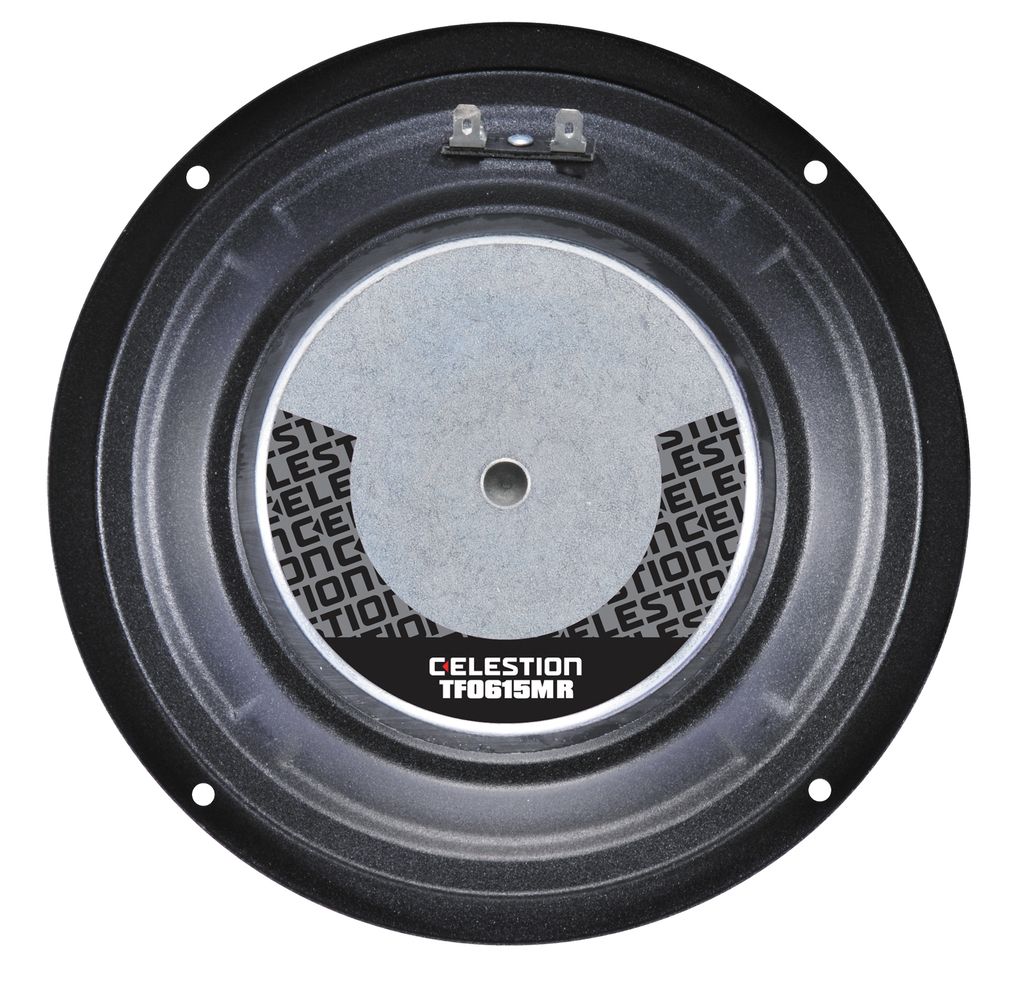

TF0615MR/8

PA midrange speaker, 50 W, 8 Ω
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
  • 15.2 cm (6") PA midrange speaker with a very wide radiation range
  • High-quality Kevlar fibre-reinforced cellulose cone
  • Very linear frequency response and wide bandwidth
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

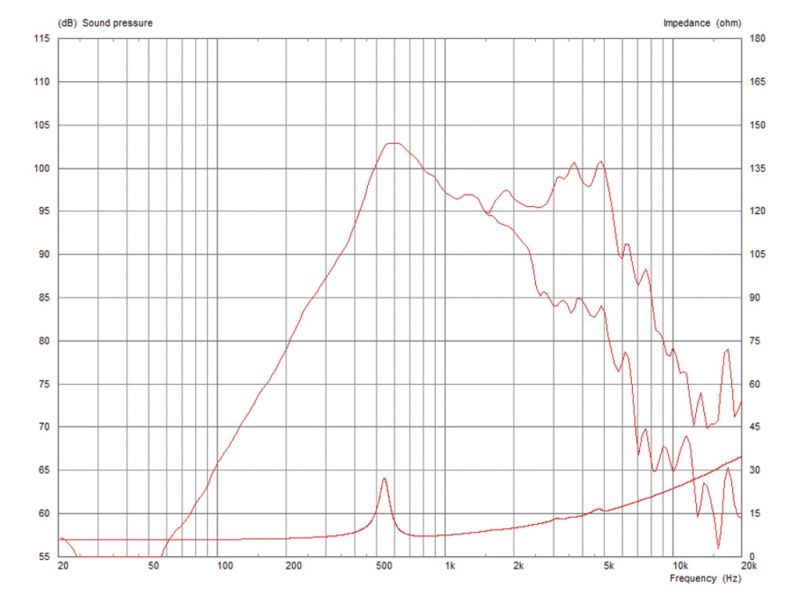

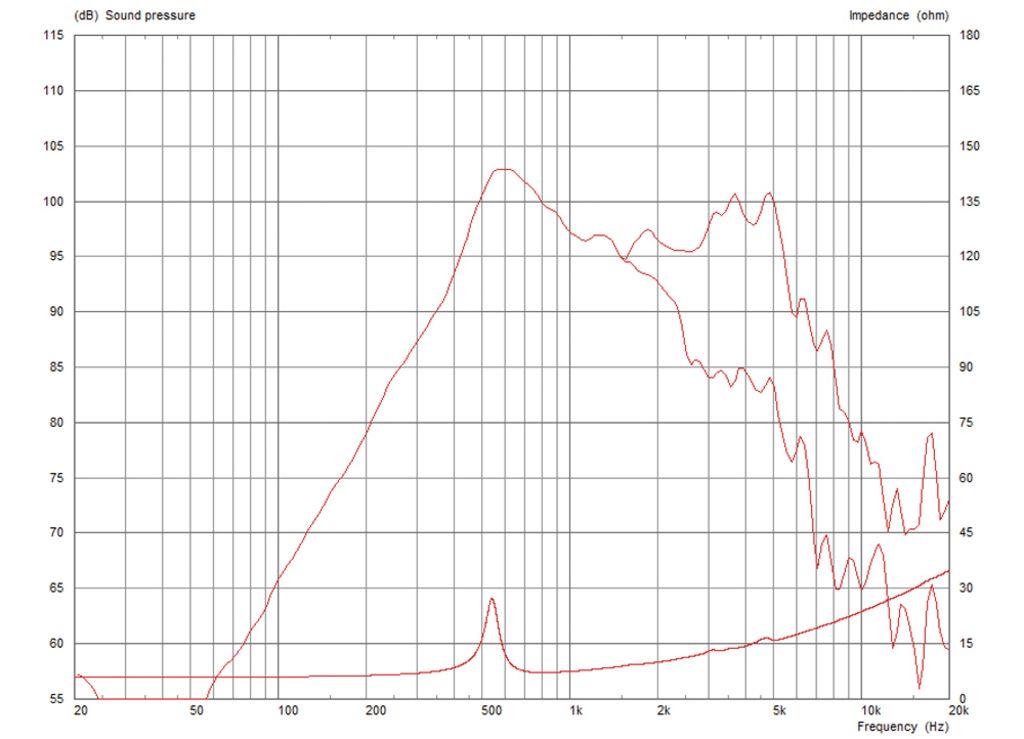

Frequency range 500-5,000 Hz
Resonant frequency (fs) 553 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 97 dB/W/m
DC resistance (Re) 5.53 Ω
Voice coil induct. (Le) 0.29 mH
Voice coil diameter Ø 38 mm
Voice coil material copper wire
Voice coil former polyimide
Magnet weight 0.48 kg
Mounting cutout Ø 147 mm
Mounting depth 74 mm
Mounting hole diameter Ø 168.5 mm
Dimensions Ø 178 mm x 74 mm
Outside diameter Ø 178 mm
Width Ø 178 mm
Height Ø 178 mm
Depth 74 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.4 kg
Packing unit 1
Type of speaker 6"
Packaging dimensions (W x H x L) 0.19 x 0.1 x 0.195 m
Gross weight 1.6 kg
Net weight 1.4 kg

Na stáhnutí

Produktová karta TF0615MR/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
