WP-1/WH
Kod EAN: 4007754427035
Wall module, for controlling 4-zone multifunctional amplifiers PA-4125DX and PA-4125DX/DT. Connection of up to 8 x wall module WP-1/WH or WP-1/BK to each amplifier PA-4125DX and PA-4125DX/DTEach wall module can be assigned to any sound zone of PA-4...
250,00 € brutto
(inkl. 23% DPH)
203,25 € netto

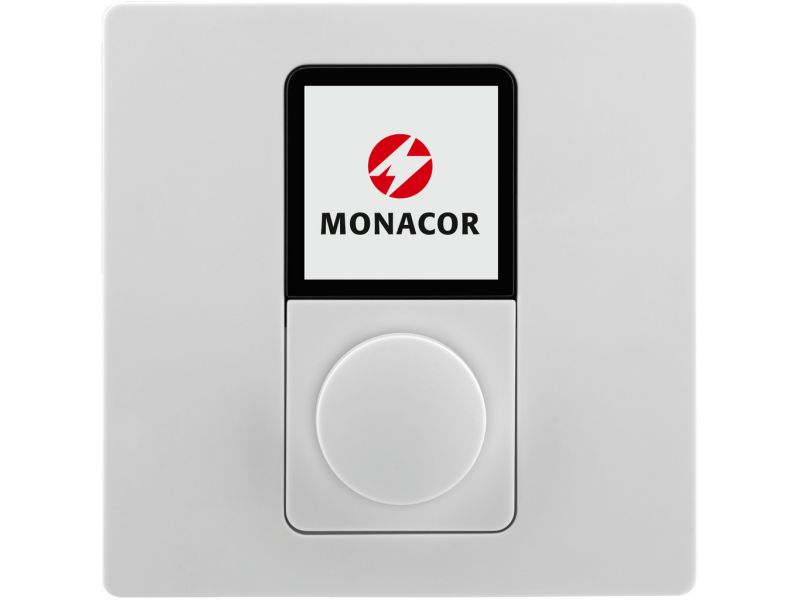

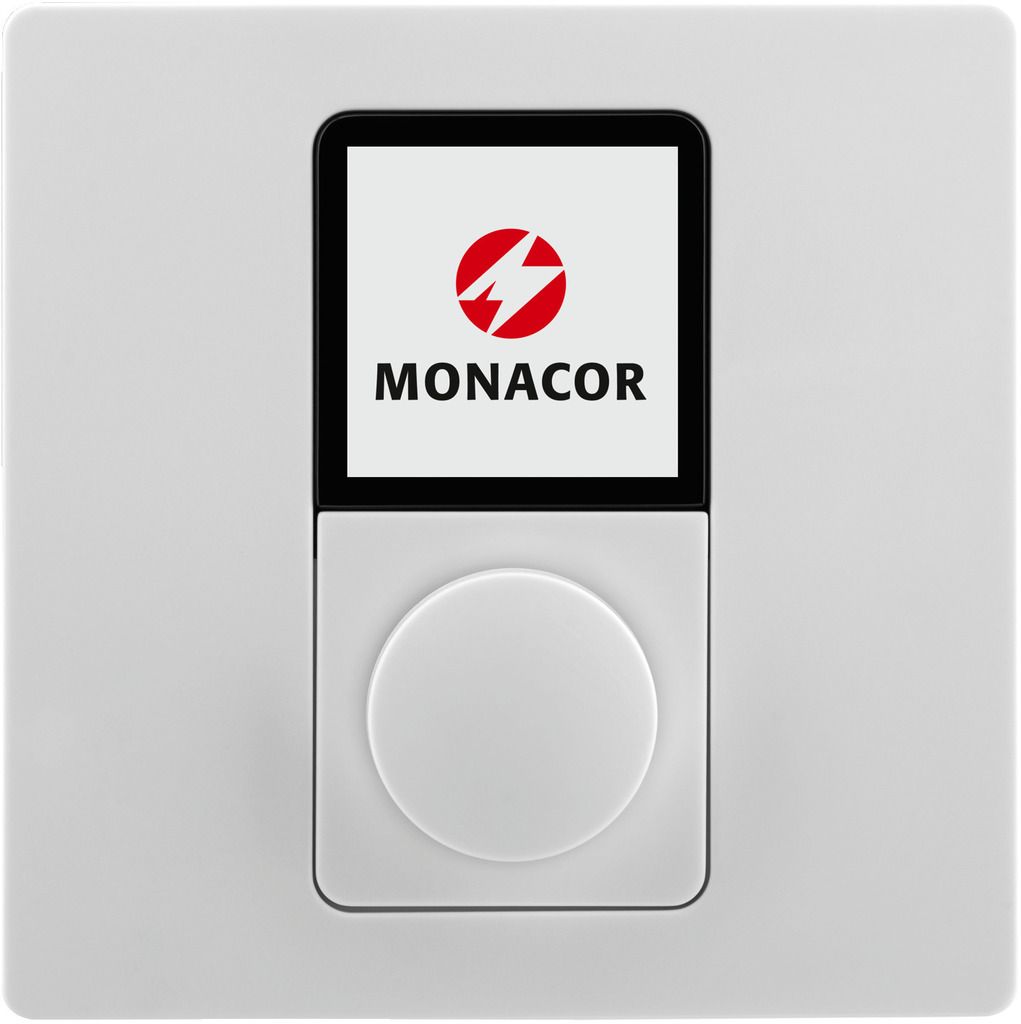

WP-1/WH
Wall module,
for controlling 4-zone multifunctional amplifiers PA-4125DX and PA-4125DX/DT.
- Connection of up to 8 x wall module WP-1/WH or WP-1/BK to each amplifier PA-4125DX and PA-4125DX/DT
- Each wall module can be assigned to any sound zone of PA-4125DX and PA-4125DX/DT via WebControl app
- Source can easily be changed or volume level be kept via preset minimum and maximum volume levels
- PoE for easy network pairing, real-time synchronisation of the devices with the system and power supply of the controller
- PIN code protection for easy and extended access, including switching off the system when leaving the location
- Intuitive menu for simple installation, system setup and an easy user operation
- Adjustable screen and backlight for controlling brightness and colour
- High-performance polymer of Danish design with smooth matt surface and covered screws

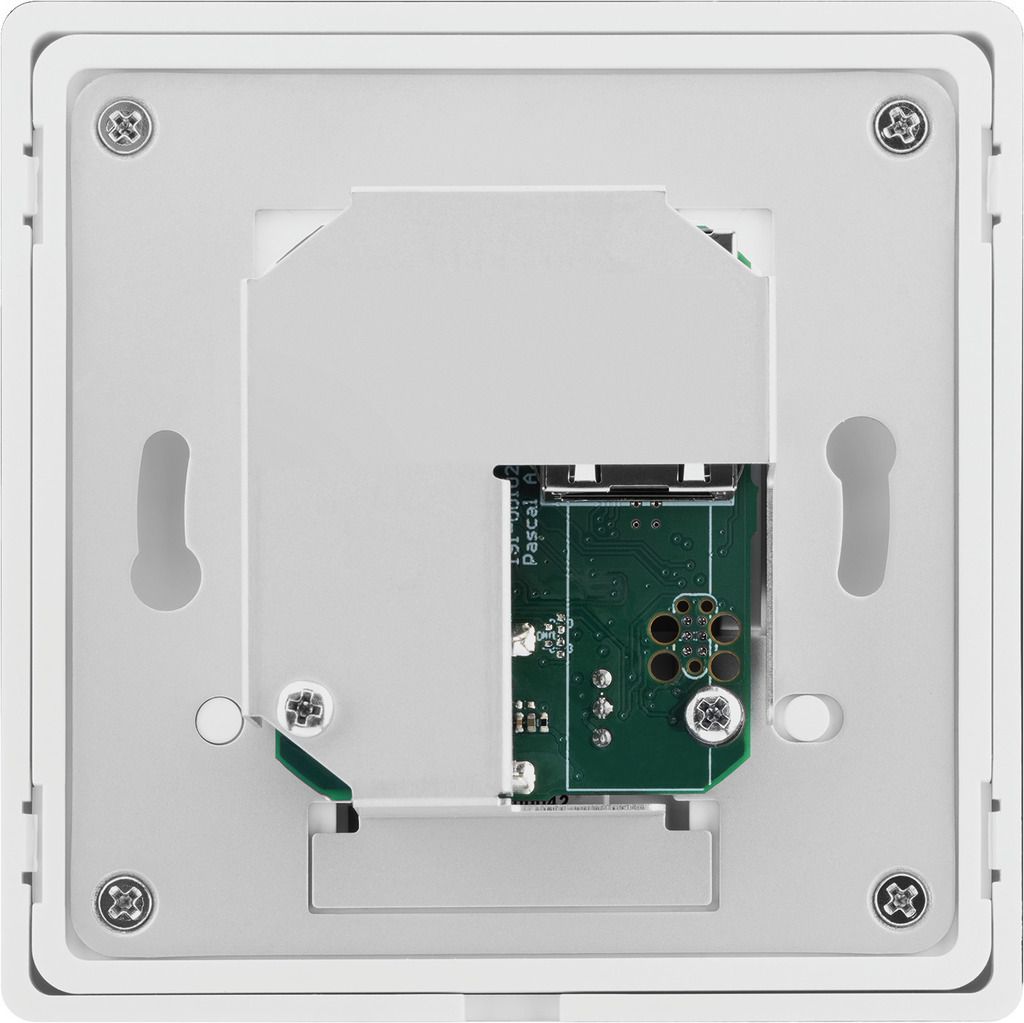

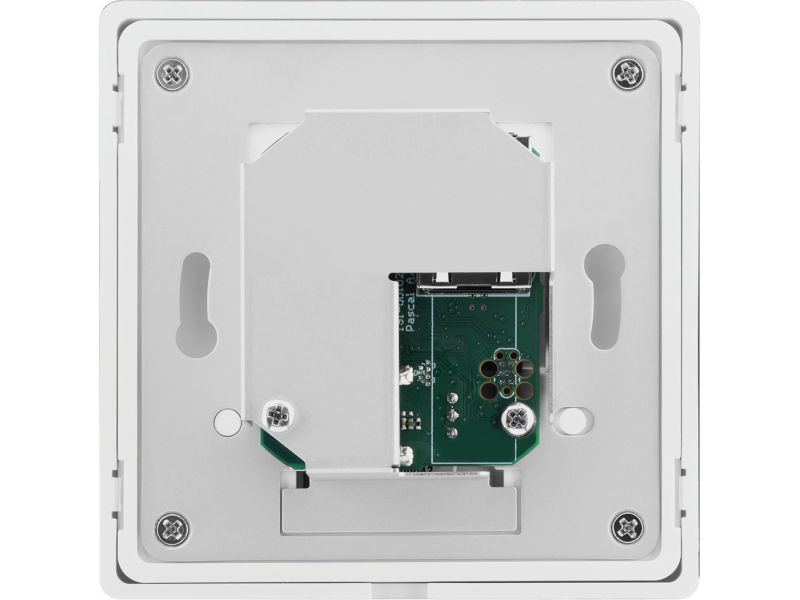

- Mounting in standard flush-mounted socket
- EU standard colour white RAL9003
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | wall module |
| Type | remote control of a zone |
| Colour | white, RAL9003 |
| Suitable for | PA-4125DX |
| Power supply | PoE, 3.84 W max. |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 87 x 87 x 43 mm |
| Mounting dimensions | mounting depth: 23 mm |
| Weight | 124 g |
| Connections | 1 x RJ45 |
| Other features | cable length: 100 m max. |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.12 x 0.07 x 0.15 m |
| Gross weight | 0.26 kg |
| Net weight | 0.124 kg |
