TF0510MR/8
Kod EAN: 0739894536455
PA midrange speaker, 30 W, 8 Ω The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker sy...
TF0510MR/8

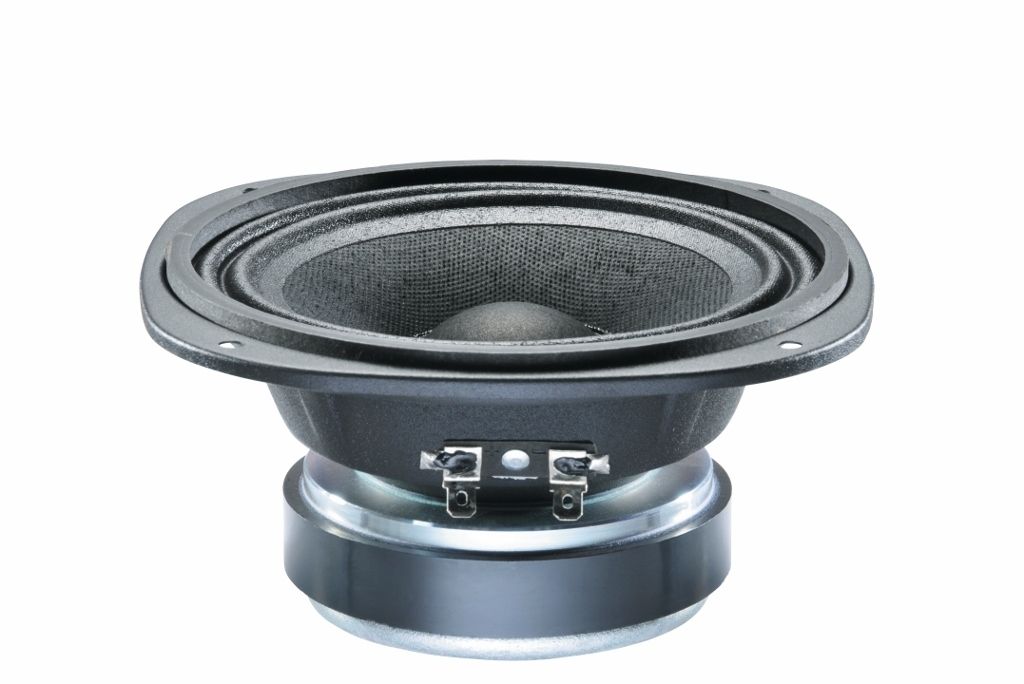

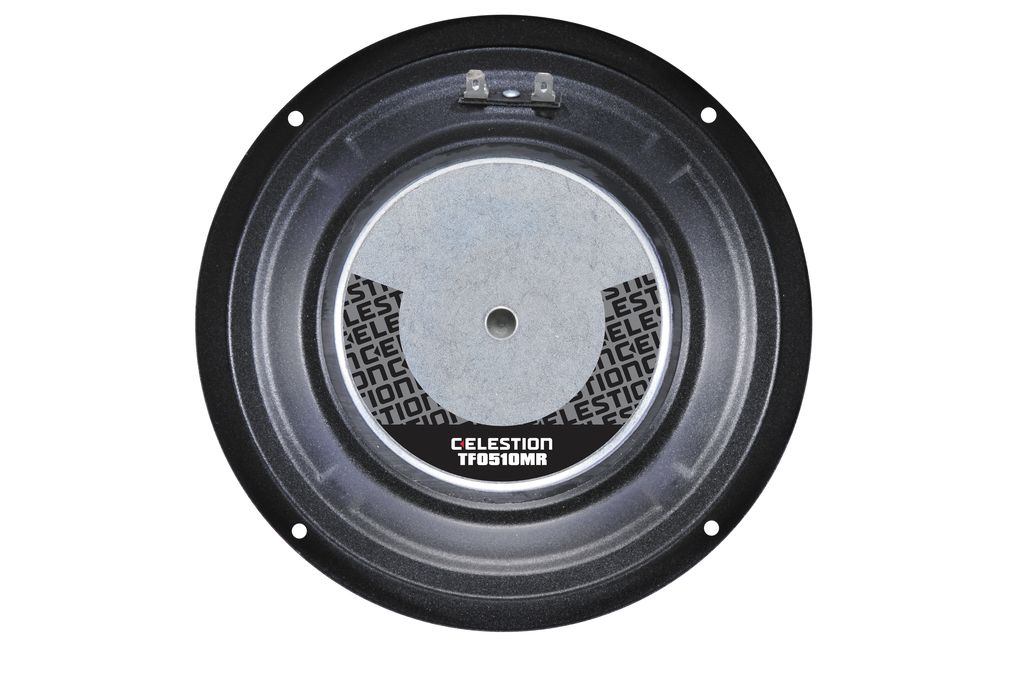

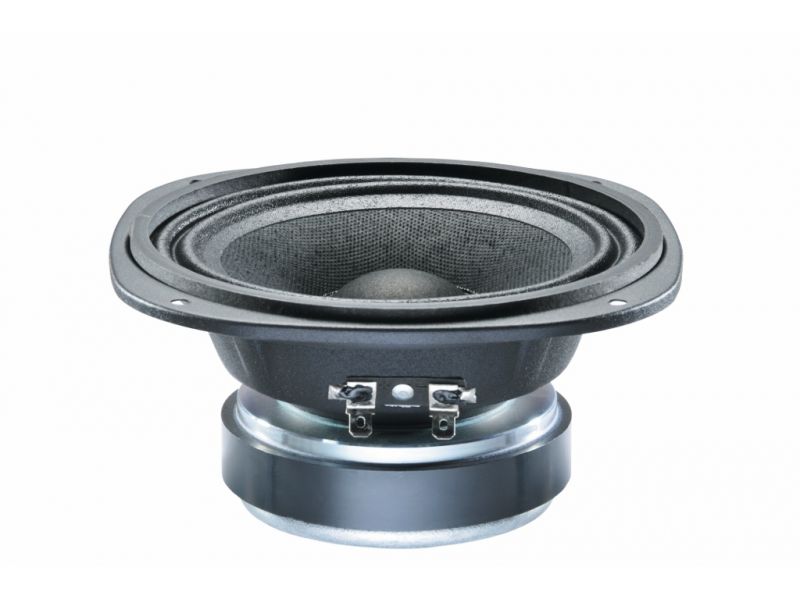

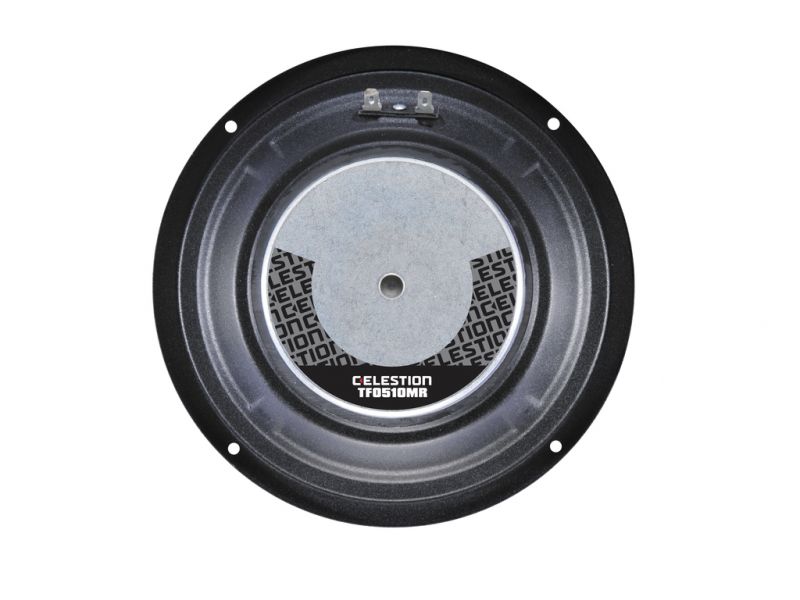

PA midrange speaker, 30 W, 8 Ω
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
- 12.7 cm (5") speaker made of extruded steel
- Midrange speaker with ferrite magnet
- Closed midrange unit
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 400-8,000 Hz |
| Resonant frequency (fs) | 482 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 93 dB/W/m |
| DC resistance (Re) | 7.87 Ω |
| Voice coil induct. (Le) | 0.2 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Magnet weight | 370 g |
| Mounting cutout | Ø 117 mm |
| Mounting depth | 68 mm |
| Mounting hole diameter | Ø 140 mm |
| Dimensions | 136 x 151 x 68 mm |
| Width | 136 mm |
| Height | 151 mm |
| Depth | 68 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.95 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
| Packaging dimensions (W x H x L) | 0.152 x 0.102 x 0.152 m |
| Gross weight | 1.07 kg |
| Net weight | 0.95 kg |
