CF0820BMB/8

Kod EAN: 0739894594950

PA bass-midrange speaker, 250 W, 8 Ω 200 mm (8") bass-midrange speaker Cast aluminium basket Ferrite magnet Half-roll rubber surround for a high XMAX Balanced ventilation for enhanced cooling Manufacturer information: Celestion International Lt...

víc

Staň se partnerem
Kup teď


CF0820BMB/8

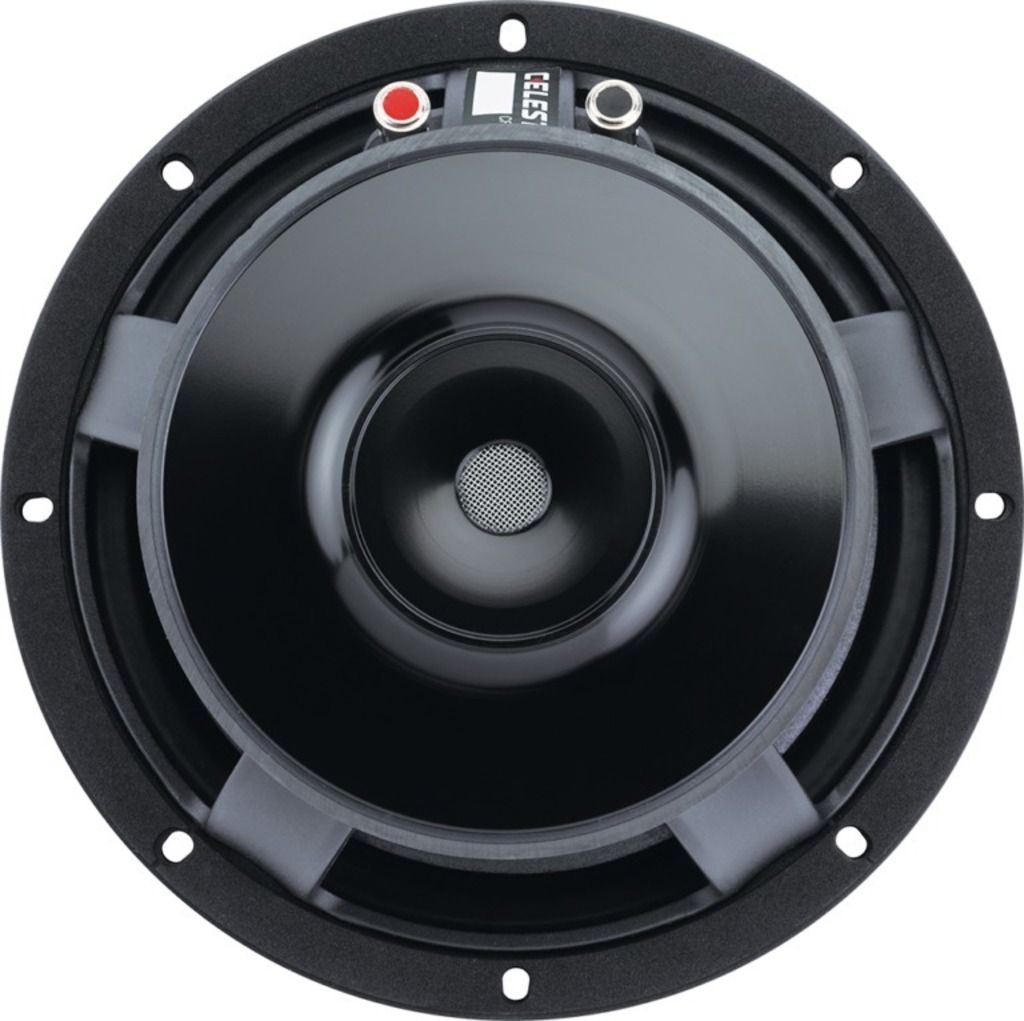

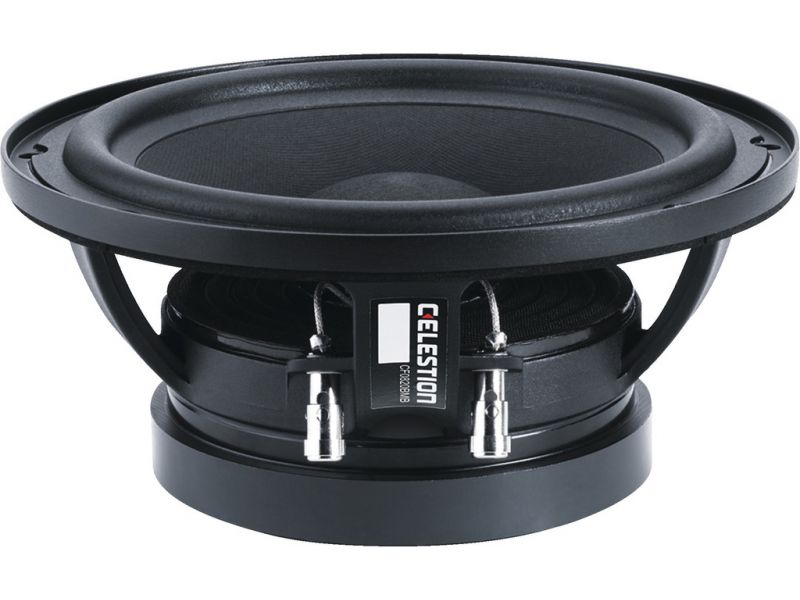

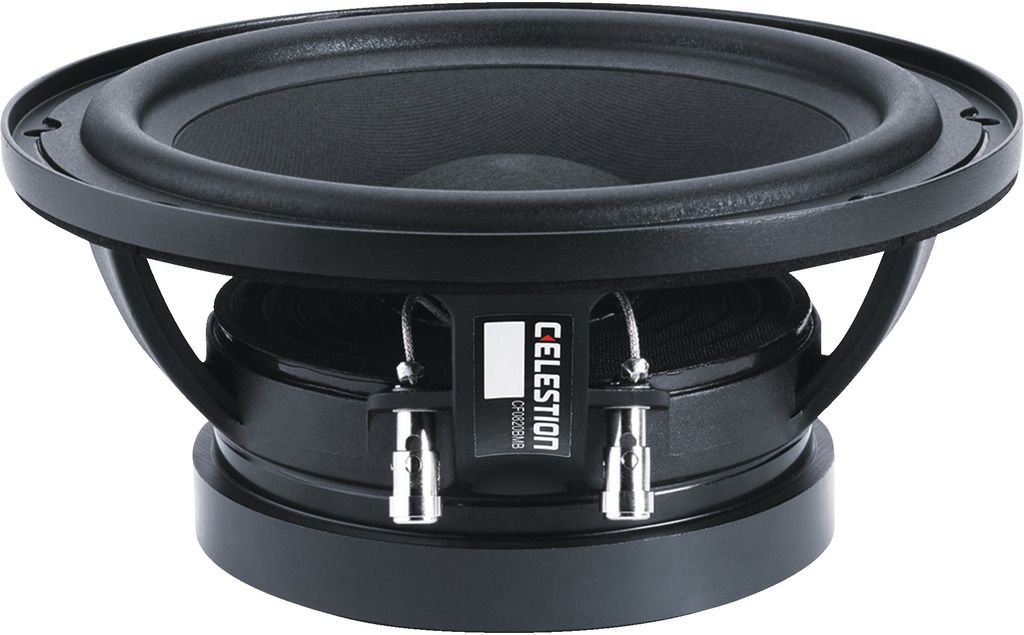

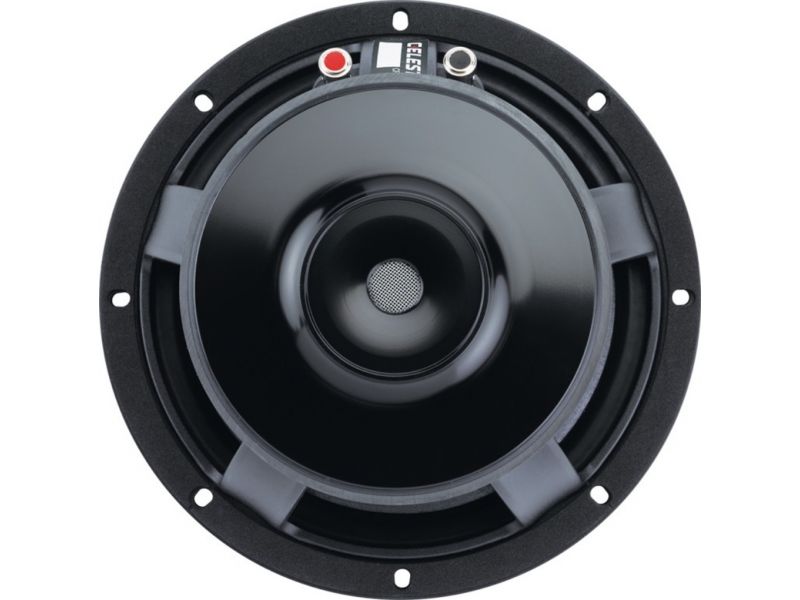

PA bass-midrange speaker, 250 W, 8 Ω
  • 200 mm (8") bass-midrange speaker
  • Cast aluminium basket
  • Ferrite magnet
  • Half-roll rubber surround for a high XMAX
  • Balanced ventilation for enhanced cooling
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 50-6,000 Hz
Resonant frequency (fs) 50.50 Hz
Power rating (RMS) 250 W
Peak music power output (MAX) 500 W
SPL 93 dB/W/m
Suspension compl. (Cms) 0.31 mm/N
Moving mass (Mms) 32.35 g
Mech. Q factor (Qms) 5.095
Electr. Q factor (Qes) 0.394
Total Q factor (Qts) 0.366
Equivalent volume (Vas) 22.4 l
DC resistance (Re) 5.45 Ω
Force factor (BxL) 11.92 Tm
Voice coil induct. (Le) 0.78 mH
Voice coil diameter Ø 50 mm
Voice coil winding height 18.5 mm
Voice coil material copper-coated aluminium
Voice coil former glass fibre
Linear excursion (XMAX) ± 7.25 mm
Eff. cone area (Sd) 226.98 cm2
Magnet weight 0.99 kg
Mounting cutout Ø 187 mm
Mounting depth 108 mm
Mounting hole diameter Ø 197-200 mm
Dimensions Ø 215 mm x 108 mm
Outside diameter Ø 215 mm
Width Ø 215 mm
Height Ø 215 mm
Depth 108 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 3.1 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.24 x 0.14 x 0.235 m
Gross weight 4 kg
Net weight 3.1 kg

Na stáhnutí

Produktová karta CF0820BMB/8 konformitaetserklaerung-ce Technický produktový list
