SPH-100C

Kod EAN: 4007754064797

Hi-fi bass-midrange speaker, 30 W, 8 Ω A remarkable high-end bass-midrange speaker Exceptionally long excursion for this size Parameters for really low bass frequencies For use in miniature speaker systems with a really deep fundamental bass and for...

víc

38,00 € brutto

(inkl. 20% DPH)
31,67 € netto




SPH-100C

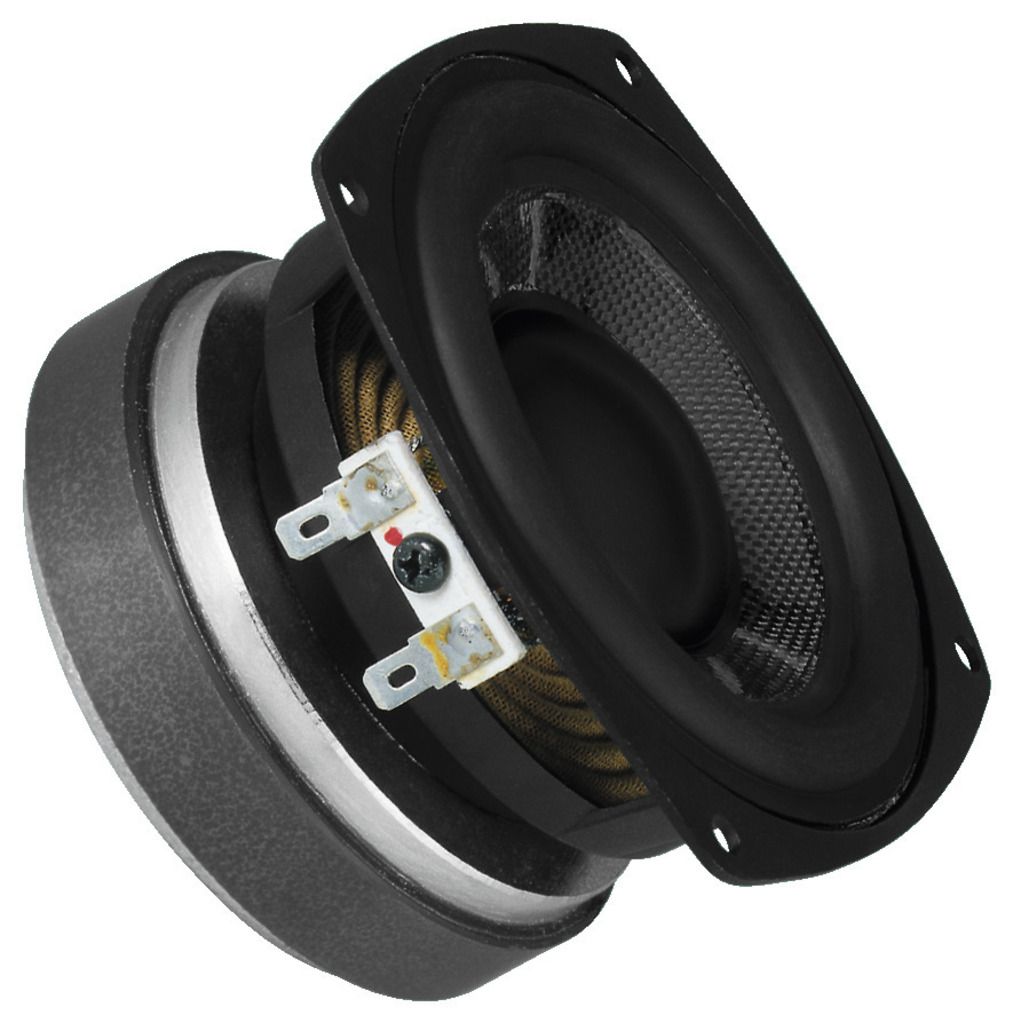

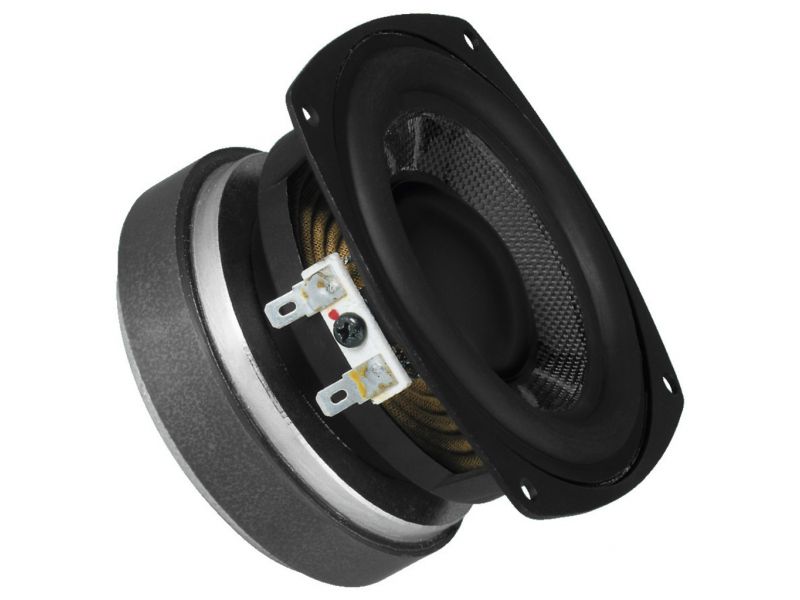

Hi-fi bass-midrange speaker, 30 W, 8 Ω
  • A remarkable high-end bass-midrange speaker
  • Exceptionally long excursion for this size
  • Parameters for really low bass frequencies
  • For use in miniature speaker systems with a really deep fundamental bass and for any bass-midrange application of high requirements, for hi-fi and audiophile car hi-fi range

Parametry

Impedance (Z) 8 Ω
Frequency range f3-6,000 Hz
Resonant frequency (fs) 50 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 50 W
Sensitivity 84 dB/W/m
Suspension compl. (Cms) 1.45 mm/N
Moving mass (Mms) 7 g
Mech. Q factor (Qms) 3.53
Electr. Q factor (Qes) 0.50
Total Q factor (Qts) 0.44
Equivalent volume (Vas) 6 l
DC resistance (Re) 6 Ω
Force factor (BxL) 5.10 Tm
Voice coil induct. (Le) 0.65 mH
Voice coil diameter Ø 25.5 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 54 cm2
Magnet weight 300 g
Magnet diameter Ø 90 mm

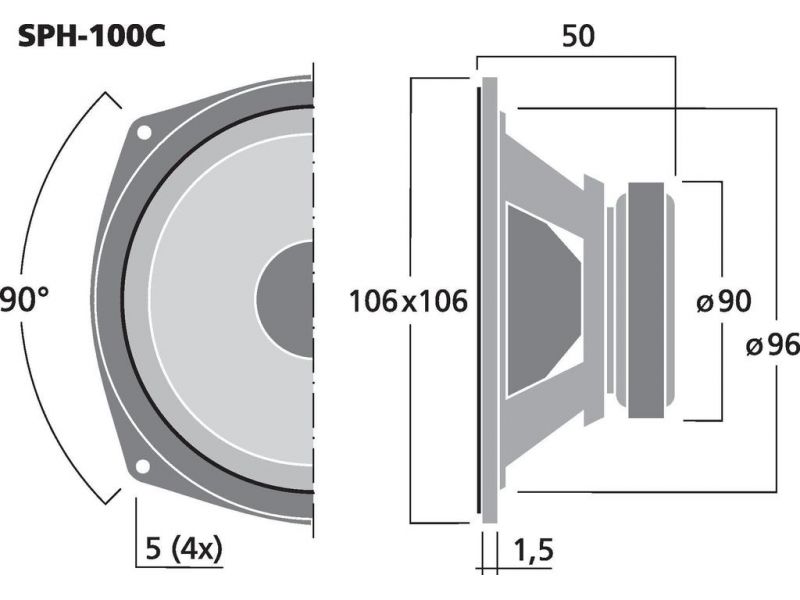

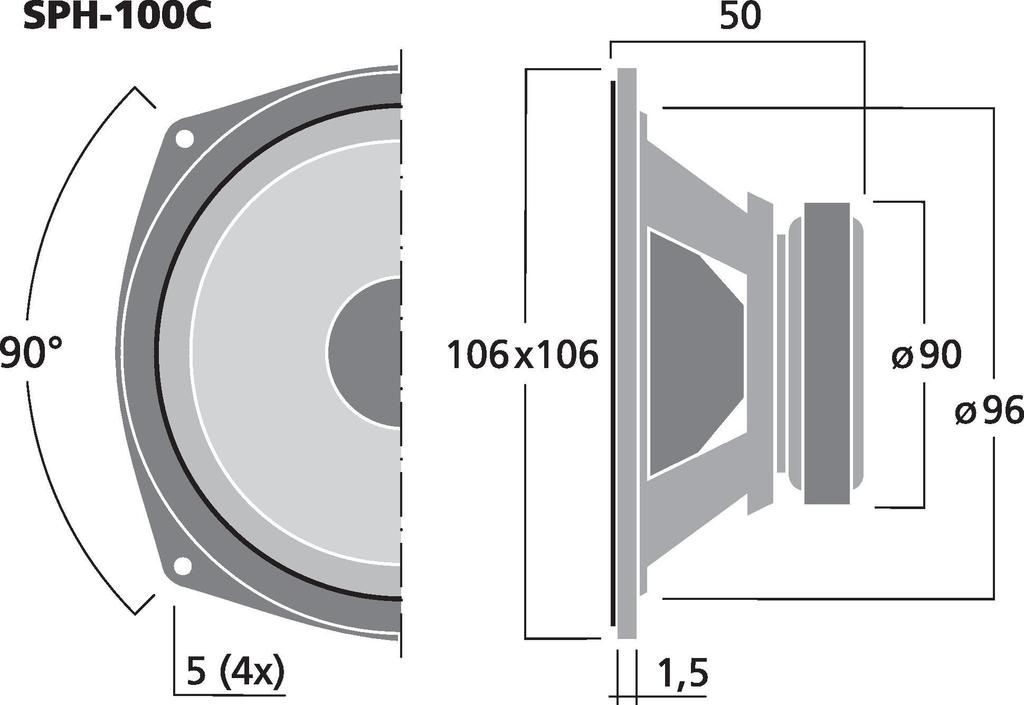

Mounting cutout Ø 96 mm
Mounting depth 50 mm
Dimensions 106 x 106 x 50 mm
Width 106 mm
Height 106 mm
Depth 50 mm
Admiss. ambient temp. 0-40 °C
Weight 0.87 kg
Packing unit 1
Type of speaker 4"
