SP-4/60PRO

Kod EAN: 4007754226881

PA reproduktor stredného rozsahu, 30 W, 8 Ω 10 cm (4") PA stredobasový reproduktor Stredobasový reproduktor L-RAY/1000 Veľmi lineárny a široký frekvenčný rozsah Vynikajúce zvukové a dynamické vlastnosti Kvôli veľkej lineárnej odchýlke pre systém stredné...

víc

26,90 € brutto

(inkl. 20% DPH)
22,42 € netto



SP-4/60PRO

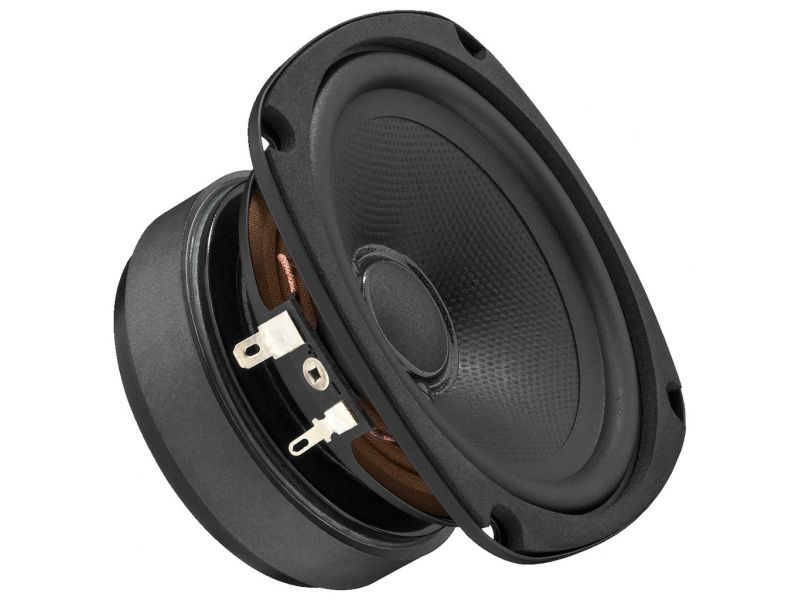

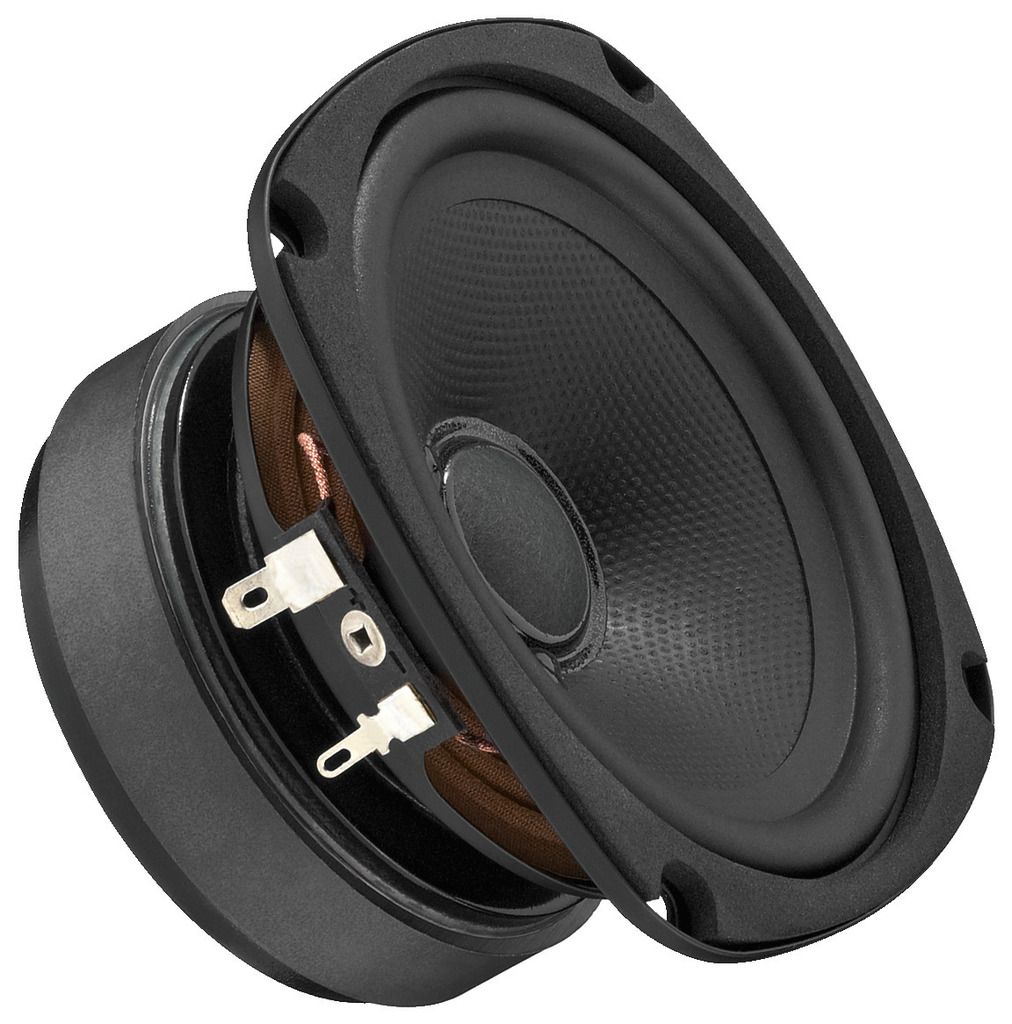

PA reproduktor stredného rozsahu, 30 W, 8 Ω
  • 10 cm (4") PA stredobasový reproduktor
  • Stredobasový reproduktor L-RAY/1000
  • Veľmi lineárny a široký frekvenčný rozsah
  • Vynikajúce zvukové a dynamické vlastnosti
  • Kvôli veľkej lineárnej odchýlke pre systém stredného rozsahu je možná veľmi nízka medzná frekvencia u systémov subwoofera
  • Ideálne sa hodí pre malé PA systémy, stĺpové reproduktory a tiež ako hi-fi stredový reproduktor
HOBBY HiFi 01/2013
“Impressively low THD values for a crystal-clear reproduction of the midrange.”
HiFi-Selbstbau 07/2012
“Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10 cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right.”

Parametry

Impedance (Z) 8 Ω

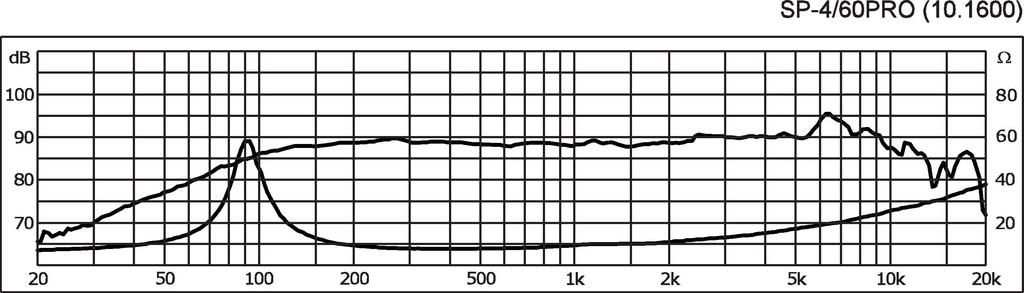

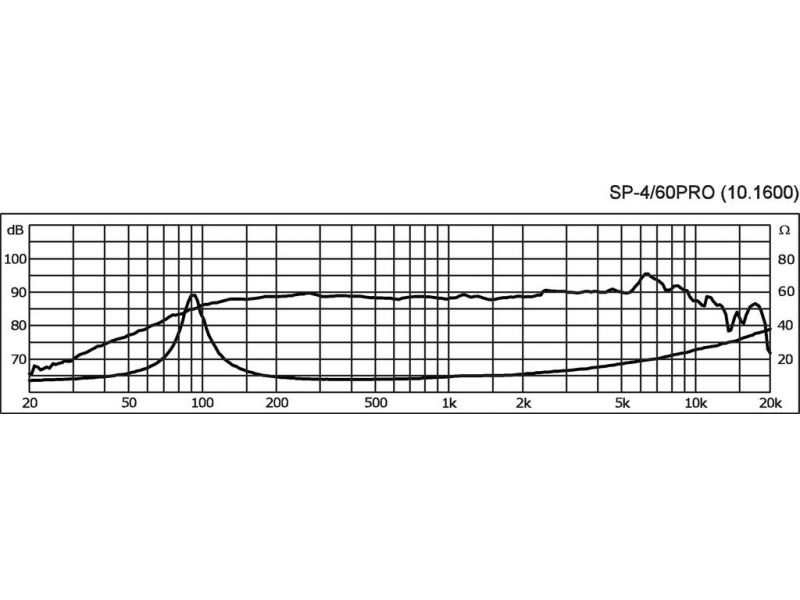

Frequency range f3-10,000 Hz
Resonant frequency (fs) 92 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 90 dB/W/m
Suspension compl. (Cms) 0.47 mm/N
Moving mass (Mms) 6.3 g
Mech. Q factor (Qms) 5.35
Electr. Q factor (Qes) 0.67
Total Q factor (Qts) 0.60
Equivalent volume (Vas) 3.0 l
DC resistance (Re) 6.76 Ω
Force factor (BxL) 5.85 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 2.3 mm
Eff. cone area (Sd) 68 cm2
Magnet weight 370 g

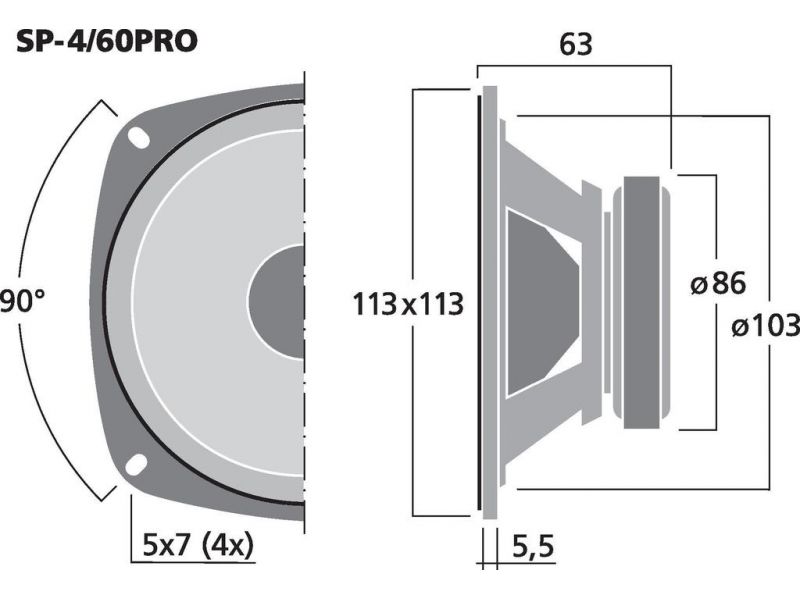

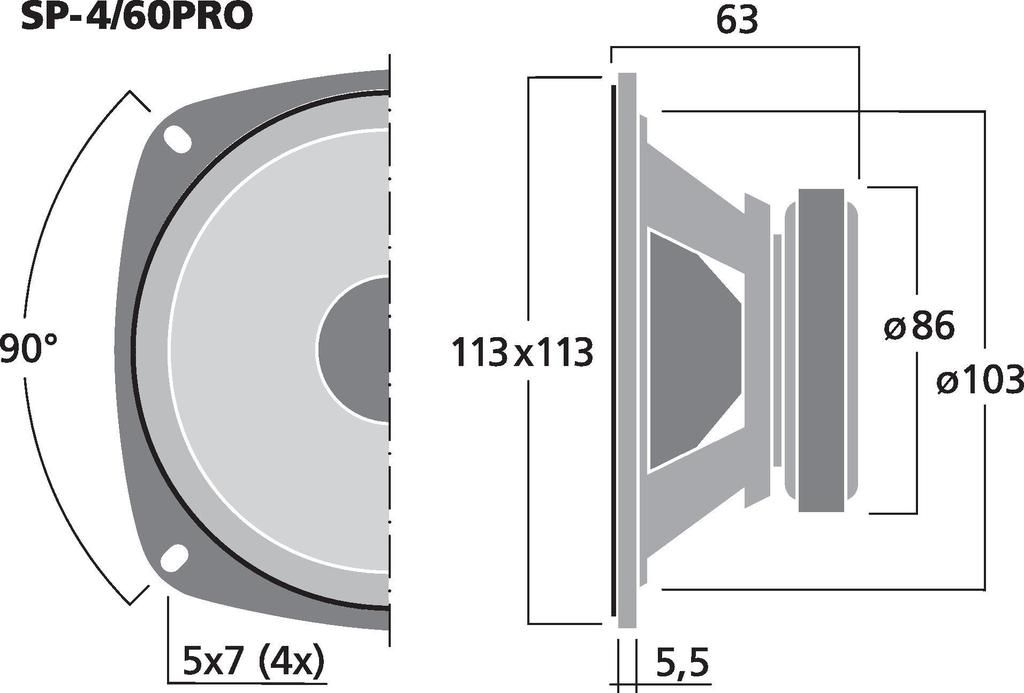

Magnet diameter Ø 86 mm
Mounting cutout Ø 103 mm
Mounting depth 57.5 mm
Dimensions 113 x 113 x 63 mm
Width 113 mm
Height 113 mm
Depth 63 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.9 kg
Packing unit 1
Type of speaker 4"
Packing dimensions (W x H x L) 0.135 x 0.1 x 0.135 m
Gross weight 1.01 kg
Net weight 0.888 kg
