SP-2RDP

Kod EAN: 4007754024364

Miniature flush-mount speakers, 8 Ω For general applications in models, intercom systems, miniature radios Legend scale drawing: Width = Ø A Depth = E Magnet diameter = Ø B Mounting cutout = Ø C Mounting depth = E-D

Staň se partnerem
Kup teď


SP-2RDP

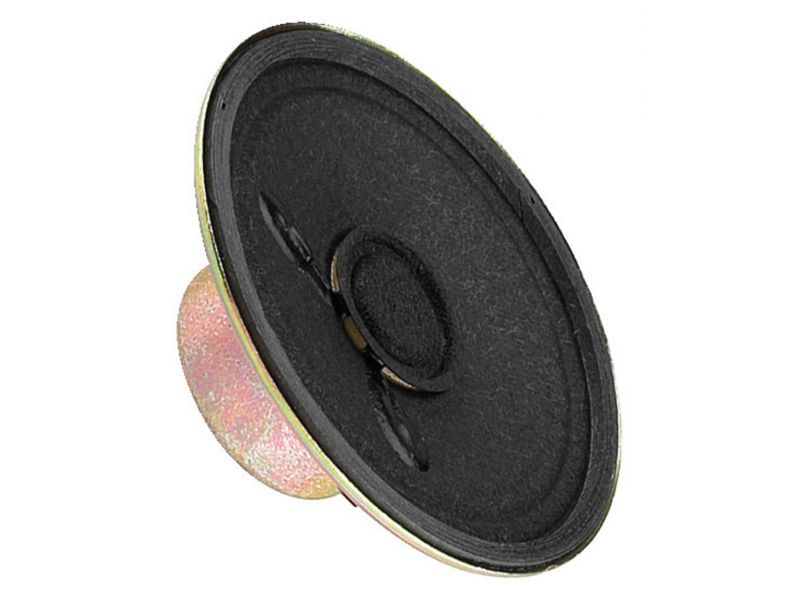

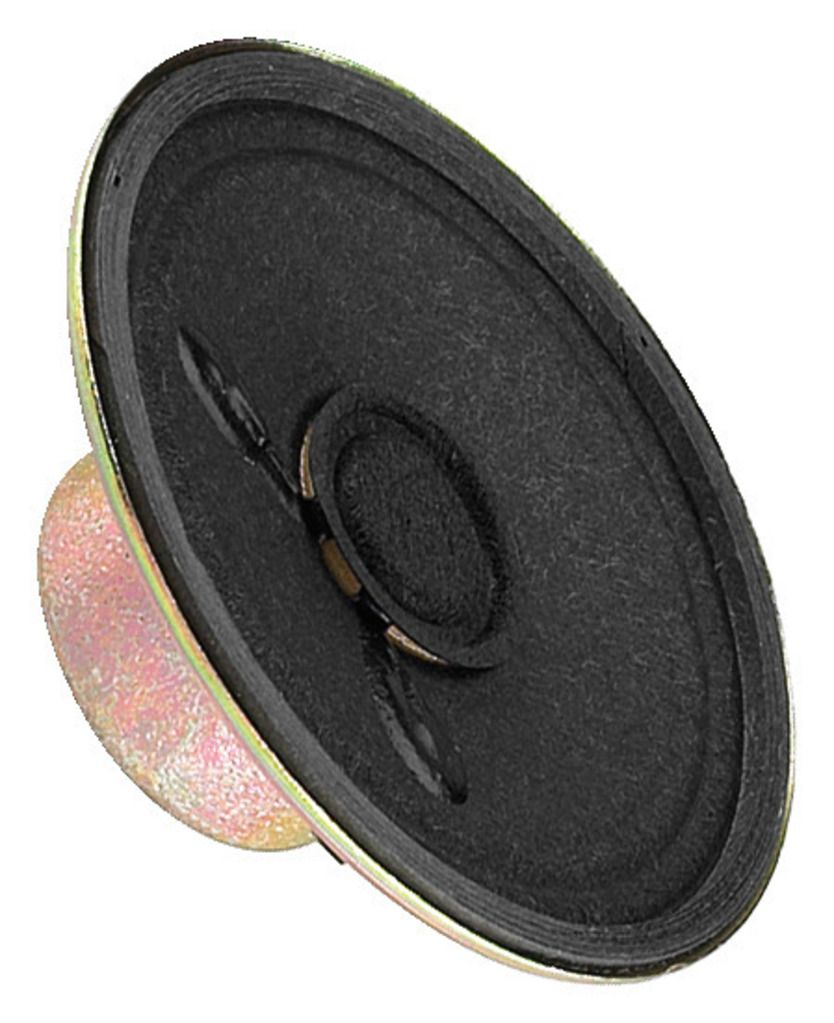

Miniature flush-mount speakers, 8 Ω
  • For general applications in models, intercom systems, miniature radios

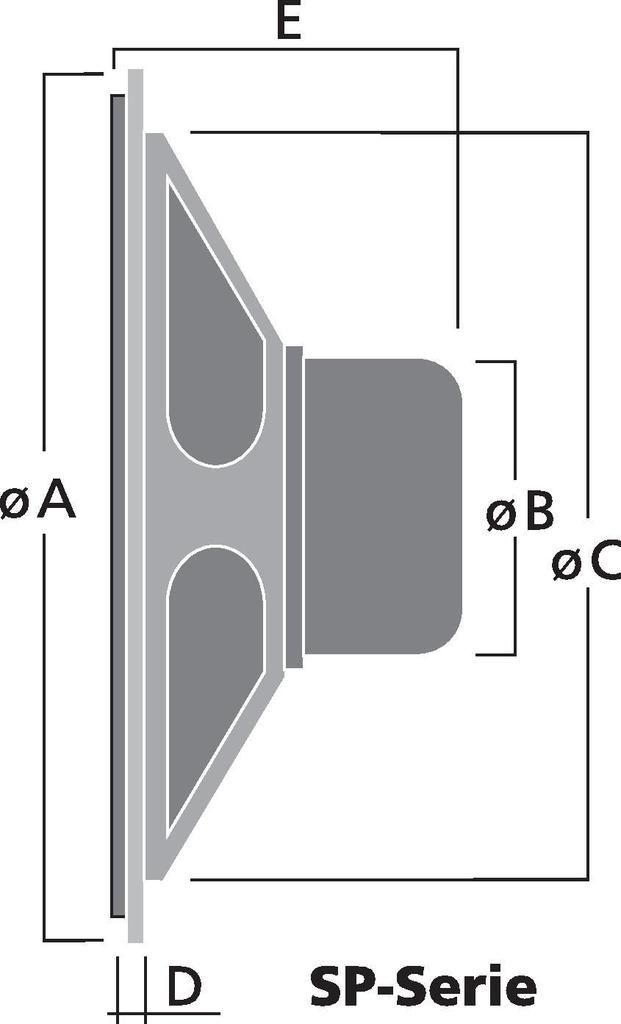

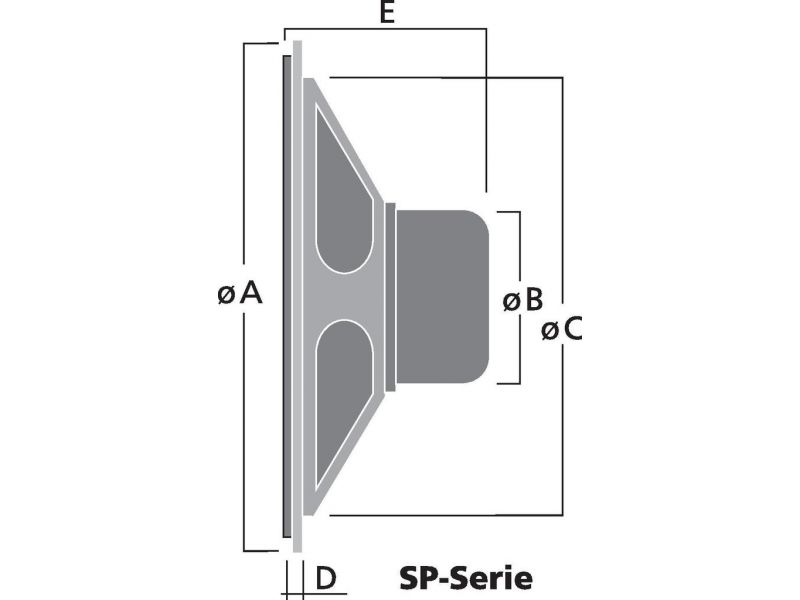

Legend scale drawing:
  • Width = Ø A
  • Depth = E
  • Magnet diameter = Ø B
  • Mounting cutout = Ø C
  • Mounting depth = E-D

Parametry

Impedance (Z) 8 Ω
Frequency range 450-15,000 Hz
Power rating (RMS) 0.25 W
SPL power capability: < 1 W
Magnet diameter Ø 22 mm
Mounting cutout Ø 45 mm
Mounting depth 16 mm
Dimensions Ø 50 mm x 19 mm
Outside diameter Ø 50 mm
Width Ø 50 mm
Depth 19 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.04 kg
Packing unit 1
Packing dimensions (W x H x L) 0.055 x 0.023 x 0.055 m
Gross weight 0.045 kg
Net weight 0.04 kg
