RL-5
Kod EAN: 4007754429954
PA pendant sound projector for ceiling mounting 100 V transmission technology Full-range speaker (13 cm) with high sound pressure and very good transmission range 100 V transformer with power taps on the 6/3/1.5 W cable Silver-coloured aluminium ho...

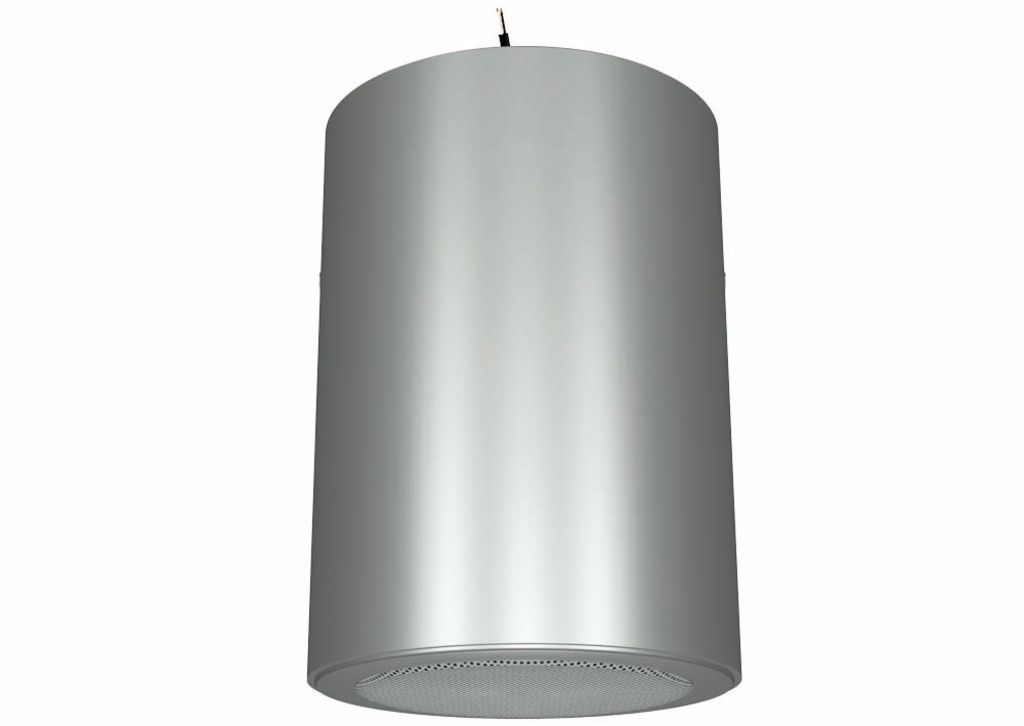

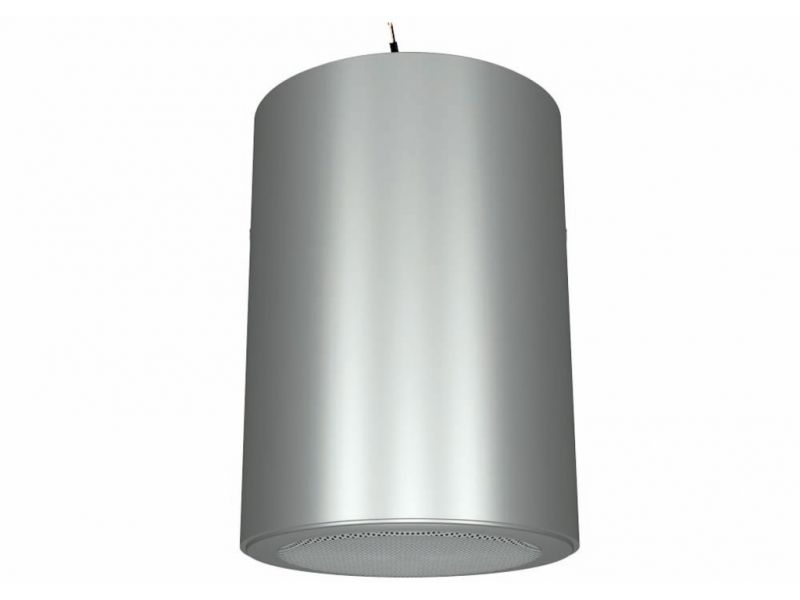

RL-5
PA pendant sound projector
for ceiling mounting
- 100 V transmission technology
- Full-range speaker (13 cm) with high sound pressure and very good transmission range
- 100 V transformer with power taps on the 6/3/1.5 W cable
- Silver-coloured aluminium housing with protective grille
- Connection via 4-core cable (length 3 m)
- Canopy included in the scope of delivery
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 6 W |
| Power rating (RMS) | 6/3/1.5 W |
| Frequency range | 70-19,000 Hz |
| Full range speaker | 13 cm |
| Number of speakers | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB/W/m |
| Max. rated SPL | 101 dB |
| Radiation angle/beam angle | 130° |
| Radiation angle, horizontal | 130° |
| Radiation angle, vertical | 130° |
| Housing material | Aluminium |
| Colour | Silver, RAL 9006 |
| Mounting device | Pendulum suspension |
| Dimensions | Ø 144 mm x 210 mm |
| Width | Ø 144 mm |
| Height | Ø 144 mm |
| Depth | 210 mm |
| Weight | 2.6 kg |
| Inputs | Cable connection |
| Packaging dimensions (W x H x L) | 0.175 x 0.175 x 0.267 m |
| Gross weight | 2.7 kg |
| Net weight | 2.6 kg |
