RL-10
Kod EAN: 4007754430011
PA sound projector for ceiling mounting 100 V transmission technology2-way speaker system (13 cm) with high sound pressure and an excellent frequency range100 V transformer with power taps 15/7.5/3.75 WSilver-coloured aluminium housing with front p...
147,64 € brutto
(inkl. 23% DPH)
120,03 € netto

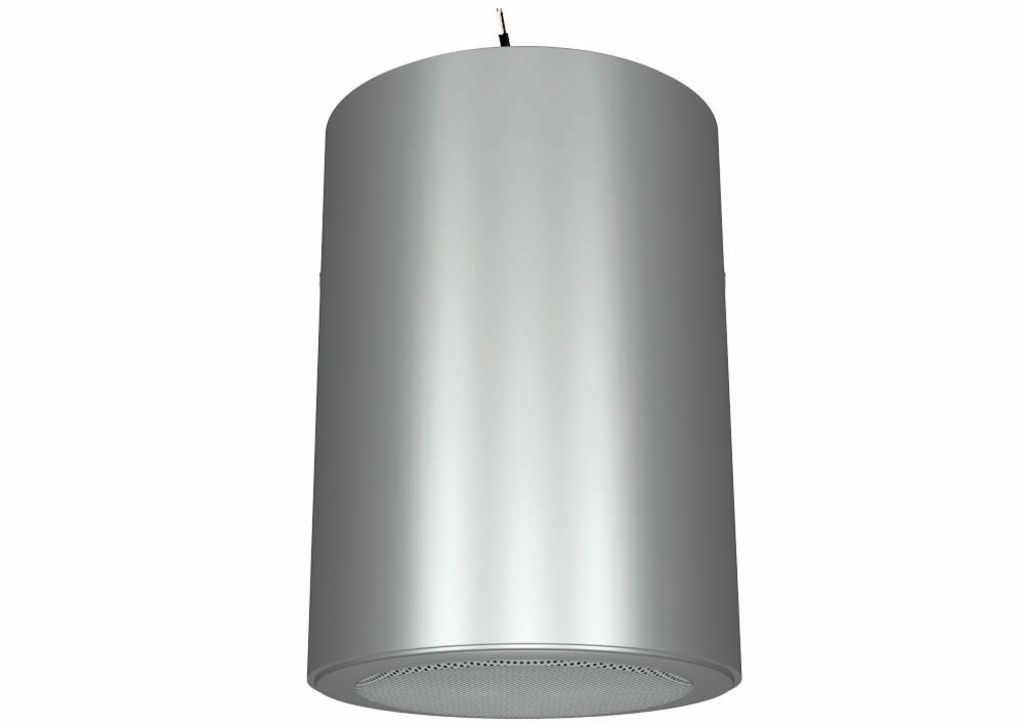

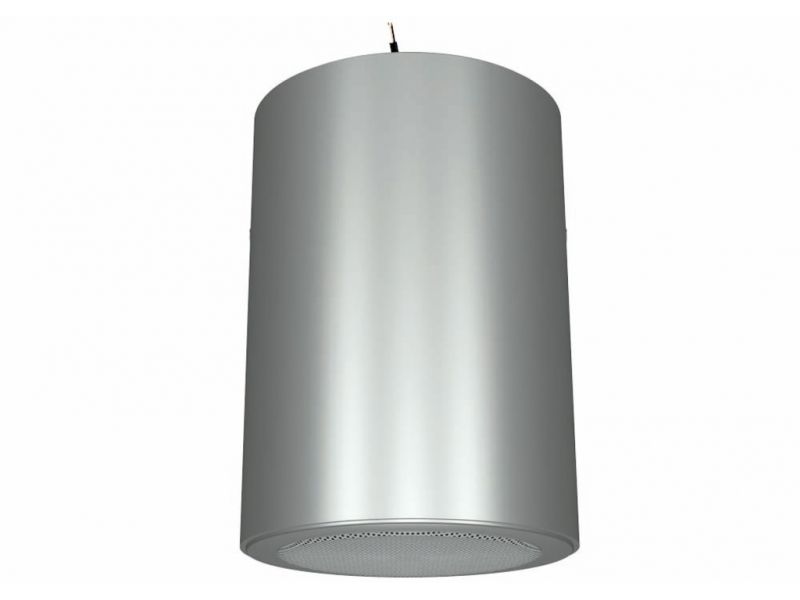

RL-10
PA sound projector
for ceiling mounting
- 100 V transmission technology
2-way speaker system (13 cm) with high sound pressure and an excellent frequency range
100 V transformer with power taps 15/7.5/3.75 W
Silver-coloured aluminium housing with front protective grlle
Connection via pressure clamps
Supplied with mounting accessories
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 15 W |
| Power rating (RMS) | 15/7.5/3.75 W |
| Frequency range | 60-20,000 Hz |
| System | 2-way |
| Number of speakers | 1 |
| Speaker size | 13 cm (5") |
| SPL | 91 dB/W/m |
| Max. rated SPL | 103 dB |
| Radiation angle/beam angle | 130° |
| Radiation angle, horizontal | 130° |
| Radiation angle, vertical | 130° |
| Housing material | aluminium |
| Colour | silver, RAL 9006 |
| Mounting device | aluminium bracket |
| Dimensions | Ø 144 mm x 210 mm |
| Width | Ø 144 mm |
| Height | Ø 144 mm |
| Depth | 210 mm |
| Weight | 2.8 kg |
| Inputs | pressure clamps |
| Packaging dimensions (W x H x L) | 0.175 x 0.175 x 0.267 m |
| Gross weight | 2.9 kg |
| Net weight | 2.8 kg |
