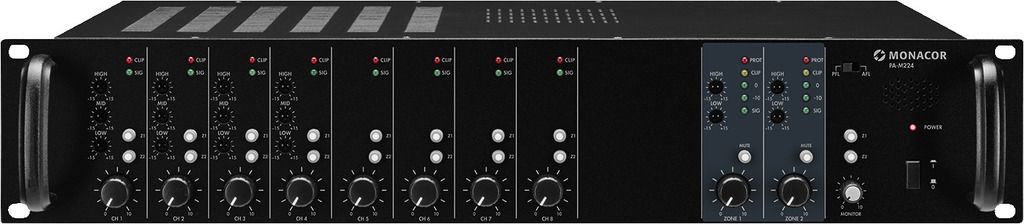

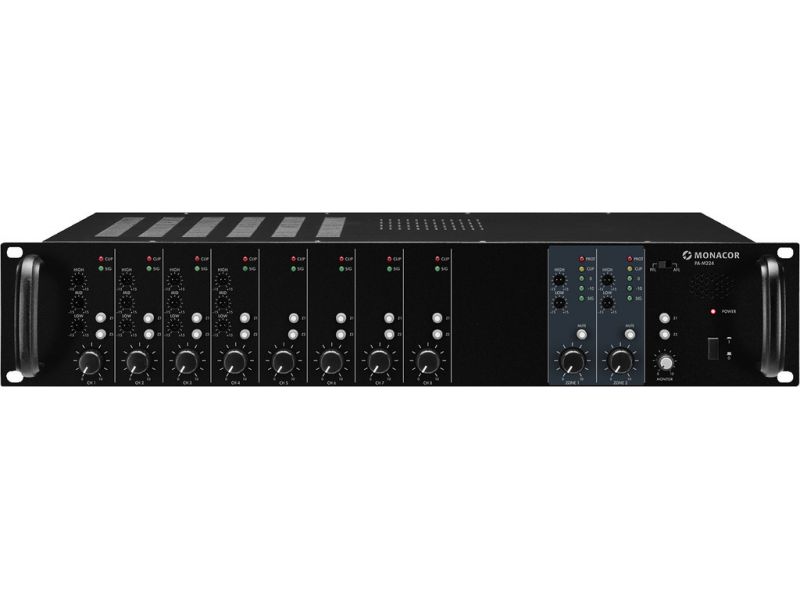

PA-M224

Kod EAN: 4007754273311

2-zone PA matrix mixing amplifier 240 W per zone 2 zones, can be controlled individually, with 2-way tone control Class D concept with a high efficiency to cut energy costs 4 adjustable mic/line inputs with 3-way equalizer and 24 V phantom power, to...

víc

1 308,00 € brutto

(inkl. 20% DPH)
1 090,00 € netto



PA-M224

2-zone PA matrix mixing amplifier
  • 240 W per zone
  • 2 zones, can be controlled individually, with 2-way tone control
  • Class D concept with a high efficiency to cut energy costs
  • 4 adjustable mic/line inputs with 3-way equalizer and 24 V phantom power, to be activated as required
  • 4 adjustable line inputs
  • Mute function for muting individual zones
  • Connection for external mute switch (all zones simultaneously)
  • Talkover (channel 1)
  • Adjustable monitor function
  • 1 connection for zone paging microphone PA-M4RC
  • 2 connections for wall module PA-M1WP
  • 482 mm (19") rack installation

Parametry

Peak output power 2 x 290 W
Power rating 2 x 240 W
Channels 8
Zones 2
Inputs 2.5 mV/20 kΩ (mic), 2 V/20 kΩ (line)
Frequency range 20-20,000 Hz
Equalizer bass ±12 dB/80 Hz (channels 1-4) ±15 dB/80 Hz (zones 1-4)
Equalizer midrange ±12 dB/2.5 kHz (channels 1-4)
Equalizer treble ±12 dB/12.5 kHz (channels 1-4) ±15 dB/12 kHz (zones 1-4)
S/N ratio > 70 dB
THD < 0.1%
Phantom power 24 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 800 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 88 mm
Depth 320 mm
Rack units, RU 2
Weight 5.7 kg

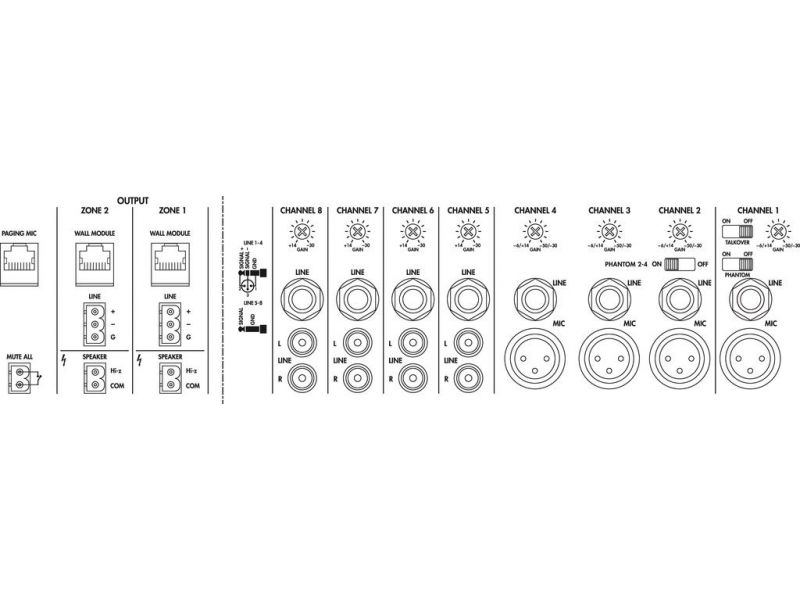

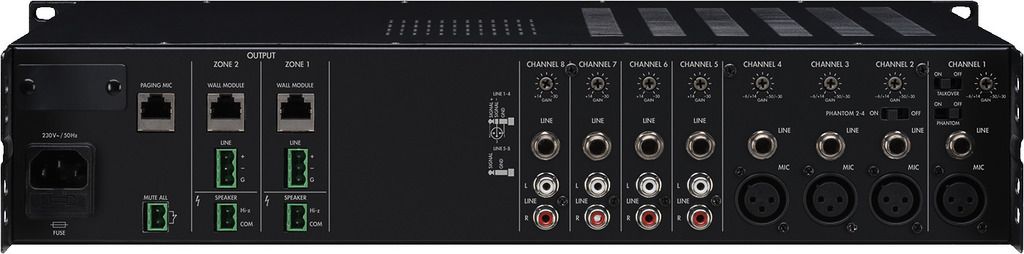

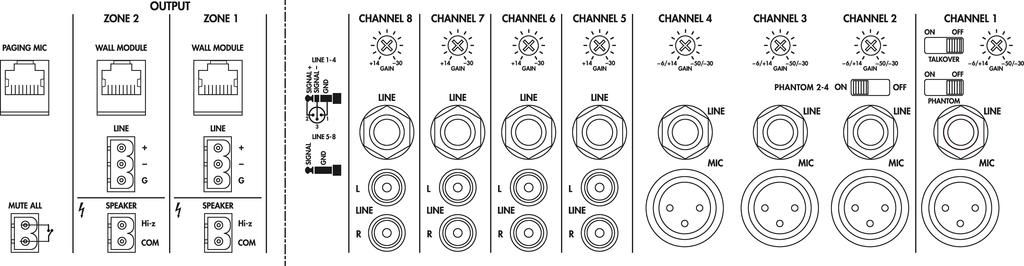

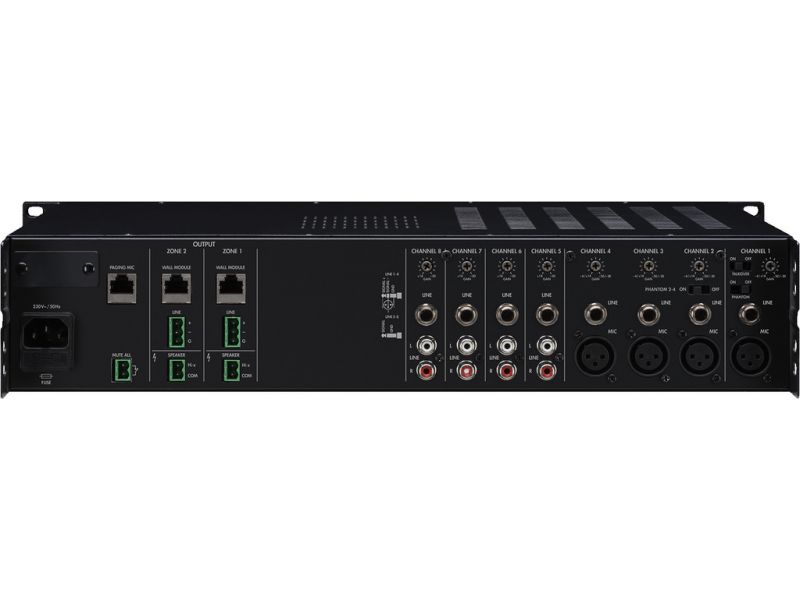

Connections 4 x XLR, bal. (mic 1-4), 4 x 6.3 mm jack (line 1-4), 4 x 6.3 mm jack (line 5-8), 4 x RCA L/R (line 5-8) 1 x RJ45 (push-to-talk microphone), 2 x RJ45 (remote in), screw terminal (speakers)
Packing dimensions (W x H x L) 0.54 x 0.17 x 0.41 m
Gross weight 6.83 kg
Net weight 5.71 kg
