PM-2/15A
Kod EAN: 4007754020502
Moving coil panel meter With mirror scale All-plastic housing Quality class 2 Zero point correction Prewired for illumination Measuring range: 15 A For illumination purposes, these panel meters can subsequently be fitted with two LEDs with serie...
24,90 € brutto
(inkl. 23% DPH)
20,24 € netto

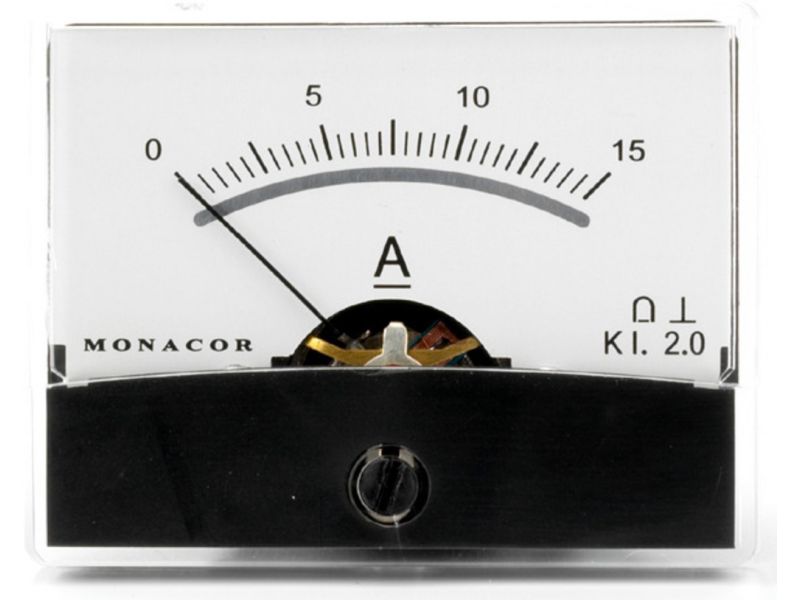

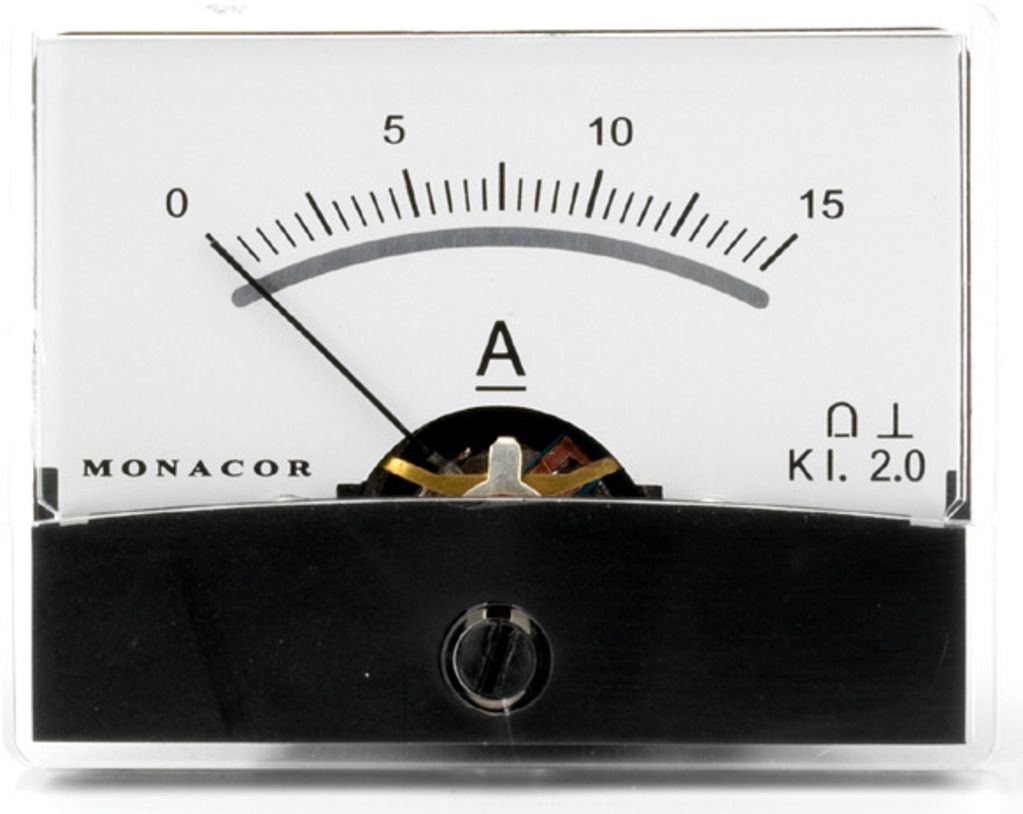

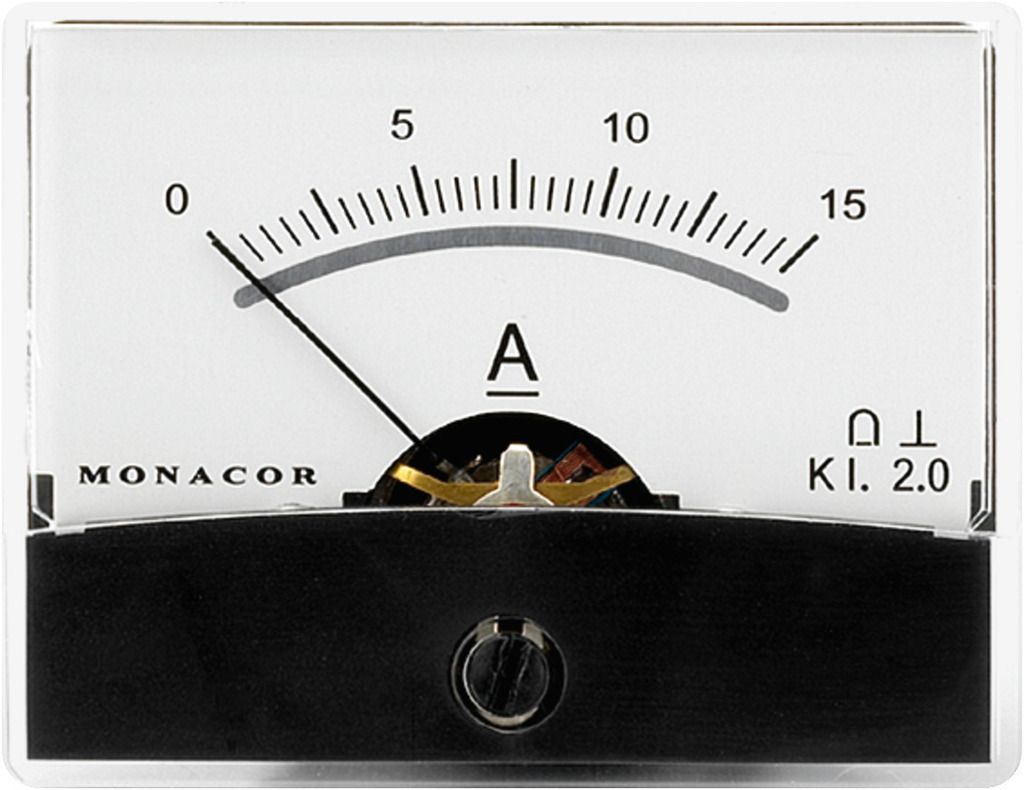

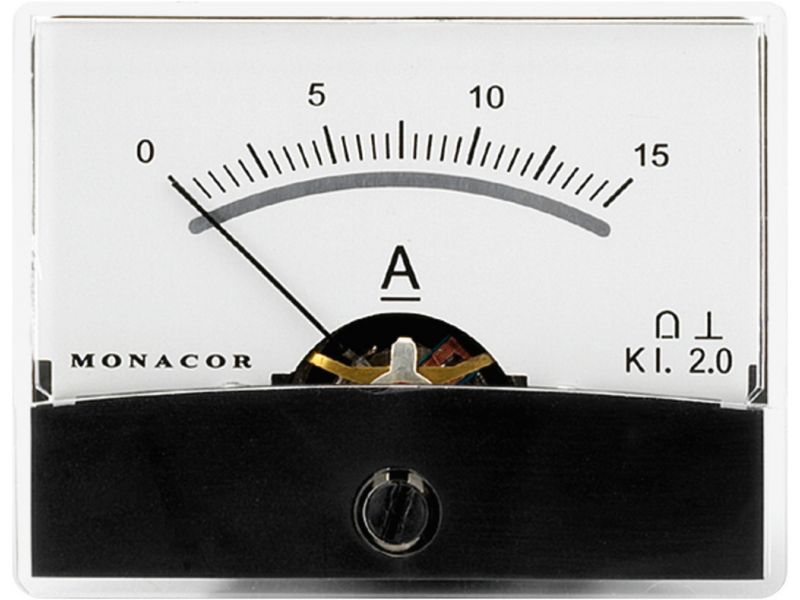

PM-2/15A
Moving coil panel meter
- With mirror scale
- All-plastic housing
- Quality class 2
- Zero point correction
- Prewired for illumination
- Measuring range: 15 A
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Measuring range | 15 A |
| Internal resistance | 4 mΩ |
| Dimensions display | 60.3 x 46.3 mm |
| Mounting cutout | Ø 37.5 mm |
| Mounting depth | 23 mm |
