PA-6020Z

Kod EAN: 4007754275599

20-zone mono PA mixing amplifier 1 x 600 W 20 zones, can be controlled individually 3 inputs microphone/line via comb. jacks 2 inputs stereo line via RCA jacks Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (...

víc

1 599,00 € brutto

(inkl. 23% DPH)
1 300,00 € netto

Staň se partnerem
Kup teď

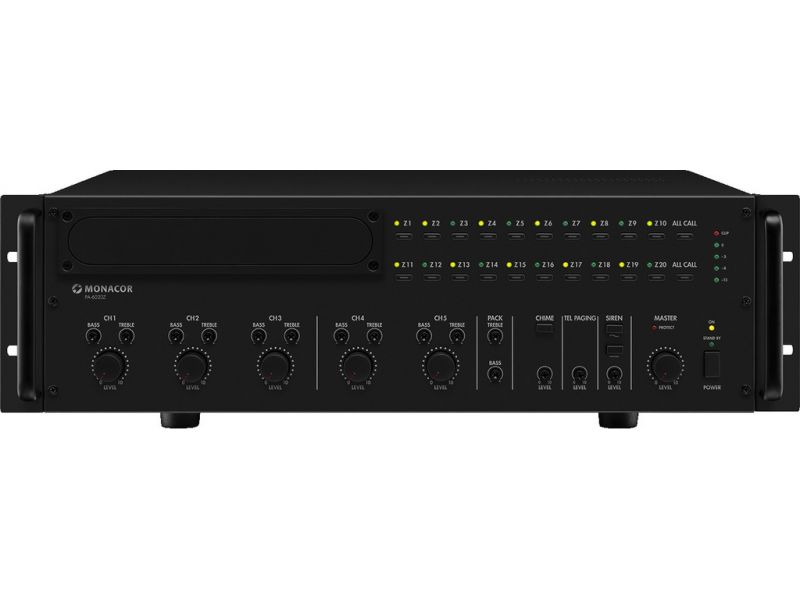

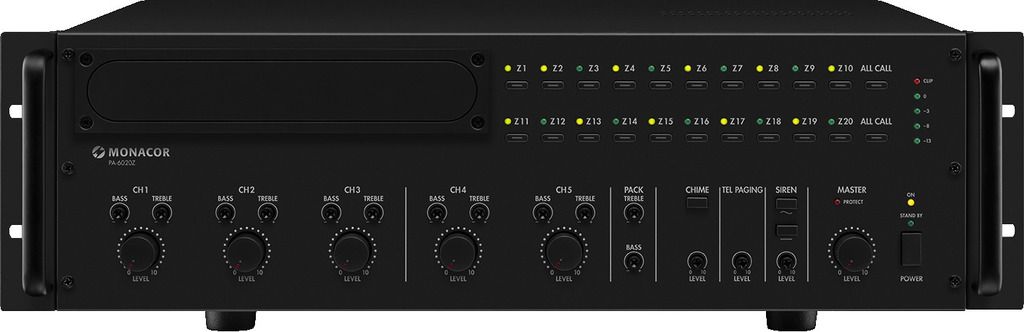

PA-6020Z

20-zone mono PA mixing amplifier
  • 1 x 600 W
  • 20 zones, can be controlled individually
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs stereo line via RCA jacks
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
  • Insertions for various functions are available at option
  • 15 V phantom power for electret microphones
  • Connection for up to 32 zone paging microphones PA-2400RC
  • Connection for up to 3 push-to-talk microphones PA-4300PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametry

Peak output power 600 W
Power rating 600 W
Power rating at 4 Ω 600 W
Power rating at 100 V 600 W
Channels 5
Zones 20
Inputs 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3), 0.3 V/15 kΩ (line 4-5), 0.775 V/100 kΩ (preamplifier)
Frequency range 55-16,000 Hz
Equalizer bass ±10 dB/100 Hz
Equalizer treble ±10 dB/10 kHz
S/N ratio > 70 dB (mic), > 80 dB (line)
THD < 1%
Phantom power 15 V
Power supply ˜ 230 V/50 Hz/1,700 VA, DC 24 V/50 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,700 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 50 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 352 mm
Rack units, RU 3
Weight 21 kg

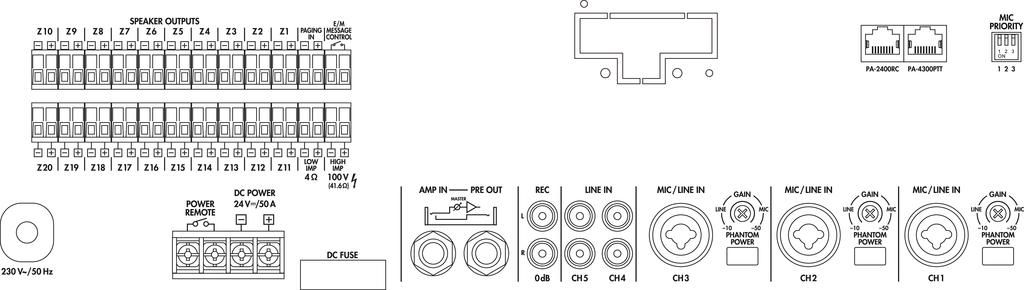

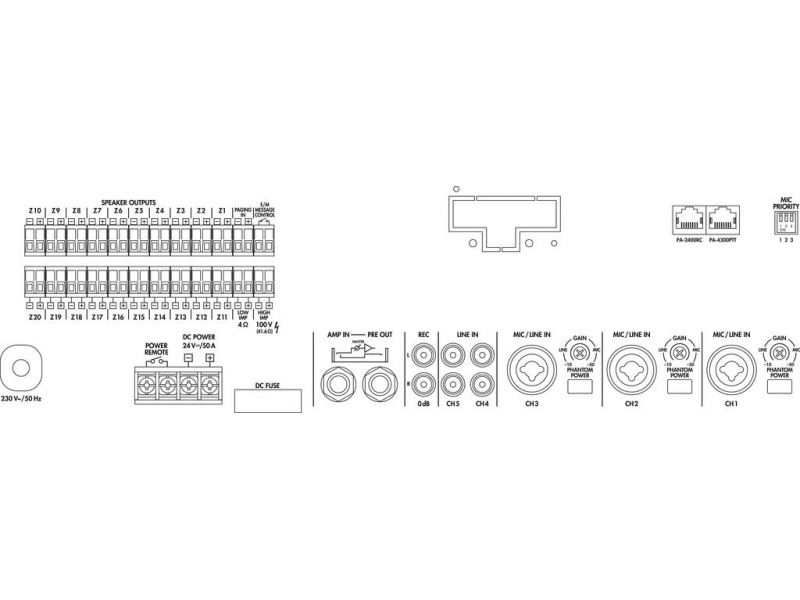

Connections 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplfier input), 1 x RJ45 (push-to-talk mic), 1 x RJ45 (zone paging mic), 1 x RCA L/R (record output), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.54 x 0.21 x 0.47 m
Gross weight 22.9 kg
Net weight 21 kg

Na stáhnutí

Produktová karta PA-6020Z pdf-zeichnung konformitaetserklaerung-ce konformitaetserklaerung-ukca Návod na obsluhu
