NAC3MX-W-TOP
Kod EAN: 7613187011849
NEUTRIK POWERCON True1 TOP Connectors Complies with safety requirements of IEC 60320, VDE-certified For mains connection up to ˜ 250 V/16 A Connections for ground, phase and neutral conductor, connector can be connected under load Robust version with...
12,80 € brutto
(inkl. 23% DPH)
10,41 € netto

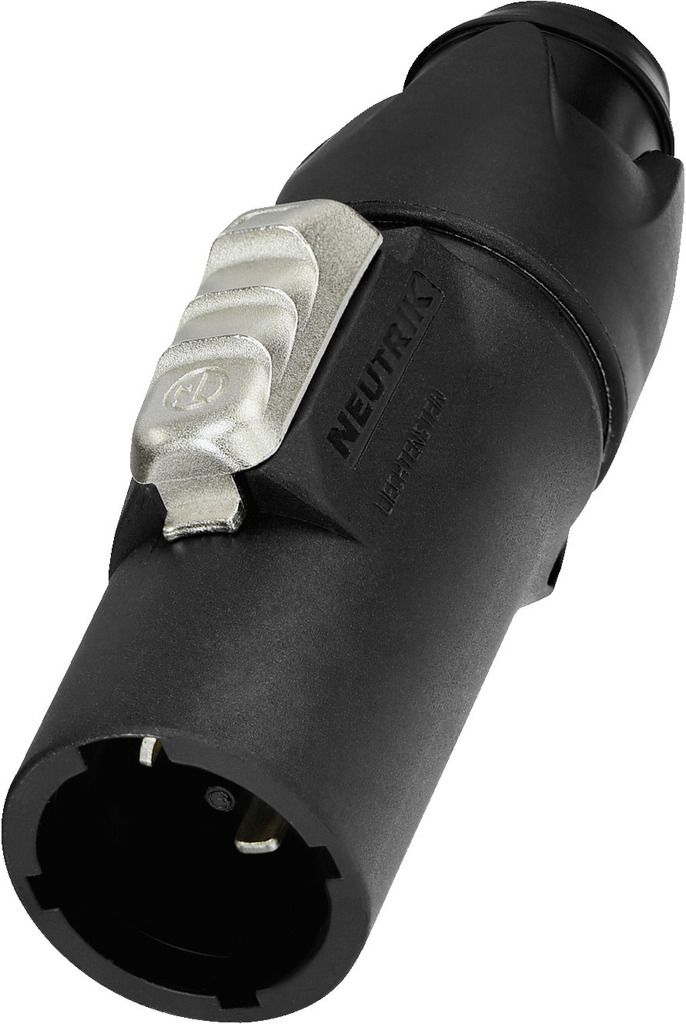

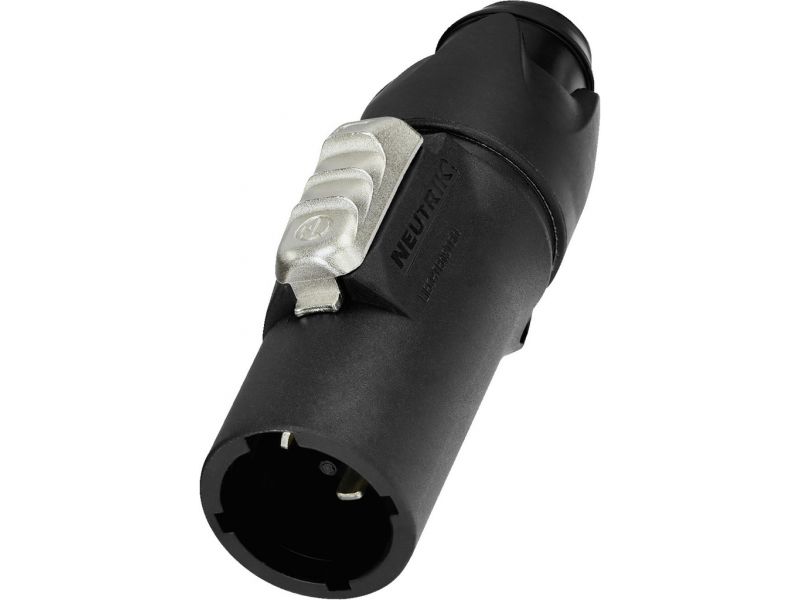

NAC3MX-W-TOP
NEUTRIK POWERCON True1 TOP Connectors
- Complies with safety requirements of IEC 60320, VDE-certified
- For mains connection up to ˜ 250 V/16 A
- Connections for ground, phase and neutral conductor, connector can be connected under load
- Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
- Self-extinguishing according to UL 94V-0
- Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)
NEUTRIK POWERCON True1 TOP plug
- Complies with safety requirements of IEC 60320, VDE-certified
- For mains connection up to ˜ 250 V/16 A
- Connections for ground, phase and neutral conductor, connector can be connected under load
- Robust version with latching device and cable inlet with self-adjusting clamps
- Self-extinguishing according to UL 94V-0
- Protection classs IP65
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametry
| Description | plug |
| Type | NEUTRIK POWERCON TOP |
| Quantity | 1 |
| Features | latching device |
| Colour/colour coding | black |
| Power rating | ˜ 250 V/16 A |
| Insulating resistance | > 100 MΩ |
| Dielectric strength | DC 4 kV/˜ 2.8 kV |
| Certification | UL, VDE |
| Pole number | 2+PE |
| Cable inlet | 6-12 mm |
| Strain relief | yes |
| Material | silver-plated bronze contacts, plastic |
| Admiss. ambient temp. | -30-+80 °C |
| Dimensions | Ø 26.5 mm x 77-80 mm |
| Weight | 32 g |
